Suvirinimo aparatas MIG/MMA/TIG LIFT IDEAL 202 LED, 230V, 200A, komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MMA/TIG LIFT IDEAL 202 LED, 230V, 200A, komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG202LED_pakiet3

Welding current 200 A (TIG/MIG), 160 A (MMA). Power supply 230 V.

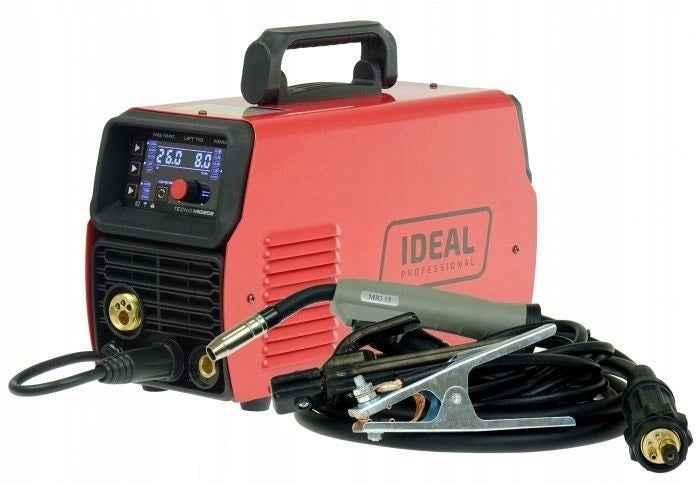

Standard equipment:

• semi-automatic welding machine
• MIG holder MB-15 / 3 m with euro plug
• mass cable / 2,5 m
• electrode cable / 2,5 m
• set of rollers for steel fi 0,8 / 1,0 mm V-shaped (mounted in the feeder)
• Coated spiral cartridge for steel (mounted in the holder)
• instruction manual in Polish

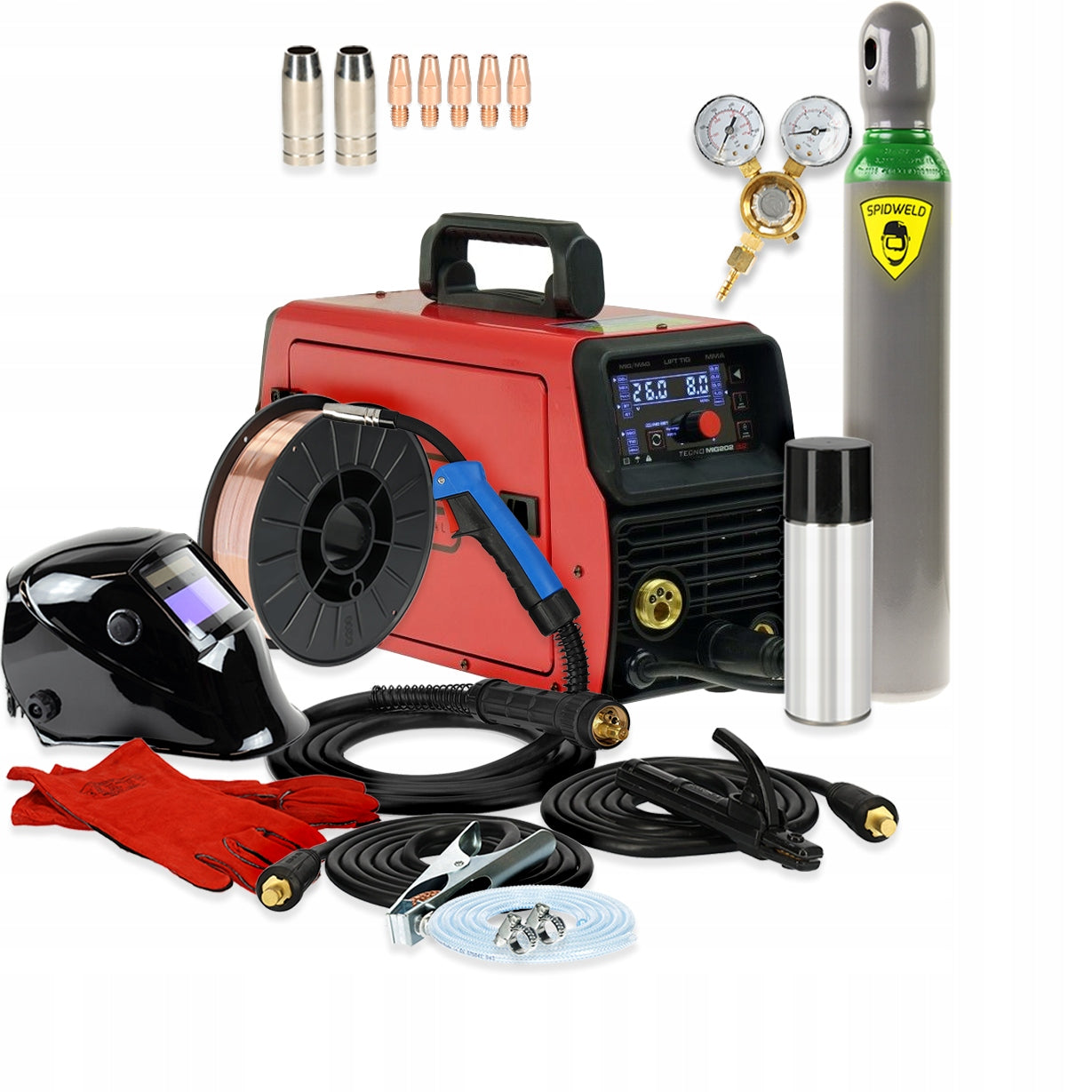

Expert+ Accessory Pack:

• self-tinting visor 510G
• anti-chipping preparation 400ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• hose for gas connection + clamps

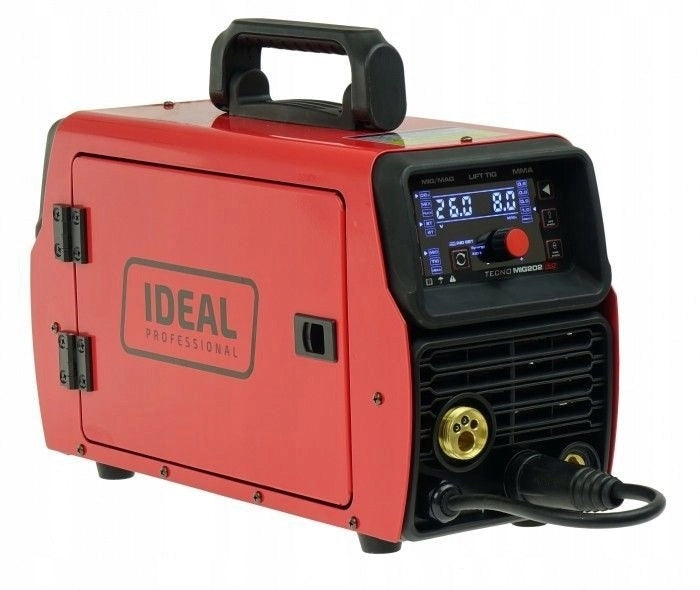

Ideal Tecnomig 202 LED is an inverter synergistic semi-automatic welding machine designed for MIG/MAG, TIG LIFT, MMA and FLUX arc welding.

The device is designed for a wide range of applications, from maintenance work to car body repairs.

Main features:

• power supply: 230 V
• max. welding current: 200 A
• Protection: C25 A

The welding machine is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum.

Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

With the MIG/MAG method, it is possible to work in 2T mode (without button lock) and in 4T mode (button lock for long welds).

Readable LED display allows accurate adjustment of the device, even in very strong lighting.

The VRD (Voltage Reduction Device) function reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

Other parameters:

• the device has a fan cooling system, which significantly increases its efficiency;
• the device is equipped with overload protection, which increases its reliability;
• single-phase power supply;
• The device is equipped with a power plug.

Supported Diameters:

• aluminium wire: 0,8 - 1,0 mm
• Self-shielding wire: 0,8 - 1,0 mm
• steel wire: 0,6 - 1,0 mm
• stainless steel wire: 0,6 - 1,0 mm
• solder wire: 0,8 mm
• welding electrode: 1,6 - 4,0 mm

Technical parameters:

• power supply: 230 V
• maximum welding current: 200 A
• processes: MIG / MMA / TIG LIFT
• cooling: gas
• type of wire feeder: internal 2 roller
• welding current adjustment range: MIG: 50 -200 A; MMA: 10 -160 A; TIG Lift 10 - 200 A
• current / duty cycle: MIG/TIG Lift: 200 A/ 60%; 155 A / 100%; MMA: 160 A / 60% ; 124 A / 100%
• Protection: C25 A
• Power consumption: 6,2 kW
• idle voltage: 74 V
• wire spool: 5,00kg/D200
• Functions: 2T/4T,TIG Lift, FLUX, soldering
• dimensions: 455 x 170 x 300 mm
• Weight: 10 kg

The 510G self-tinting visor is characterized by a variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

- Chamber width: 5cm

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Botla filled with high quality Ar/CO2 compound designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap to protect the valve, is brand new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l] : 8
• Amount of gas [m3] : 1,3
• Weight [kg] : ~15
