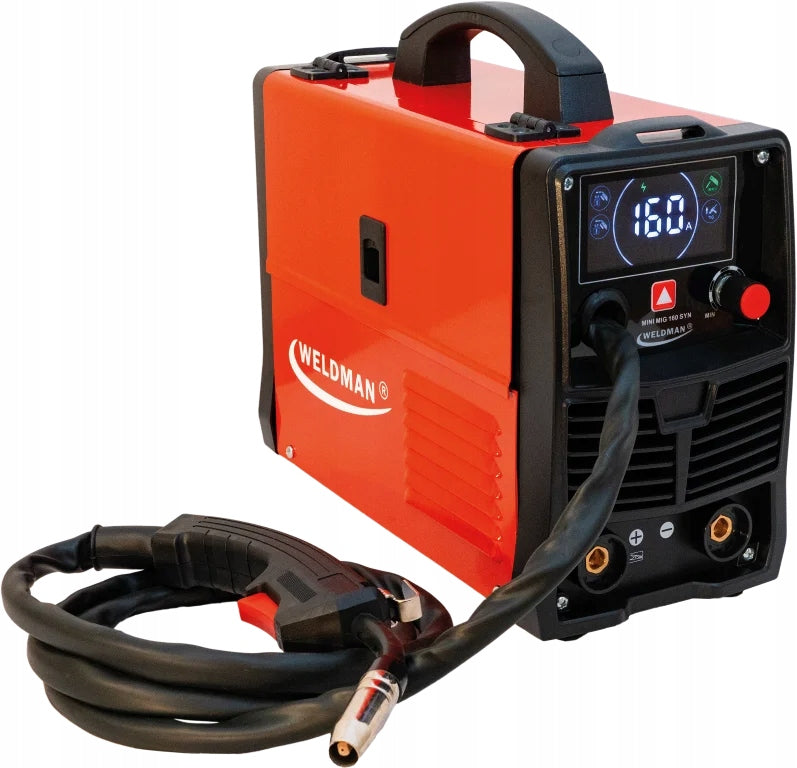

Suvirinimo aparatas MIG/MMA 2in1 MINI MIG 160 SYNERGY WELDMAN FLUX su skydeliu

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MMA 2in1 MINI MIG 160 SYNERGY WELDMAN FLUX su skydeliu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 160MMA L
• Ilgis: 535 mm
• Plotis: 230 mm
• Aukštis: 370 mm

MIG MMA welder 2in1 MINI MIG 160 SYNERGY WELDMAN MIGOMAT FLUX Visor

WELDMAN

These devices of the MINI MIG 160 series (from now on called the welding machine) were made on the basis of IGBT inverter technology, has the function of synergy and is designed for MIG welding without gas shield (FLUX) with wire on the max spool of 1 kg sheets with a thickness of up to 4 mm. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

The welding machine is designed for welding by the following methods:

• FLUX (without gas shield) – black steel -
• MMA (DC electrode welding) – black steel, stainless steel, aluminium and cast iron
• TIG DC LIFT (contact arc glow) – black steel, stainless steel, copper and cast iron.

✅ Welding torch 1,7 m

✅ WELDING CURRENT 35-160 A

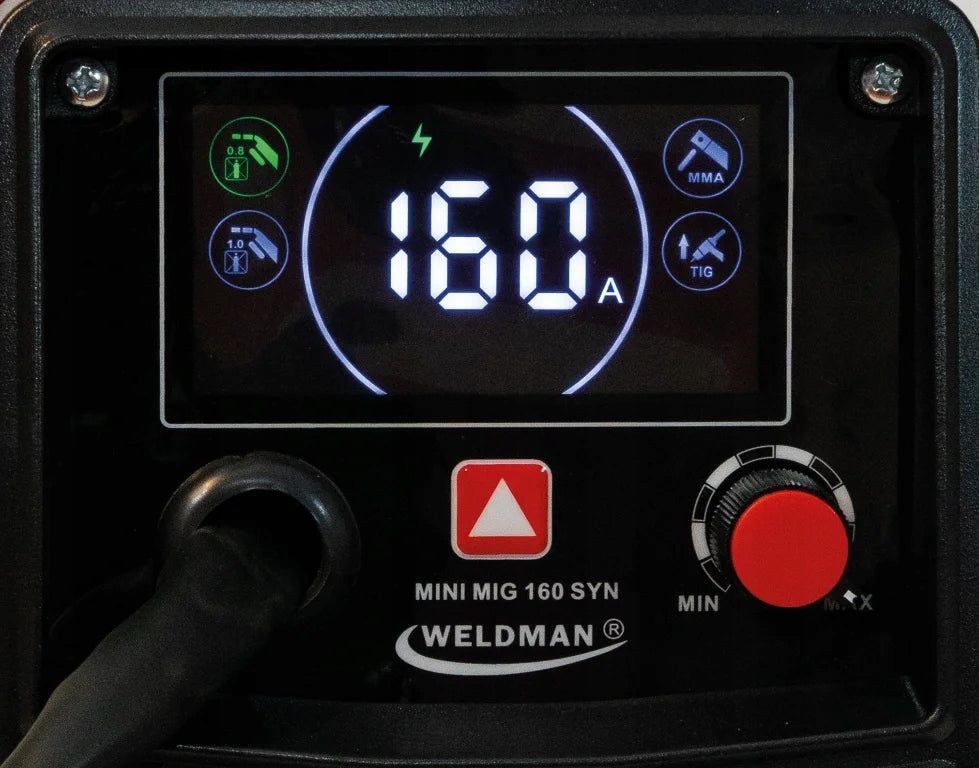

✅ SYnergic parameter adjustment

✅FLUX WELDING

✅ Low weight and mobility of the device

✅Possibility of welding without gas

• Code 103 128
• Device type MINI MIG 160 SYN
• Supply voltage [V] 230
• Idle current voltage [V] 62
• Welding current adjustment range [A] 35-160
• Efficiency max at 40°C
• EN 60974-1 160A@60% 130A@100%
• Electrode diameter [mm] 2-3,2
• Wire diameter FLUX 0,8-0,9/1,0
• Dimensions [cm] 35x16x28
• Weight [kg] 5,6

WELDMAN

Weldman is a Polish innovative brand that has its roots in passion for modern technologies related to the field of workshop technology. From the very beginning, we have been guided by the idea of creating products of the highest quality, based on the latest technological achievements, at an affordable price Our offer includes a wide range of welding equipment, rectifiers and start-ups, spotters, induction heaters and plasma cutters.

Enables welding by method, MIG FLUX with self-shielding welding wire and MMA method

Single-phase power supply.

Cooled by a fan.

Protection against overload.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

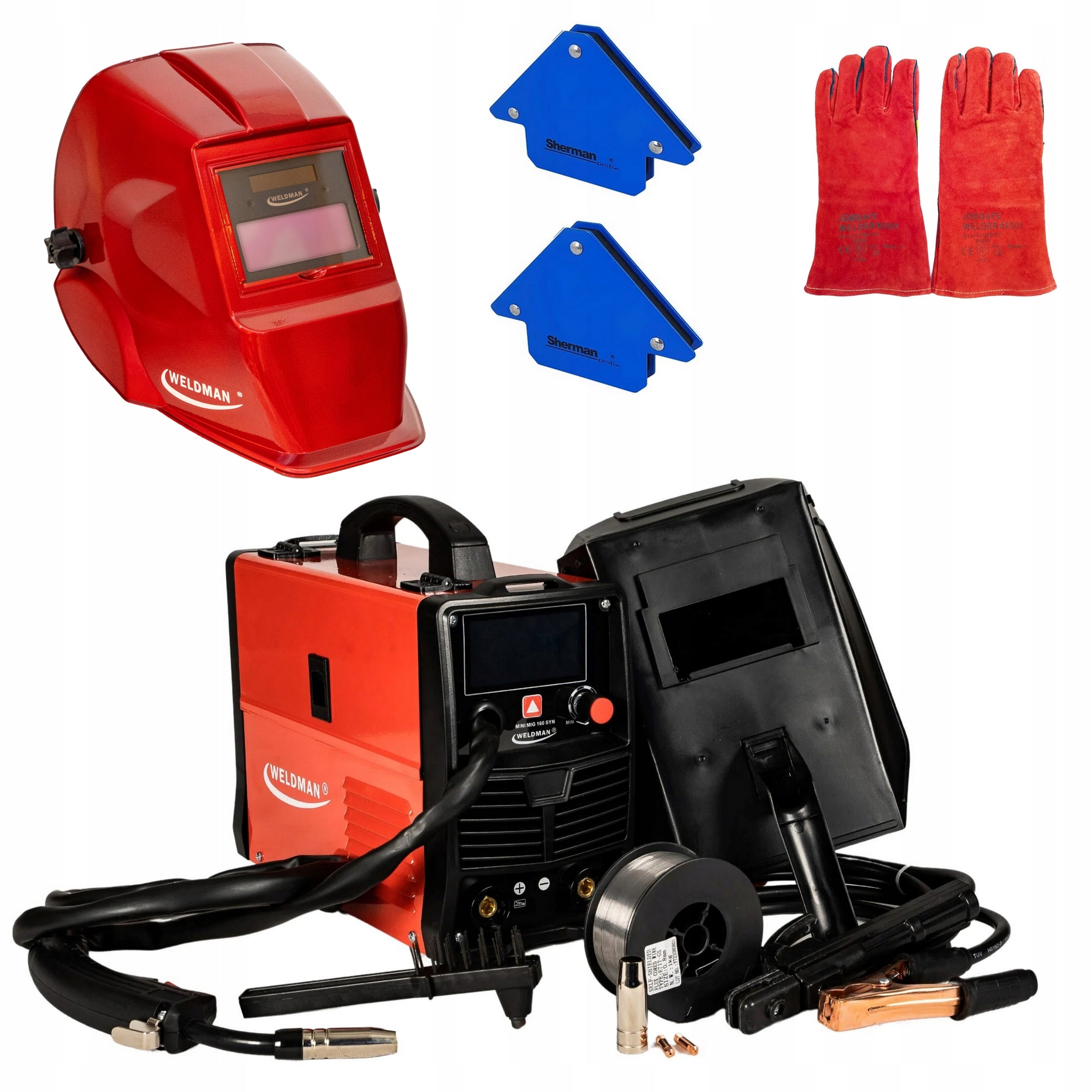

• welding torch fixed 2 m (1,7 m outside welding machine)
• welding wire 2 m with electrode holder 200 A (DX25)
• mass cable 1,6 m with terminal 200 A (DX25)
• 2 m power cord with 230V plug
• Welding disc and brush
• handle consumables
• Self-shielding wire spool 1Kg 0,8 mm
• Welding visor weldman Basic
• Welding gloves

• Model: BASIC
• The size of the filter inside. [mm]:110x90x9
• Field of view [mm]:90×35
• Number of arc sensors:2
• Min current for TIG (:20A
• Transparent State (DIN): 4
• UV/IR (DIN) protection:16
• Choosing the degree of obfuscation: NO
• Darkening Degree (DIN) 9-13
• Response time (s):1/15 000
• Brightening time (s):0,1-1
• Adjustment: darkening/liquid sensitivity
• Delay Adjustment: Smooth
• Grinding/cutting function: YES
• TEST function: NO
• Battery Indicator: No

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	2.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	10%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	17 kg
Parametry	Welding range	40–120 A
Parametry	Height	370 mm
Parametry	Length	535 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	220 cm
Parametry	Product weight with unit packaging	25 kg
Parametry	Manufacturer code	U MI 160MMA L
Parametry	EAN (GTIN)	5901076102313
Parametry	Additional features	welding mask included,infinitely adjustable welding current
