Trumpai apie prekę
Prekė: Suvirinimo aparatas MIG/MMA 200A KD1788 KRAFT&DELE. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Kraft&Dele
- Modelis: KD1788
- Ilgis: 310 mm
- Plotis: 155 mm
- Aukštis: 220 mm

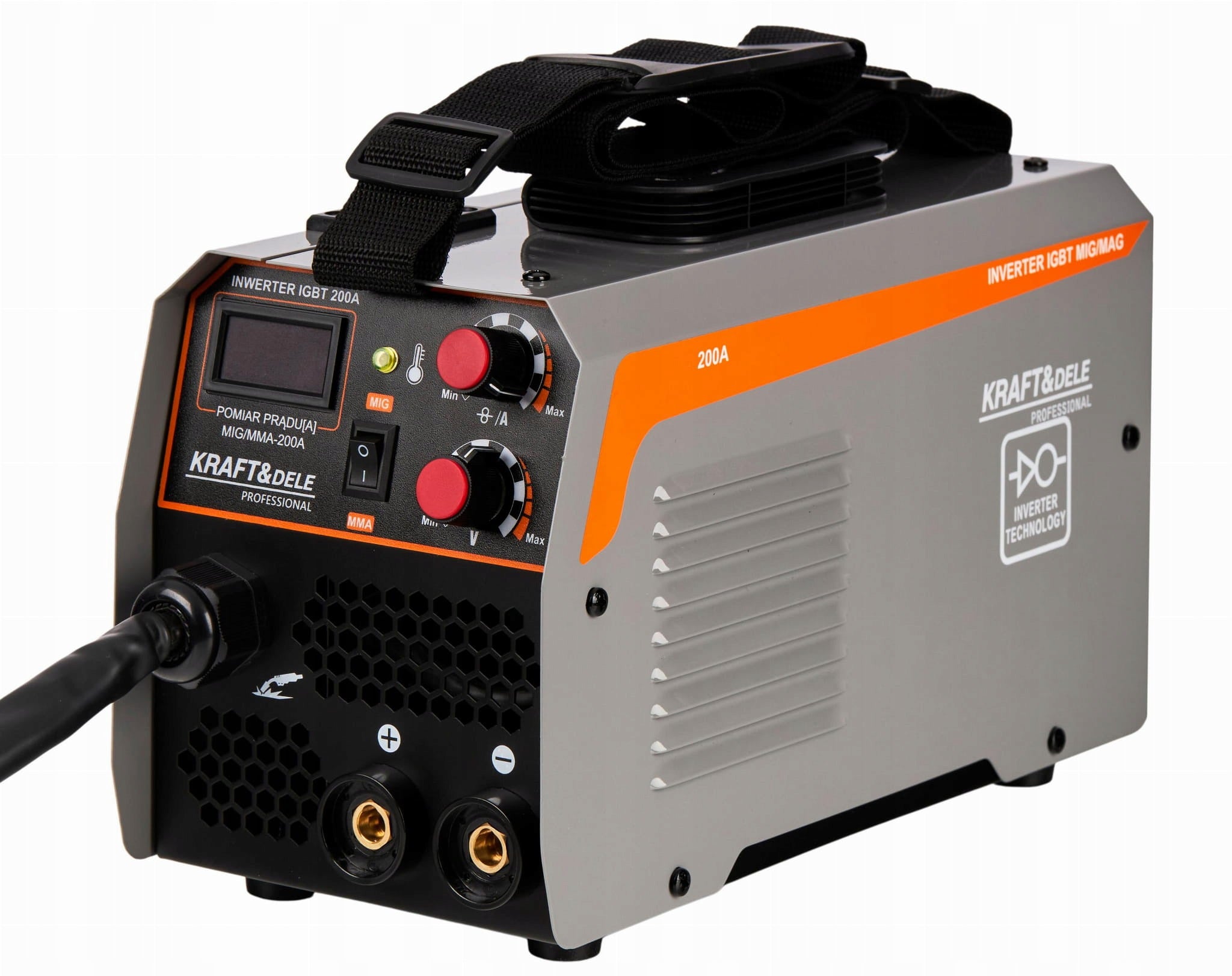

MIG/MMA WELDING MACHINE 200A MODEL KD1788 KRAFT&DELE
KRAFT&DELE
The KD1788 is an inverter welder combining two welding methods in one housing: MIG (gas-shielded wire electrode) and MMA (covered electrode). The device operates on a single-phase 220V power supply, supports materials from 0.8 mm thick and weighs 7.5 kg, which makes it easier to work in various locations.
Welding methods MIG / MMA Max. welding current 200 A Duty cycle 60% Device weight 7.5 kg
Device characteristics
Two welding methods in one device
The KD1788 supports MIG welding, recommended for thinner materials and jobs requiring aesthetic welds, and MMA welding, used for thicker components and field work. Switching between methods eliminates the need for two separate devices.
Current regulation range
In MIG mode, the current is adjustable in the range of 40–200 A, in MMA mode from 20 to 200 A. The wide range allows welding of both thin sheets (from 0.8 mm) and thicker steel structures, without the risk of burning the material at low settings.
60% duty cycle and 80% efficiency
A 60% duty cycle at maximum load means the device can run for 6 minutes in every 10-minute window without risk of overheating. Energy efficiency of 80% translates into lower energy consumption compared to the power delivered to the welding arc.
Compact wire feeder
The built-in feeder supports 200 mm diameter spools with 0.8 or 1.0 mm wire. The wire feed speed is adjustable in the range of 2–13 m/min, which allows you to adjust the parameters to the type of material and weld thickness. 0.8 mm wire is used for thinner sheets, 1.0 mm for thicker elements.
Technical specifications
ModelKD1788 Power Supply1-phase 220 V ±15% Frequency50/60 Hz Rated Input Current30 A MIG Output Current40-200 A MMA Output Current20-200 A Output Voltage15.5-24 V Duty Cycle60% Power Factor0.73 Efficiency80% Wire Feed Speed2-13 m/min Spool Diameter200 mm Wire Diameter0.8 / 1.0 mm Minimum Material Thickness0.8 mm Protection ClassIP21 Insulation ClassF Weight7.5 kg Dimensions (L × W × H)320 × 160 × 190 mm
IP21 protection class – what does this mean in practice?
IP21 means protection against touch with a finger (first digit: 2) and against vertically falling drops of water (second digit: 1). The device is intended for indoor use – in workshops, production halls and garages. It should not be used outdoors in rain or in environments with high humidity.
Typical applications
- Welding of bodywork elements and body sheets (MIG, 0.8 mm wire)
- Repair and joining of steel structures in the workshop
- MIG welding of stainless steel with appropriate wire and shielding gas
- Work on fences, gates and metal elements in construction
- MMA electrode welding in renovation and construction works
- Repairs of agricultural machinery and work equipment
- Production of metal furniture and decorative steel elements

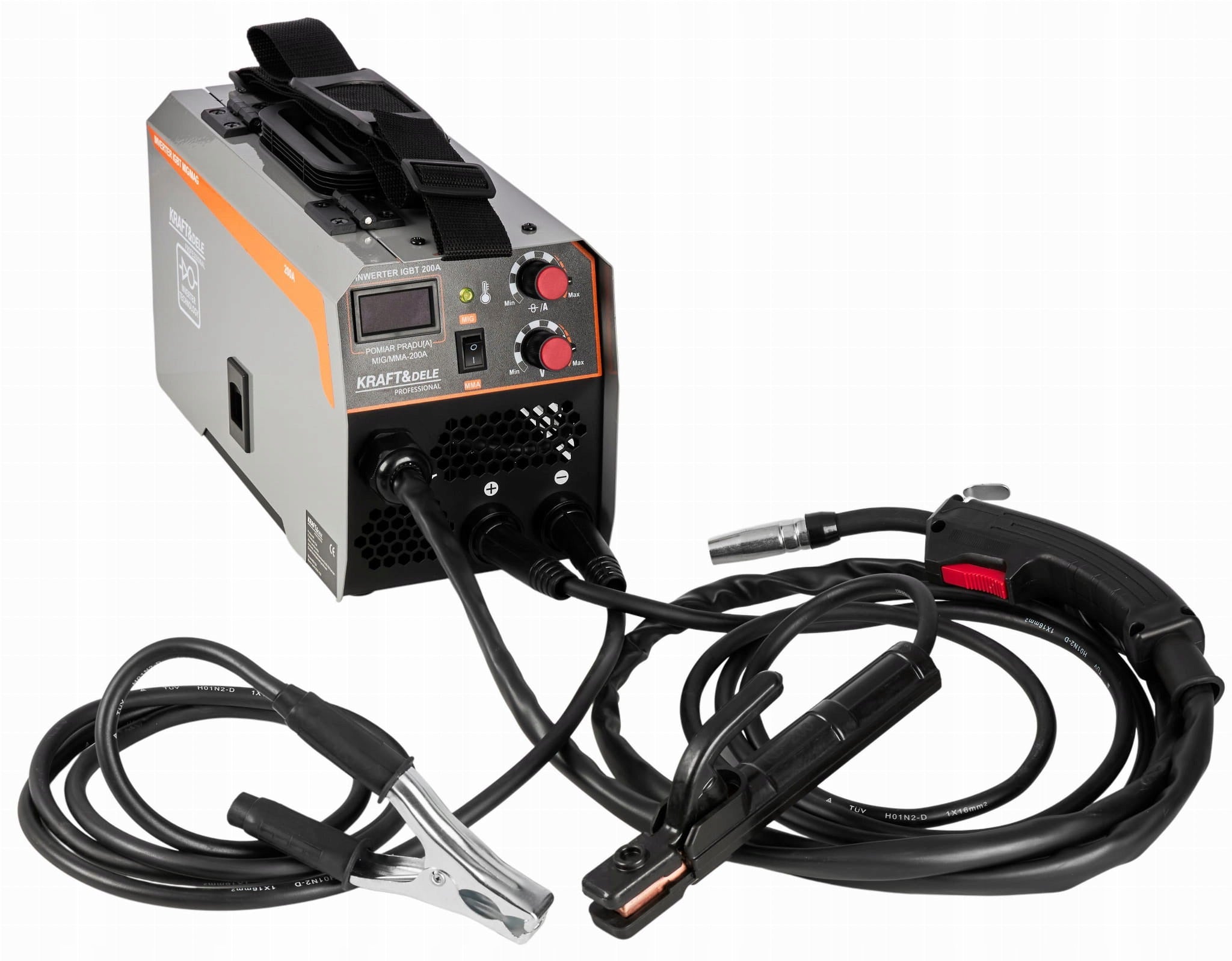

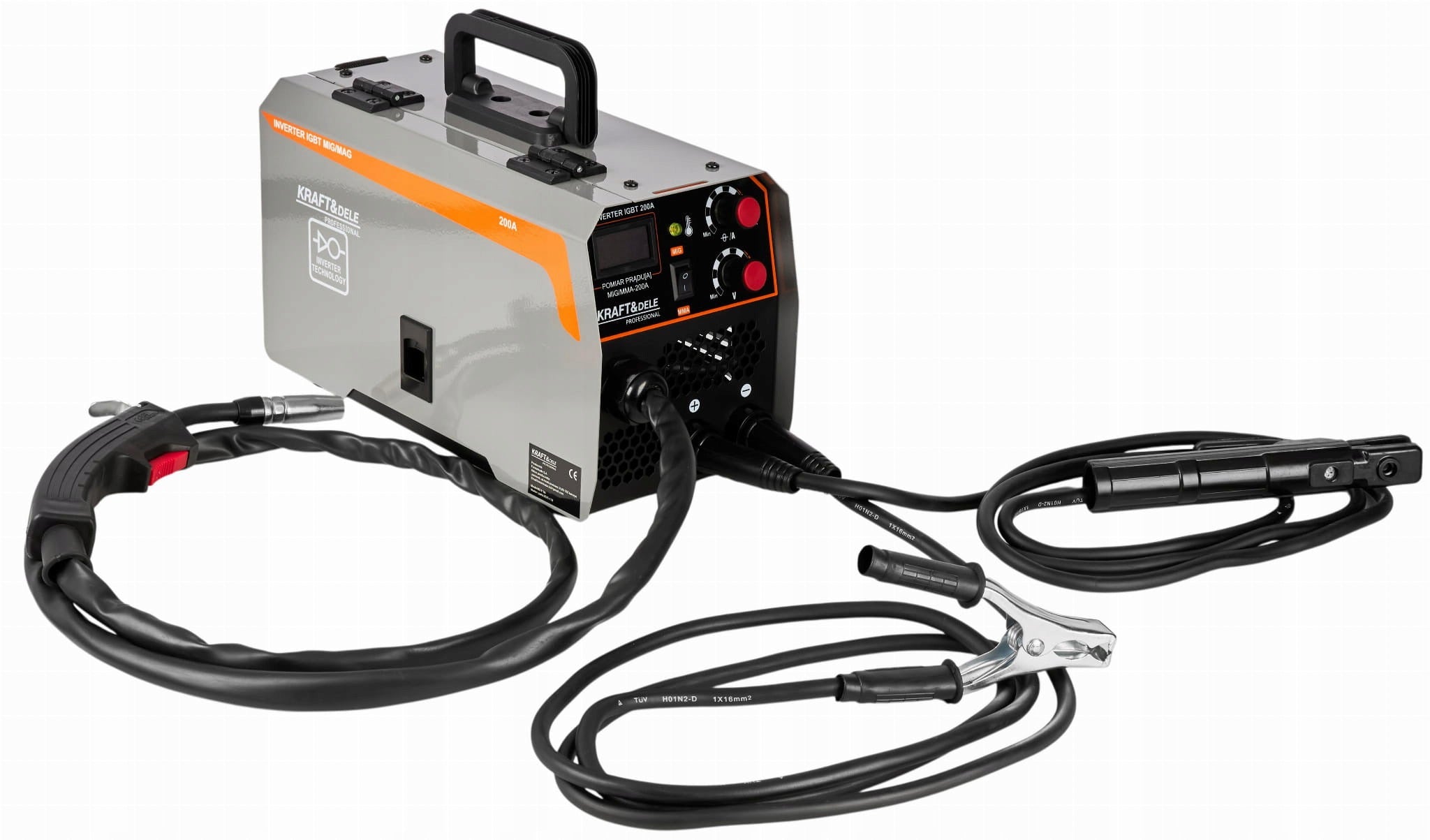

Contents of the set
- KD1788 MIG/MMA welder
- MIG welding torch
- MMA welding torch
- Power and ground cables
- User manual in Polish
Compatibility with electrical installation
The device draws a rated input current of 30 A at full load. Before connecting, check that the electrical circuit in the workshop is equipped with a fuse or circuit breaker of the appropriate amperage (min. 32 A) and that the power cable has the correct cross-section. A power factor of 0.73 means that the actual active power consumption is approximately 4.8 kW at maximum load.
- Manufacturer code: KD1788
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Kraft&Dele |
| Parametry | Power consumption | 5.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 5 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 220 mm |
| Parametry | Length | 310 mm |
| Parametry | Width | 155 mm |
| Parametry | Welding cable length | 2 cm |
| Parametry | Product weight with unit packaging | 14 kg |
| Parametry | Manufacturer code | KD1788 |
| Parametry | EAN (GTIN) | 5903957016085 |
| Parametry | Model | KD1788 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
