Suvirinimo aparatas MIG MAG Trafilux 200A Synergy 2T 4T TIG MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MAG Trafilux 200A Synergy 2T 4T TIG MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: Trafilux Trafimig Pocket 200 LED HRS2
• Ilgis: 400 mm
• Plotis: 200 mm
• Aukštis: 245 mm

MANUFACTURER: TRAFILUX || WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC || SELECTED ADVANTAGES: Synergy, Manual mode, 2T/4T, Spot welding || POWER SUPPLY: 230V 1ph

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Welding methods: MIG, MAG, MMA, FLUX, TIG DC LIFT
• Idle Voltage: 60V
• Degree of protection: IP23
• Weight: 7.6kg

MIG/MAG welding parameters:

• Welding Current: 20 - 200A
• Welding voltage: 15 - 23,5V - smooth adjustment,
• Wire diameter: 0,6/0,8/0,9/1,0mm
• Wire spool weight: max 5kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 2R
• MIG/MAG welding polarity change: YES
• Synergy: Yes

TIG welding parameters:

• Welding Current: 20-200A Fluid Adjustment
• Output Current: DC Constant
• Arch ignition: contact - Lift

MMA welding parameters:

• Welding Current: 20-200A Fluid Adjustment

▶ NEW VERSION OF THE PROVEN MODEL FROM TRAFILUX - EASY-TO-USE MIGOMAT WITH SYNERGY AND MANUAL

Professional inverter semi-automatic welding machine designed for work in workshop conditions giving the possibility of welding light structures. The device is characterized by compact size and low weight of 7,6kg. Extensive functionality of the device allows you to work in MIG/MAG, MMA, TIG lift modes.

Synergic semi-automatic having the function of automatic selection of parameters to the selected wire diameter and type of shielding gas, including aluminum alloys, and black steel. Manual mode for users who want to make independent parameter settings. The reliability of the device is additionally ensured by a metal feeding unit and large welding sockets. Possibility of spot welding “SPOT” and welding in 2 bar, 4 bar modes.

Large LED display makes it easy to operate the device. Variable polarity placed on the front panel, allows welding without gas, powder wires. The device can also work in the MMA method – giving the ability to adjust the current value, ARC-FORCE arc dynamics, additionally equipped with the Anti-Stick system, preventing the electrode from sticking to the welded material. The design advantage of the device are transistors made in IGBT technology. A characteristic feature of this type of transistors is lower power consumption, less electromagnetic interference, with greater efficiency and a stronger and more stable welding arc.

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• manual mode settings,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• SPOT spot welding - consists in making on a small area of joining materials of small thickness,
• lutowelding - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much smaller,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing,
• post gas - regulation of gas outflow time after extinguishing the welding arc.
• pre gas - gas flow before arcing.
• readable LED display, showing all parameters,
• The possibility of TIG DC Lift welding.

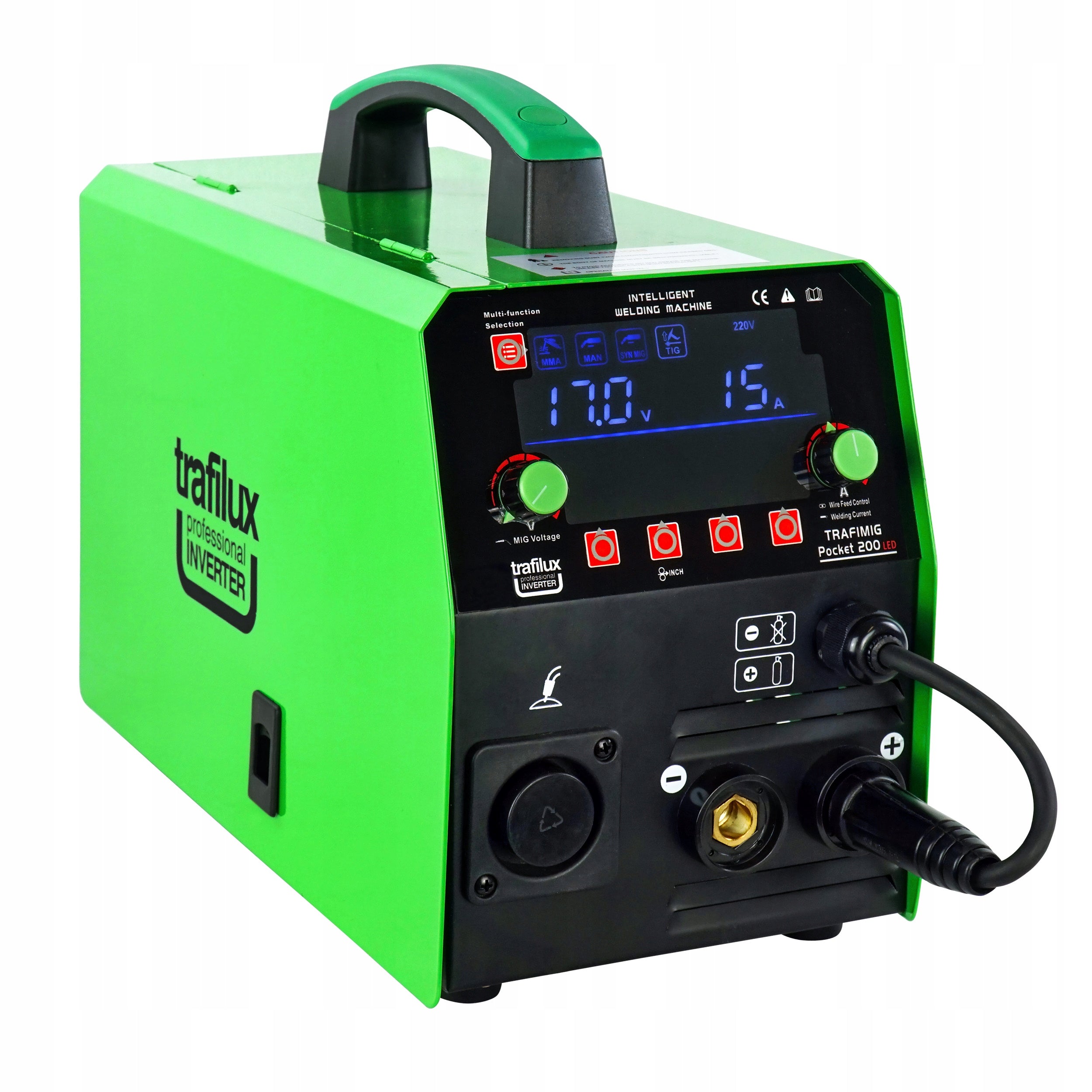

Clear control panel

The welder has a simple and user-friendly control panel and a clear display that makes it very easy to operate the device.

On the panel is m.in.:

• A - LED Display Voltage (V) and Current (A)
• B – Button of operating modes: MMA, MAN-manual MIG, SYN-Synergy MIG, TIG (lift TIG)
• C – The control knob of welding current, wire feed.
• D – Voltage control knob (V). In SYN MIG mode (Synergy), voltage correction adjustment in the range of -1V to +1V
• E – Gas selection and wire type.
• F – Selection of wire diameter. Hold down the F button to start the quick wire feeding (when replacing the wire spool)
• G - Post Gas – delay of gas outflow after welding, Pre Gas – advance of gas outflow before the welding process begins.
• G1 - Inductance in MIG mode - affects the number of chippings, higher value affects arc dispersion and less chipping, smaller values are recommended for thin materials.
• G2 – Slow start feeder, reduced wire feed speed when initiating welding arc.
• H - 2T (2 bars) 4T (4 bars) Spot – spot welding.

✳ Professional wire feeder ✳

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

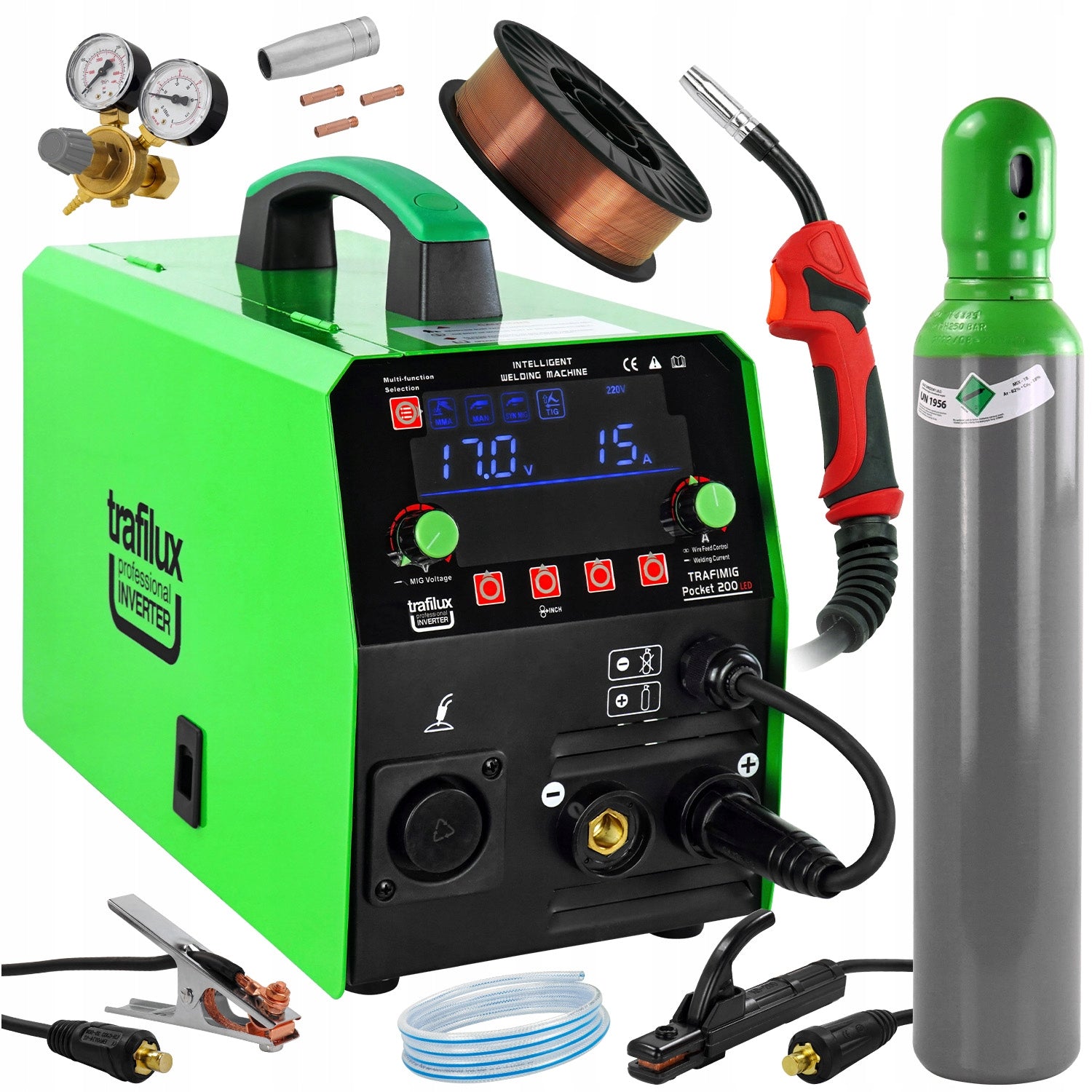

• Trafilux Trafimig Pocket 200 LED
• Welding torch MIG MB-15/3m
• MMA electrode cable
• Bulk cable
• User manual in Polish

+ MAG WELDING KIT WITH CYLINDER AR/CO2

• factory new, certified cylinder for Ar/CO2 with a capacity of 8l - has the approvals required by gas sales points,
• Ar/CO2 gas reducer with two clocks,
• gas line,
• steel welding wire SG2 5kg 0,8mm (D200),
• starter set of burner parts.

Photo gallery:
