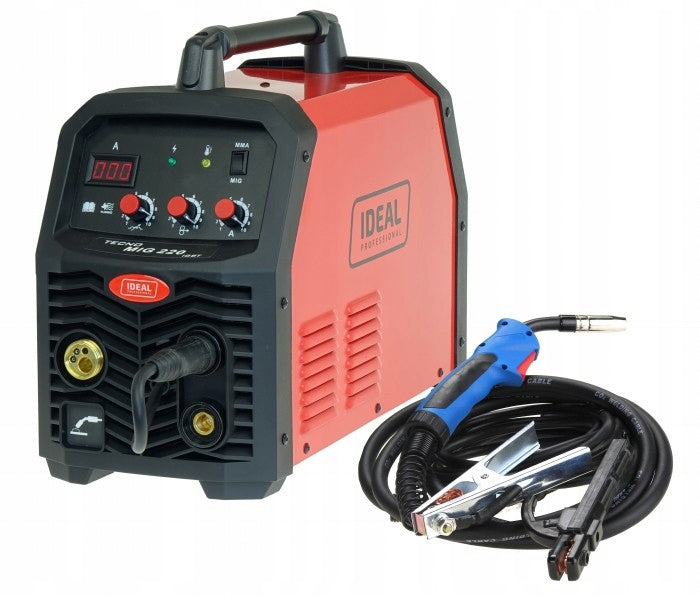

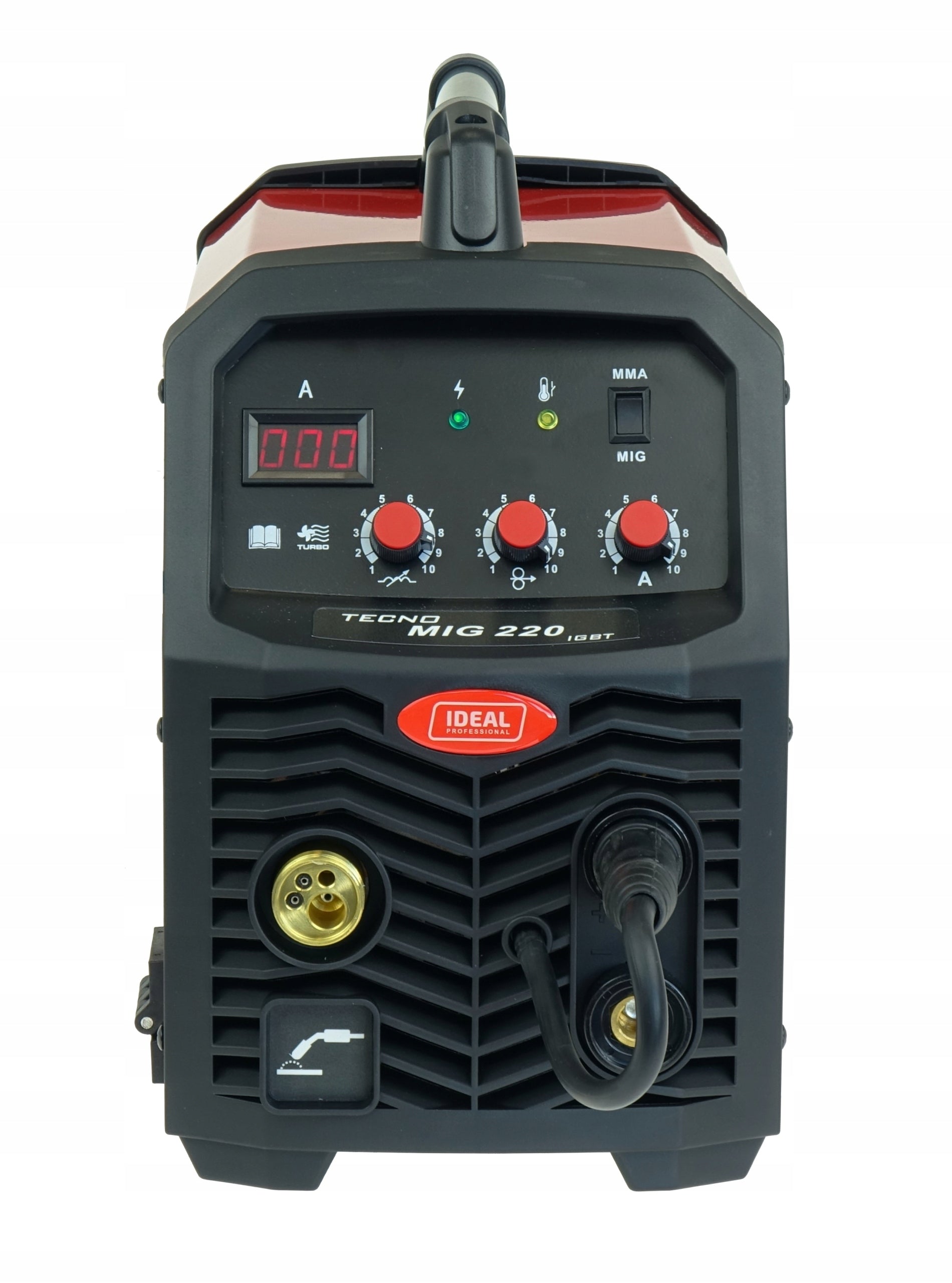

Suvirinimo aparatas MIG MAG TECNOMIG 220 MMA DIGITAL IDEAL

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MAG TECNOMIG 220 MMA DIGITAL IDEAL. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG220V2_pakiet4
• Ilgis: 540 mm
• Plotis: 240 mm
• Aukštis: 385 mm

Standard equipment:

• semi-automatic welding machine
• MIG MB-15 / 3 m handle
• mass cable with clamp / 2 m
• MMA electrode cable with handle / 2 m
• feeder roll fi 0,8 / 1,0 mm V-shaped (mounted in the feeder)
• instruction manual in Polish

Expert + Max Accessory Pack:

• self-tinting visor 510G
• gas reducer MINI 2 pressure gauges
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• SG2 1,0 mm / 5,0 kg welding wire
• Self-shielding welding wire FLUX 0,8 mm / 0,45 kg
• magnetic angle 11,0 kg
• magnetic angle 22,0 kg
• Welding pliers
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

Ideal Tecnomig 220 MMA Digital II v2 is an inverter semi-automatic welding machine designed for MIG/MAG, MMA and FLUX arc welding. The device is designed for a wide range of applications, from maintenance work to car body repairs.

It is used for welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

The device is equipped with inductance regulation.

Features of the device:

• single-phase power supply 230 V;
• maximum spool with wire: 5 kg;
• device equipped with a EURO socket for connecting a welding torch;
• smooth regulation of welding current and voltage;
• in MIG/MAG welding and MMA welding, the possibility of adjusting: welding current, wire feed speed;
• professional wire feeder: internal, 2-roll;
• fan-cooled;
• overload protection.

For MIG/MAG welding adjustable:

• welding current
• Wire feed rates
• regulation of inductance

Technical parameters

• Max. welding current [A]: 200
• Welding current range [A]: MIG: 30 - 200 A, MMA: max. 180 A
• Current [A] / duty cycle [%]: MIG: 180 A / 60%, MMA: 180 A / 60%
• Security [A]: C25
• Power at work 60%: 200 [A]
• Power consumption: 5,5 [kW]
• Power supply [V]: 230
• Degree of protection: IP21S

Functions

• Type of wire feeder: internal 2 roller
• Wire spool: 5,00 kg / D200 and 1 kg / D100
• Cooling: with gas
• Current adjustment: Smooth
• Inductance adjustment: Yes
• Change of polarity: YES
• Processes: MIG / MMA

Physical parameters

• Weight: 14,0 [kg]
• Overall dimensions [L. x width x H ]: 510x230x370 [mm]

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Welding electrode diameter: 1,6 - 4,0 mm

The 510G self-tinting visor is characterized by a variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

Advantages:

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Cylinder filled with high quality Ar/CO2 mixture designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

Specifications
