Suvirinimo aparatas MIG/MAG MMA IGBT 230V/400V 4x4 euro Set

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG MMA IGBT 230V/400V 4x4 euro Set. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: spawarka migomat 103 114_pakiet3
• Ilgis: 780 mm
• Plotis: 330 mm
• Aukštis: 530 mm

| Manufacturer: Weldman | Methods: MIG/MAG, MMA | Welding current: 200 A | Power supply: 230 V / 400 V |

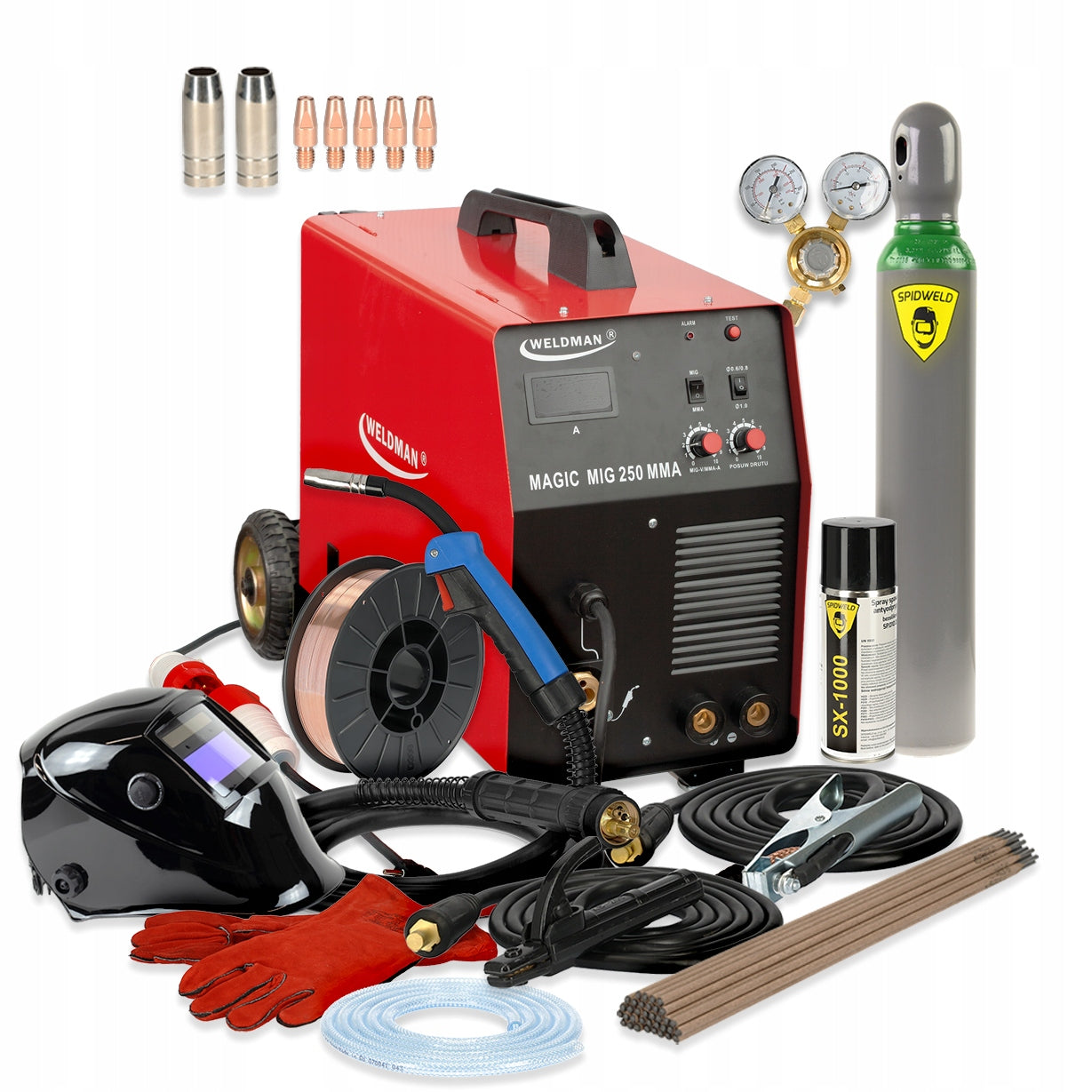

✅ This kit includes standard equipment and an extensive accessory package.

❇ Standard equipment:

• Weldman Magic MIG 250 MMA welding machine
• welding torch MB-15 3 m
• electrode holder DX 50 with cable 2,5 m
• 2 m mass cable with DX 50 mass clamp
• feeder rollers (type D) fi 0,8 / 1,0 mm V-shaped (mounted)
• power adapter from 400 V to 230 V
• instruction manual in Polish

❇ Accessory Pack:

• self-tinting visor
• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• bottle with ARG/CO2 mixture 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle MB-15 2 pcs.
• current tip MB-15 0,8 5 pcs.
• rutile welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

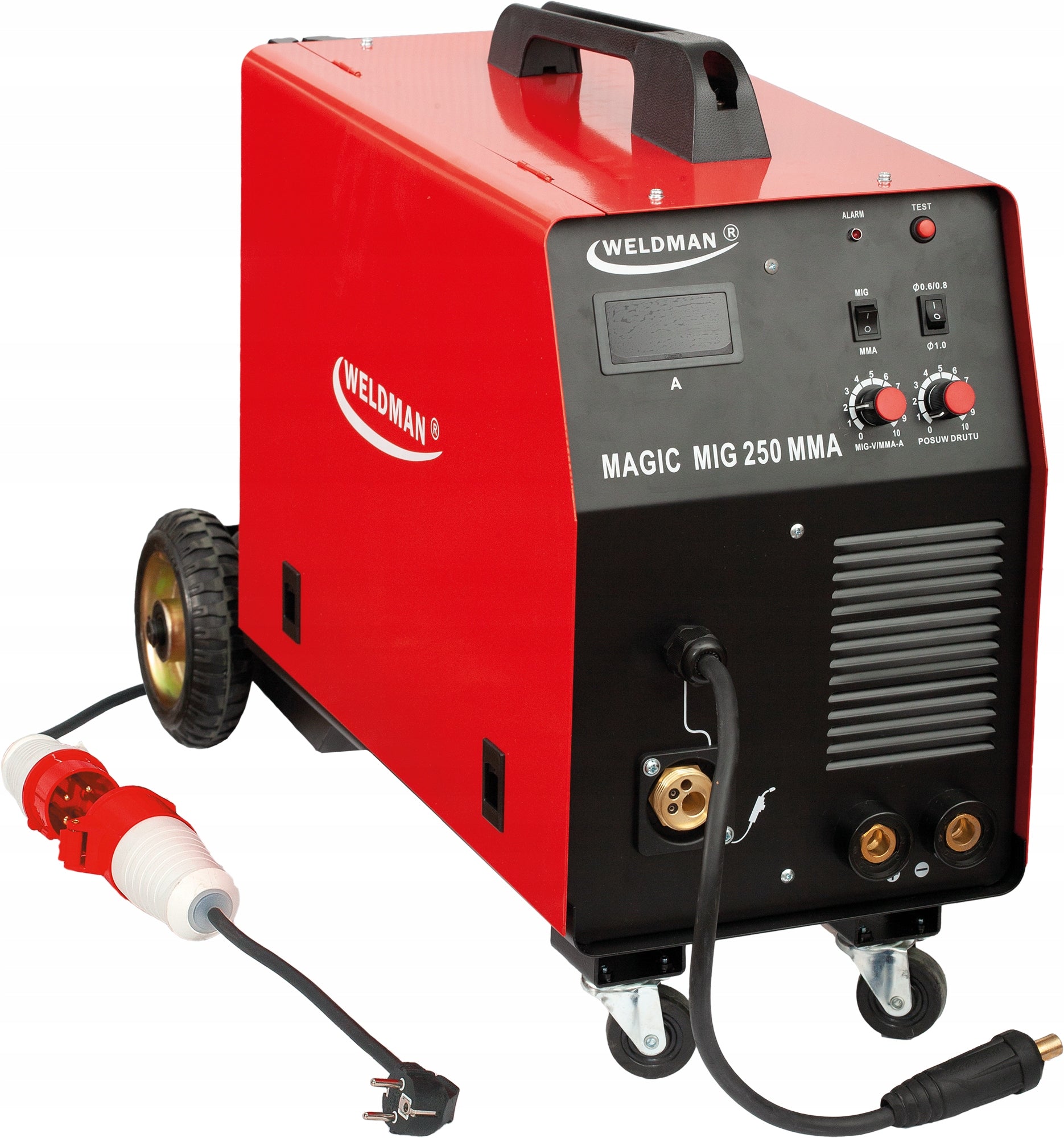

Semi-automatic welding machine Weldman Magic MIG 250 MMA is a device made in IGBT inverter technology for MIG/MAG (gas shielded) or FLUX welding (without gas shield), as well as for welding with DC electrodes.

Thanks to such possibilities, it is able to simplify many tasks.

The welding machine is designed for welding:

• welding wires with a diameter of 0,6-1,0 mm,
• self-shielding wires 0,9 mm
• and wrapped electrodes up to 4 mm in diameter...

...low carbon, low alloy (MAG), alloy (MIG), aluminium and cast iron steel.

• power supply: 230 / 400 V,
• digital display of welding current parameters,
• 4-roll wire feeder,
• LED signaling diodes: power supply (green) and overload (red),
• electronically controlled smooth regulation of welding current,
• electronically controlled smooth regulation of wire feed speed,
• fast wire feed button,
• euroconnector,
• max spool 15 kg (D300),
• overload protection.

❇ The above features make Magic Mig 250 an intuitive and at the same time very precise device.

❇ The welding machine is also equipped with durable wheels and a base for the gas cylinder, which allows for very easy transport of the entire welding set.

❇ It is powered by a cable and additionally has a power adapter from 400 V to 230 V.

❇ Magic Mig 250 semi-automatic welding machine will find its application primarily in small workshops, services that deal with automotive tinsmithing, farms and wherever mobility and effective operation of the set are required for work.

The 510G self-tinting visor is characterized by a variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

Advantages:

• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/9-13
• variable brightening time
• Possibility to set sensor sensitivity

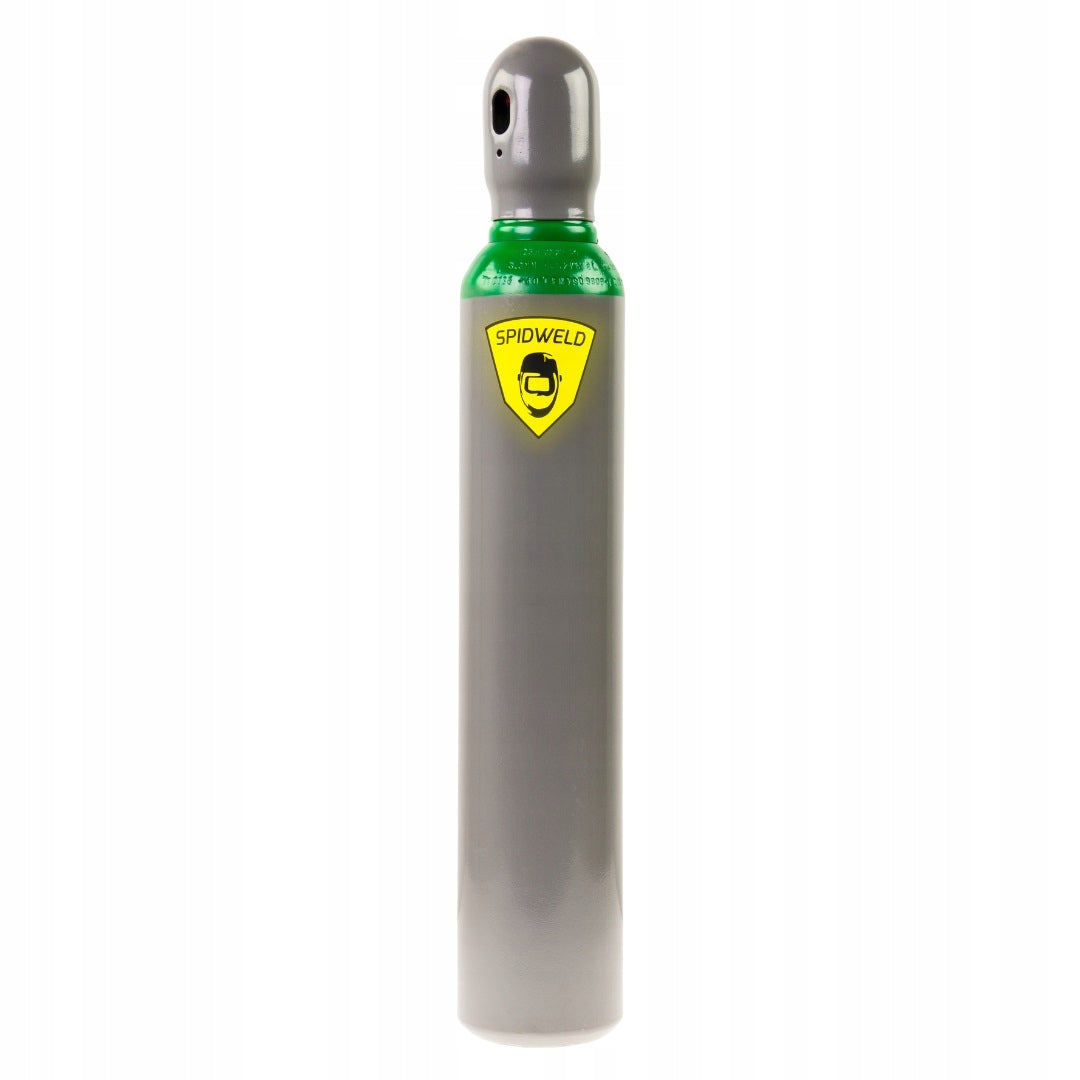

Cylinder filled with high quality Ar/CO2 mixture designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

• Height: 530 [mm]
• Width: 330 [mm]
• Weight: 23,5 [kg]
• Length: 780 [mm]
• Power supply [V]: 230 / 400
• Max. welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 4 roller
• Processes: MIG / MMA
• Welding current range [A]: MIG/MAG: 40 - 200; MMA: 20 - 180
• Current [A] / duty cycle [%]: MIG/MAG: 200 A/ 60%; 155 A/ 100%; MMA: 180 A/ 60%; 139 A/ 100%
• Security [A]: 16/20 A type C
• Idle voltage [V]: 230 [V]: 77; 400 [V]: 67
• Current adjustment: Smooth
• Degree of protection: IP21
• Wire spool: 15,00 kg / D300
• Welding range from [A]: 40
• Welding range up to [A]: 200

Specifications
