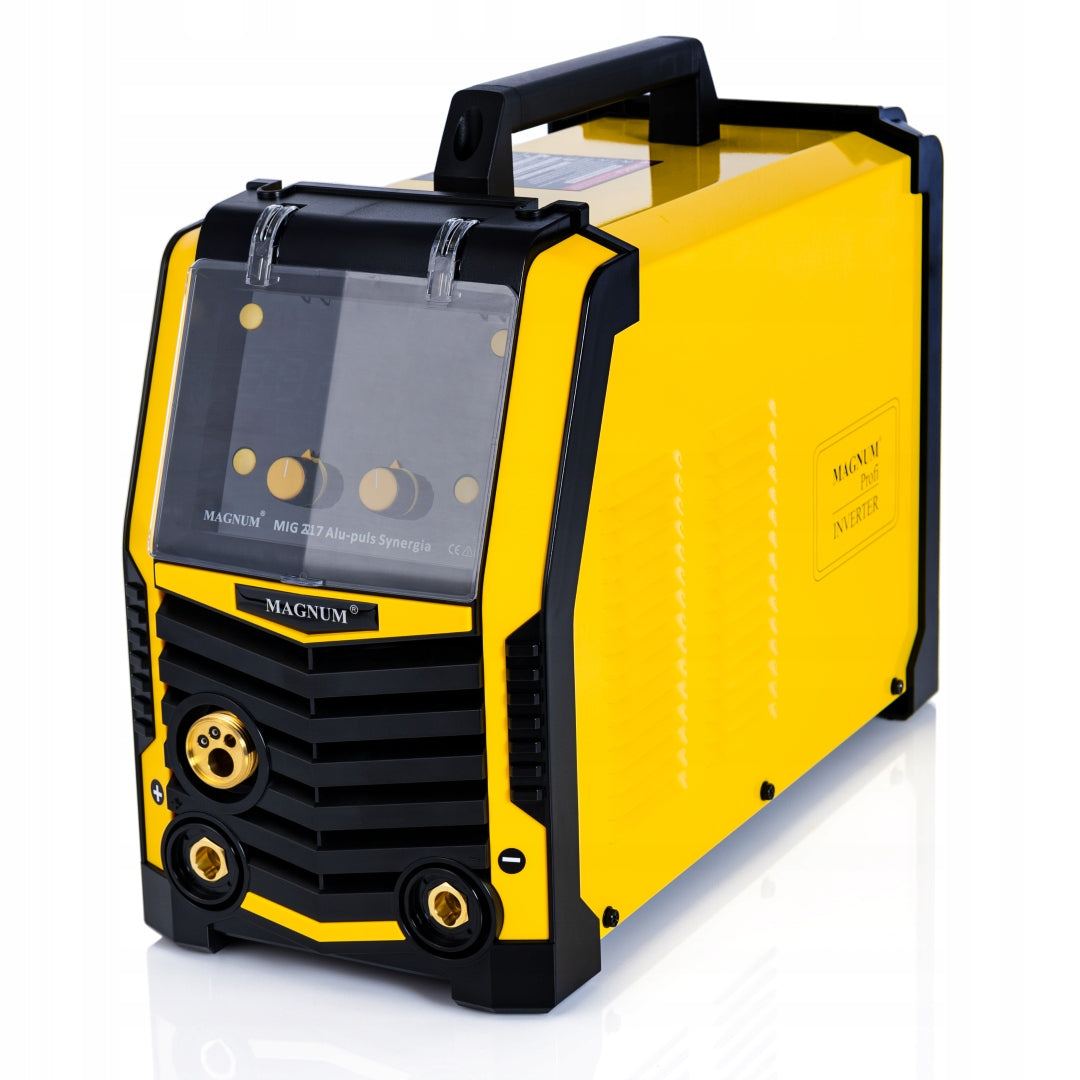

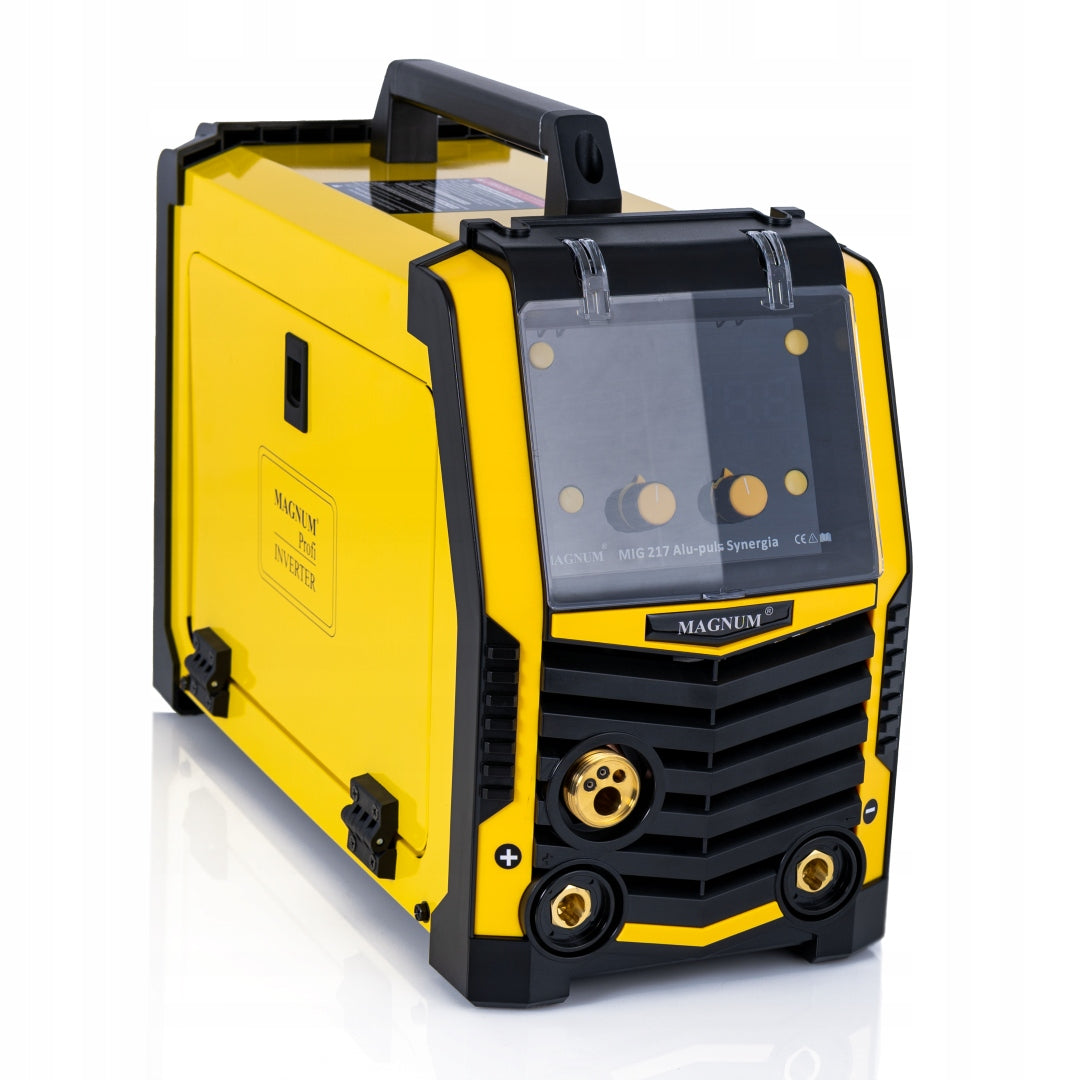

Suvirinimo aparatas MIG MAG Magnum 3in1 200A 230V Alu Synergy PULS TIG Lift DC

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MAG Magnum 3in1 200A 230V Alu Synergy PULS TIG Lift DC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Półautomat spawalniczy spawarka 217 alu synergia

⚡Do you need a solid wire feeder in your equipment? ✅ Metal 2-roll feeder - efficient equipment ❇

⚡Do you need full control over the weld? ✅ INDUCTANCE - reduces chipping and improves weld quality ❇

⚡Perfect synergy is necessary for you? ✅ Programs for steel, aluminium and stainless steel - for the most demanding ❇

⚡Looking for equipment with high power? ✅ Operating current 200A in cycle 60% - adapted to every need ❇

⚡ Power supply 230V is necessary for you? ✅ Power supply at 230V - stable operation in all conditions ❇

⚡Working on a long handle is a must? ✅ Handle with a length of 3 meters - will help in all conditions and at any distance ❇

⚡ALU PULS✅ Thanks to the PULSE function, welding aluminum is easier than ever – without excessive chipping and with excellent weld aesthetics. ❇

⏩MIG 217 ALU PULSE SYNERGY - why choose?

✅built-in programs for welding steel, aluminum, stainless steel,

✅inductance – this feature provides full control over the shape of the weld, reducing spatter and improving the quality of joints, which significantly affects aesthetics and durability.

✅manual mode settings,

✅single pulse,

✅3in1 device : MIG/MAG, MMA, TIG DC Lift

✅FLUX - welding with self-shielding wire without gas,

✅ MIG/MAG modes: 2T, 4T

✅smooth adjustment of welding parameters,

✅modern welding source, made in inverter technology,

✅ EURO socket - work with any MIG handle.

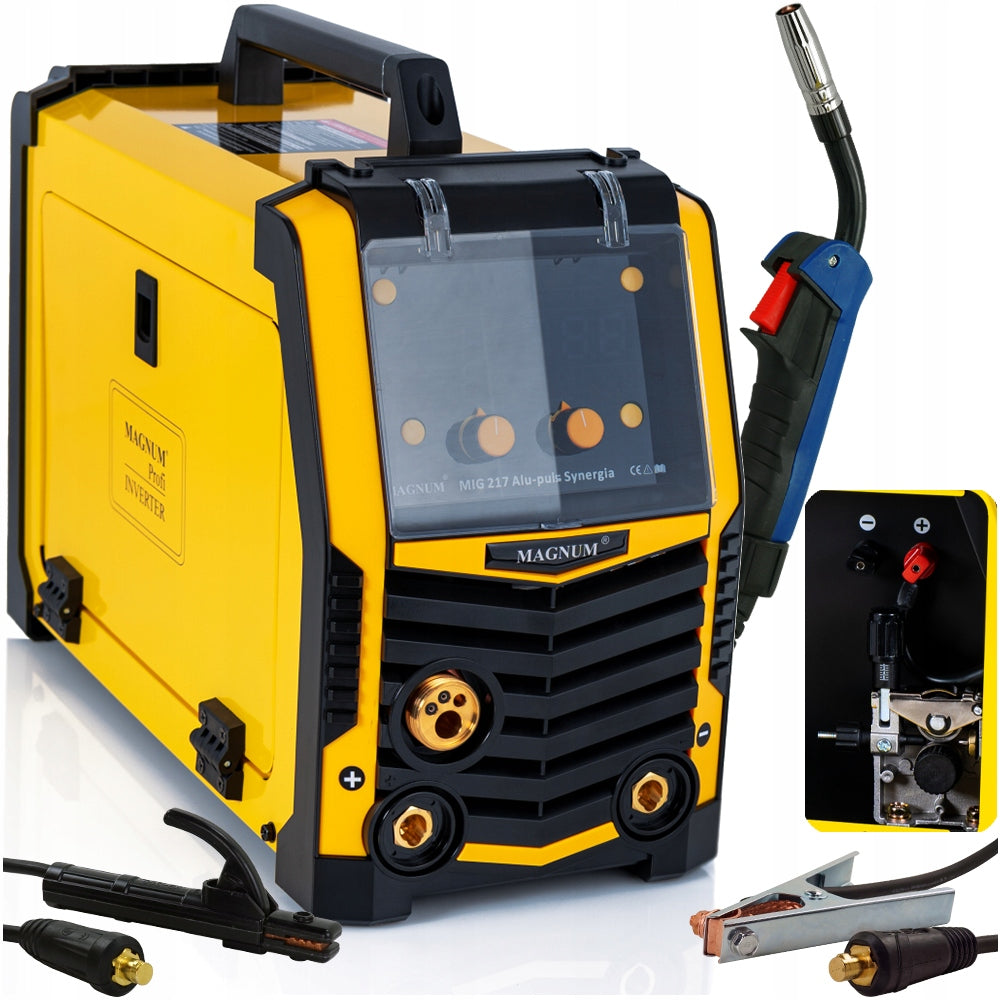

⏩INCLUDED:

✔ Device Magnum MIG 217 Alu-Puls Synergy

✔ MIG welding torch MB-15/3m

✔ MMA electrode cable

✔ Mass cable

✔ Gas hose

✔ Instruction manual in Polish

⏩MAGNUM MIG 217 ALU-PULS SYNERGY - better welding with synergistic flash

Professional inverter semi-automatic welding machine MAGNUM MIG 217 ALU-PULS SYNERGIA designed for welding steel and stainless steel. It is an ideal solution for both professionals and amateurs who value quality and comfort. The device provides excellent control of welding parameters thanks to a synergistic program and the possibility of welding in MIG/MAG, MMA and TIG LIFT modes. Thanks to IGBT technology, the welding machine is characterized by high efficiency and energy efficiency.

⏩ALUMINUM WELDING PULSE

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding.

⏩FUNCTIONS IMPROVING WORK IN THE MMA METHOD

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• Arc Force: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: facilitates the ignition of the electrode by providing more welding current with each arc.

⏩Solid execution

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic circuits, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

⏩PROFESSIONAL WIRE FEEDER

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Welding methods: MIG, MAG, MMA, FLUX, TIG DC LIFT
• Current taken from the mains: 20A (C)
• Idle Voltage: 64V
• Degree of protection: IP21
• Weight: 10kg

MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding voltage: 16 - 24V - smooth adjustment,
• Wire diameter: 0,6/0,8/0,9/1,0/1,2mm
• Wire spool weight: max 5kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 2R
• MIG/MAG welding polarity change: YES
• Synergy: Yes

MMA welding parameters:

• Welding Current: 30-160A Fluid Adjustment
• Idle Voltage: 68V

TIG welding parameters:

• Output Current: DC Constant
• Arch ignition: contact - Lift

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• PULS - pulsing current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

• TIG DC - welding with a non-melting electrode in an inert gas shield, e.g. alloy and non-alloy steels.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• inductance – this feature provides full control over the shape of the weld, reducing spatter and improving the quality of joints, which significantly affects aesthetics and durability.

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.

Specifications
