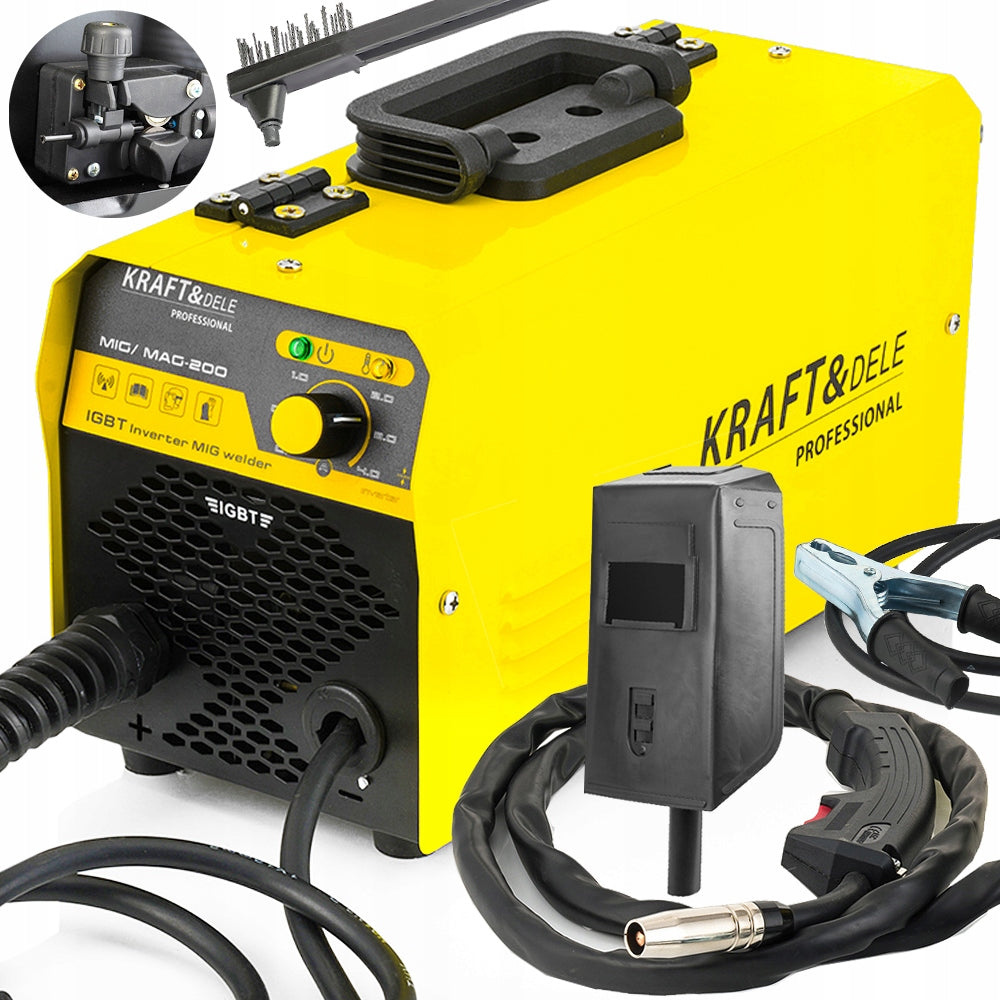

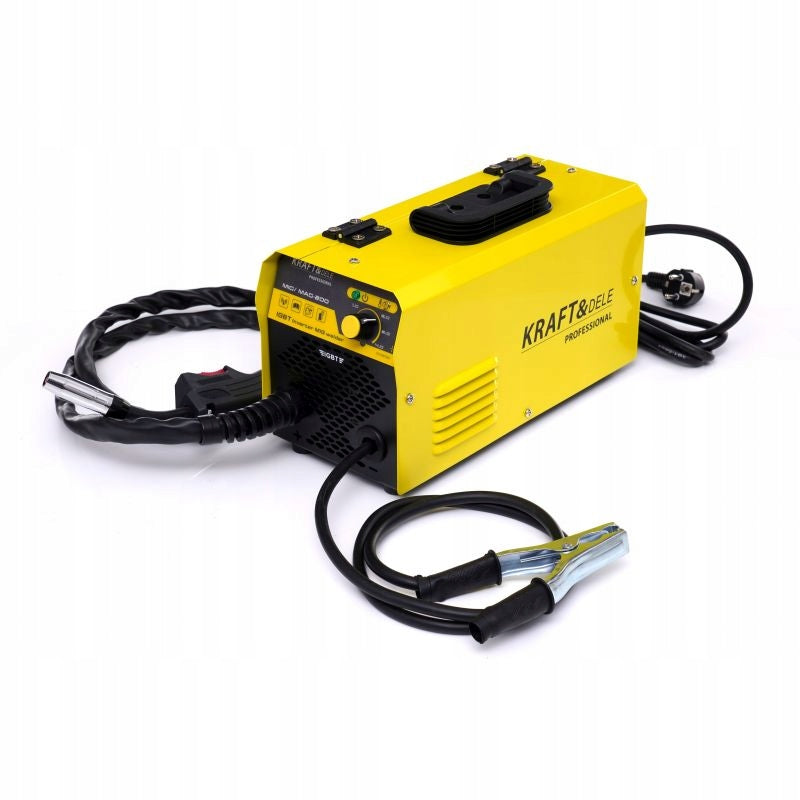

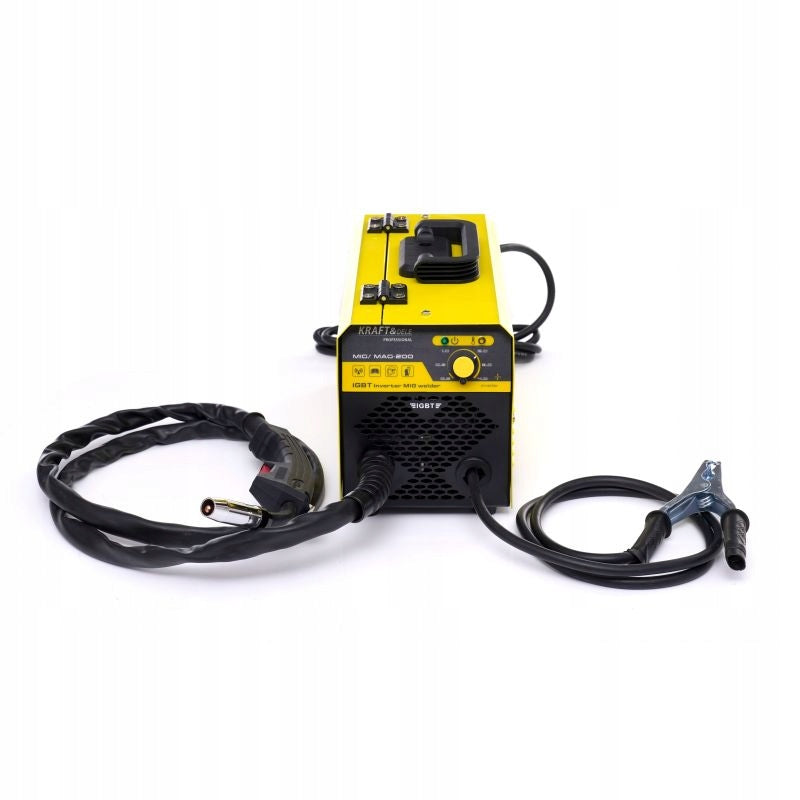

Suvirinimo aparatas MIG/MAG be dujų, 200A, 230V, 6.1 kVA, rinkinys

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG be dujų, 200A, 230V, 6.1 kVA, rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Kraft&Dele
• Modelis: KD810
• Ilgis: 310 mm
• Plotis: 155 mm
• Aukštis: 220 mm

The inverter welding machine is used for MIG/MAG welding. The electronics of the device are based on IGBT transistors combining the advantages of two types of transistors, the ease of control of field transistors and high breakdown voltage and the switching speed of bipolar transistors.

The device has a versatile application, such as performing fieldwork and all kinds of repair work inside buildings.

The welding machine is a machine that uses the most advanced inverter technology.

The inverter welder uses a high-power IGBT transistor to transmit 50/60Hz frequencies up to 20kHz and then reduces voltage and commutates and generates high-power voltage via PWM technology. Due to the significant reduction in weight and volume of the main transformer: efficiency increased by 30%. The emergence of inverter welding machines on the market is considered a revolution in the welding industry.

The interior of the machine is equipped with an electronic reactor circuit, which can accurately control the process of electrical transition and variable transition, providing excellent welding characteristics. Compared to other welding machines, this model has great advantages: stable wire speed, compactness, energy saving, no electromagnetic noise. Continuous and stable operation at low current is especially recommended for welding sheets of low-carbon, alloy and stainless steel. The ability to automatically compensate for voltage pulsation, small spark, good arc, high duty cycle, etc.

Specifications
