Suvirinimo aparatas MIG/MAG 200A MMA SYNERGY IGBT SHERMAN

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG 200A MMA SYNERGY IGBT SHERMAN. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: spawarka migomat 7812393_pakiet6
• Ilgis: 450 mm
• Plotis: 210 mm
• Aukštis: 330 mm

| Model: Sherman MIG 200HD | Welding methods: MIG/MAG, MMA, TIG Lift | Welding current: 200 A | 230 V | IGBT | Synergy | Kit |

Standard equipment

• Sherman MIG 200HD welding machine
• welding torch TW-15 / 3 m
• mass cable / 1,8 m
• electrode cable / 1,8 m
• feeder roll fi 0,8 / 1,0 mm V-shaped (mounted in the feeder)
• steel insert for wire 0,8 /1,0 mm (mounted in the holder)
• instruction manual in Polish

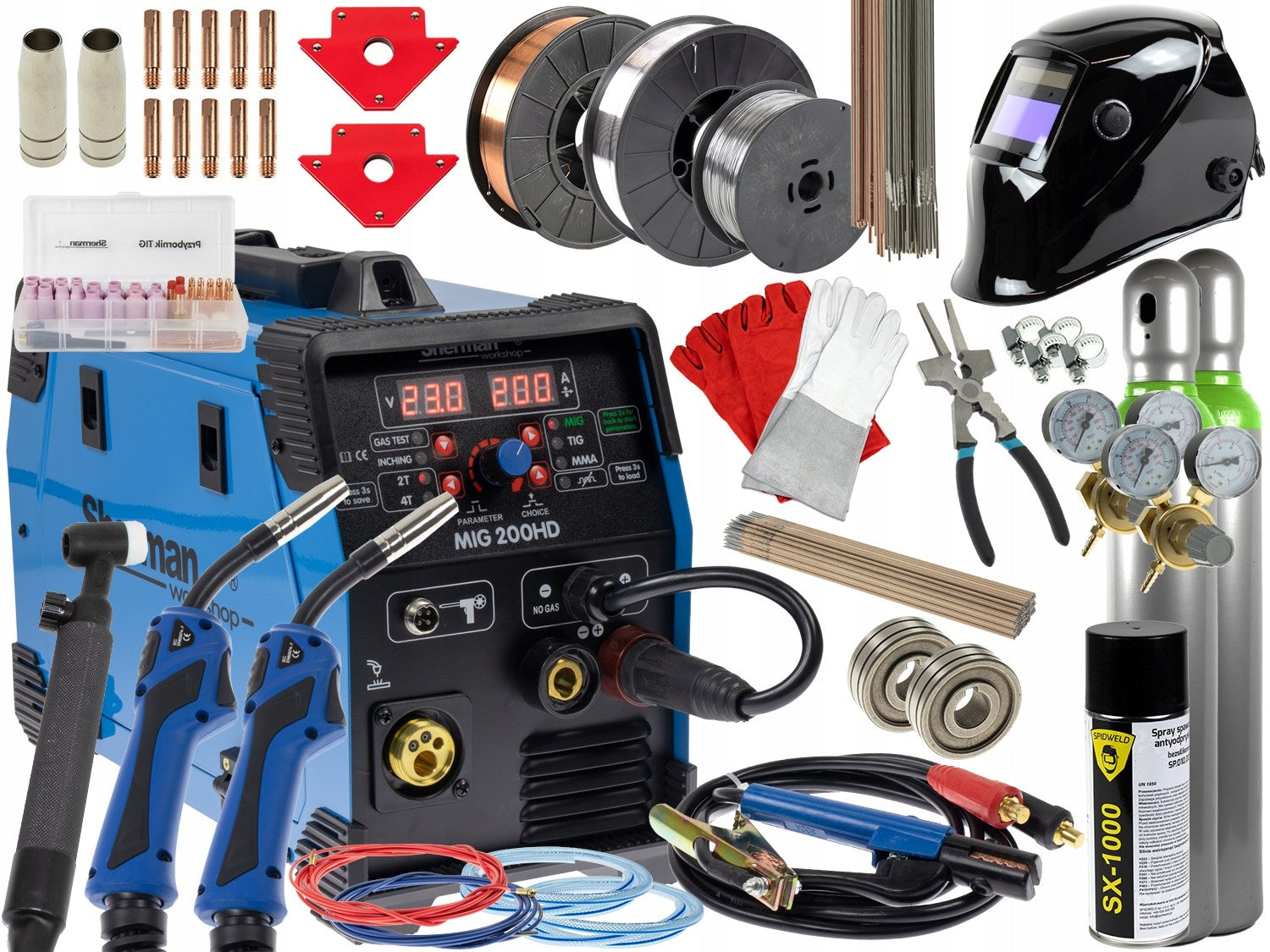

Expert Aluminium+Tig Accessory Pack

• TIG welding torch 4 m with valve
• additional welding torch MB 15 5,0 m (welding torch for black steel)
• self-tinting visor 718G
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• ARGON cylinder 8 liters (new, full, 10-year legalization, valve cap)
• MINI gas reducer 2 pressure gauges (for cylinders with mixture)
• MINI gas reducer 2 pressure gauges (for Argon cylinders)
• feeder roll fi 0,8 / 1,0 mm U-shaped Aluminium
• Teflon cartridge red for aluminium 1,0 mm 1 pc.
• SG2 0,8 mm / 5,0 kg welding wire
• AlMg5 welding wire for aluminium fi 1,0 mm / 2,0 kg
• self-shielding welding wire 0,8 mm / 0,45 kg
• rutile welding electrodes / 1,0 kg
• anti-chipping preparation 400 ml
• MIG welding gloves 1 pair
• TIG welding gloves 1 pair
• MIG/MAG welding pliers
• magnetic angle 11,0 kg
• magnetic angle 22,0 kg
• gas nozzle MB-15 2 pcs.
• current tip MB-15 fi 0,8 mm 5 pcs.
• current tip MB-15 fi 1,0 mm ALU 5 pcs.
• TIG wire for black steel 1,6 mm / 1,0 kg
• TIG wire for black steel 2,0 mm / 1,0 kg
• TIG 308LSi wire for stainless steel 1,6 mm / 1,0 kg
• TIG 308LSi wire for stainless steel 2,0 mm / 1,0 kg
• toolbox, box for TIG/MIG parts - 1 pc.
• tungsten electrode fi 1,6 / 2,0 / 2,4 mm / 2 pcs each each
• terminal bushing fi 1,6 / 2,0 / 2,4 mm / 2 pcs each each
• current connector fi 1,6 / 2,0 / 2,4 mm / 2 pcs each each
• ceramic nozzles No. 6 / 7 / 8 / 2 pcs. each
• cork short and long / 1 pc.
• hose for gas connection + clamps 2 sets.

When buying a set, you will always get a more favorable price.

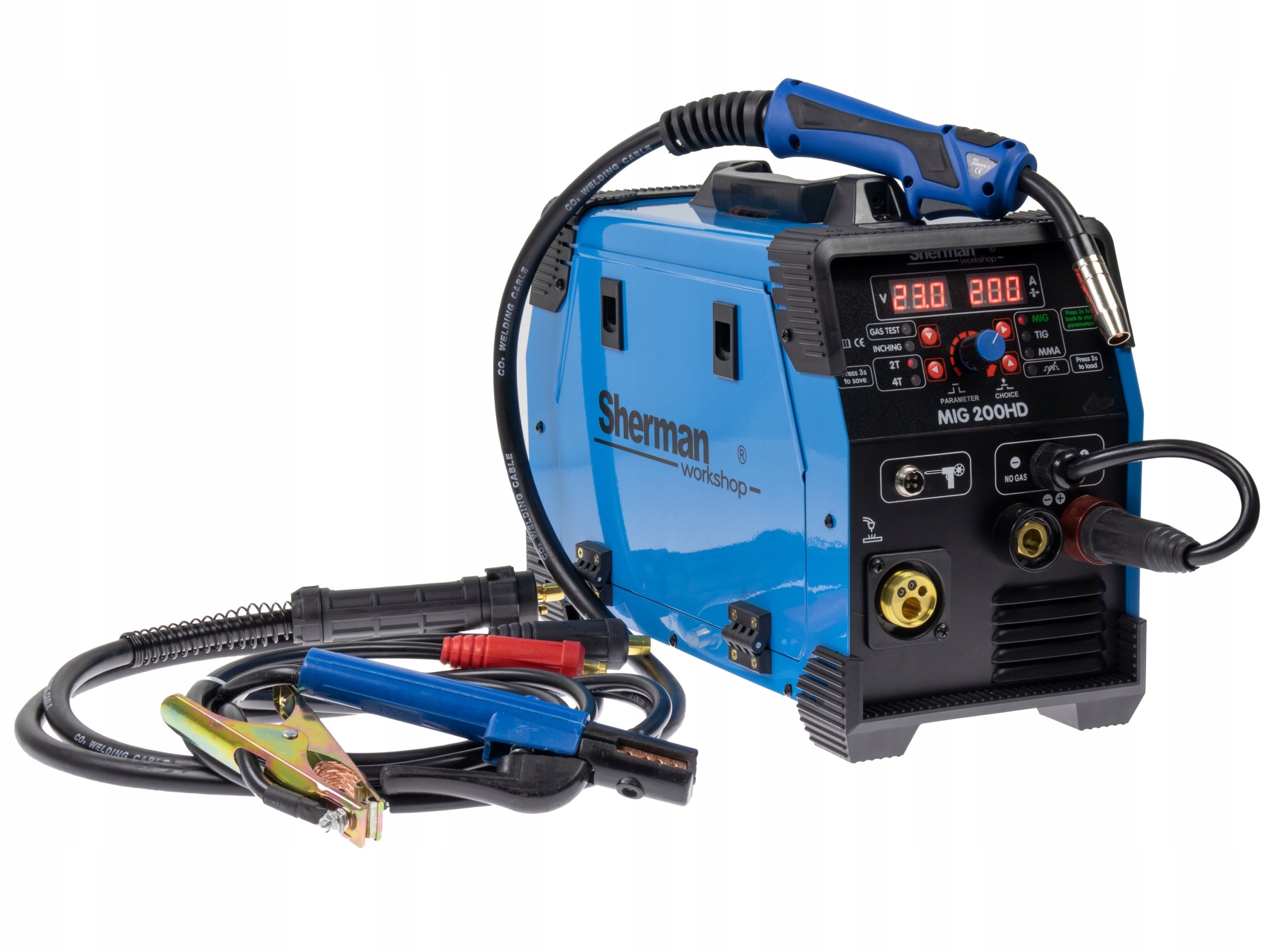

Synergistic welding machine Sherman MIG 200HD is used for manual welding of steel and non-ferrous metals.

It enables welding using MMA (wrapped electrode), TIG Lift and MIG/MAG methods in synergic and manual mode.

Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielded powder wires.

Welding methods:

☑ MIG/ MAG synergistic mode

☑ MIG/ MAG manual mode

☑ TIG Lift

☑ MMA (electrode welding)

☑ self-shielded wire welding

✳ Regulation of inductance allows lutowelding of thin galvanized elements.

✳ The welder can operate in synergistic or manual mode with the option of quickly returning to the initial synergistic settings.

✳ The device has built-in automatic functions Hot Start and Anti Stick, also allows you to remember 20 sets of parameters for the MIG method.

✳ The device allows you to connect a Spool Gun type handle (to be purchased separately) with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.

• digital control,
• function 2T/4T,
• Hot Start,
• TIG Lift,
• welding without gas,
• option Spool Gun,
• memory of settings,
• Anti Stick,
• gas test.

Functions of MMA method (wrapped electrode welding):

• Hot Start (hot start adjustment) - works at the moment of arcing, causing a temporary increase in welding current above the value set by the welder. It is designed to prevent the electrode from sticking to the material and is a great convenience when arcing.
• Anti Stick (short-circuit protection) - is a short-circuit protection, reducing the welding current in the case of sticking the electrode to the welded material. This makes it easier to peel off and protects the device from damage.
• 2T function - in two-bar mode, pressing the switch in the handle of the handle will cause the arc to glow. Welding is carried out with the switch pressed. Release of the switch will complete welding.
• 4T function - in four-bar mode, pressing the switch in the handle will cause the arc to glow then release the switch and conduct welding with the switch released. Pressing the switch again will complete the welding.

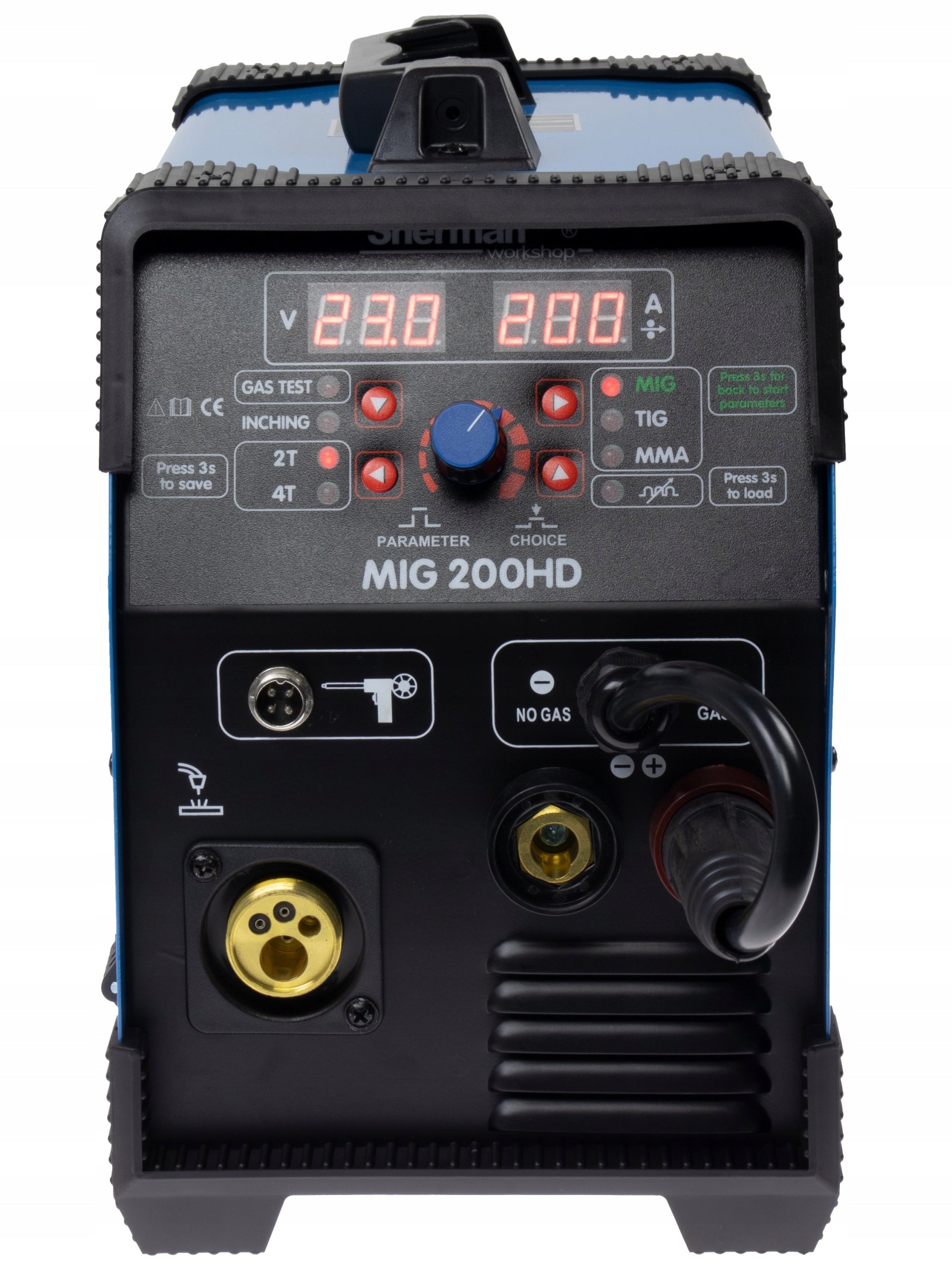

On the inside of the spool chamber cover there is a short guide for the welder facilitating the current operation of the device with a detailed description of access to adjustable operating parameters.

The device is made in the IGBT technology allowing for a significant reduction in the weight and dimensions of the welding machine and increase in efficiency while reduction of energy consumption.

The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

The device is equipped with a MIG welding torch, electrode wire and mass cable with a tick clamp.

Technical parameters

• Processes: MIG / MMA / TIG
• Welding current range [A]: MIG: 30 – 200 A; MMA: 20 – 180 A; TIG: 20 – 200 A
• Current [A] / duty cycle [%]: MIG: 200 A/ 45%, 155 A/ 100%; MMA: 180 A/ 60%, 139 A/ 100%; TIG: 180 A/ 60%, 139 A/ 100%
• Power supply [V]: 230
• Max. welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 2 roller
• Synergic control: Yes
• Soldering function: Yes
• Power consumption: 6,6 [kVa]
• Idle voltage [V]: 65
• Current adjustment: Smooth
• 2T/4T function: Yes
• Additional Features: Digital Control, Hot Start, TIG Lift, Gas Free Welding, Spool Gun Option, Setting Memory, Anti Stick, Gas Test
• Degree of protection: IP21
• Wire spool: 5,00 kg / D200
• Inductance adjustment: Yes
• Length: 450 [mm]
• Height: 330 [mm]
• Width: 210 [mm]
• Weight: 10,5 [kg]

Self-tinting visor 718G with variable degree of protection DIN 4/5-8/9-13, variable lightening time and the ability to set sensor sensitivity. Designed for MIG/MAG, TIG and TIG Pulse welding, MMA and plasma cutting and equipped with grinding function.

Advantages:

• 4 independent sensors guarantee excellent work when welding with small currents using the TIG method
• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/5-8/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Cylinders filled with high quality mixture Ar/CO2 and Argon class 4.8 designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

✴ 3in1 welding machine: MIG/MAG, MMA, TIG Lift

✴ welding with self-shielded wire

✴ soldering

✴ possibility of welding thin sheets

✴ synergic and manual mode

✴ regulation of inductance

✴ function HOT START

✴ ANTI STICK function

✴ function 2T/4T

✴ IGBT technology

✴ holder for EURO connector

✴ setting memory

✴ light and handy migomat

✴ clear and easy to use panel

MIG/MAG welder, or migomat, is an indispensable tool in the home garage, workshop and production plant. Migomatem can quickly and precisely combine metals, ensuring durability and high quality of work. Migomate wire is more economical than welding electrodes, which translates into cheaper welding. In addition, migomates provide higher quality welds, minimizing the risk of errors. MIG/MAG welding machines are most commonly used for steel, but aluminum migomat is a commonly used device. In addition, the migomat with synergy facilitates welding by automatically entering settings. A good migomat must meet specific requirements, so when buying, it is worth following the technical parameters.

MIGOMAT MIG/MAG 200A MMA SYNERGY IGBT SHERMAN Inverter Welding Machine Set

Specifications
