Suvirinimo aparatas MIG 210 Sherman MAG MMA TIG Synergy 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG 210 Sherman MAG MMA TIG Synergy 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SHERMAN DIGIMIG 210XS KPWN1 zestaw

SYNERGISTIC SEMI-AUTOMATIC WELDING MACHINE

Welding methods: MIG/MAG, MMA, FLUX, TIG Lift, Soldering | Important functions: MIG/MAG synergy | Welding current: up to 200A

WELDING MACHINE WITH A WIDE RANGE OF APPLICATIONS

DIGIMIG 210 XS by SHERMAN is a technologically advanced welding device for welding using the following methods: MIG/MAG, MMA, TIG DC Lift, FCAW (self-shielded wire without gas) and for soldering galvanized sheets.

The machine has been designed for all kinds of welding work in locksmith workshops, repair and production. It is an ideal source for working in the automotive industry in repairing vehicle body parts, etc.

Amazing value for money. The machine is packed with functions that have been out of range in devices of this class so far. The design and software allow to obtain the highest quality weld when welding any weldable materials made of black steel, stainless steel, acid-resistant steel, aluminum alloys and copper.

The device is made on the basis of modern power transistors and high quality control standards. The source is characterized by low power consumption and resistance to interference, which translates directly into excellent welding quality. The welder is powered from a single-phase 230V network.

Why choose this model?

• excellent welding parameters and simple operation,
• has synergistic MIG/MAG programs with the possibility of correction,
• the display shows the influence of parameters on the shape of the weld face,
• possibility of soldering - has a special program for professional process,
• has dedicated programs for welding aluminum and stainless steels,
• possibility of welding in manual settings mode,
• has additional, advanced functions for welding,
• has a MIG EURO handle socket,
• WELDING TIG DC Lift (optional), MMA (MMA cables included)

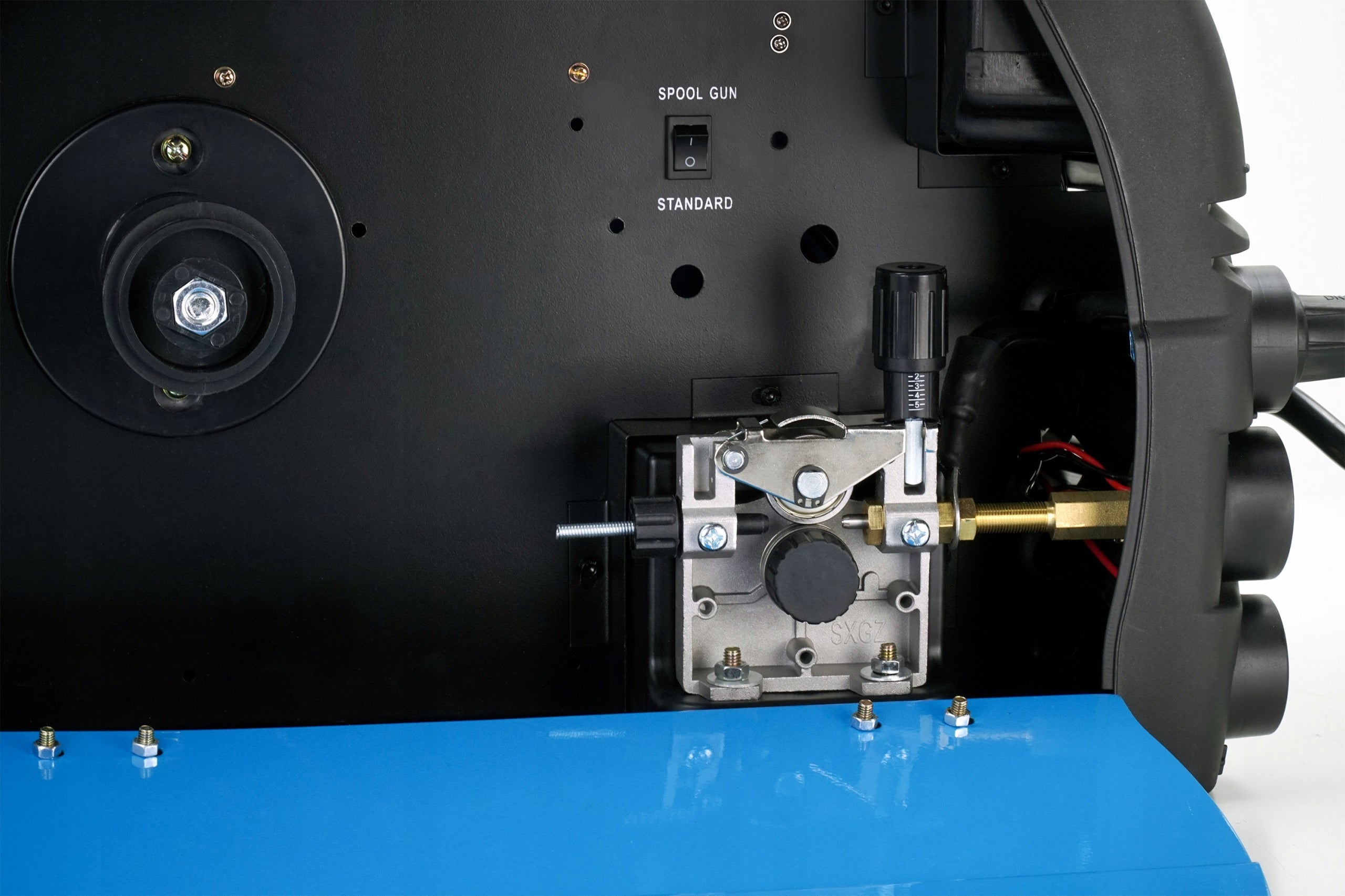

Professional wire feeder 2R

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

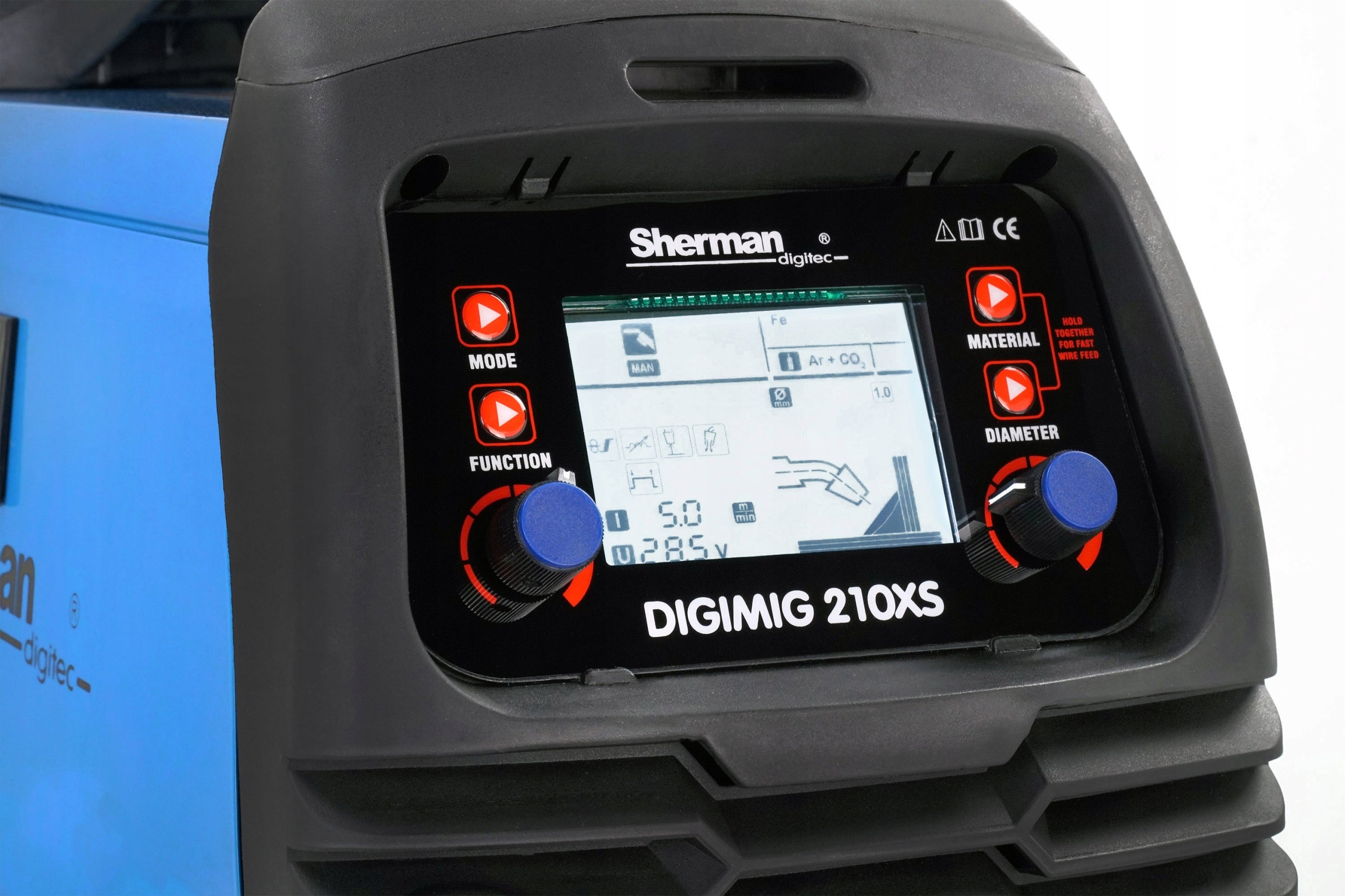

LCD display with excellent contrast

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

Quick and easy access to key features such as:

• MIG/MAG spot welding,
• regulation of the feeder access speed,
• welding inductance - control of face width and depth of melting,
• Burn Back - regulation of wire burning time,
• synergic MIG/MAG programs: Fe - steel welding, Ss - stainless steel welding, Al - aluminum welding, CuSi, CuAl - soldering, Flux - self-shielding wire welding,

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 35% 200A, 100% 118A
• Protection: IP21S
• LCD display
• Net weight: 13kg

MIG/MAG welding parameters:

• Welding Current: 20 - 200A
• Welding Voltage: 14,5 - 24V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Wire spool weight: max. 5kg (D100, D200)
• Synergic programs: Fe CO2, Fe Ar/CO2, Flux, AlMgAlSi, Ss, CuSi/CuAl
• Correction of synergistic programmes: YES
• Manual Settings Mode: YES
• MIG/MAG spot welding: YES,
• Welding inductance adjustment: YES,
• Burn Back: YES,
• Adjusting the feeder access speed: YES,
• Other functions listed in the description.

MMA welding parameters:

• Welding Current: 10-200A
• Maximum electrode diameter: 3,2mm
• Idle Voltage: 63V

TIG welding parameters (optional):

• Welding Current: 10-200A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve*

*TIG handle with valve is available for sale at our other auctions

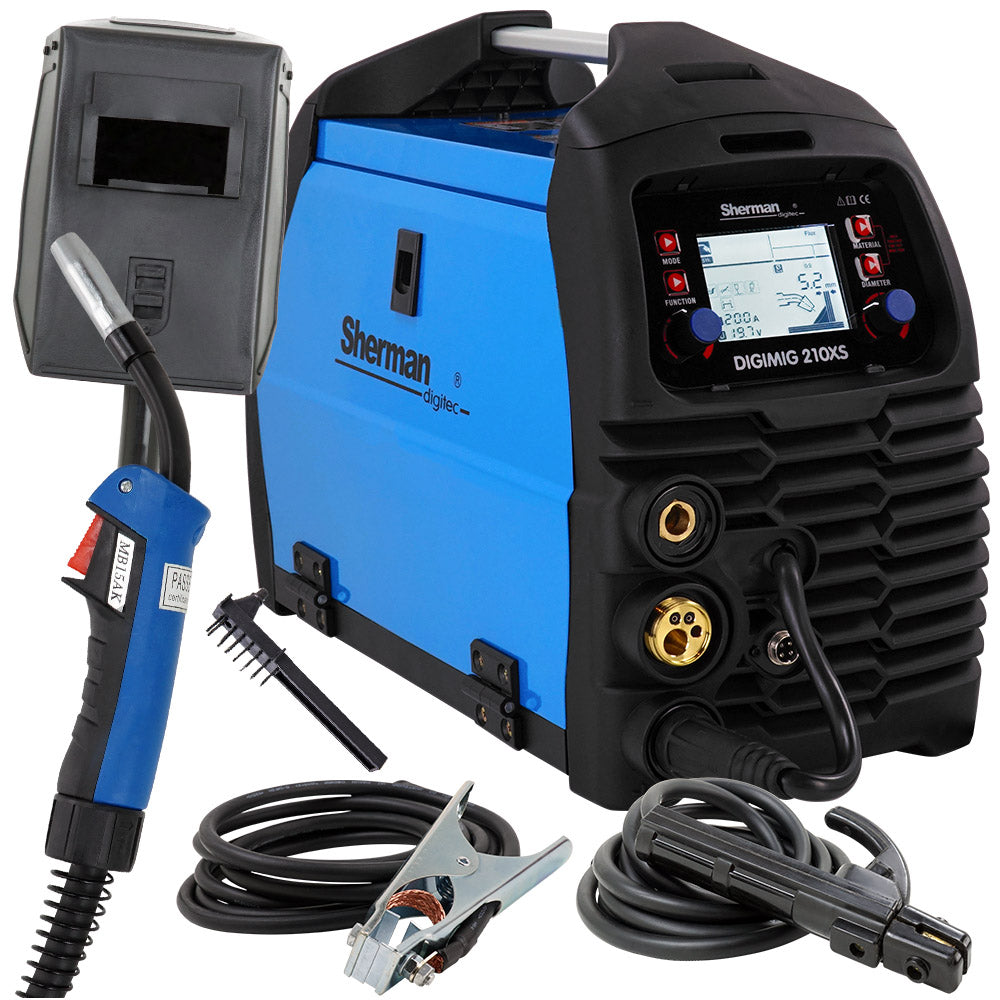

• Welding machine SHERMAN DIGIMIG 210XS
• Welding torch MB15 - 3m
• Electrode holder
• Bulk Holder
• User manual in Polish

+ WELDING ACCESSORIES FOR FREE

• welding disc,
• brushhammer.

Specifications
