Suvirinimo aparatas MIG 200A Synergy Pulse, aluminium, Sherman 210 XS Point

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG 200A Synergy Pulse, aluminium, Sherman 210 XS Point. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGIMIG 210 XS
• Ilgis: 531 mm
• Plotis: 231 mm
• Aukštis: 391 mm

⚡Do you need a solid wire feeder in your equipment? ✅ Metal 2-roll feeder - efficient equipment ❇

⚡Do you need full control over the weld? ✅ INDUCTANCE- reduces chipping and improves weld quality ❇

⚡Perfect synergy is necessary for you? ✅ Programs for steel, aluminium and stainless steel - for the most demanding ❇

⚡Looking for equipment with high power? ✅ Operating current 200A in cycle 60% - adapted to every need ❇

⚡ Power supply 230V is necessary for you? ✅ Power supply at 230V - stable operation in all conditions ❇

⚡Working on a long handle is a must? ✅ Handle with a length of 3 meters - will help in all conditions and at any distance ❇

⚡Mobility is a must? ✅ - Light weight and compact design make it easy to transport❇

✅ welding machine from the manufacturer with many years of experience in the industry,

✅excellent welding parameters and simple operation,

✅ has synergistic MIG/MAG programs with the possibility of correction,

✅display shows the influence of parameters on the shape of the weld face,

✅possibility of soldering - has a special program for professional process,

✅has dedicated programs for welding aluminum and stainless steels,

✅possibility of welding in manual settings mode,

✅ is powered from a single-phase 230V network,

✅has additional, advanced functions for welding,

✅has a MIG EURO handle socket,

✅ TIG DC Lift welding (optional), MMA (MMA cables included).

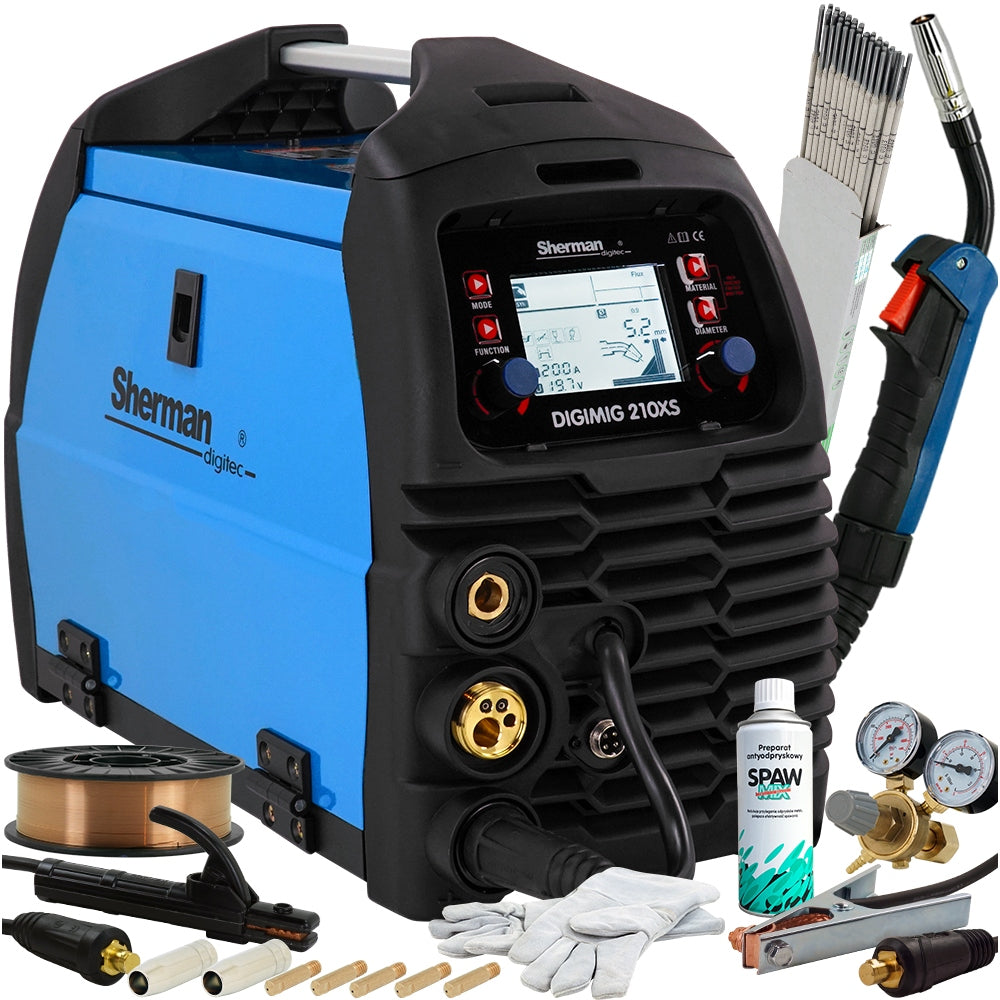

✔ Welder Sherman DIGIMIG 210XS

✔ MiG holder MB15 3m

✔ MMA electrode cable

✔ Mass cable

✔ Operating instructions

✔ Welding mask

✔ Welding hammer

✔ Ar/CO2 reducer with two clocks + gas line,

✔ welding wire steel SG2 D200 0,8mm x 5kg,

✔ spawmiX anti-chipping preparation 400ml,

✔ welding gloves,

✔ burner part starter kit,

✔ pack of electrodes for MMA welding (1kg).

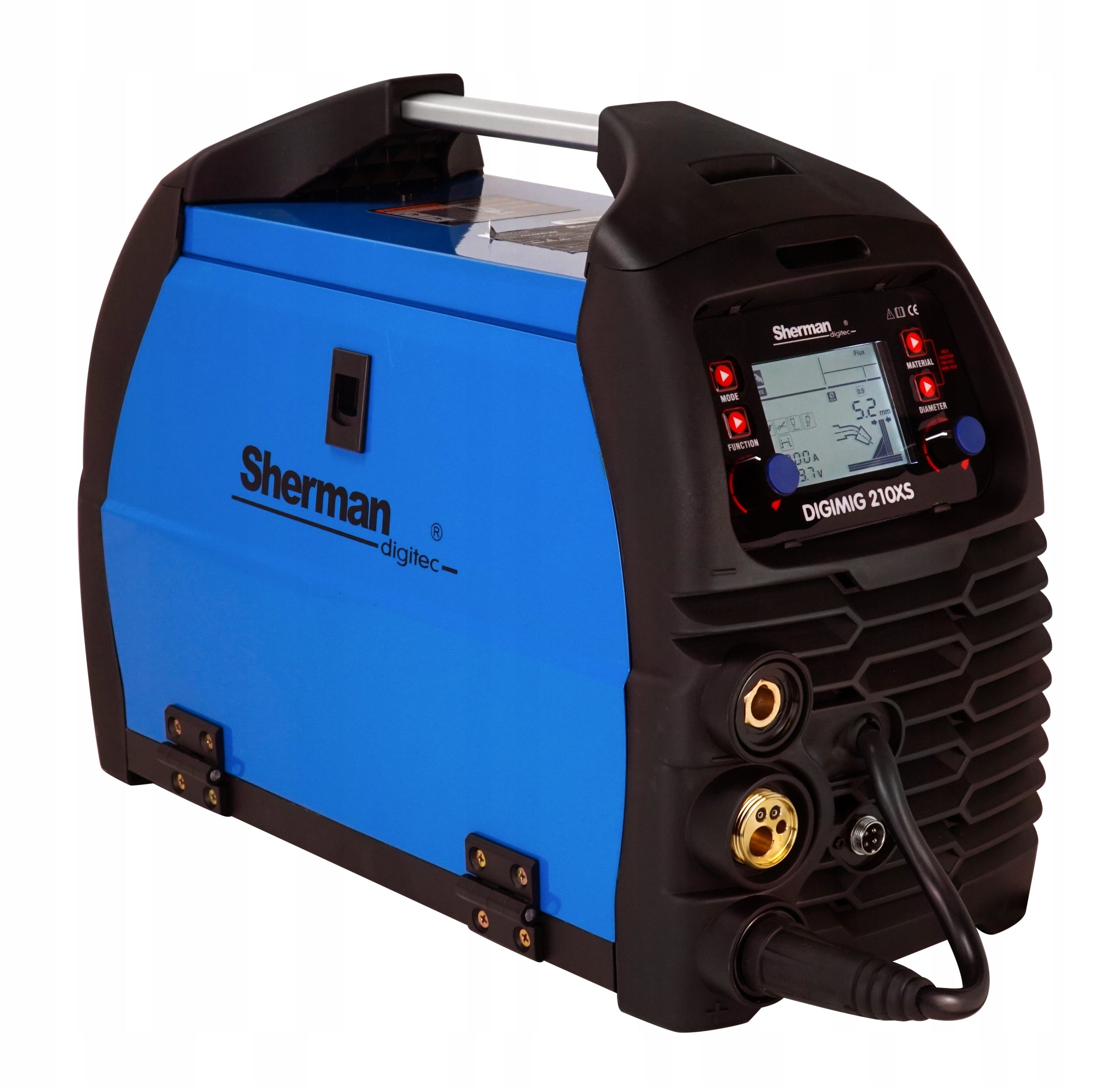

DIGIMIG 210 XS by SHERMAN is a technologically advanced welding device for welding using the following methods: MIG/MAG, MMA, TIG DC Lift, FCAW (self-shielded wire without gas) and for soldering galvanized sheets.

The machine has been designed for all kinds of welding work in locksmith workshops, repair and production. It is an ideal source for working in the automotive industry in repairing vehicle body parts, etc.

Excellent value for money. The machine is packed with functions that have been out of range in devices of this class so far. The design and software allow to obtain the highest quality weld when welding any weldable materials made of black steel, stainless steel, acid-resistant steel, aluminum alloys and copper.

⏩IGBT power transistors - excellent welding characteristics

The device is made on the basis of modern power transistors and high quality control standards. The source is characterized by low power consumption and resistance to interference, which translates directly into excellent welding quality. The welder is powered from a single-phase 230V network.

⏩LCD display with excellent contrast

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

⏩Excellent user interface

Quick and easy access to key features such as:

✅ MIG/MAG spot welding,

✅regulation of the feeder access speed,

✅welding inductance - control of face width and melting depth,

✅Burn Back - regulation of wire burning time,

✅synergic MIG/MAG programs: Fe - steel welding, Ss - stainless steel welding, Al - aluminum welding, CuSi, CuAl - soldering, Flux - self-shielding wire welding,

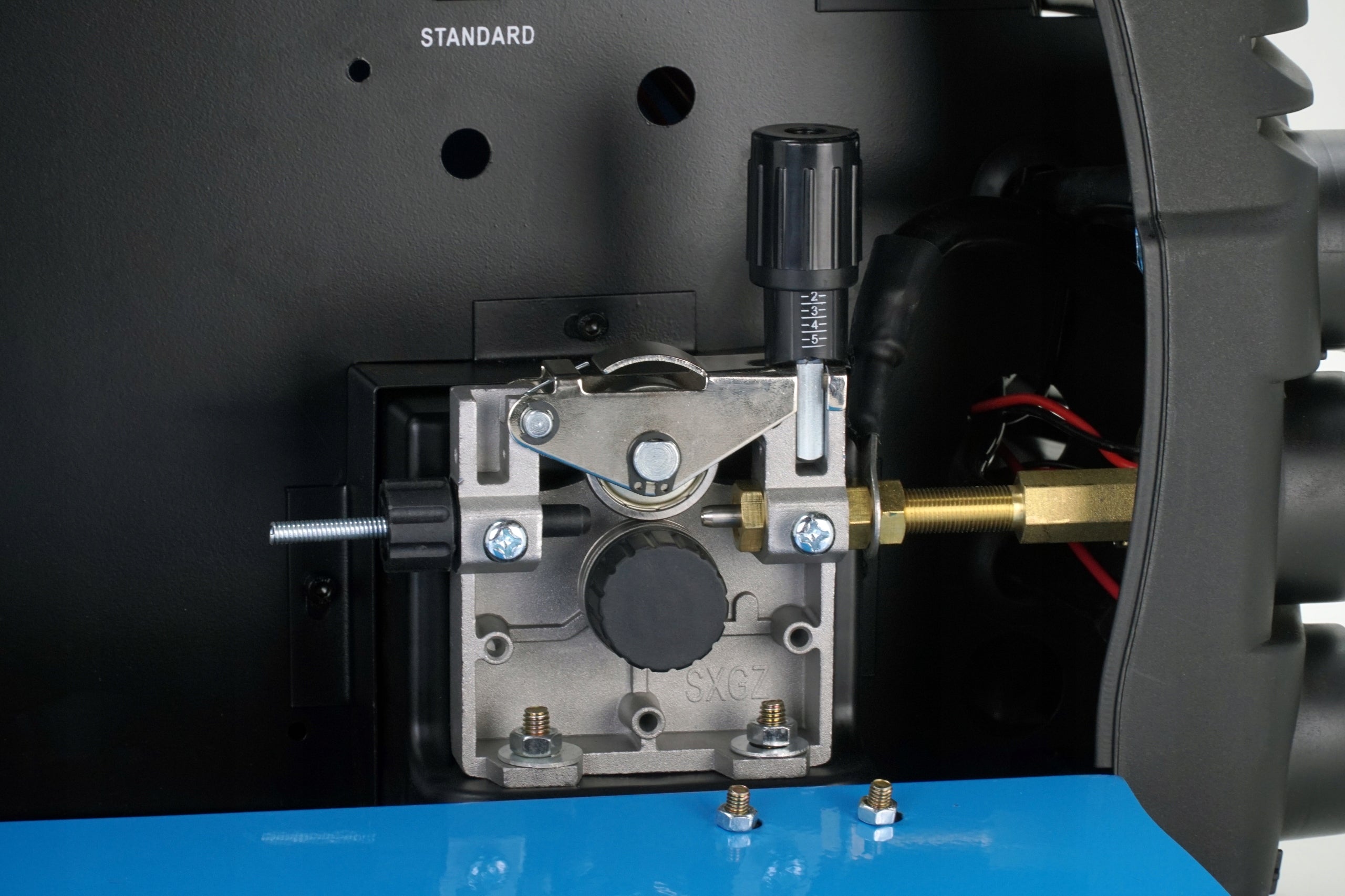

⏩Professional wire feeder

Professional 2R feeder - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination. Feeder rollers made in accordance with the prevailing standards, various types of rollers available for sale.

⏩Possibility of welding with SPOOLGUN handle

The SPOOLGUN type holder has a built-in wire feeder and is adapted to use wires on the D100 spool (diameter 100mm). This is a great solution e.g. when it is necessary to increase the working range of the device - SPOOLGUN handles are generally available in versions 3m, 5m and even 8m.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 35% 200A, 100% 118A
• Protection: IP21S
• LCD display
• Net weight: 13kg

⏩ MIG/MAG welding parameters:

• Welding Current: 20 - 200A
• Welding Voltage: 14,5 - 24V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Wire spool weight: max. 5kg (D100, D200)
• Synergic programs: Fe CO2, Fe Ar/CO2, Flux, AlMgAlSi, Ss, CuSi/CuAl
• Correction of synergistic programmes: YES
• Manual Settings Mode: YES
• MIG/MAG spot welding: YES,
• Welding inductance adjustment: YES,
• BurnBack: YES,
• Adjusting the feeder access speed: YES,
• Other functions listed in the description.

⏩ MMA welding parameters:

• Welding Current: 10-200A
• Maximum electrode diameter: 3,2mm
• Idle Voltage: 63V

⏩TIG welding parameters (optional):

• Welding Current: 10-200A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve*

*TIG handle with valve is available for sale at our other auctions

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• TIG DC - welding with a non-melting electrode in an inert gas shield, e.g. alloy and non-alloy steels.

• PROFESSIONAL WIRE FEEDER - Professional 4R feeder - reliable wire feeding regardless of spool weight, handle length and welding wire type. Proven mechanism

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

Choose a brand whose history dates back to the beginning of the twenty-first century. Sherman is a leading brand of welding equipment in Poland.

A wide range of Sherman devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Sherman brand most often due to its high quality, affordable price and reliability.

• reducer MINI
• wire SG2 D200 0,8mm x 5kg,
• SPAWMIX 400ml,
• welding gloves,
• 2x Nozzle 5x Tip,
• pack of electrodes for MMA welding (1kg).

Specifications
