Suvirinimo aparatas MAGNUM PRO-X 238 TIG AC/DC HF LIFT MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM PRO-X 238 TIG AC/DC HF LIFT MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U I THF238PRO-X ZESTAW#0
• Ilgis: 500 mm
• Plotis: 150 mm
• Aukštis: 305 mm

+ ADDITIONAL ACCESSORIES:

✅ AUTOMATIC VISOR IDEAL APS-510G

✅ CYLINDER WITH REDUCER

✅ WELDING WIRES

✅ WELDING ACCESSORIES

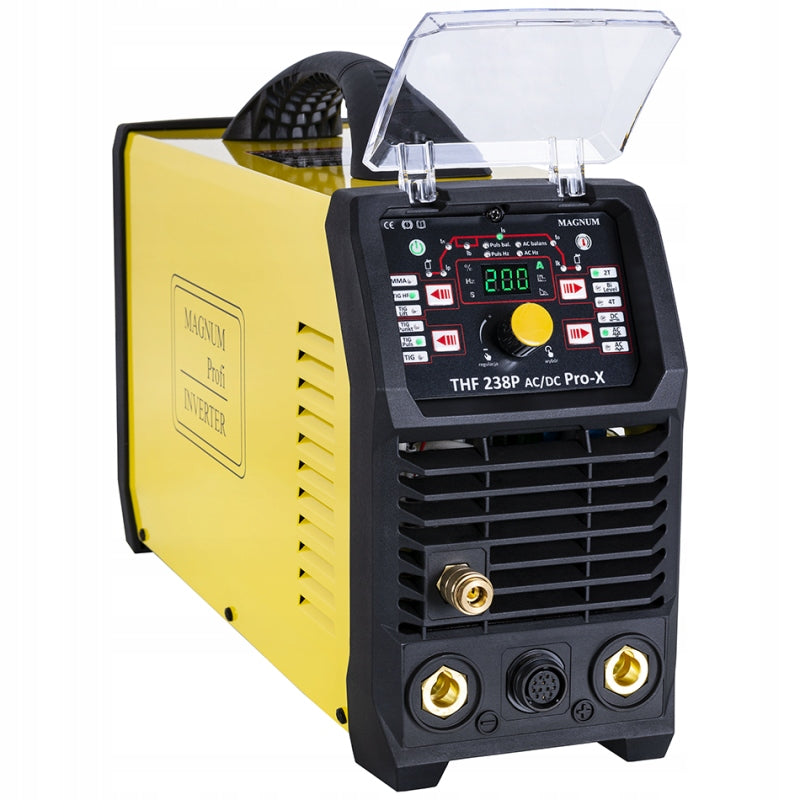

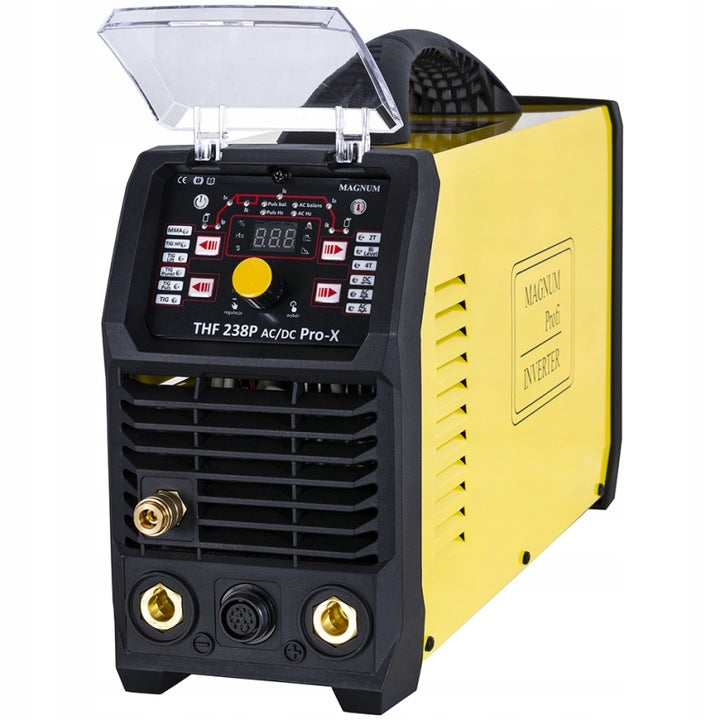

The THF238 PRO-X AC/DC from MAGNUM is a professional, lightweight inverter welding machine designed for welding using the following methods:

• TIG AC/DC - welding with a non-melting electrode in an inert gas shield with the possibility of determining arc ignition TIG HF i TIG LIFT with direct current (DC) and alternating current (AC)
• MMA electrode wrapped with direct current (DC) and alternating current (AC)

THF 238 PRO-X provides excellent performance in welding:

• aluminium and its alloys,
• non-alloy steel,
• low alloy,
• high-alloy,
• titanium
• other weldable metals and alloys.

The device can also be welded using the MMA method using hot melt coated electrodes, after purchasing an electrode holder.

The THF 238 PRO welder is powered from a single-phase 230V network, has a high 60% duty cycle at 200 A current, which allows it to be used in various industrial segments. The device has an intuitive, easy-to-use control panel that allows for quick and precise selection of individual welding parameters.

The control panel is equipped with a multifunctional display illustrating the values of individual parameters, the adjustment of which is carried out with a single knob.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

Arching occurs in non-contact (HF) or touch mode (LIFT). The LIFT function is used during welding in environments with a high risk of electromagnetic interference affecting the environment.

Both with the MIG/MAG method and TIG HF non-contact and TIG LIFT touch ignition, we can choose the button function in the handle between working in 2-bar or 4-bar mode (button lock for long welds).

THE WELDING MACHINE ALLOWS WELDING BY THE FOLLOWING METHODS:

➡ TIG DC and TIG DC PULS

It is used for welding stainless steel, carbon and low alloy steels, copper and titanium.

➡ TIG AC and TIG AC PULS

enables welding of aluminum and its alloys and brass.

Thanks to the regulation of TIG PULS pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin and aluminum,

as well as the MMA method after purchasing the electrode holder.

ADVANTAGES OF THE THF 238 PRO-X:

⭐ SPOT WELDING SPOT - with the possibility of setting the welding time at the point. A function that allows you to perform even, spot welds or spot welding of thin plates with other elements. This method is used, for example. in the production of chassis and car bodies, but also in the home workshop.

⭐ CHOICE OF AC WAVEFORM SHAPE: waveform adjustment allows for more precise impact on the weld (width, height, depth of melting)

• SQUARE - rectangular waveform of alternating current allows welding of aluminum with the addition of magnesium
• SINUS - sinusoidal waveform is recommended for welding pure aluminum 99,999%

⭐ OPERATING MODE 2T/4T – regulation of balance, current frequency, pulse frequency, pulse width and pulse current

⭐ Bi-LEVEL - the ability to switch between two welding current values

✔ Made in INVERTER technology

✔ Easy to use even for amateurs

✔ Transistors IGBT

✔ Good value for money

✔ Intended to work in INDUSTRY

✔ LCD Display - Easy Operation

✔ Welding of STAINLESS STEEL

✔ Welding ALUMINIUM

✔ Automatic cooling system with fan

✔ Built-in overload protection

✔ Stepless adjustment of welding current

CONTROL PANEL

Digital function panel enables precise control of all the most important welding parameters for TIG AC/DC methods:

• Graph of the TIG process,
• Selection of waveform when welding TIG AC - sine wave, rectangular,
• Balance AC,
• AC current frequency,
• Bi-LEVEL - the ability to switch between two welding current values
• Gas flow before welding,
• Starting current,
• Time of electricity build-up,
• Welding current,
• Time of falling current,
• Final current (extinguishing),
• Gas flow after welding
• TIG PULS: peak current, base current, pulse frequency, pulse width
• Operating mode 2T/4T
• TIG Lift contact arc ignition
• TIG HF ,
• TIG Point - spot welding

and the most important parameters for MMA AC/DC methods:

✅ HOT START: facilitates the ignition of the electrode by providing more welding current with each arc.

✅ ARC FORCE: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake

The power source was built on the basis of IGBT (Insulated Gate Bipolar Transistor) transistors, which provide a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

• Ideal APS 510 G automatic visor
• Gas bottle 8L - New reusable cylinder with 10 years of legalization and Argon gas - 1 pc.
• Gas reducer with rotameter - 1 pc.
• Tungsten electrode TIG gold 1,6/2,0/2,4 mm - 3 pcs.
• Current switch 1,6/2,0/2,4 mm - 3 pcs.
• Clamp sleeve 1,6/2,0/2,4mm - 3 pcs.
• Ceramic nozzle - 3 pcs.
• Gas hose bands - 2 pcs.
• TIG cork - 2 pcs.
• Professional welding gloves - 1 pc.
• Wire welding TIG 1,6mm for black steel - 0,5 kg
• Wire welding TIG 1,6mm 308LSi for stainless steel - 0,5 kg
• Wire welding TIG 1,6mm 316LSi for acid - 0,5 kg
• Wire welding TIG 1,6mm for aluminium - 0,5 kg
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)
• Angle magnetic - 11 kg - 1 pc.

Welding visors with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with a grinding function.

High quality LCD filters in optical class 1/1/1/2.

Power source: photovoltaic cell + replaceable battery.

4-spoke adjustable headrest ensures comfort of use.

The shell compliant with EN175B provides greater impact resistance.

PHYSICAL PARAMETERS

• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

TECHNICAL PARAMETERS

• Response time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032

STOCK NUMBER: PL071358

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

ATTENTION! Masks are shipped in the color currently available in stock.

Universal, robust welding torch / torch with valve TIG-26V-30 Type (WP-26-V or under another name SR17V) fits most welding equipment available on the market.

The handle has an ergonomic shape so it fits perfectly in the hand. The control button is located in the central place of the handle.

The handle of the burner has specially rubber inserts, thanks to which the handle lies securely in the hand. The handle has a high-quality rubber cover, protecting the wires from abrasion.

He's completely armed and ready to go. The handle has a high-quality cover, protecting the wires from abrasion.

TIG handle may vary slightly from the picture shown depending on delivery.

When using an ordinary gas nozzle, the shielding gas is first reflected from the inner walls of the ceramic nozzle and then is unevenly distributed to the working area. Using the gas lens , the gas through a special mesh is distributed evenly along the tungsten electrode straight to the working area providing a much better shield spoiny.

✔ CAR REPAIR SHOPS

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ SHIPYARD

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

☀ VERSATILITY OF THE DEVICE ☀

THF 238 PRO X from MAGNUM is a device with a wide range of applications, designed as an inverter power source enabling welding using the following method:

✔ MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

NOTE FOR MMA WELDING SHOULD BE PURCHASED ADDITIONALLY ELECTRODE HOLDER, AVAILABLE AT OUR OTHER AUCTIONS!

✔ TIG

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives.

The glow of the welding arc in the TIG method is carried out by two methods:

• by touch method by touching (TIG Lift) the electrode of the welded material, and then lifting it to a height of several millimeters, which initiates the welding arc
• non-contact method (TIG HF) using an ionizer by approaching the electrode to the welded material.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TO MEET CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE HAVE CREATED PROFESSIONAL SETS FOR YOU, THANKS TO WHICH WE PROVIDE YOU WITH EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO ELECTRICITY.

⌚ SAVE YOUR TIME ⌚

BUY INCLUDED AND WE'LL TAKE CARE OF THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TECHNICAL DATA:

• Power supply: AC 230 [V], 50/ [Hz],
• Security required: 25 [A] / C
• Power consumption: 7 [kW]
• Efficiency: 60 [%]
• Uo idle voltage: 70 [V]
• TIG AC welding current: 10 - 200 [A]
• TIG DC welding current: 10 - 200 [A]
• MMA welding current: 10 - 200 [A]
• Adjustment - current rise/fall time: 0 - 10 [s]
• Adjustment - gas outflow time after welding: 0 - 10 [s]
• Welded time at point: 0,1 - 10 [s]
• PULSE BALANCE: 5-95 [%]
• PULSE frequency: 0,5-999 [Hz]
• AC Balance: -5 - 5
• HOT START function: YES
• ARC FORCE function: YES
• BiLEVEL function: YES
• 2T/4T function: YES
• TIG function POINT: YES
• Housing protection class: IP23
• Weight: 10 [kg]

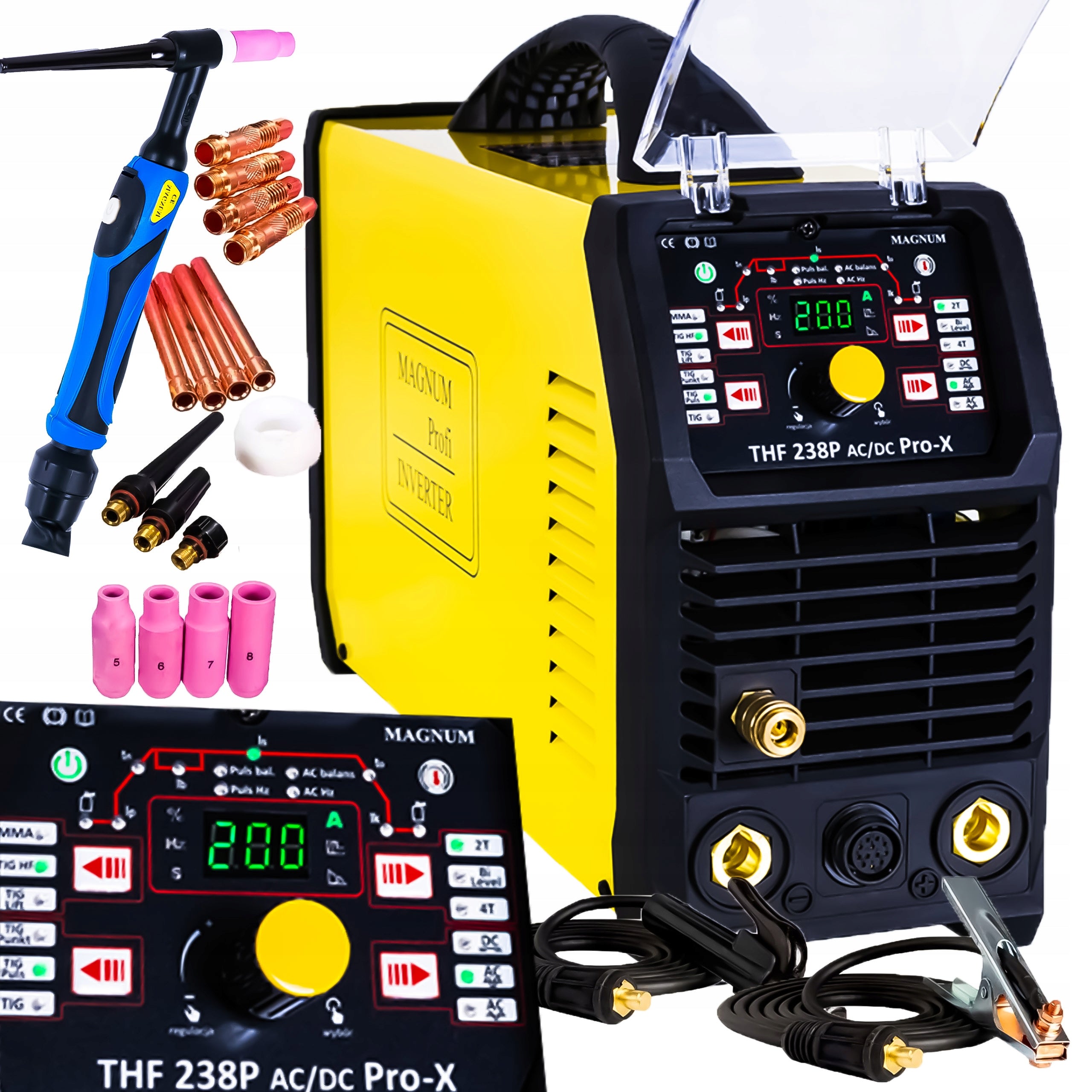

• Inverter welding machine MAGNUM THF 238 PRO-X AC/DC PULS
• Welding torch TIG SR26 4m - 1 pc.
• mass cable 3 m - 1 pc.
• Gas hose - 1 pc.
• Instruction for use in Polish
• Warranty card

• Ideal APS 510 G automatic visor
• Gas bottle 8L - New reusable cylinder with 10 years of legalization and Argon gas - 1 pc.
• Gas reducer with rotameter - 1 pc.
• Tungsten electrode TIG gold 1,6/2,0/2,4 mm - 3 pcs.
• Current switch 1,6/2,0/2,4 mm - 3 pcs.
• Clamp sleeve 1,6/2,0/2,4mm - 3 pcs.
• Ceramic nozzle - 3 pcs.
• Gas hose bands - 2 pcs.
• TIG cork - 2 pcs.
• Professional gloves welding - 1 pc.
• Wire welding TIG 1,6mm for black steel - 0,5 kg
• Wire welding TIG 1,6mm 308LSi for stainless steel - 0,5 kg
• Wire welding TIG 1,6mm 316LSi for acid - 0,5 kg
• Wire welding TIG 1,6mm for aluminium - 0,5 kg
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)
• Angle magnetic - 11 kg - 1 pc.

(Set of 2)
