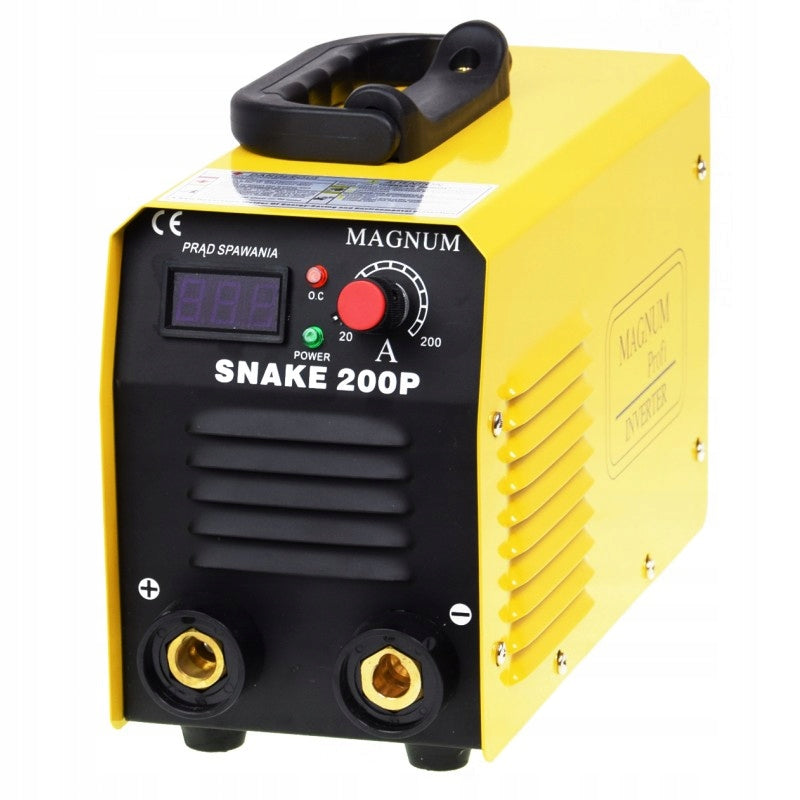

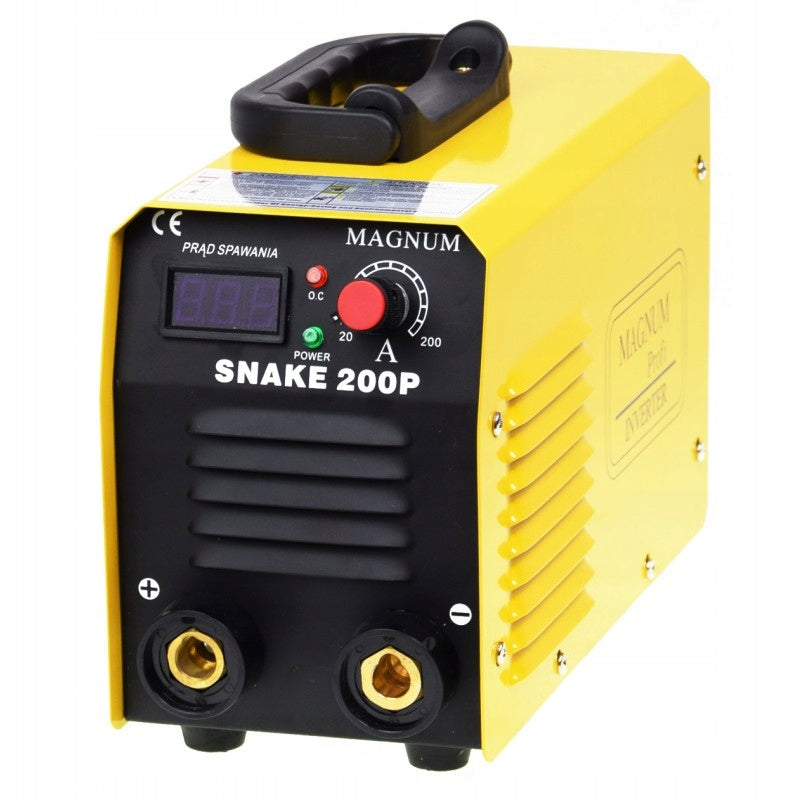

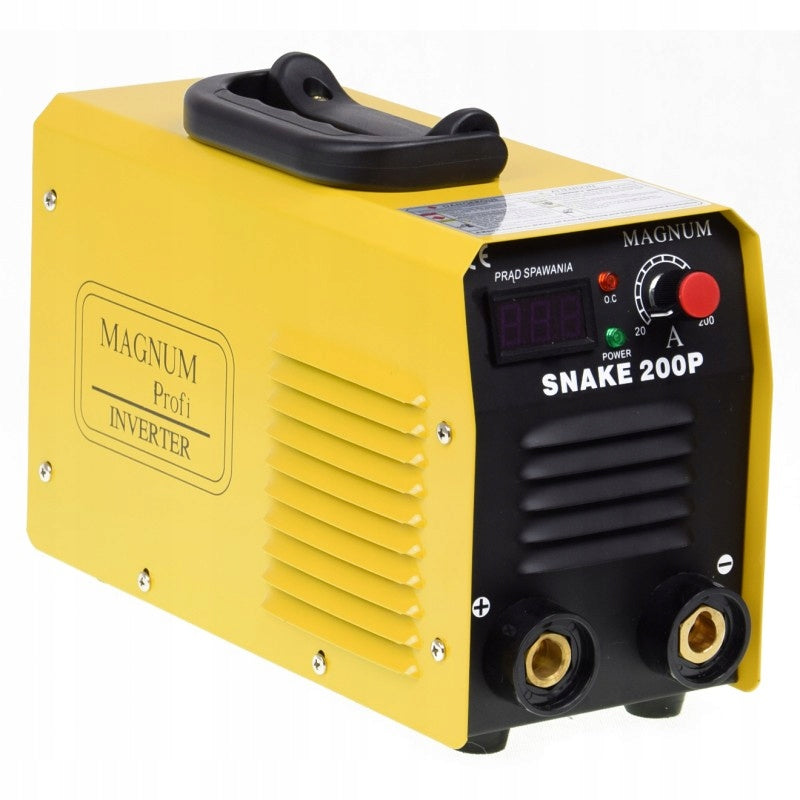

Suvirinimo aparatas MAGNUM SNAKE 200 PS MMA TIG 230V 200A IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM SNAKE 200 PS MMA TIG 230V 200A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U I SNA 200PS

✳ Manufacturer: MAGNUM ✳ Welding methods: MMA, TIG LIFT ✳ Power supply: 230V ✳ Welding current: 200A ✳ Efficiency: 60%

MAGNUM SNAKE 200 PS - POWERFUL WELDING MACHINE WITH TIG LIFT❗❗❗ FUNCTION

✴ MAGNUM SNAKE 200 PS✴ WELDING MACHINE

The Snake 200 PS inverter device is a lightweight, portable, power source. It is used for welding with wrapped electrodes of various steel grades, including ordinary, stainless, heat-resistant and cast iron. It is designed to work in field conditions and perform all kinds of repair work. The device is characterized by high efficiency 200 A/60%. It has excellent arc characteristics for rutile and alkaline electrodes.

The welding machine can also be used for TIG welding using a special TIG handle with a valve (TIG LIFT method). Arch ignition is then carried out by lightly rubbing the non-melting electrode against the welded material. Snake 200 PS devices are based on the latest, most advanced technology, using IGBT transistors.

CHARACTERISTICS OF THE DEVICE

✅ SMOOTH ADJUSTMENT OF WELDING PARAMETERS

✅COMPACT SIZE THE WELDING MACHINE WEIGHS ONLY 5,3kg !

✅HIGH POWER - UP TO 200A!

✅EFFICIENCY 60%

✅LED DISPLAY WITH EXCELLENT CONTRAST

✅WELDING WITH ELECTRODES UP TO 4MM IN DIAMETER

✅POSSIBILITY OF WELDING TIG LIFT

✅TRANSISTORS IGBT OF THE LATEST GENERATION

✅THE WELDING MACHINE HAS LARGE SOCKETS CURRENT

ADVANTAGES AND FUNCTIONS OF THE MAGNUM WELDING MACHINE

➡ IGBT - The welding machine uses modern transistors, a solution that provides minimum electromagnetic interference small power loss in basic systems, enabling increase in efficiency and reliability of the power source.

➡ TIG LIFT - migomat MAGNUM has the possibility of touch welding TIG LIFT. Arch ignition is carried out by lightly rubbing the non-melting electrode against the welded material. (set does not include tig handle)

➡ OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

➡ FAN COOLING SYSTEM, which significantly increases its efficiency.

ADDITIONAL ADVANTAGES OF THE WELDING MACHINE

➡ ANTI-STICK - allows the welder to easily separate (subtract) the electrode from the product, without the risk of visual paralysis. In the case of a short circuit (if it occurs), after a short break, the welding current is reduced automatically. After separating the electrode from the element, the source automatically restores its operation. It improves welding efficiency, short circuit of the electrode is accompanied by overheating, which may result in its damage.

➡ ARC FORCE – is used to improve stability in the arc and prevent the electrode from “sticking”. Reducing its value to some extent also reduces electricity consumption, the arc is soft and the depth of the melt is reduced. This makes it easier to work with thinner materials. Similarly, increasing ARC FORCE, the arc becomes more focused melting and the stability of the arc increases.

➡ DIGITAL DISPLAY - facilitates operation and allows for precise adjustment of welding parameters.

MAGNUM SNAKE 200 PS WELDING MACHINE WILL FIND THE PERFECT APPLICATION M.IN. In :

✔ Car workshops

✔ Farms

✔ Hobby work

✔ And many other places

Magnum 200 PS will provide excellent quality in welding m.in.

✔ Low carbon steel

✔ Low alloy steel

✔ Cast iron steels

✔ Other Weldable Metals and Alloys

DESCRIPTION OF THE FRONT PANEL OF THE MAGNUM SNAKE 200 PS WELDING MACHINE

1. "Do Not Disturb" Mode (DND)

2. A lamp indicating the operation of the protection system.

3. Power signaling.

4. Welding current adjustment knob.

5. Current sockets, output.

The main switch is located on the back of the device housing

TECHNICAL DATA:

• Power supply: AC 230 [V] / 50 [Hz]
• Welding current: 20 - 200 [A]
• Idle voltage: 67 [V]
• Power protection: 25 [A] / C
• Efficiency: 60%
• Cooling: fan

THE REMAINING:

• Mass: 5,3 kg
• Degree of protection: IP21S
• Isolation class: F

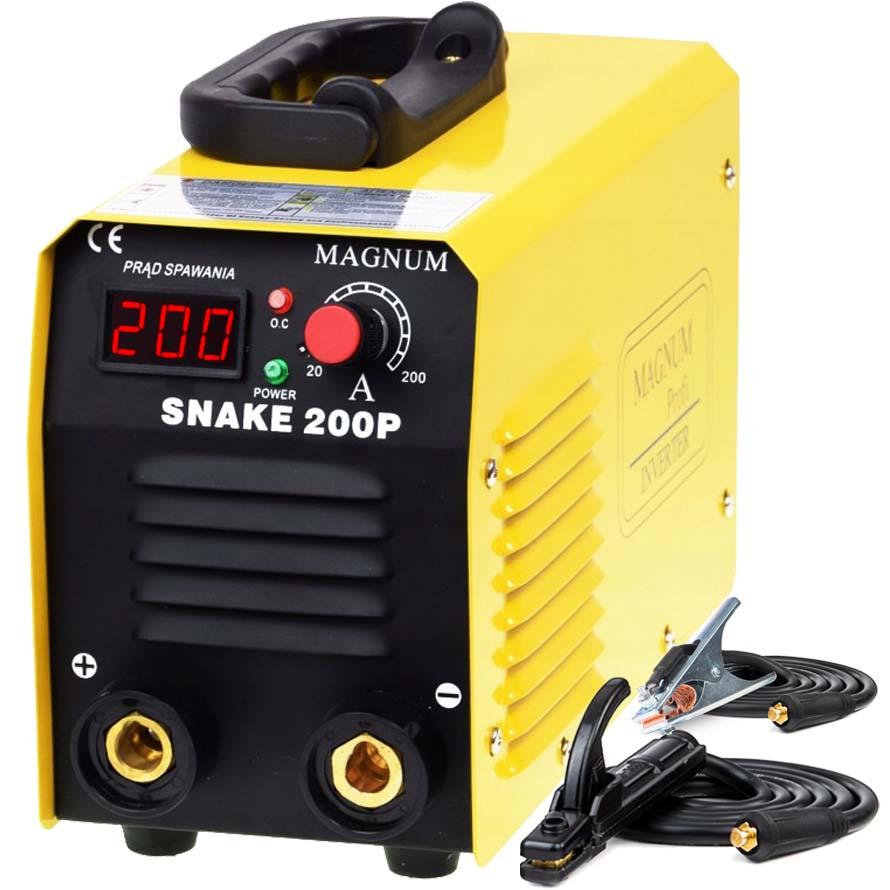

THE COMPLETE SET INCLUDES:

• Welding machine MAGNUM SNAKE 200 PS
• Electrode holder
• Bulk Holder
• User manual and warranty card
