Trumpai apie prekę
Prekė: Suvirinimo aparatas MAGNUM MIGOMAT 200A 230V IGBT MIG/MAG MMA rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIG-MMA 220W
- Ilgis: 662 mm
- Plotis: 320 mm
- Aukštis: 402 mm
|Manufacturer: MAGNUM| Power supply: 230 V| Welding current: 200 A| Welding methods: MIG/MAG, MMA | IGBT |

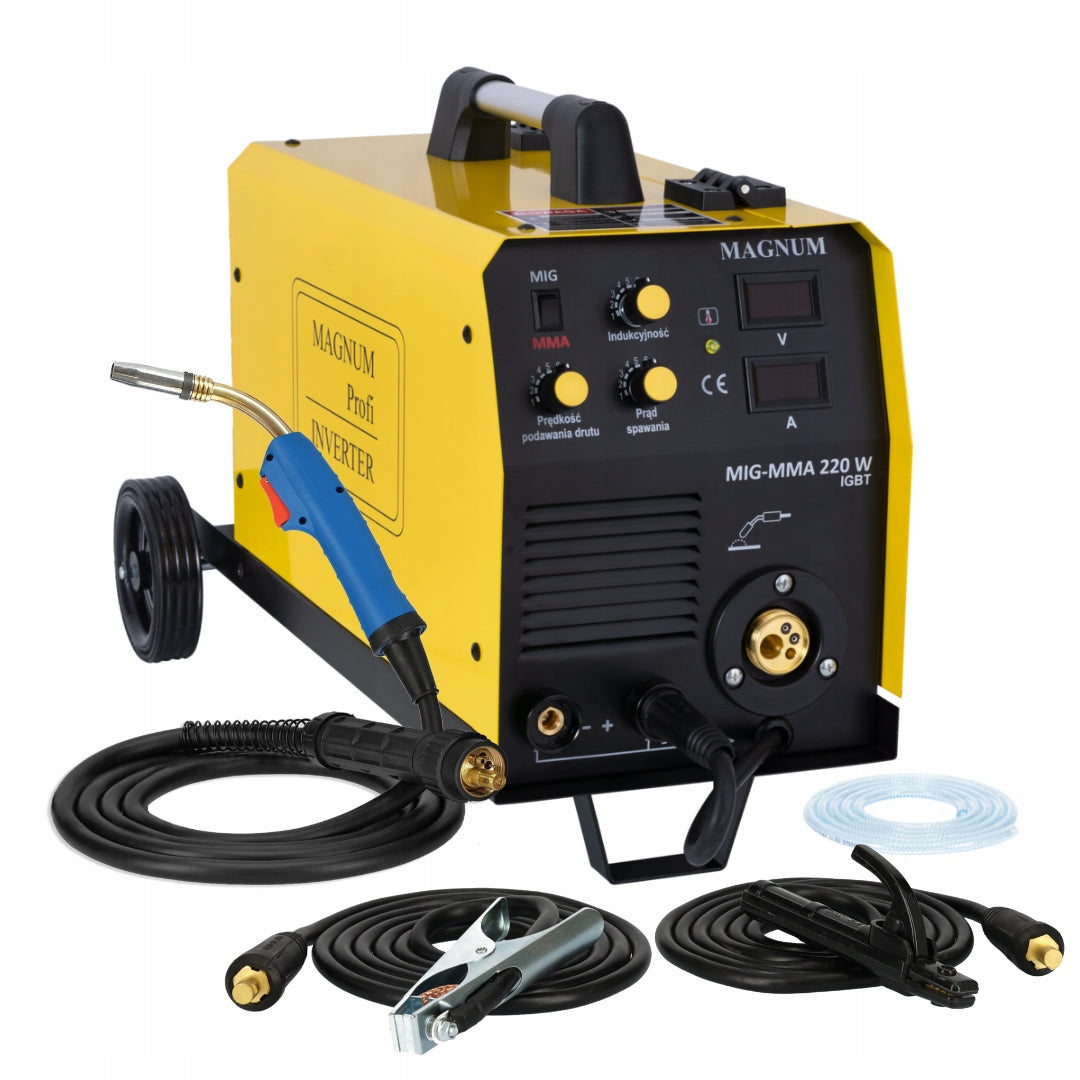

Standard equipment:
- Magnum MIG 220 W MMA IGBT welding machine
- welding torch MB-15 / 3 m
- feeder roll fi 0,8 / 1,0 mm V-shaped (mounted)
- power cord with plug
- mass cable / plug 25 mm2 / 2 m
- electrode cable / plug 25 mm2 / 200 A / 2 m
- instruction manual in Polish
The Magnum MIG-MMA 220W IGBT welding machine is a professional semi-automatic welding machine designed for manual, electric welding:
☑ low carbon steel
☑ low-alloy stli (MAG)
☑ alloy steels (MIG)
☑ aluminium and its alloys.
The device can also be welded using the MMA method using hot melt wrapped electrodes.
It has the possibility of welding with self-shielding wire - FCAW (change the polarity in the welding machine: minus (-) on the welding torch, plus (+) on the mass).
Welding machine for all kinds of welding work:
- in locksmith workshops
- repair workshops
- in industrial plants
- factories
- and others
Popular and willingly chosen model!
The power source was built on IGBT transistors providing minimum electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption and rapid adjustment of the current to changes in parameters during welding.

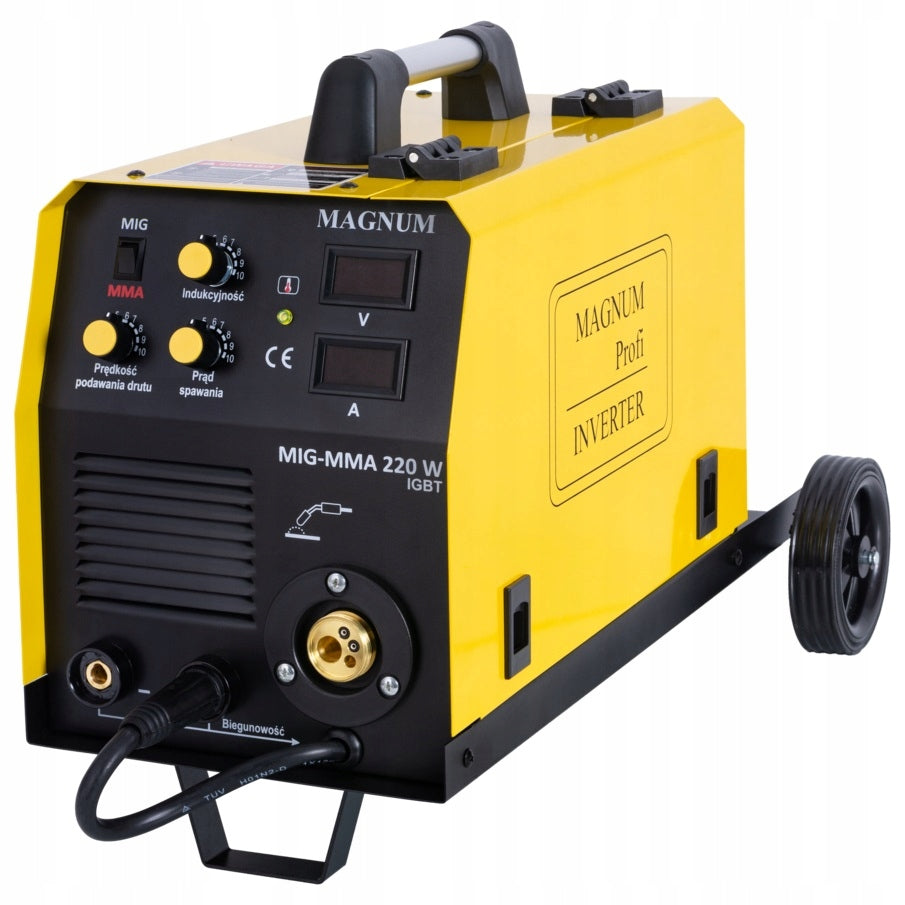

The device has a clear, easy-to-read panel on which m.in.:
- display of the current value of welding current voltage
- display of the current welding current
- inductance adjustment knob
- MIG-MAG and MMA welding current control knob
- Wire feed speed control knob for MIG-MAG
Magnum MIG-MMA 220W IGBT equipped with inductance adjustment (arch hardness), which affects the shape of the weld and is recommended for welding stainless steel and lutowelding.
- Network security 230 V [A]: 20
- Power supply [V]: 230
- Minimum welding current MIG [A]: 30
- Maximum welding current MIG [A]: 200
- Minimum welding current MMA [A]: 30
- Maximum welding current MMA [A]: 180
- MIG/MAG duty cycle [%]: 60
- Work cycle MMA [%]: 60
- Welding processes: MIG / MAG / MMA
- Supported wire spool diameter [mm]: 200
- Wire feeder type: 2-roll
- Control: manual
- Inductance regulation: YES
- Lutowelding function: YES
- Welding without gas: YES
- Weight [kg]: 13.5
✴ possibility of welding using MIG/MAG, MMA methods
✴ possibility of welding with self-shielded wire
✴ possibility of LUTOWELDING
✴ advanced inverter technology
✴ inductance regulation
✴ EURO type handle for mounting various handles
✴ light weight and dimensions
✴ clear and easy to use panel
✴ popular and proven model
MIGOMAT WELDER MIG MAG inverter 200A MAGNUM MMA welding semi-automatic
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 6.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 13 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 402 mm |
| Parametry | Length | 662 mm |
| Parametry | Width | 320 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | U MI 220W MMA MAPR2-15 |
| Parametry | EAN (GTIN) | 5907195563745 |
| Parametry | Packaging status | original |
| Parametry | Model | MIG-MMA 220W |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO handle,LCD display |
