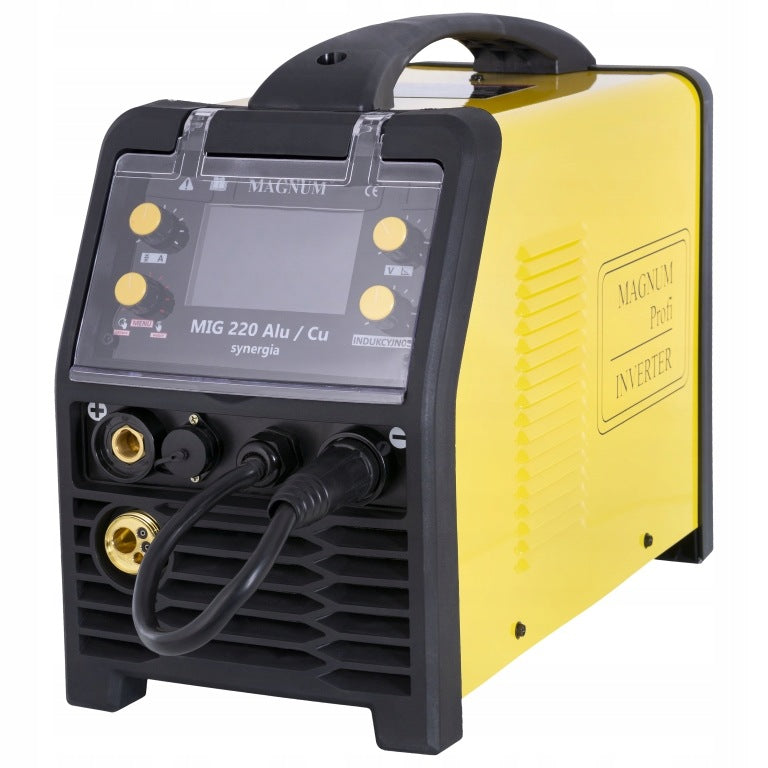

Suvirinimo aparatas MAGNUM MIG MAG Alu SYNERGY 220 3W1 200A su kauke, balionu ir viela

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG MAG Alu SYNERGY 220 3W1 200A su kauke, balionu ir viela. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM PÓŁAUTOMAT DO ALUMINIUM 220 CU SYNERGIA

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, CuSi3 soldering | Manufacturer: Magnum

NOTE ⚠ When choosing this set, you bet on a set ready to work - FULL EQUIPMENT

⏩THE MOST IMPORTANT ADVANTAGES

✅MIG/MAG, MMA, TIG Lift i lutowelding in one device

✅synergic programs for steel, stainless steel, aluminium, core wires and soldering CuSi and CuAl

✅readable LCD screen and intuitive menu for quick setup

✅230 V power supply, convenient for workshop and garage operation

✅inductance adjustment, 2T/4T modes and Burn Back function

✅possibility to connect the Spool Gun

✅possibility of working without gas with self-shielding wire

✅IGBT inverter technology for stable operation of the device

✅ welding current range: MIG/MAG 40 – 200 A, TIG Lift 10 – 200 A, MMA 10 – 170 A

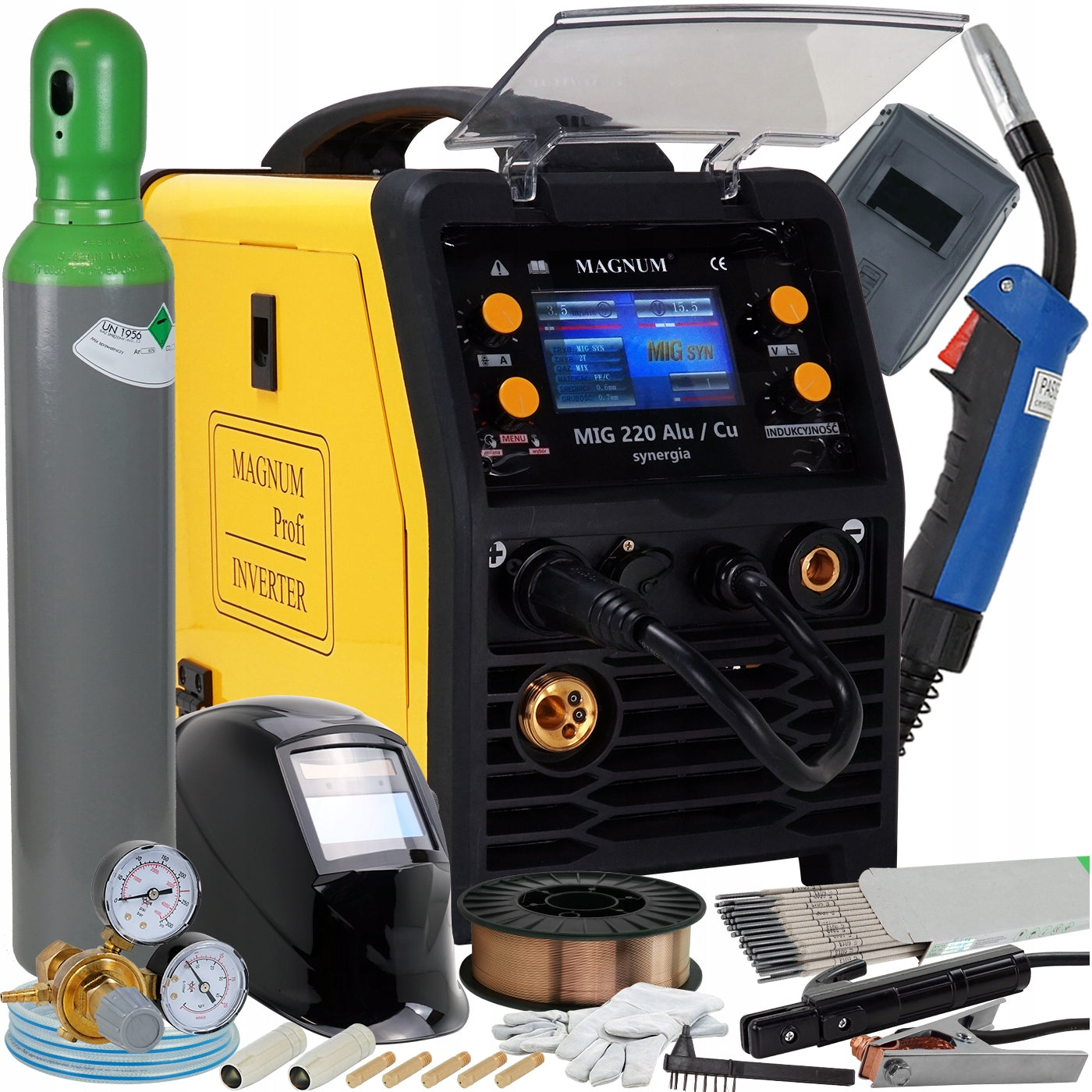

⏩WHAT WILL YOU FIND IN THE PACKAGE?

• Device Magnum MIG 220 Alu/Cu Synergy LCD
• Welding torch MIG MB 15 3m
• MMA electrode holder
• Mass cable
• User manual in Polish
• PACK OF 1KG ELECTRODES FOR WELDING MMA
• Ar/CO2 8l cylinder - certified, has all the necessary approvals for the Ar/CO2 MIX mixture.
• Ar/CO2 reducer with two clocks + gas line,
• SG2 steel welding wire D200 0,8mm x 5kg,
• welding gloves,
• starter set of burner parts.

⏩PROFESSIONAL SELF-TINTING VISOR WITH 510G FILTER

• Filter type: Automatic (self-tinting)
• Filter model: 510G
• Field of view: 96x39 mm
• Number of Sensors: 2
• Darkening: DIN 9-13
• Response time: 1/30 000s
• Optical class: 1/1/1/2
• Brightening time adjustment: 0,1 - 1,0 [s] smooth
• UV/IR protection: up to DIN 16
• Darkening in bright condition: DIN 4
• MIG/MAG/MMA welding: YES
• TIG welding: Yes, above 10A
• Photovoltaic cell + battery 1xCR2032
• Weight: 475g

⏩Magnum MIG 220 LCD Alu/Cu Synergy - better welding with synergistic flash

Due to the functionality and welding parameters, this device is addressed to professionals. With full synergy and ease of use - perfect for DIYers and DIY enthusiasts.

MIG 220 LCD Alu/Cu is a multifunctional semi-automatic welding machine made in inverter technology, using IGBT power trazinstor. It has great welding characteristics and color LCD display. Access to advanced features of the device is extremely simple. The welding machine allows welding with current up to 200A and operates with a high duty cycle.

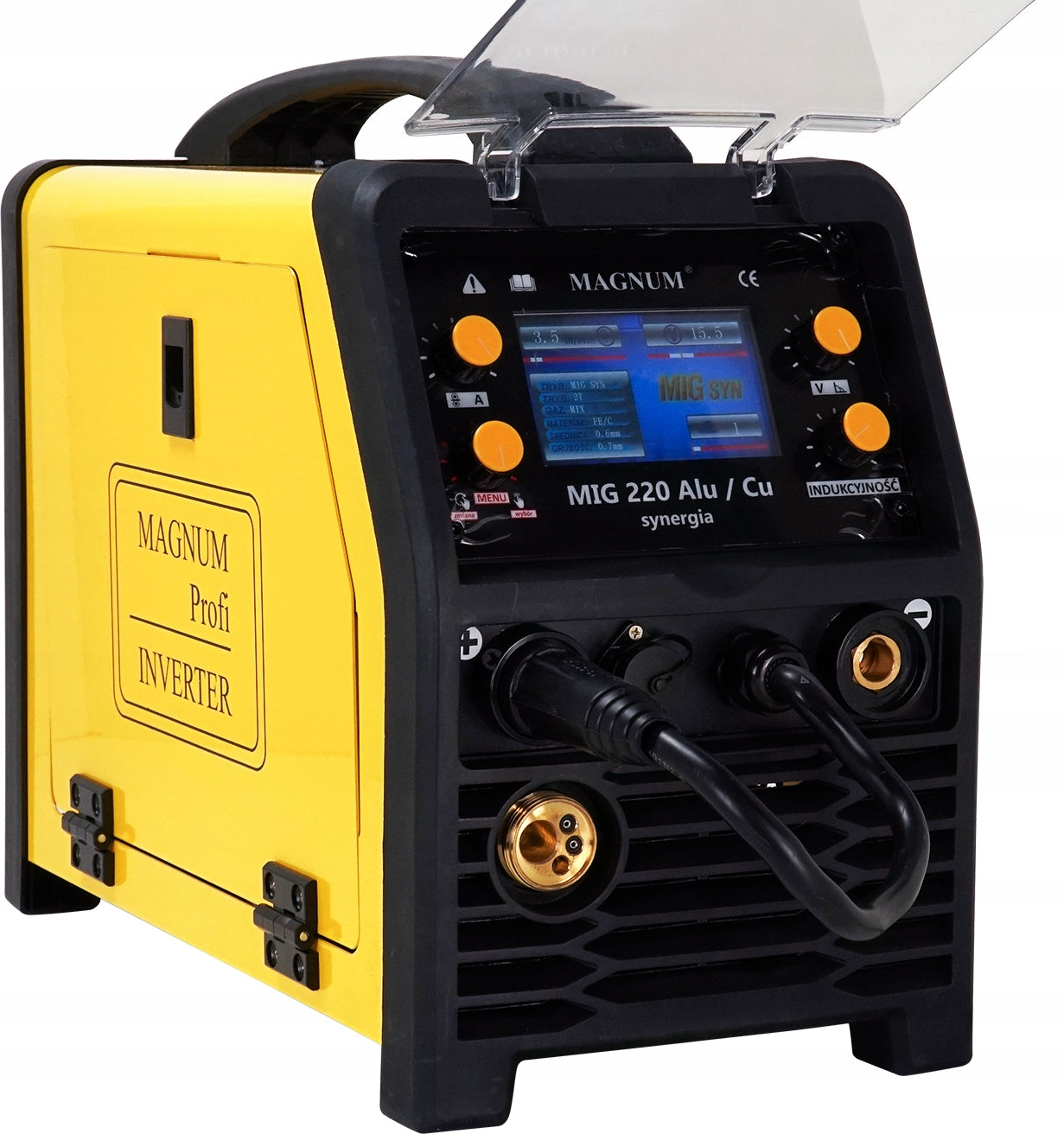

⏩LCD panel and intuitive menu

The device is equipped with a clear LCD display and an ergonomic control system based on three function knobs and one knob with a button function to operate the menu.

Individual components allow convenient adjustment of key parameters such as wire feed speed or current, welding voltage or Arc Force, as well as inductance.

This solution provides a clear and intuitive operation, definitely more comfortable compared to devices equipped with a limited number of undescribed regulators.

⏩Hint system for the user

• after selecting Synergy - the system suggests how to connect welding wires,
• The interface displays suggested ranges of optimal voltage values, wire feed and welding inductance.

⏩FUNCTIONS

⏩MIG SYN — synergistic programs - After selecting the material, wire diameter, gas and thickness of the element, the device selects the optimal operating parameters. This reduces preparation time and helps to achieve a repetitive effect even for less experienced users.

⏩MIG MAN - full manual settings - Manual mode is available for more demanding users. It allows you to set the wire feed speed, voltage and inductance yourself, without relying solely on synergy.

⏩Manual correction in synergistic mode - Synergy does not block the user. After automatic selection of parameters, they can still be manually refined to match the nature of the arch to the style of work and material.

⏩2T / 4T - For shorter jobs, 2T mode is convenient, and for longer welds 4T improves comfort and reduces hand fatigue.

⏩Arc Force in MMA - Improves arc stability when welding with a wrapped electrode and increases control over the operation of the device.

⏩TIG DC Lift - The device also allows TIG DC Lift operation using an optional TIG handle with a gas valve. This is a practical extension of functionality without buying a second welding machine.

⏩Inductance adjustment - Allows you to change the character of the arc – from softer, wider and calmer to more focused and dynamic. This is an important feature for weld quality and splash reduction.

⏩Voltage and speed adjustment of the wire - The user has control over the voltage and feeding of the wire, which allows you to tune the melt, arc length and behavior of the welding machine in different working positions.

⏩Burn Back - The wire burn adjustment function facilitates further glow and improves the work culture after the weld is completed.

⏩Spool Gun - The device supports the optional Spool Gun handle, which increases the convenience of working especially with aluminum.

⏩CuSi / CuAl welding - A useful feature for thinner components and applications where less material overheating is important.

⏩Professional wire feeder

The use of a high-quality, 2-roll wire feeder ensures smooth and stable feeding to the welding torch. This solution translates into precise control of the welding process and maintaining stable operating parameters.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG) 170A (MMA/TIG)
• Color LCD Display: YES
• Rated duty cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• Degree of protection: IP21S
• Net weight: 10,4kg

MIG/MAG welding parameters

• Welding Current: 40-200A
• Welding voltage: smooth adjustment,
• Wire feed - smooth adjustment,
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100, D200
• Wire feeder: profi 2R

Synergistic MIG/MAG programs:

• Full synergy: YES
• Available programs: Fe, Ss, Al/MG5 Al/Si, FCAW-S, CuSi CuAl
• Wire Diameter Selection: YES
• Selection of shielding gas: YES
• Choice of thickness of welded material: YES
• Correction to Synergistic Programs: YES

Additional MIG/MAG functions

• Welding inductance adjustment: YES, smooth
• Operating Modes: 2bar, 4bar - 2T/4T
• Burn Back - wire burn time adjustment: YES
• MIG/MAG polarity change: YES
• Working with SPOOL GUN handle - YES

TIG welding parameters*

• Welding Current: 10-200A
• Adjustment: smooth
• Arch Initiation: TIG Lift
• Output current DC

*requires purchase of handle with valve

MMA welding parameters

• Welding Current: 10-170A
• Adjustment: smooth
• MMA Synergy: YES

⏩Frequently Asked Questions

• Does this welding machine have synergy? Yes. In MIG SYN mode, the user selects the material, wire diameter, gas, 2T/4T and material thickness, and the device selects the remaining operating parameters.
• Can everything be set manually? Yes. MIG MAN mode gives full manual adjustment of wire feed speed, voltage and inductance.
• Is it suitable for aluminium? Yes. The model has programs for AlMg and AlSi, works on 100% argon and supports 1,0 and 1,2 mm wires.
• Can it be soldered? Yes. CuSi and CuAl programs for soldering are available.
• Does it work without gas? Yes. Supports FLUX core wires.
• Do I need to change the polarity? Yes, depending on the method used and the type of wire. With self-shielding wire, you need to set the correct polarity.
• Can I connect Spool Gun? Yes, the model supports Spool Gun, but the handle itself is not part of the kit.
• Does the device have MMA and Arc Force? Yes. The welder works using the MMA method and allows you to adjust the Arc Force from the panel.
• Is it suitable for beginners? Yes. Synergy and LCD make it much easier to start, but the device also gives manual settings for more advanced ones.
• What power supply does it run on? 230 V / 50 Hz. maximum power consumption of 6,4 kVA and protection required 20 A.
• What range of current does it offer? MIG/MAG 40-200 A, TIG Lift 10-200 A, MMA 10-170 A.
• What wires and spools does it support? Wires 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm and spools up to 5 kg.

Specifications
