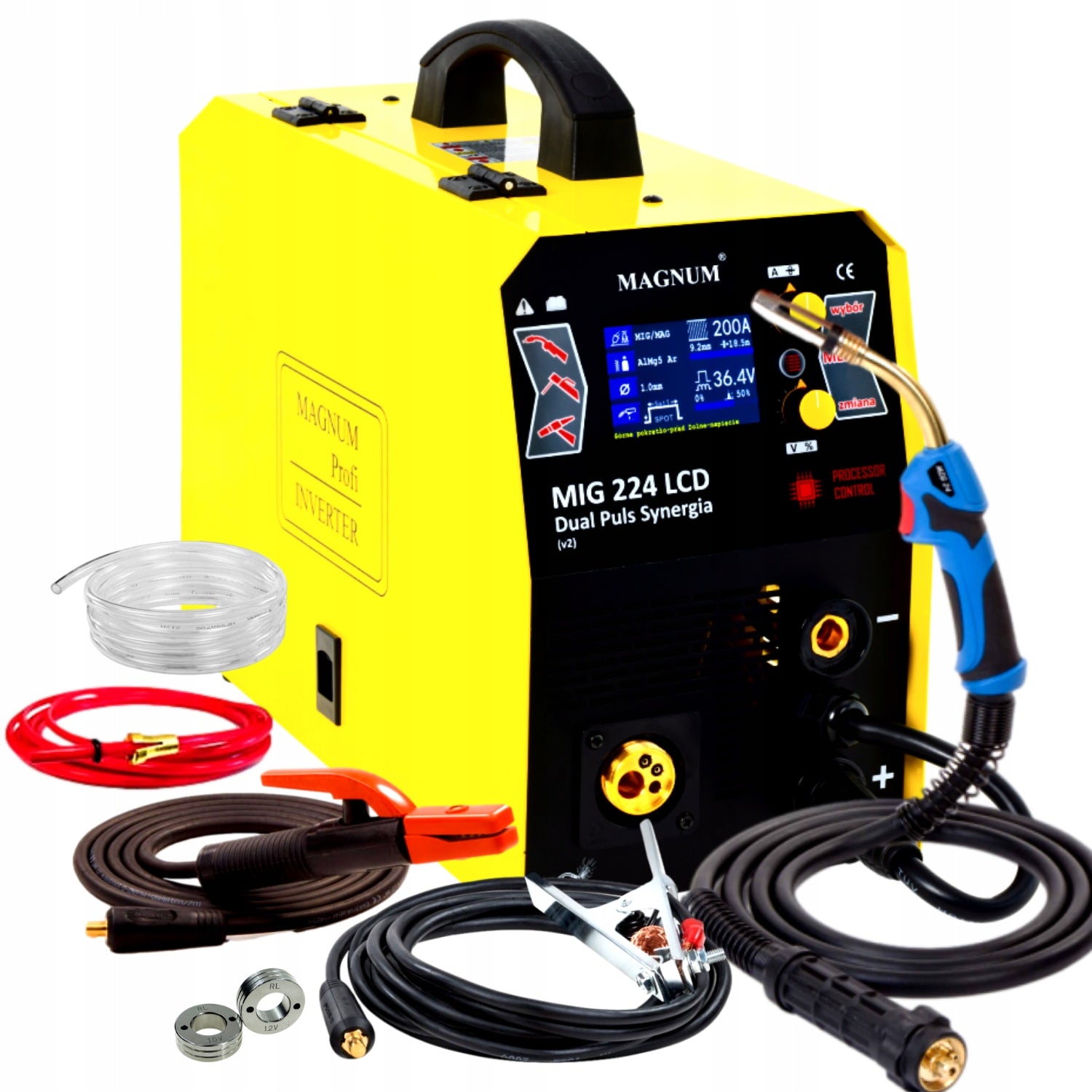

Suvirinimo aparatas Magnum MIG MAG 224 LCD Dual Pulse Inverter

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG MAG 224 LCD Dual Pulse Inverter. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 224 LCD

Technical data:

• Max. spool diameter, (weight): 200 [mm], (5 kg)
• Feeder type: two-roller, 2R
• Power supply: AC 230 [V], 50/60 [Hz]
• Security required: 20 [A] Class C
• MIG/MAG welding current: 30 ÷ 200 [A]
• MIG/MAG welding voltage: 16,5 ÷ 28 [V]
• MMA welding current: 20 ÷ 180 [A]
• Idle voltage: 56 [V]
• Wire diameter: 0.8/1.0/1.2 [mm]
• Efficiency: 60 %
• Housing protection class: IP21
• Weight: 11,5 [kg]

MIG/MAG WELDING PARAMETERS:

⭐ MIG/MAG welding current: 30 - 200 [A]

⭐ MIG/MAG welding voltage: 16,5 - 28 [V]

TIG LIFT/MMA WELDING PARAMETERS:

⭐ MMA welding current: 20 - 180 [A]

⭐ Idle voltage: 56 [V]

MIG 224 LCD Dual Pulse Synergy brand MAGNUM is a technologically advanced welding device, for welding using the MIG-MAG, MMA and TIG LIFT methods.

Designed for manual, electric welding of low-carbon steels, low-alloy steels, high-alloy steels, stainless and acid-resistant steels, aluminum and its alloys, etc.

MIG 224 LCD Dual Pulse Synergy is designed for all kinds of welding work in locksmith workshops, repair workshops, automotive industry, factories, etc.

The device is dedicated to professionals, requiring meeting the highest standards for welding equipment.

Features and Benefits:

⭐ CuSi3 soldering in single and double Pulse

⭐ single and double PULSE

⭐ programs for: aluminium, stainless steel and black

⭐ MMA welding + CELLULOSE function

⭐ TIG LIFT PULSE, point

⭐ functions: SYNERGY, VRD, HOT START, ARC FORCE, 2T, S2T, 4T, S4T

The MIG 224 Dual Pulse Synergy device has among other advantages, an unprecedented in this class of devices, a synergistic program for welding aluminum alloys, and the function of single and double pulsation of welding current!!!

The power source is built on IGBT transistors, providing:

• minimum electromagnetic interference,
• low power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

Very high efficiency, directly translated into lower energy consumption, and high switching frequency, ensure instant adjustment of current to changes in parameters during welding.

The design and software, combined with digital control, allows to obtain the highest quality welding parameters, when welding any weldable materials, made of black steel, stainless steel, acid-resistant steel, aluminum and its alloys.

AVAILABLE WELDING METHODS:

⭐ MIG/MAG - synergistic settings,

⭐ MIG PULS - synergistic settings with a single pulse,

⭐ MIG 2-PULS - synergistic settings with double pulse,

⭐ TIG LIFT DC - welding with a non-melting electrode in an inert gas shield,

⭐ TIG LIFT DC WITH PULSE,

⭐ MMA - welding with wrapped electrodes (rutile, alkaline, acidic),

Standard equipment:

• MIG 224 LCD DUAL PULS,
• MIG/MAG holder,
• Electrode holder,
• Mass grip,
• Feeder roll,

Specifications
