Trumpai apie prekę

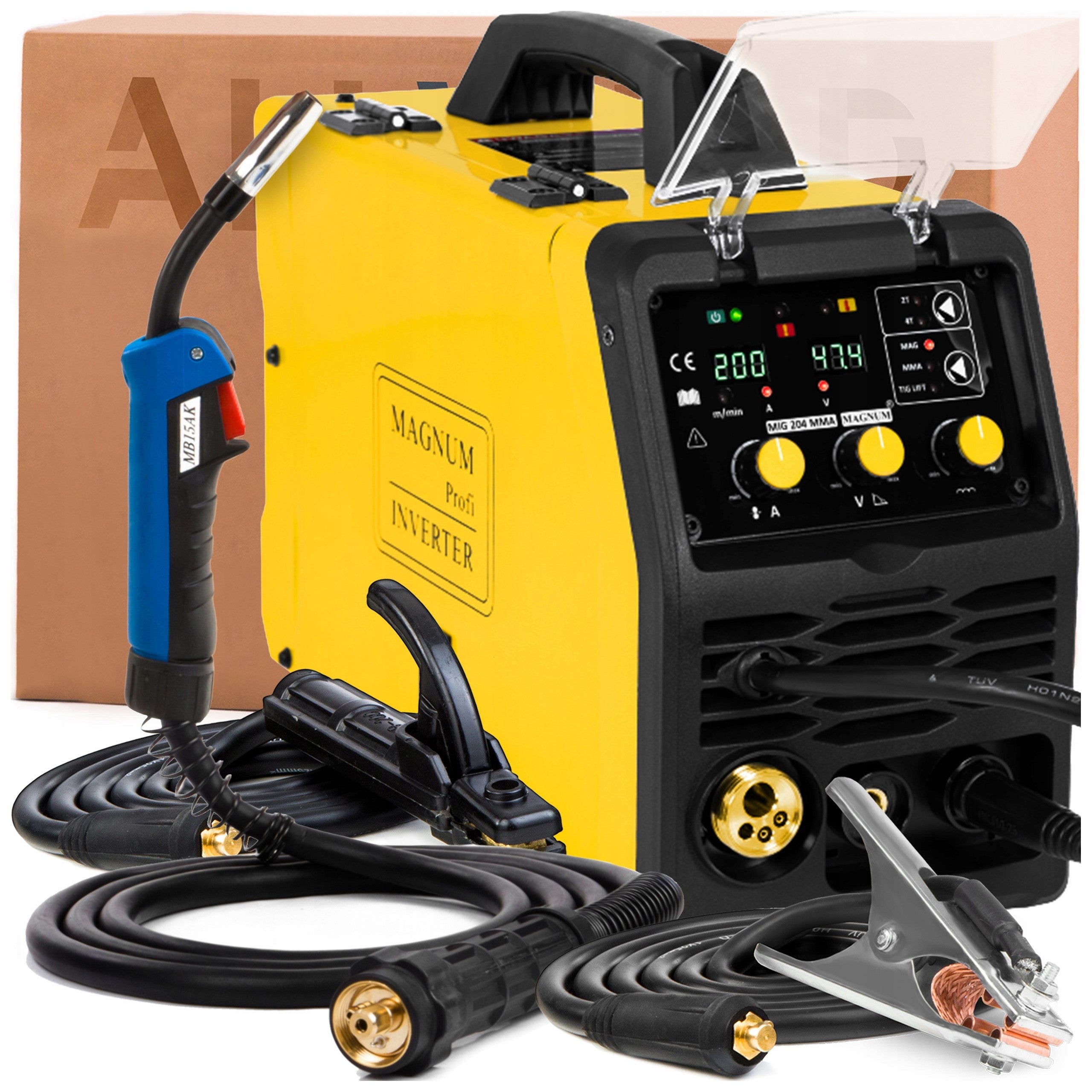

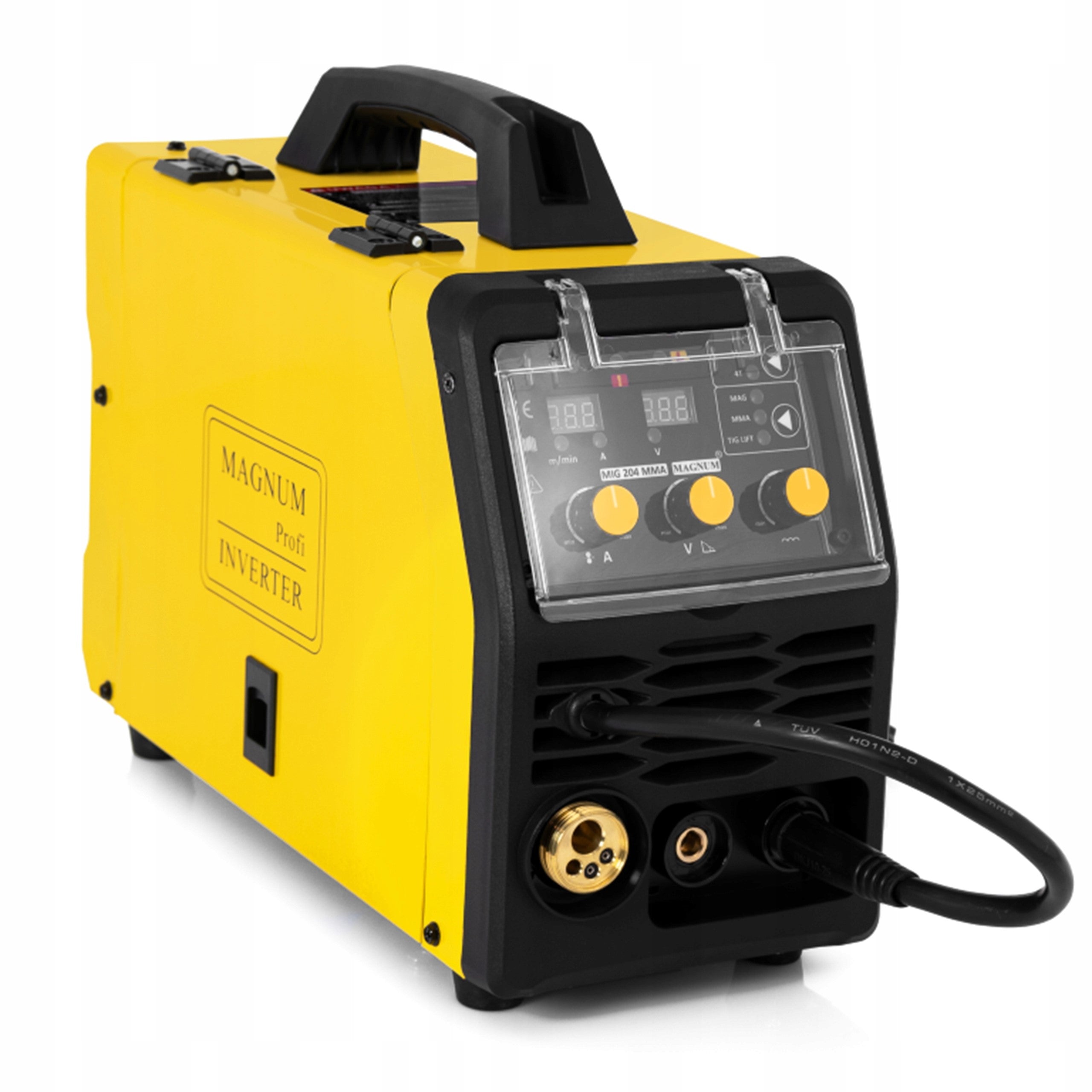

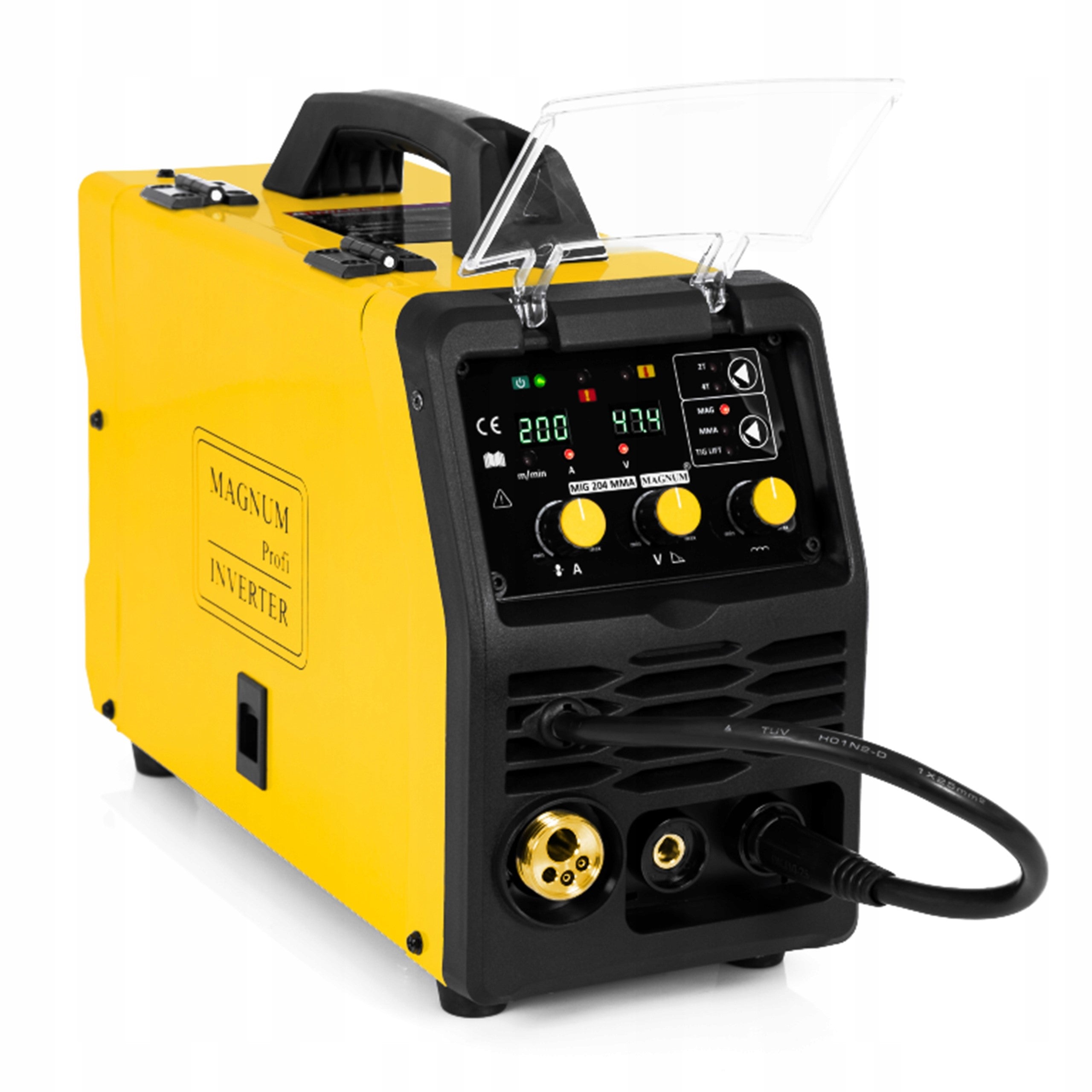

Prekė: Suvirinimo aparatas MAGNUM MIG MAG 204 MMA 230V 200A TIG LIFT 2T/4T ARC FORCE IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: Mig 204 MMA
- Welding methods: MIG/MAG, TIG LIFT, MMA
- Power supply: 230V
- Operating cycle 60% at maximum welding current 200A
- For welding: low carbon steel, low alloy steel, alloy steel and aluminium and its alloys
- Smooth adjustment of parameters, inductance, wire feed speed
- Functions and modes: 2T/4T, ARC FORCE
- Euroconnector
- Clean, aesthetic welds
- Made in IGBT technology
✔ FEATURES AND ADVANTAGES:
- INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,
- 2 TAKT - welding begins after pressing and ends after releasing the button,
- 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,
- TIG LIFT - arc glowing by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,
- ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,
- EUROCONNECTOR - allows the interchangeable use of various types of handles,
- IGBT - bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.
⚙ TECHNICAL SPECIFICATION:
- Power supply: 230V 50/60Hz (1ph)
- Network security: 20A “C”
- MIG/MAG welding current: 45 - 200A | MMA: 15 - 160A
- MIG/MAG welding voltage: 12 - 25V
- Idle voltage: 55.5V
- Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm
- Spool with wire: 100, 200 mm
- Degree of protection: IP21S
- Weight: 7.7kg
THE SET INCLUDES:
- MAGNUM MIG 204 MMA welding machine,
- Welding torch MIG/MAG type MB 15 - 3m,
- mass handle,
- electrode handle,
- User manual and warranty card.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 7.7 kg |
| Parametry | Welding range | 45–200 A |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | U MI 204MMA |
| Parametry | EAN (GTIN) | 5905323120174 |
| Parametry | Packaging status | original |
| Parametry | Model | Mig 204 MMA |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
