Suvirinimo aparatas Magnum MIG MAG 200/2 KN MMA Flux 230V 400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG MAG 200/2 KN MMA Flux 230V 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 200/2 HRS-X MAGNUM rsh0
• Ilgis: 400 mm
• Plotis: 230 mm
• Aukštis: 655 mm

MIG, MAG, FLUX, MMA | Power supply: 230V 1ph / 400V 2ph | Maximum welding current: 200A | Inductance adjustment | Manufacturer: Magnum

MAGNUM MIG 200/2 KN - PROVEN MIG 2in1

The Magnum MIG 200/2 KN welding machine is a proven, compact semi-automatic welding machine for D200/D100 spools weighing up to 5kg. It is made in inverter technology and has many advantages that we will mention later in the description.

From the experience of a trader: The Magnum devices from the MIG KN series have been proven constructions for many years. 200/2 KN is a machine that operates on both 230V and 400V power supply. And the maximum welding current for MIG/MAG method is 200 amps.

MIG 200/2 KN - THE MOST POPULAR MIG IN THIS CLASS OF DEVICES

MIG 200/2 KN is based on IGBT transistors - it offers a stronger, more concentrated and more stable arc with less power consumption. It provides a minimum of electromagnetic interference, small power losses in basic systems to increase the efficiency and reliability of the power source. Thanks to its special design, the MIG 200/2 KN is in many respects a much more advantageous solution than devices based on MOSFET technology.

MAGNUM MIG 200/2 KN ALLOWS WELDING USING THE FOLLOWING METHODS:

• MIG/MAG - welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. It is a popular welding process that is characterized by high efficiency and good quality of the welded joint. Semi-automatic MIG/MAG welding is one of the most popular methods both in workshop conditions as well as in high-performance production. This method is also relatively easy to learn by novice users.
• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.
• MMA - the oldest variety of arc welding - the so-called. welding with a wrapped electrode. This is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded.

FUNCTIONALITY

Thanks to the variable welding polarity of the MIG handle, self-shielding wire without gas can be welded. Regulation of MIG/MAG welding inductance means greater control of the welding process, which translates into control of the face shape and depth of melting, it also means better parameters during lwelding CuSi3. Stable chassis for gas cylinder and front steering axle, allow you to create a mobile welding kit.

SOLID CHASSIS FOR GAS CYLINDER

A solid chassis for a gas cylinder is a huge advantage of this welding machine. An additional advantage are the front wheels with a torsion axle, thanks to which the composed set with a cylinder gains mobility.

PROFESSIONAL WIRE FEEDER

Professional wire feeder profi 2R - is a reliable and precise wire feeding, so that the output parameters are stable, allowing you to achieve a high-quality welded joint.

MODERN TECHNOLOGIES, SIMPLICITY OF EXECUTION

Excellent combination of modern technologies, e.g. IGBT with simplicity of execution is the key to good welding parameters and reliability of the device.

WHY CHOOSE MAGNUM PRODUCTS?

• Magnum is the market leader in welding equipment. The first welding machine with the Magnum logo appeared on sale at the beginning of the twenty-first century. We count the team’s experience in decades.
• As an authorized distributor of the Magnum brand, we guarantee the originality of the products.

• Power supply: 230V 1ph or 400V 2ph
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 200A (MIG/MAG/TIG) 180A (MMA)
• Working cycle: 60%
• Maximum power consumption: 7,4kVA
• Parameter display - shows the current value during welding
• Net weight: 14kg

MIG/MAG welding parameters

• Welding Current: 30-200A
• Welding voltage: smooth adjustment - 16,5-23V
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100/D200
• MIG/MAG welding inductance adjustment: YES
• MIG/MAG welding polarity change: YES
• Wire Retract: YES

MMA welding parameters

• Welding Current: 30-180A
• Welding Current Adjustment: Smooth

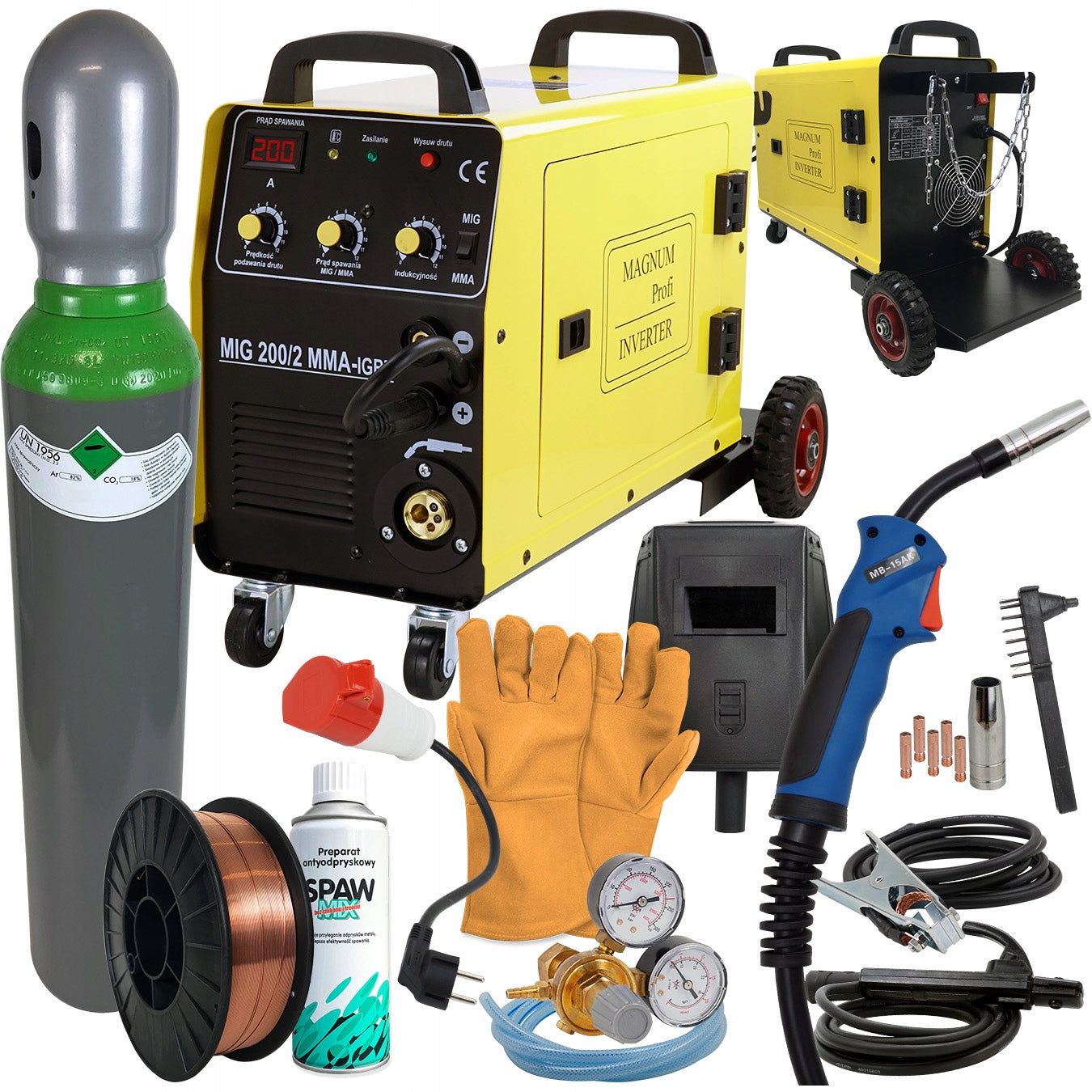

• Device Magnum MIG 200/2 KN,
• Welding torch MIG EURO MB 15 3m,
• MMA electrode holder,
• Mass cable,
• User manual.

+ ADDITIONAL ACCESSORIES:

• welding disc,
• brush-hammer,
• 230/400V adapter.

+ MAG WELDING KIT WITH CYLINDER AR/CO2

• Bottle Ar/CO2 8l- has the approvals and approvals required by the filling points of the cylinder,
• Steel welding wire SG2 - 0,8mm x 5kg,
• Ar/CO2 reducer with two clocks,
• gas line.

+ WELDING ACCESSORIES:

• welding gloves,
• recognized anti-chipping preparation used in industry - spray 400ml,
• spare parts of the MB15 burner.

Photo gallery:

Specifications
