Suvirinimo aparatas MAGNUM MIG 291 ALU/CU SYNERGY 280A 400V SET2

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 291 ALU/CU SYNERGY 280A 400V SET2. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA FLUX MIGOMAT IGBT TIG DC
• Ilgis: 650 mm
• Plotis: 430 mm
• Aukštis: 910 mm

magnum mig 291 alu cu synergy • mig mag 280a 400v welding machine • migomat for aluminum and soldering • synergistic welding machine lcd 4x4 • migomat tig mm lifta • welding machine for soldering cusi3 • migomat with eurodisconnector • semi-automatic welding machine 400v

⚡ Welding current up to 280A

🤖 Synergy + manual mode

🔧 MIG/MAG + MMA + TIG LIFT + soldering

⚙ Wire feeder 4x4 + LCD screen

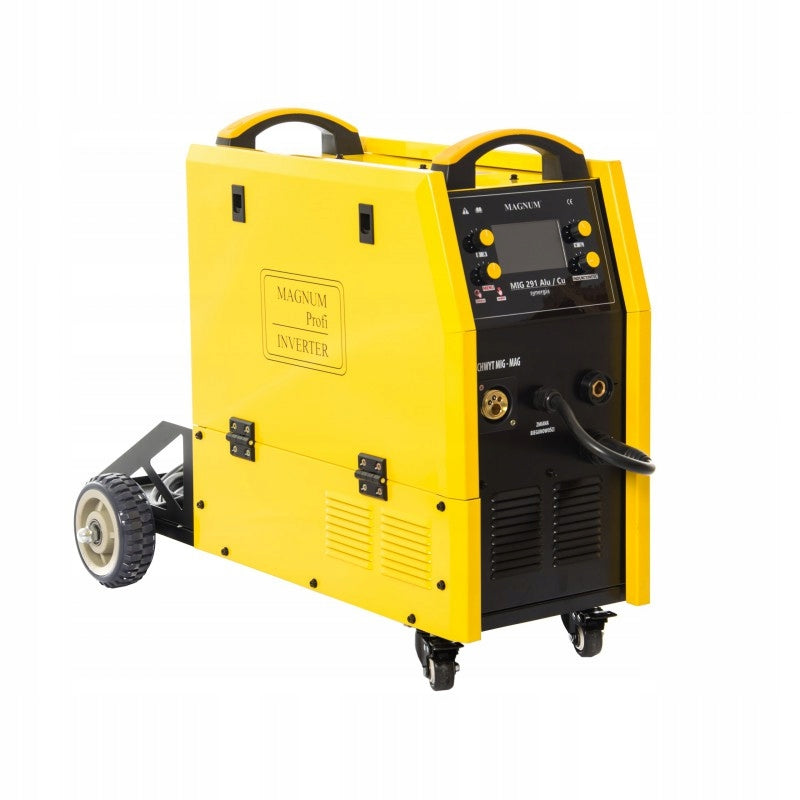

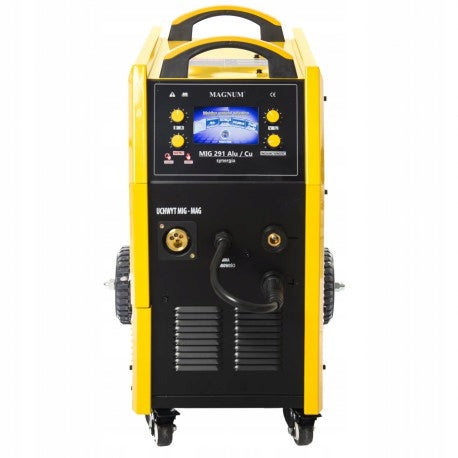

MAGNUM MIG 291 ALU/CU SYNERGIA is a professional semi-automatic welding machine powered from the 400V network, designed to work in workshops, services and for more demanding production tasks. The device supports MIG/MAG, MMA, TIG LIFT, and additionally enables lutowelding, which significantly increases its practical application. 🔧

The biggest advantage of this model is the combination of synergy, manual mode, large LCD screen and a powerful 4-roll wire feeder. Thanks to this, the device is convenient to use, gives great control over the arc and allows you to achieve aesthetic, repeatable welds. 🤖

The welder is built with IGBT technology, which ensures high efficiency, stable arc and lower energy consumption. ⚙

It is a very good choice for steel, aluminum and work requiring soldering.

✅ welding MIG/MAG, MMA, TIG LIFT

✅ possibility of lutowelding

✅ synergic and manual mode

✅ wire feeder 4x4

✅ regulation of inductance

✅ functions 2T / 4T

✅ welding without gas

✅ MMA synergistic welding

✅ choice of electrode type + ARC FORCE

✅ graphic selection of material thickness

✅ large, easy-to-read LCD screen

The device is designed to facilitate daily work and reduce the time of setting parameters.

Thanks to synergy, the welding machine helps to choose the right settings for the material and thickness of the element, and the manual mode allows you to take full control when you want to set everything yourself.

A big advantage of the MIG 291 ALU/CU model is also lutowelding, especially useful when working with galvanized sheets and elements requiring less heating of the material. ✨

The welder offers a wide range of adjustments, which translates into better weld quality and greater comfort.

Key features:

✔ regulation of inductance

✔ 2T/4T

✔ synergistic and manual mode

✔ welding without gas

✔ TIG LIFT

✔ MMA synergistic welding

✔ choice of electrode type

✔ ARC FORCE function

✔ graphic selection of material thickness

✔ thermal protection 🌡

Inductance adjustment allows you to reduce the amount of chipping and improve the shape of the weld.

✅ locksmith workshops

✅ car workshops

✅ repair services

✅ industrial plants

✅ people welding steel, aluminum and performing soldering

🔧 workshop and repair work

🚗 automotive and bodywork

🏭 production and assembly

🛠 steel, aluminum, stainless steel and soldering

⭐ 400V power supply gives a greater supply of power for workshop and industrial work

⭐ 4x4 feeder improves wire feeding stability

⭐ synergy reduces the time of setting parameters

⭐ the possibility of soldering increases the versatility of the device

⭐ large LCD screen for easy daily operation

• Power supply: AC 400 V / 50 Hz
• Security Required: 20 A
• Max power consumption: 12 kVA
• Efficiency: 60%
• Idle Voltage: 69 V
• MIG/MAG welding current: 40 – 280 A
• TIG LIFT welding current: 10 – 250 A
• MMA welding current: 10 – 250 A
• Maximum wire spool diameter: D300
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Housing protection class: IP21S
• Weight: 26,3 kg

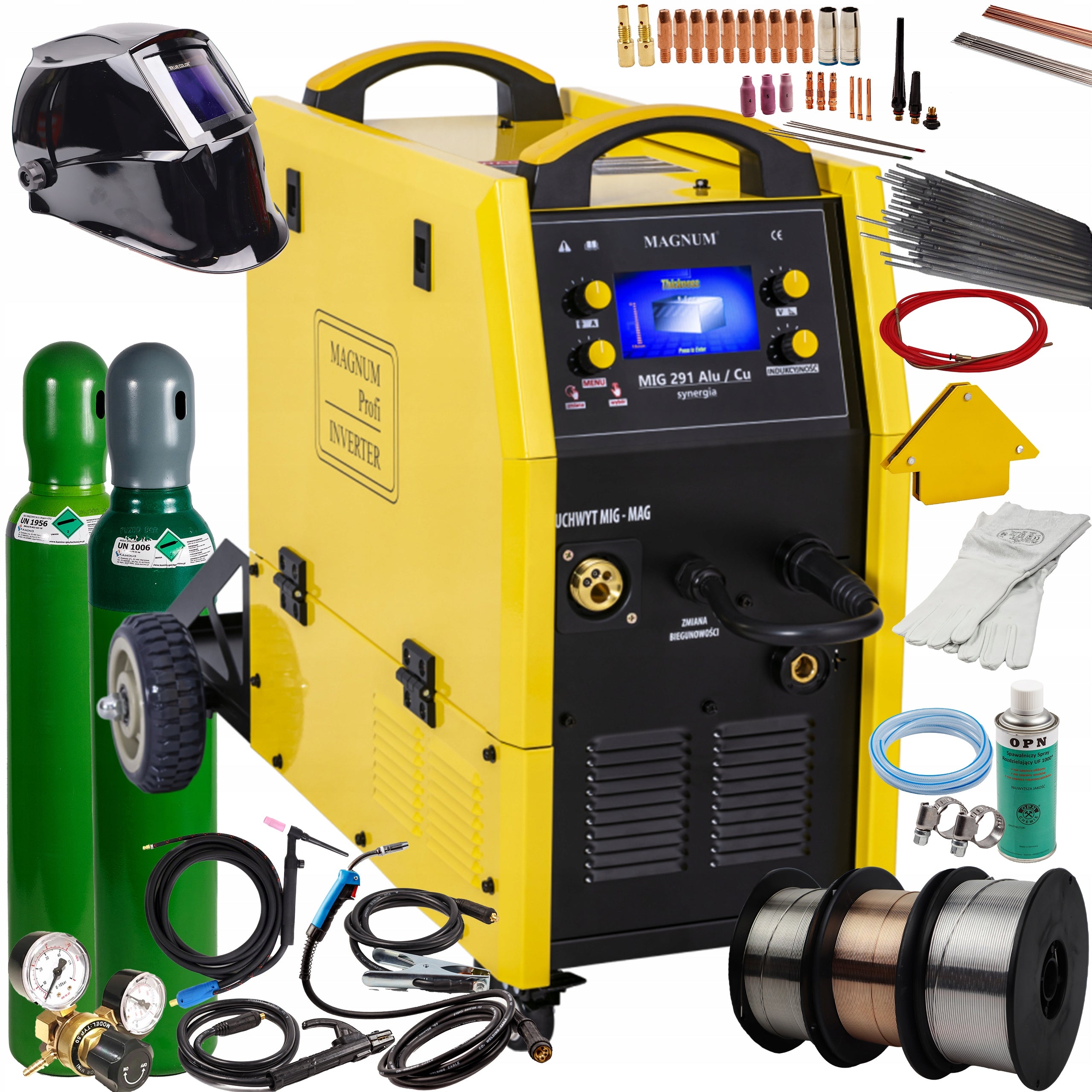

✅ Welding device MAGNUM MIG 291 ALU/CU SYNERGY

✅ MIG/MAG working cable MB25 – 3 m

✅ MMA working cable 2 m

✅ Cable with mass clamp 2 m

✅ Teflon armor red for wire 1,0 / 1,2 mm

✅ Blue steel armor for wire 0,8 mm

✅ Red steel armor for wire 1,0 / 1,2 mm

✅ Rollers for steel wire 0,8 / 1,0 and 1,0 / 1,2

✅ Gas hose

✅ Operating instructions

• ✔ New 8l MIX ARG/CO2 cylinder with legalization for 10 YEARS and a protective cap for its transport (bottles can be filled at any point with technical gases)
• ✔ New 8L ARGON cylinder with legalization for 10 YEARS and a protective cap for its transport (bottles can be filled at any point with technical gases)
• ✔ TIG welding torch SR 17/26 4 m with valve
• ✔ Gold 1,6.2,0.2,4 tungsten electrode ideal for inverter devices.
• ✔ Ceramic nozzle 4,5,6
• ✔ TIG terminal bushing 1,6/2,0/2,4 of 1
• ✔ TIG gas distributor 1,6/2,0/2,4 of 1
• ✔ TIG cork short medium long 1 pc
• ✔ TIG wire for steel - 0,3kg
• ✔ TIG wire for stainless steel - 0,2kg
• ✔ Automatic visor 4-sensor TURBO TRUE COLOR with the possibility of grinding and an additional battery supporting the visor battery. Ideally suited for TIG and MIG welding...
• ✔ Aluminium welding roller 1,0/1,2 -2 pcs
• ✔ Steel welding wire 0,8/5 kg good quality!!!!
• ✔ MIG wire for aluminium ALMG 1,0 / 2KG
• ✔ MIG wire for stainless steel MIG 308 LSI 0.8 / 5KG
• ✔ Teflon cartridge 3m for aluminium
• ✔ 3 m steel cartridge for welding steel
• ✔ 1kg electrodes for MMA welding with a welding machine
• ✔ 2-clock reducer showing the amount of remaining gas and gas outflow during welding.
• ✔ Connection cable for cylinder and reducer 2 x 3m
• ✔ Flame retardant gloves for MIG welding
• ✔ Welding angle
• ✔ OPN- anti-chipping preparation
• ✔ 2 MB 25 nozzles for MIG holder
• ✔ 5 MB 25/0,8 tips for MIG steel holder
• ✔ 5 MB 25/1,0 tips for welding aluminium
• ✔ gas connector for MIG MB 25 holder
• ✔ 2 cable ties

✅ Peace and convenience – synergy, LCD and a stable 4x4 feeder help you set up your equipment faster and maintain good weld quality.

✅ Time-saving — fewer fixes, faster start-up and more convenient switching of settings. ⏱

✅ Versatility — steel, aluminium, MMA, TIG LIFT and soldering in one device. 🔁

✅ Professional effect — inductance adjustment and stable wire feeding give cleaner, stronger welds. ✨

Is this welding machine suitable for aluminum?

Yes — the device is also designed for welding aluminum and its alloys.

Can soldering be done?

Yes — the MIG 291 ALU/CU SYNERGY allows soldering.

Can weld without gas?

Yes — the device has the ability to weld without gas.

What does a 4x4 feeder do?

It provides more stable and precise wire feeding, which improves the quality of the weld.
