Suvirinimo aparatas MAGNUM MIG 258/2 ALU SYNERGY L 4x4, 200A/250A, inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 258/2 ALU SYNERGY L 4x4, 200A/250A, inverterinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 258/2

➡ PROFESSIONAL MULTI-PROCESS WELDING MACHINE WITH SYNERGISTIC MIG AND FEEDER 4×4 ⬅ ⭐NEW 2026⭐

***********************************************

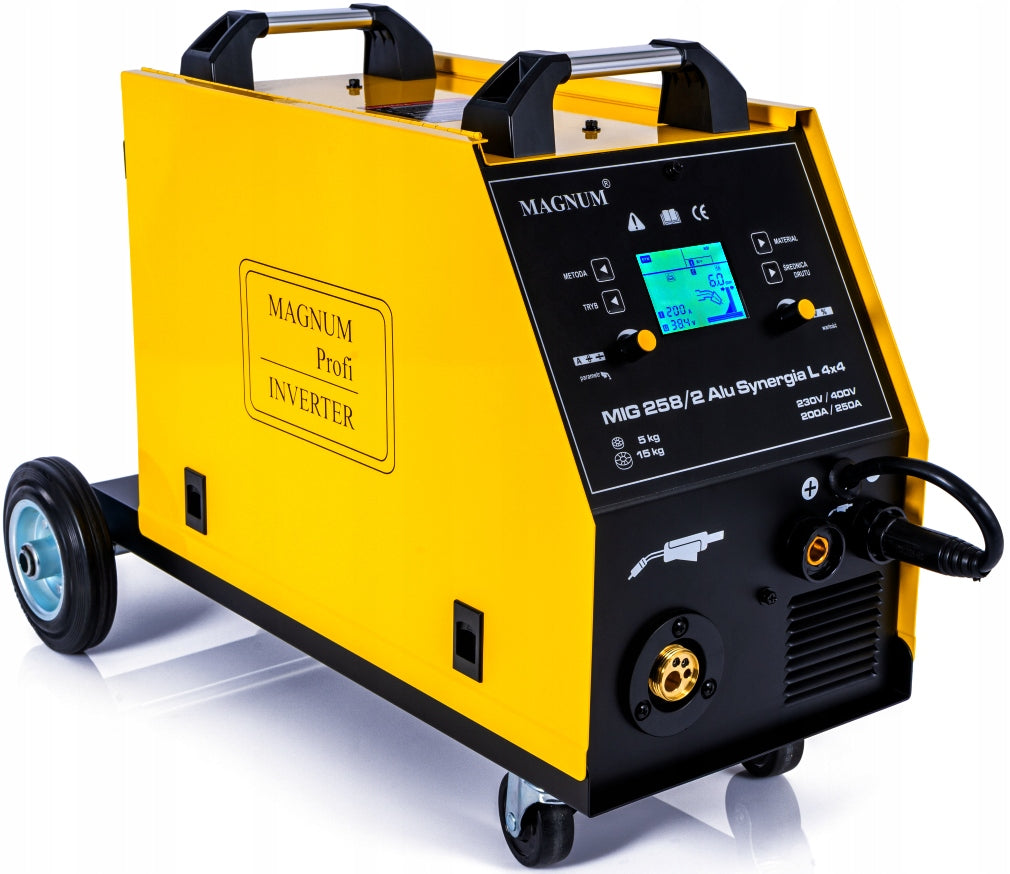

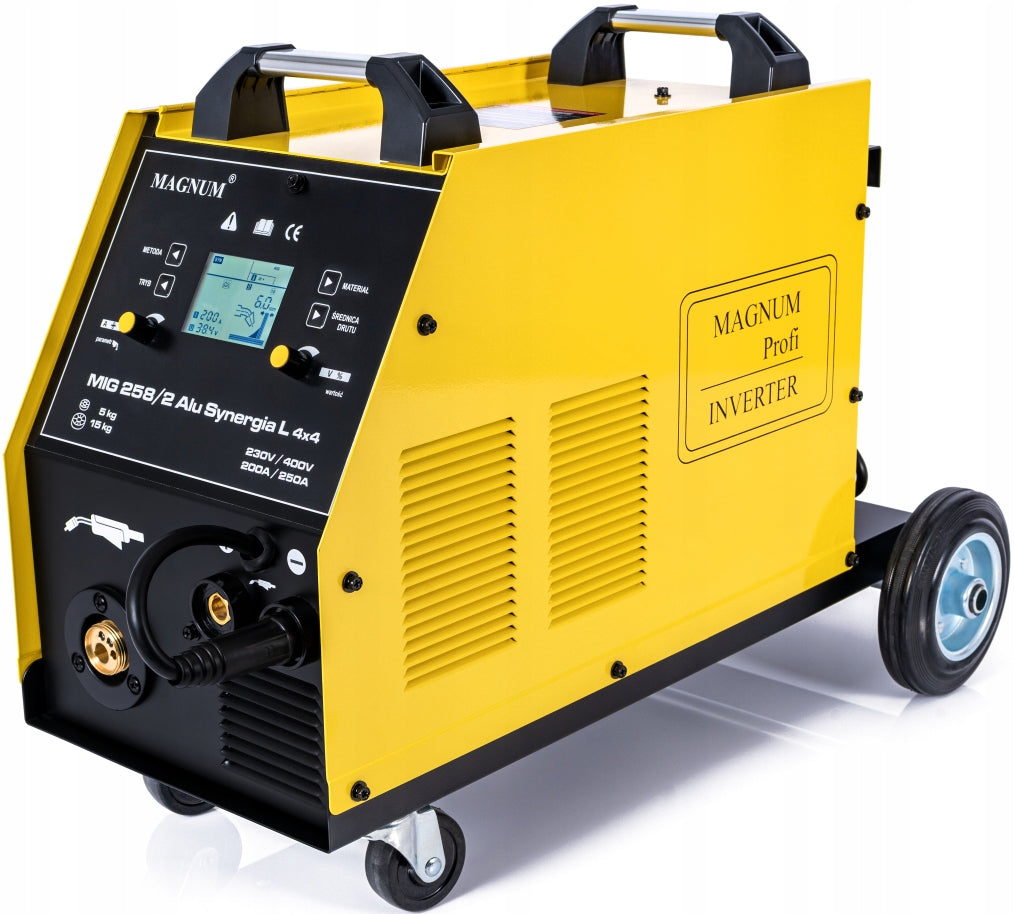

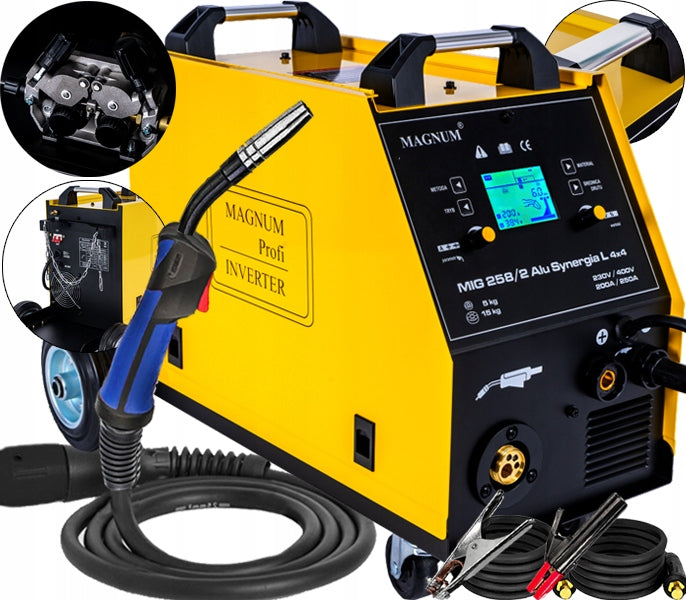

WELDER MAGNUM MIG 258/2 ALU SYNERGY L 4x4

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The MIG 258/2 Alu Synergy L 4x4 welder is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

MAGNUM MIG 258/2 Alu Synergy L 4x4 has a readable and easy to use function panel, which has m.in.:

• Display screen,
• Welding method selection button: SYN, MAN, COLD, FMIG, TIG, MMA,
• Button for selection of welded material and gas shield, for MIG-MAG welding with synergistic settings,
• Selection of the diameter of the wire used, for MIG-MAG welding with synergistic settings,
• Selection of control mode for MIG-MAG welding: 2T, 4T, S4T, SPOT
• 2 Adjustment knobs and buttons in one.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FACTORIES,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ FAST MIG (FAST WELDING) - special MIG-MAG synergistic program facilitating fast and deep welding with minimal chipping.

✔ 4-ROLL FEEDER - Unlike standard 2-roll feeders, the 4-roll feeder allows smooth wire feed using longer additional handles (often welders buy a five-meter handle, which they arm under steel, and the handle with a three-meter cable included in the manufacturer's set arm under aluminum, so as not to waste time retooling the handle).

✔ COLD WELD - special synergistic program MIG-MAG, facilitating welding of thin sheets, made of ordinary and stainless steels, limiting the amount of heat transferred to the material.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ S4T - special four-bar with hot start and final current.

ADDITIONAL FUNCTIONS: ARC FORCE, BURN BACK, HOT START, VRD.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

The set includes rollers:

• For steel wire 0,8-1,0mm V - 1 pc.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: 230 [V] or 400 [V]
• Idle voltage: 77 [V]
• Efficiency: 60%
• Cooling: air

⏩ MIG PARAMETERS:

• MIG/MAG welding current: 200 [A] (230 [V]) / 250 [A] (400 [V])
• Wire spool size: 5 -15 kg
• Wire feeder: 4x4
• Wire diameter: 0,6/0,8/0,9/1,0/1,2 mm

⏩ OTHER:

• Degree of protection: IP21S
• Weight of the device : 25 kg

WHEN YOU BUY FROM US, YOU GET:

• Welder MAGNUM MIG 258/2 Alu Synergy L 4x4 - 1 pc.
• welding cable MIG MB15 - 3m - 1 pc.
• MMA electrode cable - 1 pc.
• mass cable - 1 pc.
• Rolls for steel wire 0,8-1,0mm V - 1 pc.
• Power adapter 400V/230V
• Instruction for operating in Polish
• Guarantee card

SET 1 LARGE MIG INDUCTANCE MB15.
