Suvirinimo aparatas Magnum MIG 240 Dual Pulse Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 240 Dual Pulse Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 240 DUAL PULS LCD

MANUFACTURER: MAGNUM || WELDING METHODS: MIG/MAG, MMA, TIG DC, FLUX || SELECTED ADVANTAGES: Synergy, Pulse, Dual Pulse || POWER SUPPLY: 230V 1ph

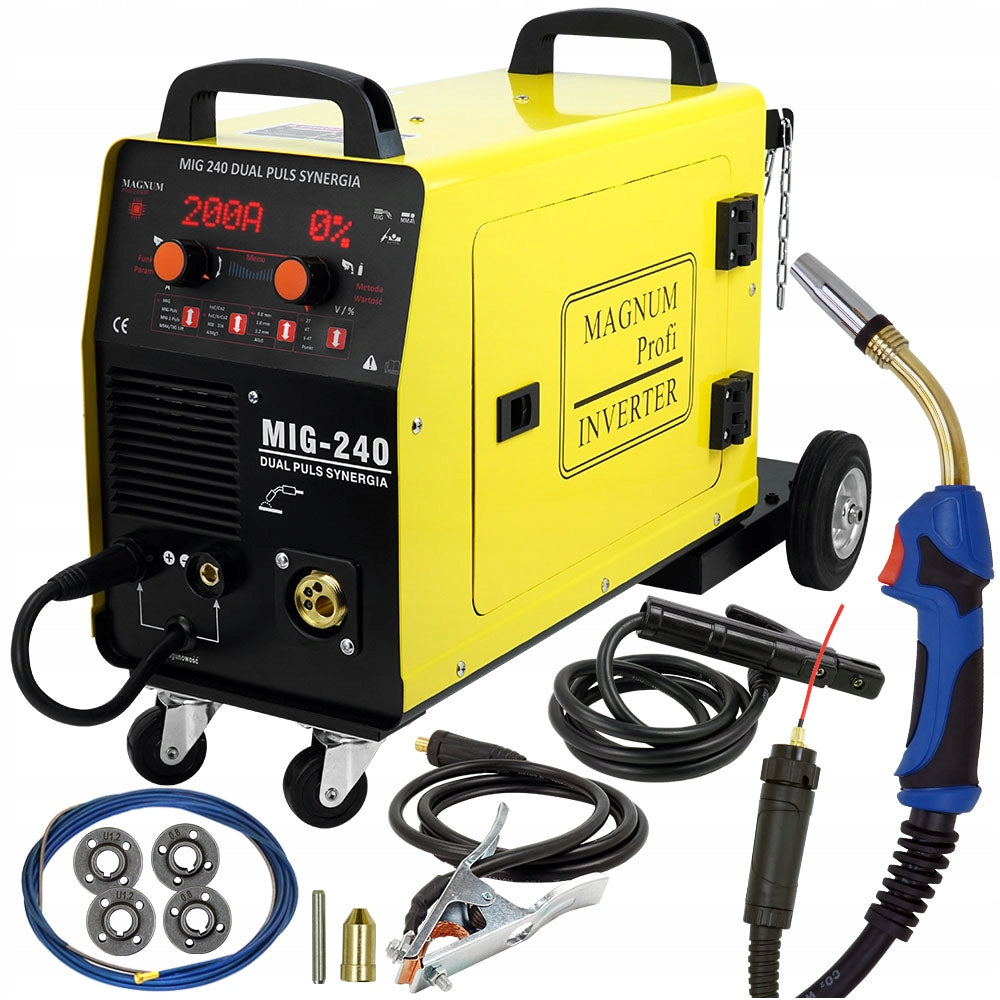

• Device Magnum MIG 240 Dual Pulse Synergy
• MIG EURO MB 24 3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES FOR FREE

• spiral insert for steel wire (blue hrs),
• Teflon guide cartridge (red hrs),
• set of feeder rollers for welding steel and aluminum,
• set of accessories for wire feeder.

GOOD MIG FOR WELDING ALUMINUM AND MORE

Magnum MIG 240 Dual Pulse Synergy has many advanced features that enable high-quality welding not only of black steel, but also of aluminum and stainless steel. The most important of these will be described later in the description.

FLASH WELDING WITH PULSE

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. when welding stainless and acid-resistant steels.

DOUBLE PULSE MIG WELDING - A SENSATIONAL PROGRAM FOR WELDING ALUMINUM

Dual pulsation MIG welding is particularly useful when welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

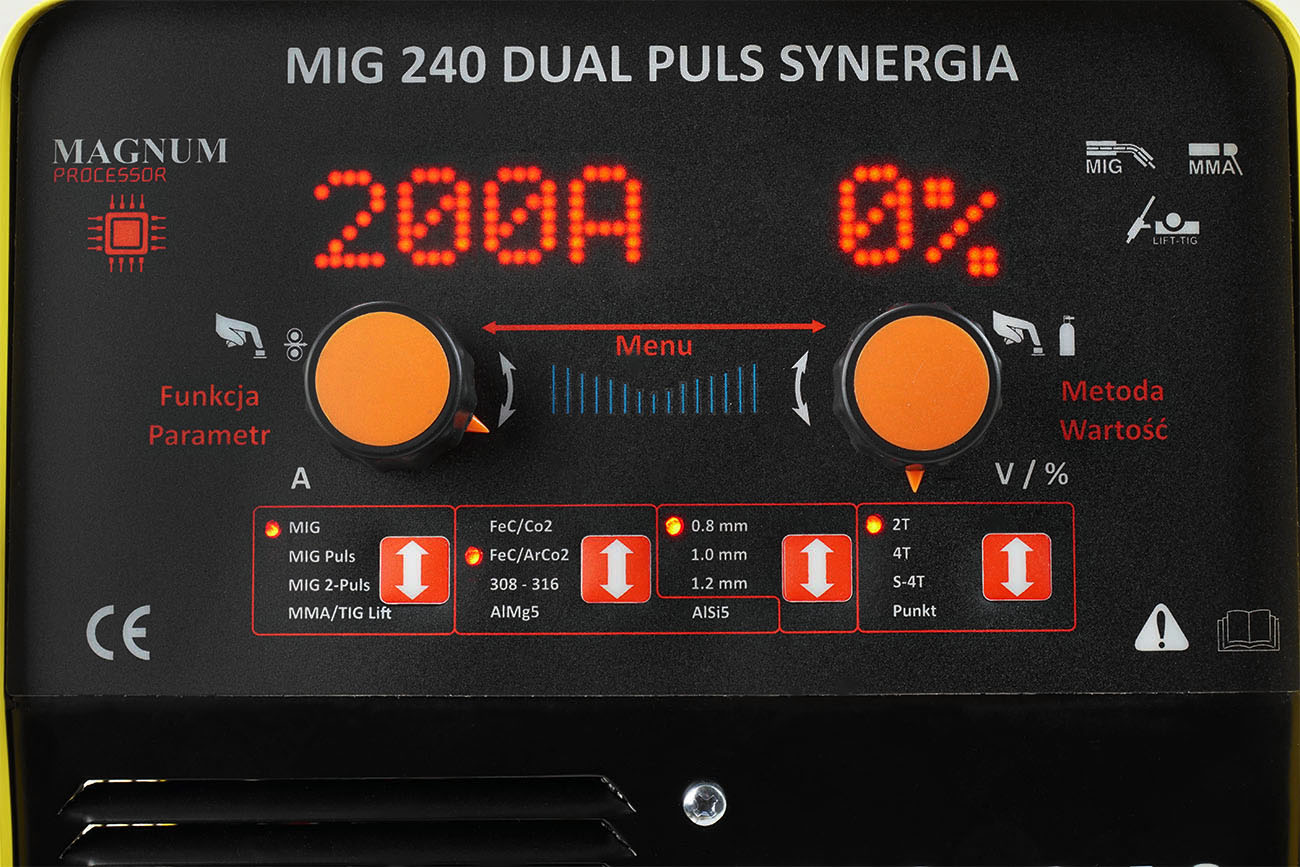

Magnum MIG 240 DUAL PULSE SYNERGY - HAS ADVANCED DOUBLE PULSE PARAMETER ADJUSTMENT

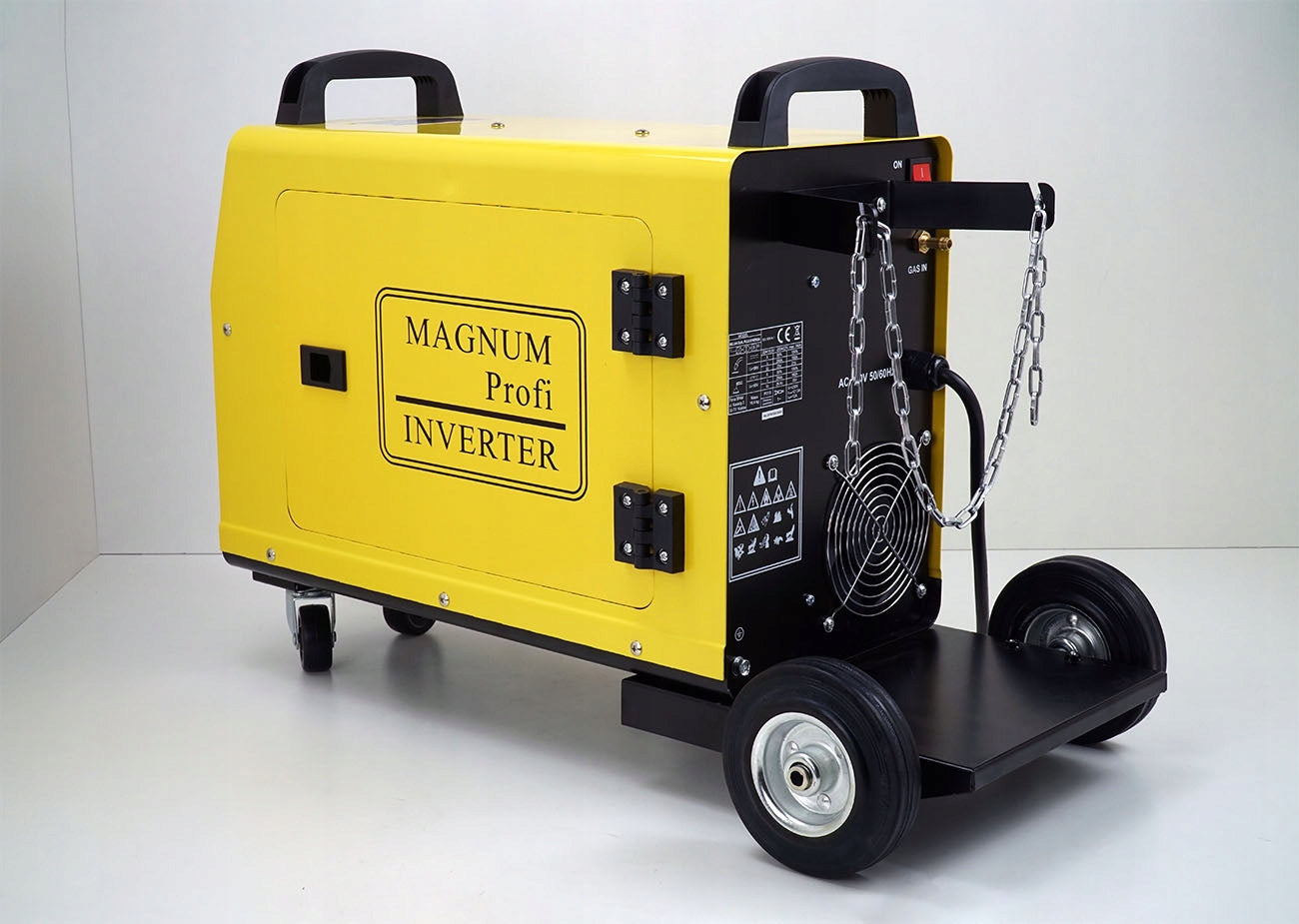

COMPACT DESIGN WITH GAS CYLINDER CHASSIS

The MIG 240 Dual Pulse is a compact design with solid wheels and a front swivel axle. The gas cylinder chassis allows you to compose a mobile welding kit. But this is not the only pleasant surprise and asset - the rest later in the description.

PROFESSIONAL FEEDER 4x4

Professional feeder 4R - reliable wire feeding regardless of spool weight, handle length and welding wire type. Proven mechanism.

Made in accordance with applicable standards - available for sale different types of feeder rollers.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 200A (MIG/MAG/TIG) 180A (MMA)
• Working cycle: 60%
• Maximum power consumption: 7,7kVA
• Parameter display - shows the current value during welding
• Protection Required: 20A
• Net weight: 14kg

MIG/MAG welding parameters

• Welding Current: 30-200A
• Welding voltage: smooth adjustment - 16,5-23V
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100/D200
• MIG/MAG welding inductance adjustment: YES
• MIG/MAG welding polarity change: YES
• Wire Retract: YES

MMA welding parameters

• Welding Current: 30-180A
• Idle Voltage: 57V
• Welding Current Adjustment: Smooth

• Device Magnum MIG 240 Dual Pulse Synergy
• MIG EURO MB 24 3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES FOR FREE

• spiral insert for steel wire (blue hrs),
• Teflon guide cartridge (red hrs),
• set of feeder rollers for welding steel and aluminum,
• set of accessories for wire feeder.

PHOTO GALLERY:

Specifications
