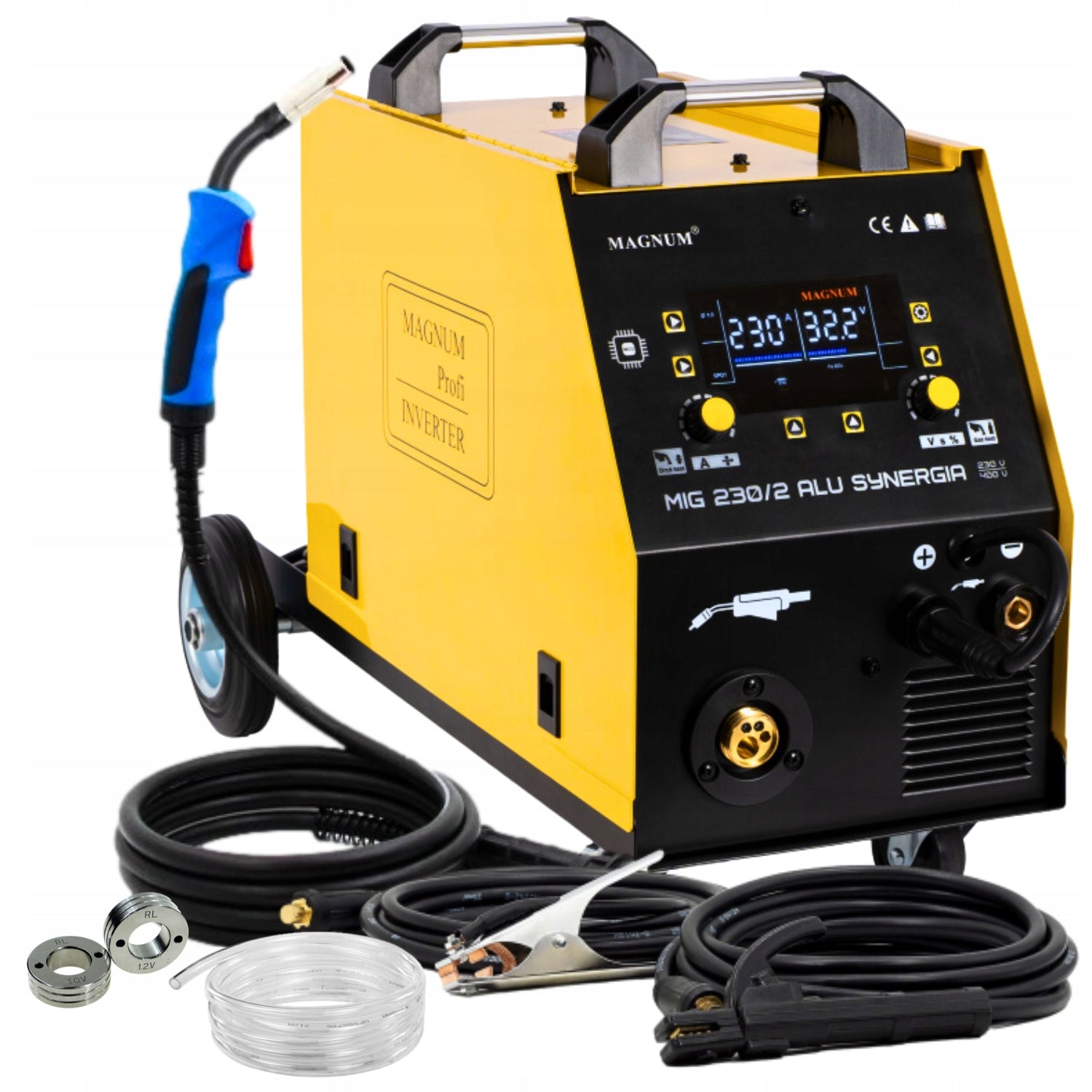

Suvirinimo aparatas Magnum MIG 230/2 ALU Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 230/2 ALU Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 230/2 Alu Synergia
• Ilgis: 530 mm
• Plotis: 340 mm
• Aukštis: 480 mm

WELDING MACHINE MAGNUM MIG 230/2 ALU SYNERGY MIGOMAT 230/400V 4X4 IGBT

Welding machine Magnum

⭐ ⭐ ⭐ ⭐ ⭐

☑ Technical data:

• Power supply 230 V or 400 V / 50 Hz
• Efficiency 60%
• Welding current 230 [V] 200 A
• Welding current 400 [V] 230 A
• Idle Voltage | 400 V 77 V
• Used spool weights max. 15 kg
• Wire diameter 0.8 mm - 1.2 mm
• Power protection 230 [V] 25 A (C)
• Power protection 400 [V] 16 A (C)
• Housing protection IP21S
• Weight 22 kg

Migomat Mig Mag Welding Machine

⭐ ⭐ ⭐ ⭐ ⭐

☑ Description:

MIG 230/2 ALU SYNERGIA is a high-tech welding machine designed for use in demanding industrial environments.

Designed for professionals, this welding machine offers universality and precision of MIG-MAG, MMA and TIG welding and meets the high standards required in the modern welding industry.

Migomat welder

⭐ ⭐ ⭐ ⭐ ⭐

☑ Versatility

✔ The welding machine is capable of welding a wide range of materials, including low carbon steel, low alloy steel, high alloy steel, aluminum and its alloys.

✔ Thanks to advanced technology, this device is ideal for factories, industrial plants, locksmiths and repair shops where precision is required, as well as flexibility in adapting parameters to different tasks.

☑ State-of-the-art technology

✔ MIG 230/2 ALU SYNERGIA uses IGBT transistors to minimize electromagnetic interference and maintain low power losses.

✔ High switching frequency enables immediate adjustment of the current to changing welding parameters, which translates into exceptional arc stability and weld quality.

✔ Moreover, the high efficiency of the device allows you to reduce energy consumption.

⭐️⭐️⭐️⭐️⭐️

☑️ Intuitive and Easy to Use

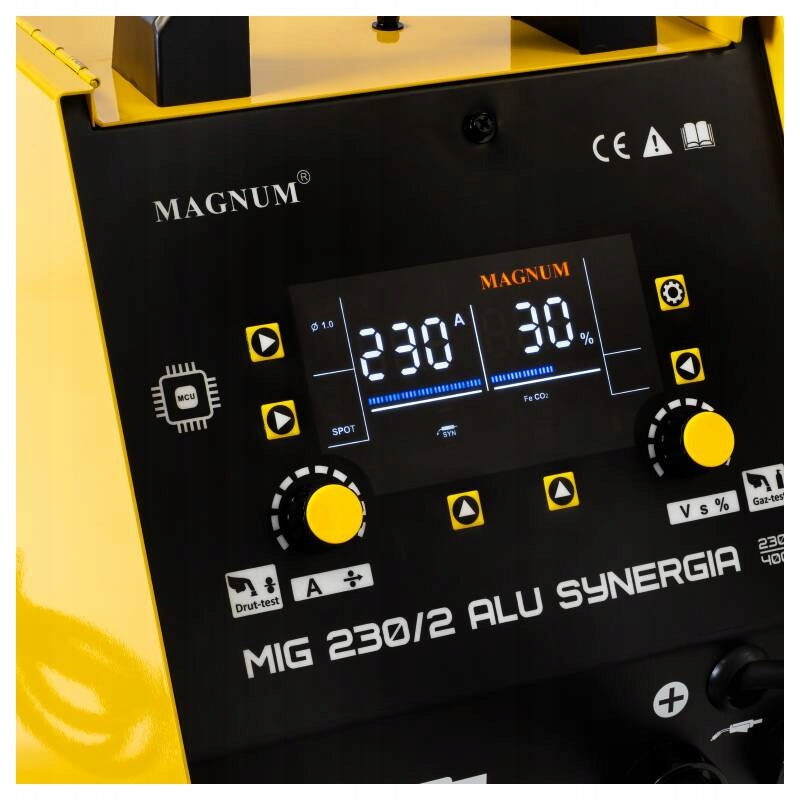

✔️The device features a clear LED display and a graphic adjustment range chart, allowing for quick and precise parameter setting.

✔️In addition, the welder has 21 memory channels, allowing you to save and easily recall settings, which increases work efficiency.

☑️ 230/400 V Mains Power Supply

✔️This welder is compatible with both 400V and 230V mains power, allowing it to be flexibly adapted to various working conditions.

✔️The device automatically recognizes the mains voltage and can easily switch sockets using the supplied adapter.

✔️This solution eliminates the need for additional converters and is very convenient in industrial environments.

⭐ ⭐ ⭐ ⭐ ⭐

☑ Advanced safety features

✔ The MIG 230/2 ALU SYNERGIA welder is equipped with a range of safety features, which protect both the machine and the user, which is important for intensive use in a professional environment.

✔ As a result, this welding machine meets all the requirements of modern production equipment, offering reliability and the highest welding quality.

⭐ ⭐ ⭐ ⭐ ⭐

☑ Extensive functions for professionals

This welding machine has a wide range of functions that make it an indispensable tool in the hands of experienced welders:

• MIG/MAG welding | MMA | TIG LIFT | POINT
• possibility to choose manual mode
• built-in programs synergic
• adjustable gas outflow time after welding
• adjustable welding time at point
• adjustable inductance
• possibility of regulation of the final current (crater filling)
• 2T/4T/S4T | HOT START | ARC FORCE | VRD

Inverter welder

⭐ ⭐ ⭐ ⭐ ⭐

☑ Standard equipment:

• Welder MIG 230/2 ALU SYNERGY
• MIG/MAG working cable
• Cable with mass clamp
• Working cable MMA
• Adapter power supply 400V/230V

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	22 kg
Parametry	Welding range	20–230 A
Parametry	Height	480 mm
Parametry	Length	530 mm
Parametry	Width	340 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	35 kg
Parametry	Manufacturer code	U MI 230/2AL SY
Parametry	EAN (GTIN)	5905323117631
Parametry	Model	230/2 Alu Synergia
Parametry	Welding methods	MMA,TIG,MIG/MAG
Parametry	Supply voltage (V)	230,400
Parametry	Additional features	transport wheels,EURO handle,infinitely adjustable welding current,LCD display
