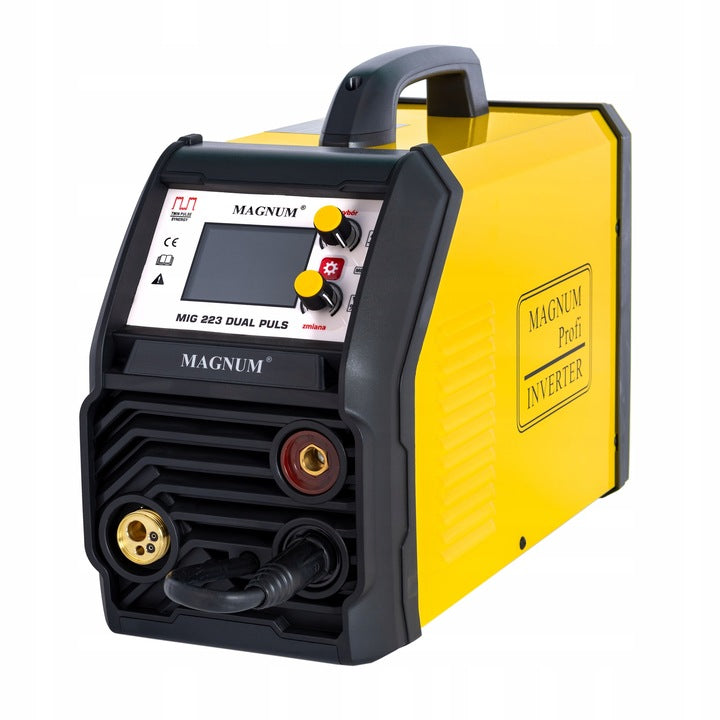

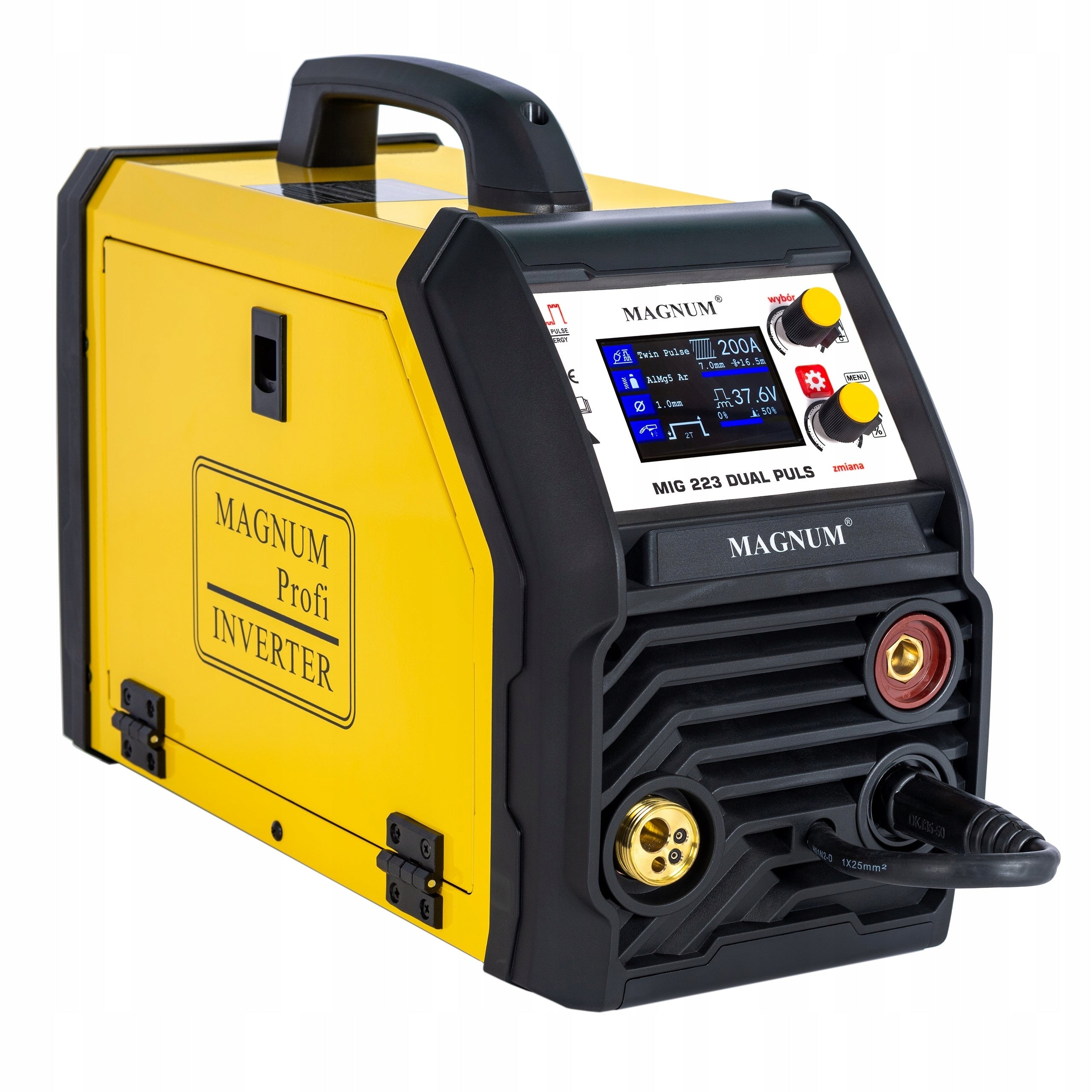

Suvirinimo aparatas MAGNUM MIG 223 DUAL PULS SYNERGY TIG MMA 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 223 DUAL PULS SYNERGY TIG MMA 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 223 DP LCD

MIG / TIG LIFT / MMA / 200A

WITH HANDLES INCLUDED!

TRUST THE EXPERTS!!!

The Magnum MIG 223 Dual Pulse SYNERGY with display LCD is a versatile and technologically advanced welding device for welding using the MIG/MAG, MMA and TIG Lift methods. Designed for manual, electric welding of low-carbon, low-alloy steels, high-alloy stainless and acid-resistant steels and aluminum and its alloys, etc.

Magnum MIG 223 is designed for all kinds of welding work performed by professionals in car workshops, locksmiths, repairs, industrial, etc., as well as by amateurs in home workshops.

The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduction of electromagnetic interference, small power losses, increased efficiency and reliability of the power source and significantly reduced energy consumption. The design and software combined with digital control, enables you to achieve excellent welding parameters and achieve high-quality welded joints.

Features and advantages of the device:

✅ Welding MIG/MAG, MMA, TIG Lift, MIG Pulse, TIG Lift Pulse, MIG Dual Pulse

✅ Built-in synergistic programs Fe, AlMg5, AlSi5, CuSi3, CuAl8, E308, E316

✅ Function Pulse and Dual Pulse

✅ Adjustable pulsation frequency

✅ Adjustable pulsation balance

✅ Correction of peak and base current voltage

✅ Welding current amplitude adjustment

✅ Regulation of gas outflow time before and after welding

✅ Final current adjustment for welding S2T/S4T

✅ Regulation of the duration of the initial and final current

✅Adjustment of spot welding time

✅ Clear color display LCD

✅ Features 2T/4T/SPOT/S2T/S4T/CPOT

✅ Features HOT START, ARC FORCE, VRD

✅ Built-in memory with the ability to save your own settings

✅ Regulation of inductance

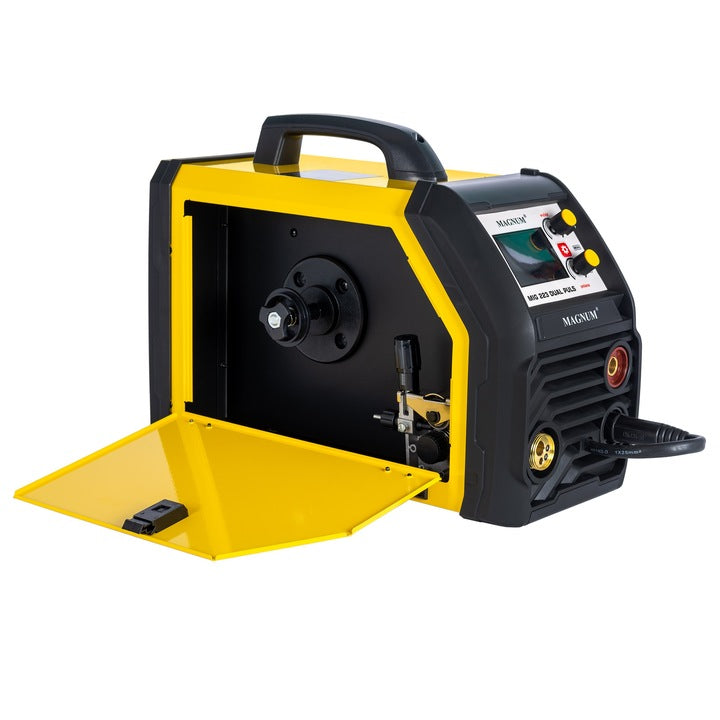

✅ Sturdy metal feeder

TECHNICAL DATA:

• Power supply: AC 230, 50/60 [Hz]
• Security required: 20 [A] class C
• MIG/MAG welding current: 35- 200 [A]
• MIG/MAG welding voltage: 17 -26 [V]
• MMA/TIG welding current: 20 - 180 [A]
• Idle voltage: 73 [V]
• Wire diameter: 0,8/1,0/1,2 [mm]
• Reel size: 1-5 [kg]
• Efficiency: 60 [%]
• Housing protection class: IP21S
• Weight: 10,5 [kg]

THE SET INCLUDES:

• ➡ Welding machine MAGNUM MIG 223 Dula Puls Synergia

  ➡ MB24 work cable 3 m

  ➡ MMA work cable 2m

  ➡ Ground cable 2m

  ➡ Teflon insert red 1.0/1.2 (in the working handle)

  ➡ Red steel insert 1.0/1.2

  ➡ Feed rollers for steel 0.8/1.0

  ➡ Feed rollers for aluminum 1.0/1.2 (installed in the feeder)

  ➡ User manual

  ➡ Original packaging
