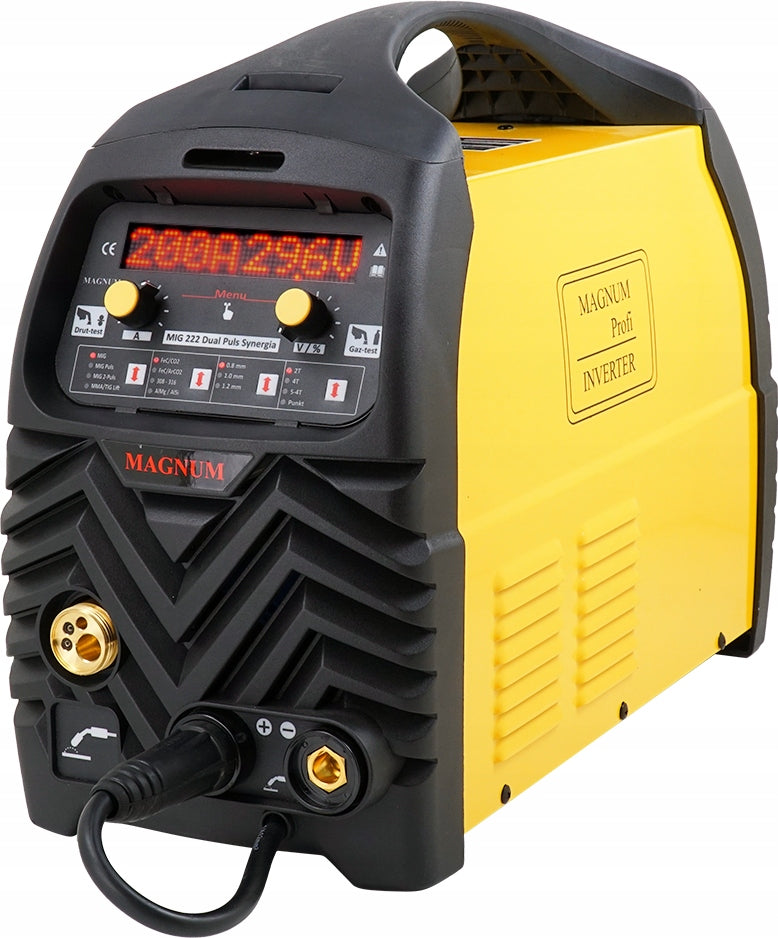

Suvirinimo aparatas MAGNUM MIG 222 PULSE SYNERGY ALUMINIUM

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 222 PULSE SYNERGY ALUMINIUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA MAGNUM MIG 222 HRS4

Manufacturer: MAGNUM || Welding methods: MIG/MAG, MMA, TIG, FLUX || Maximum welding current: 200A || Power supply: 230V

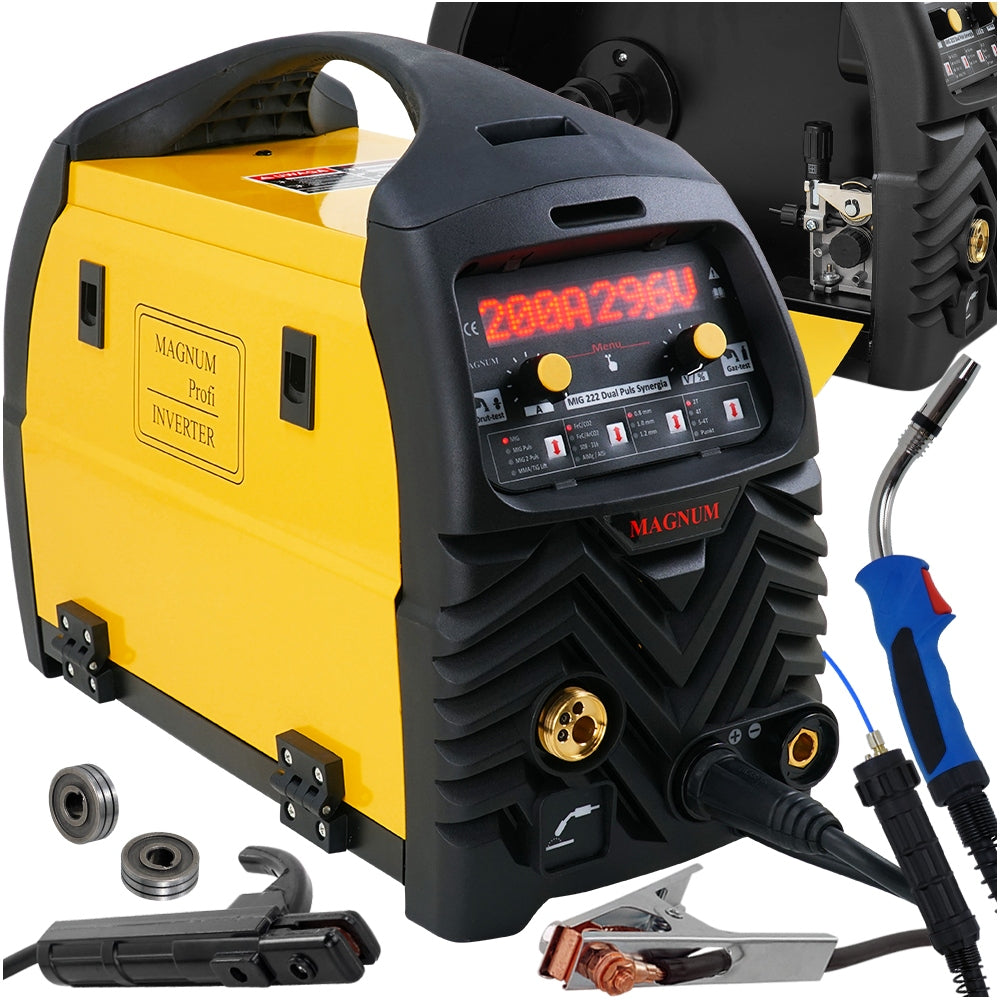

✔ Magnum MIG 222 Dual Pulse Synergy

✔ MIG MB welding torch 24 3m*

✔ MMA electrode holder

✔ Bulk cable

✔ User manual in Polish

* MIG handle factory armed with Teflon.

WELDING ACCESSORIES FREE

➡ brush-hammer.

➡ welding disc,

➡ roll of feeder for steel/aluminium.

Magnum MIG 222 Dual Pulse Synergy is packed with advanced features that enable high-quality welding not only of black steel, but also of aluminum and stainless steel. The most important of them, we will discuss later in the description.

The source was made on the basis of an advanced technological solution, including IGBT power transistors. They provide a minimum of electromagnetic interference, increase the efficiency and reliability of the source. IGBT technology also means lower energy consumption and rapid adaptation of the source to changes in parameters during welding.

Excellent welding characteristics of the source, ensures high welding quality and repeatability of welding work.

🔷MIGRATION WELDING WITH PULSE🔷

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. when welding stainless and acid-resistant steels.

✅modern electronics inside - great arc characteristics, interesting features,

✅ high-quality aluminum welding thanks to MIG welding with pulse,

✅ depending on the chosen method, the possibility of welding most weldable materials, e.g. aluminium and its alloys (MIG only), black steel (MMA, MAG, TIG DC), stainless steel (MIG, TIG).

✅single-phase power supply 230V,

✅high 60% duty cycle for rated current,

✅Synergy MIG/MAG - just set the value of the welding current - the voltage and feed of the wire are recorded in the program. Possibility of manual correction to the program.

✅ set of MIG/MAG and MMA welding cables included,

Dual pulsation MIG welding is particularly useful when welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

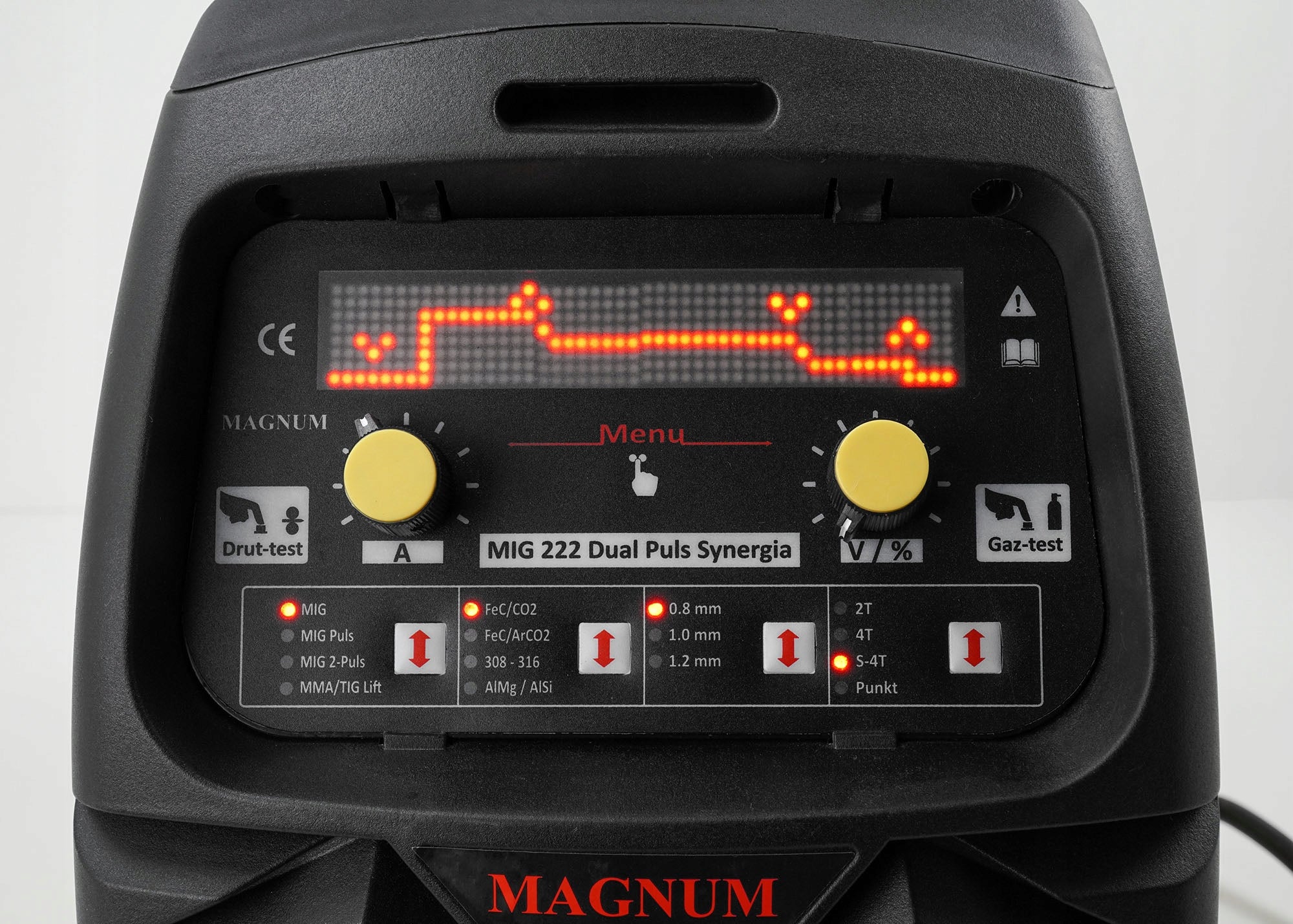

Magnum MIG 222 DUAL PULSE SYNERGY - HAS ADVANCED DOUBLE PULSE PARAMETER ADJUSTMENT

OTHER IMPORTANT FUNCTIONS FOR QUALITATIVE WELDING

• Point - MIG/MAG welding in spot welding mode,
• regulation of parameters such as: feeder access speed, gas outflow time before and after welding, MIG/MAG welding inductance adjustment, BurnBack wire burning time correction, selection of the thickness of the welded material and many others.
• Operating modes: 2T, 4T, S4T.

TIG DC Lift and TIG DC lift welding with pulse

MIG 222 Dual Pulse Synergy enables TIG welding with arc ignition Lift (contact) DC and DC with pulse of black steel, stainless steel and acid-resistant steels. As one of the few MIG 3in1 devices, it has the function of TIG welding with pulse + pulse parameters adjustment: base current, peak current, pulsation balance and pulse frequency.

Professional Wire Feeder

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Maximum welding current: 200A (MIG/MAG/MMA/TIG)
• Working cycle: 60%
• Security Required: 20A
• Housing Protection Class: IP21S
• Net weight: 12kg

Basic MIG/MAG welding parameters

• Welding Current:50 - 200A
• Welding Voltage: 16,5 - 24V
• Wire Diameter: 0,8 / 1,0 /1,2mm
• Wire spool weight: max. 5kg (D100/D200)
• Regulation of MIG/MAG welding inductance
• Welding polarity change: YES

Advanced MIG/MAG welding functions

• MIG welding with pulse: YES
• Adjustable MIG pulse parameters: YES
• Dual Pulse MIG Welding: YES
• MIG DUAL PULS parameter adjustment: YES
• Operating modes: 2T/4T/S4T/Point - adjustment of parameters suitable for a given operating mode.
• Synergistic MIG/MAG programs: YES - suitable for specific material groups
• Gas before, gas after: YES
• Wire Burning Time Adjustment (Burn Back): YES
• Choice of thickness of welded material: YES

TIG welding parameters

• Welding Current: 10 - 200A
• Output Current: DC - Constant
• Adjustment: smooth
• Arch Initiation: TIG Lift (Contact)
• TIG welding with pulse: YES - adjustment of base current, peak current, pulse width, pulse frequency.

MMA welding parameters

• Welding Current: 20-200A
• VRD - reduced idle voltage (ON/OFF)
• Hot Start - adjustable
• Arc Force - adjustable
• Idle Voltage: 69V

Photo gallery:
