Suvirinimo aparatas MAGNUM MIG 209, 200A, 230V, LCD, tinka aliuminiui, MMA, TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 209, 200A, 230V, LCD, tinka aliuminiui, MMA, TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 220 ALU/CU SYNERGIA
• Ilgis: 430 mm
• Plotis: 210 mm
• Aukštis: 315 mm

Manufacturer: MAGNUM║ Welding methods: lutowelding, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC ║SYNERGY,SPOT, 2T/4T,ARC ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• full free support after purchase
• You can call us at any time and we will help you set the parameters and operate the device

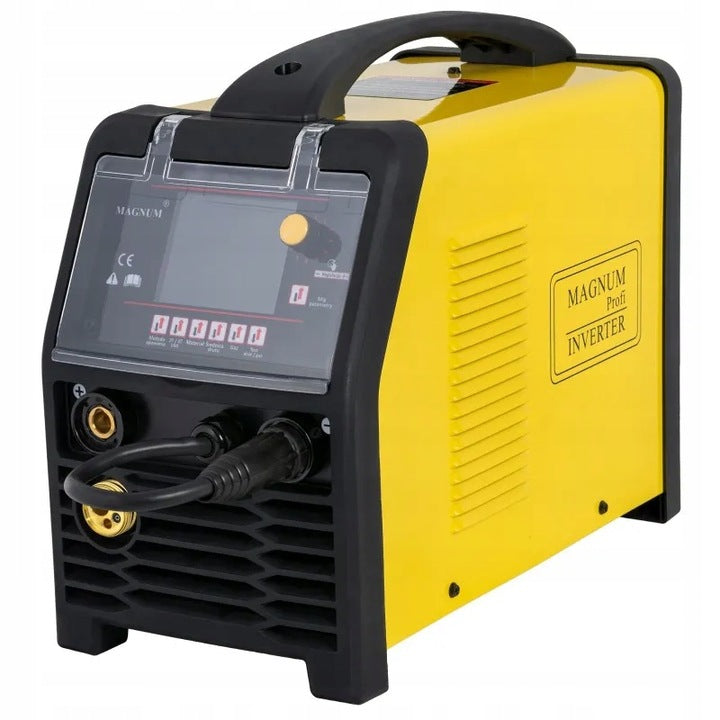

MIG 200A Magnum 209 ALU Synergy

The MAGNUM MIG 209 Alu Synergy is a professional, synergistic semi-automatic welding machine designed for manual, electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel and aluminum and its alloys (MIG).

The device can also be SOLDERED, welded by MMA method and TIG Lift method. It is designed for all kinds of welding work, in locksmith workshops, repair workshops, industrial, factories, etc. Thanks to the use of synergistic settings and a clear LCD screen, the device is extremely easy to use and can be used by welders even with minimal experience.

The power source was built on the basis of IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption, and rapid adjustment of the current to changes in parameters during welding.

• ⚙ Key features and benefits:

✅ Synergic mode - automatic selection of welding parameters, facilitating the work of even less experienced users.

✅ Welding MIG/MAG, MMA and Lift TIG - versatility in one device!

✅ Welding without gas (FLUX) - the perfect solution for outdoors or in the absence of access to gas.

✅ Metal housing - durable and resistant to mechanical damage.

✅ Digital display - precise control over the welding machine settings.

✅ Small size and low weight - easy to transport and store.

✅ Advanced features such as HOT START, ARC FORCE- convenience and safety during MMA welding.

✅ Settings memory function - save and recall up to 10 sets of welding parameters.

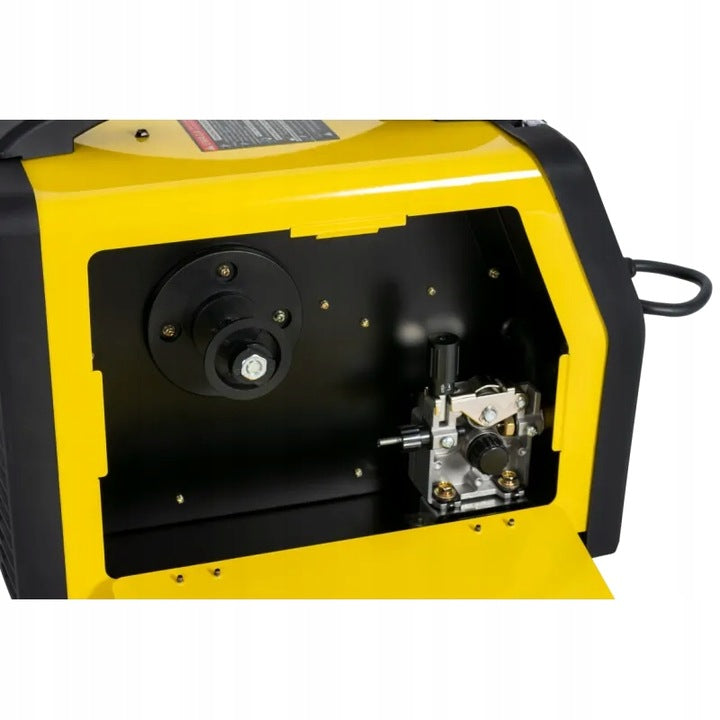

✅ Backlight feeder chamber - makes it easy to put on wire and replace rollers.

✅ Built-in functions to facilitate work:

• HOT START - easier arcing.
• ARC FORCE - arc stabilization.
• ANTI STICK - prevention of electrode sticking.

TECHNICAL DATA:

- Power supply: AC 230 [V], 50/60 [Hz],

- Max. Power consumption: 6,4 [kW]

- Security required: 20 [A]

- MIG/MAG welding current: 40 - 200 [A]

- MMA welding current: 20 -160 [A]

- TIG LIFT welding current: 20 -160 [A]

- Idle voltage: 60 [V]

- Efficiency: 60 [%]

- Wire spool weight: max. 5 [kg]

- Wire diameter: 0,6 / 0,8/ 0,9/ 1,0 [mm]

- Welding "without gas": YES

- Housing protection class: IP21S

- Weight: 10 [kg]

• Modern control panel with LED display

What distinguishes the control panel?

✅ Readable LED display – allows accurate tracking of selected settings, even in difficult lighting conditions.

✅ Settings memory function – allows you to save up to 10 sets of parameters, which reduces configuration time for repetitive tasks.

✅ Easy navigation – intuitive layout of buttons and knobs makes device setup quick and simple.

✅ Adjust synergistic and manual parameters – for full flexibility: choose between automatic settings and manual parameter matching.

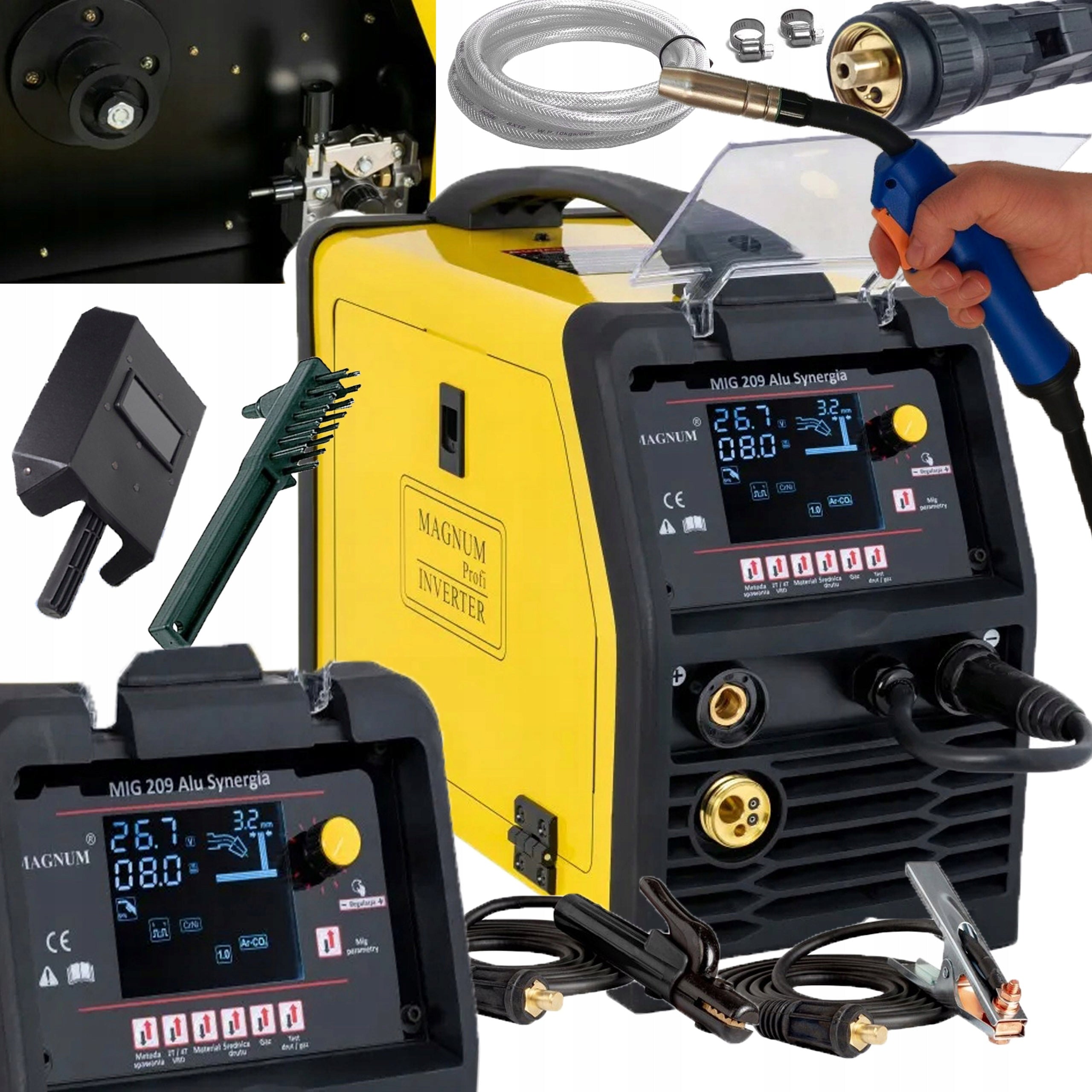

• Welder MAGNUM MIG 209
• MIG welding torch MB15-3meters
• mass handle
• electrode holder

Specifications
