Suvirinimo aparatas Magnum MIG 208 ALU Synergy 4R COLD WELD Point 2T 4T 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 208 ALU Synergy 4R COLD WELD Point 2T 4T 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA MIG MAG MMA TIG 3W1 MAGNUM 208 ALU SYNERG

MIG, MAG, FLUX, TIG DC, FMIG, COLD, POINT | Power Supply: 230V | Synergy | Manufacturer: Magnum

MIG 208 Alu Synergy L 4x4 is an advanced welding device designed for professionals and demanding amateurs. Designed for manual, electric welding using MIG-MAG, MMA, TIG LIFT, FCAW and soldering methods, this device offers versatility and high efficiency in a variety of applications, from locksmith workshops to the automotive industry.

MIG 208 Alu Synergy L 4x4 offers MIG-MAG welding with traditional and synergistic settings, including ready-made programs dedicated to stainless steel, aluminum and soldering. A special distinguishing feature of this model is the presence of a four-roll 4x4 feeder and advanced synergistic programs: COLDWELD, which allows welding thin sheets without the risk of overheating, and FASTMIG, allowing for fast and deep welding with a minimum amount of chipping.

The device allows welding of all weldable metals and their alloys, including low and high alloy carbon steels, aluminum, copper and their alloys. Thanks to the use of modern transistors IGBT, MIG 208 Alu Synergy L 4x4 provides minimal electromagnetic interference, greater efficiency and reliability, as well as lower electricity consumption.

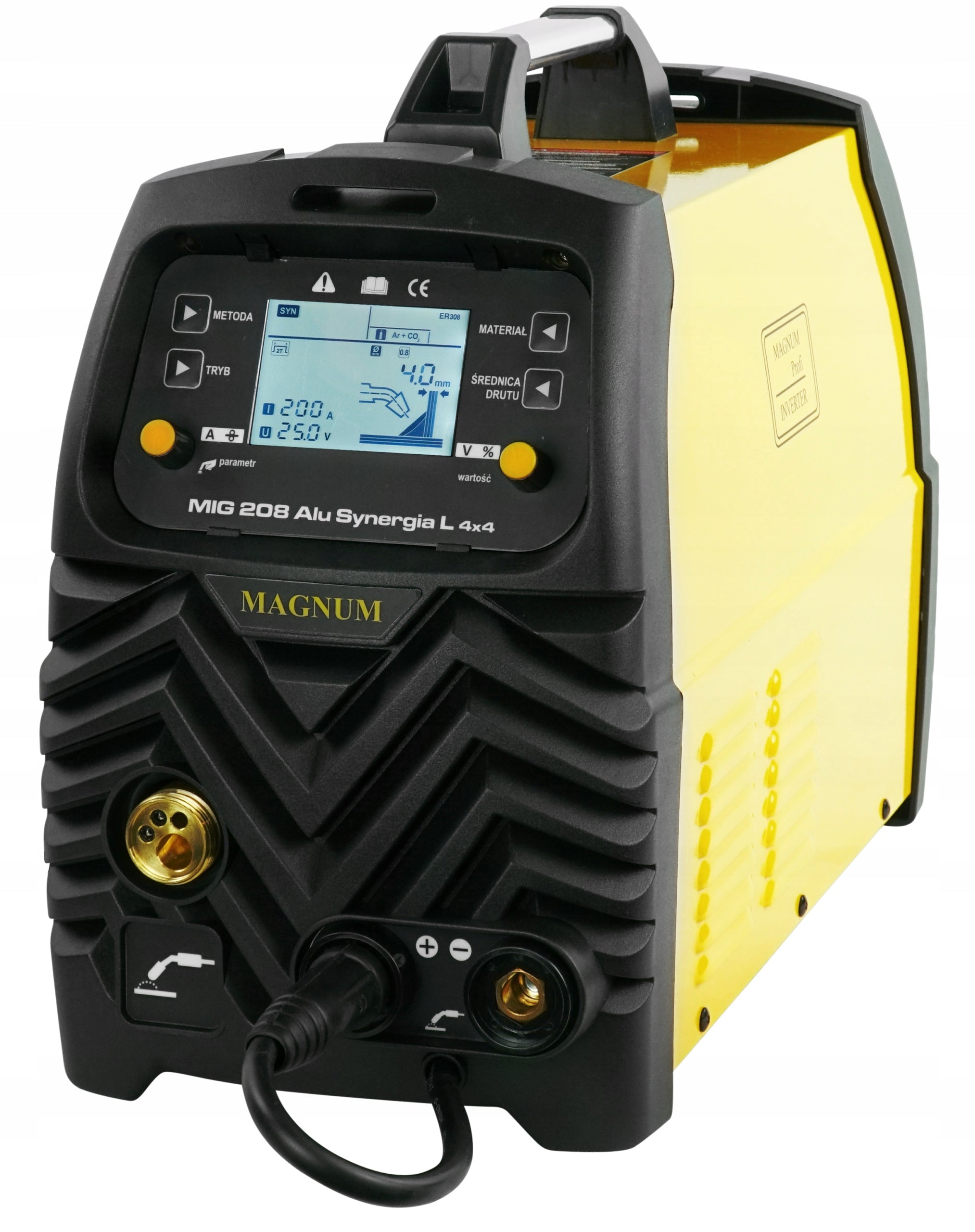

✅ LCD display with excellent contrast

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

✅ Magnum MIG 208 Alu Synergy

The machine has been designed for all kinds of welding work in locksmith workshops, repair and production. It is an ideal source for working in the automotive industry in repairing vehicle body parts, etc.

✅ BURN BACK function

function to prevent the electrode wire from melting to the current tip, by temporarily extending the wire after the welding process is completed.

✅ Cold Weld

Cold weld, or cold welding, is the process of joining two metal surfaces without the use of high temperature. Instead, it involves exerting a lot of pressure on the elements in contact with each other, causing their atoms to connect with each other. This process is particularly effective for metals that have similar properties, such as aluminum or copper. Cold weld is often used in industry where it is important to maintain the integrity of materials and avoid the impact of high temperatures on their properties

✅ Advantages of Cold Welding

• No heat deformation: The process does not require heat, there is no risk of heat deformation, which is especially important for precision components.
• Connection cleanliness: Connections are clean because there is no heat input that could introduce contamination.
• No additional materials: No need for additional materials, such as soldering or traditional welding.

✅ Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

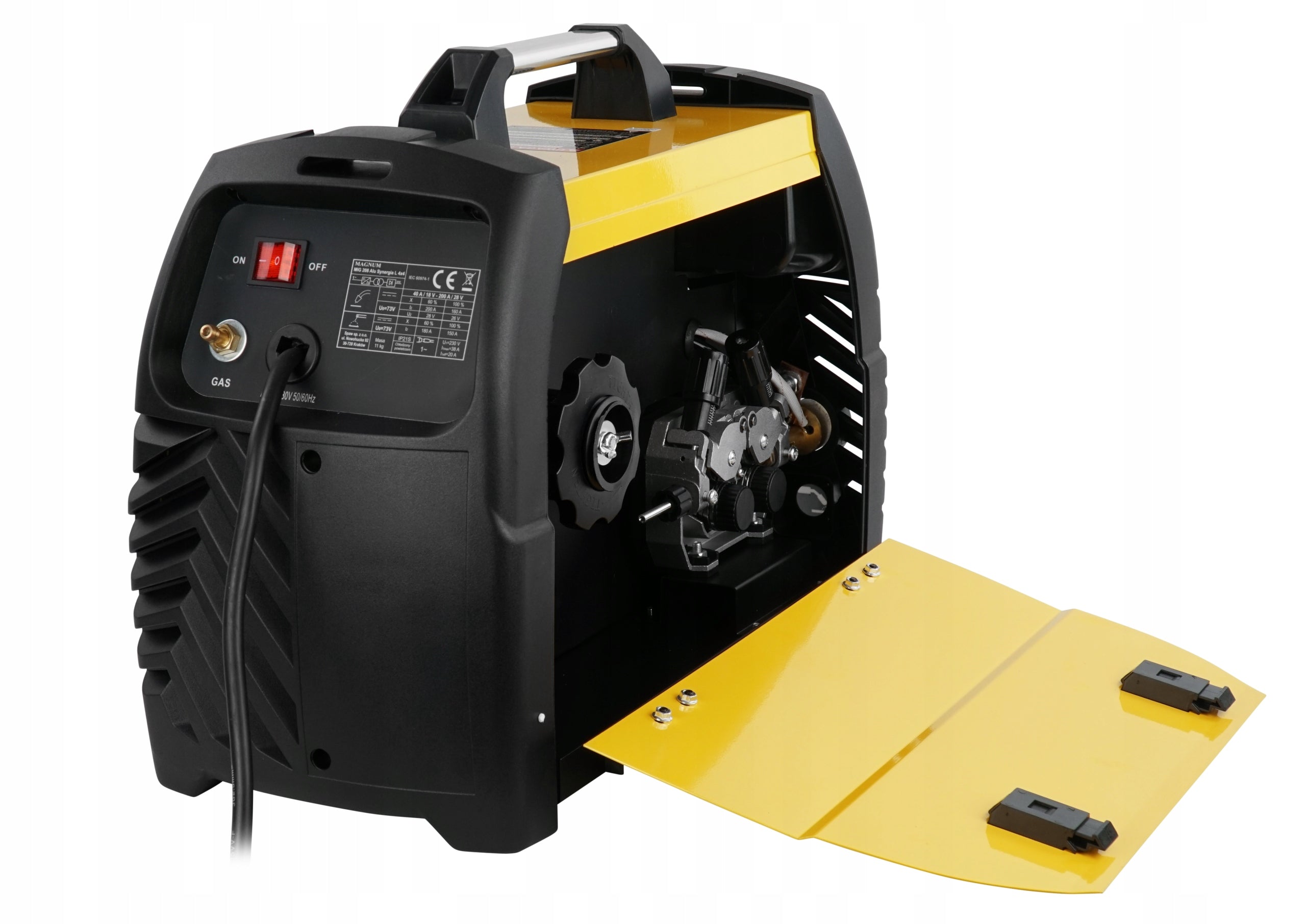

✅ PROFESSIONAL WIRE FEEDER

The welding wire feeder performs one of the key functions in MIG/MAG welding machines. In Magnum devices, proven constructions are installed.

The MIG Magnum 208 ALU Synergy L uses a wire feeder with a 4-roll mechanism. Two guide rollers and two pressure rollers make an excellent team.

Stable feeding of welding wires of various types and the ability to work with MIG handles 3m/4m/5m.

• Power Supply: 230V
• Welding methods: MIG, FMIG, MAG, MMA, TIG Lift, FLUX, COLD
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 60%
• Network Security: 20A
• LCD display
• Net weight: 11kg

MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding Voltage: 18 - 28V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Wire spool weight: max. 5kg (max.D200)
• Synergistic programmes
• MIG/MAG spot welding

MMA welding parameters:

• Welding Current: 40-180A
• Idle Voltage: 73V

TIG welding parameters (optional):

• Welding Current: 40-200A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift

Synergic programmes:

• Fe – black steel.
• Fe - Flux, self-shielding core wire welding*
• AlMg - aluminium alloys with magnesium
• AlSi - aluminium alloys with silicon
• ER308 – stainless steel type 308
• ER316 – stainless steel type 316
• CuSi – soldering (galvanized sheets)
• CuAl – soldering (aluminum sheets)

Synergic programmes COLD

• Fe – black steel.
• ER308 – stainless steel type 308
• ER316 – stainless steel type 316

Synergic programmes of FMIG

• Fe – black steel.
• AlMg - aluminium alloys with magnesium
• AlSi - aluminium alloys with silicon
• ER308 – stainless steel type 308
• ER316 – stainless steel type 316

• Welding machine MAGNUM MIG 208 Synergy 4x4 L ALU
• MIG MB15 3m handle
• MMA Electrode Cable
• Bulk cable
• User manual

✅ADDITIONAL ACCESSORIES INCLUDED

• Welding disc
• Brush-hammer

Specifications
