Suvirinimo aparatas MAGNUM MIG 204 MMA 230V 2T/4T TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 204 MMA 230V 2T/4T TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Mig 204 MMA

welding machine migomat mig mag

⭐ ⭐ ⭐ ⭐ ⭐

✅ Technical data:

• Power supply AC 230 [V], 50/60 [Hz]
• Security required 20 [A] class C
• Welding current MIG/MAG 45 ÷ 200 [A]
• Welding voltage MIG/MAG 12 ÷ 25 [V]
• Welding current MMA 15 ÷ 160 [A]
• Idle voltage 55,5 [V]
• Wire diameter 0.6 / 0.8 / 0.9 / 1.0 [mm]
• Wire spool diameter 100 / 200 [mm]
• Efficiency 60 [%]
• Housing protection class IP21S
• Weight 7,7 [kg

welding machine

⭐ ⭐ ⭐ ⭐ ⭐

✅ Description

✅ MIG 204 MMA by MAGNUM is a small, professional welding device, designed for welding using the MIG-MAG, MMA and TIG LIFT methods.

✅ Used for manual, electric welding of low carbon steel, low alloy steel (MAG), alloy steel (MIG) and aluminium and alloy steel.

✅ Ideally suited for all kinds of welding work in locksmith workshops, repair workshops, industrial, factories, maintenance, services, assembly, etc.

✅ The current source was built on the basis of IGBT transistors ensuring high efficiency, low power consumption, reliability and rapid adjustment of the current to changes in parameters during welding.

migomat welding machine

⭐ ⭐ ⭐ ⭐ ⭐

✅ The main features and advantages of miomate:

✔ Welding MIG/MAG, MMA, TIG LIFT

✔ Lightweight design: The device weighs only 7,7 kg, making it mobile and easy to transport.

✔ Simple control panel equipped with a clear display, knobs for adjusting parameters and indicators of failure and overheating.

migomat

⭐ ⭐ ⭐ ⭐ ⭐

✔ Adjustable inductance for MIG/MAG method

✔ Adjustable function ARC FORCE

✔ Adjustable wire feed speed

✔ 2T/4T function

✔ Safety: Built-in overload protection and overheating and protection class IP21S.

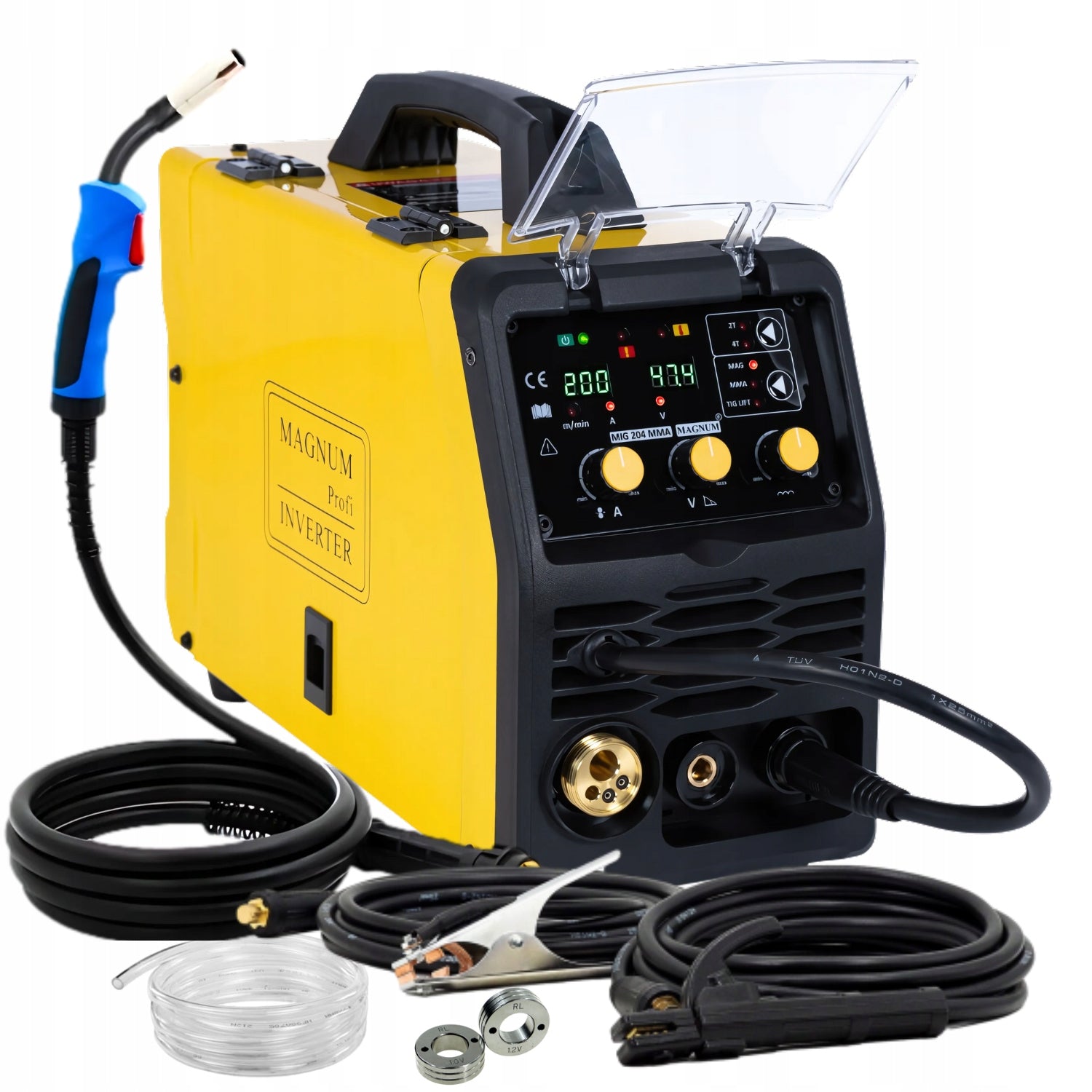

1. Control panel.

2. Socket current, output, plus and minus.

3. Euro-socket for connecting MIG-MAG welding wire.

4. Cable with plug to select polarity for MIG-MAG.

5. Selection button for MIG-MAG: two-bar or four-bar.

6. Welding method selection button:

• MAG - MIG-MAG welding,
• MMA - welding with hot melt coated electrodes,
• TIG LIFT - TIG welding with a tactile arc ignition method,

7. Inductance control knob for MIG-MAG method.

8. Value adjustment knob welding current voltage for MIG-MAG. For MMA welding: Arc Force function adjustment.

9. Wire feed speed adjustment knob for MIG-MAG. For MMA welding: regulation of welding current value.

10. Display current welding and wire feed speed. The light under the display (m/min or A) informs about which value is displayed at a given time.

11. Indicator lamp connection to the mains.

12. Indication of operation of the protection system or failure.

13. Indication of overheating.

14. Display current voltage values.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	230 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	7.7 kg
Parametry	Welding range	45–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	3 cm
Parametry	Product weight with unit packaging	10 kg
Parametry	Manufacturer code	U MI 204MMA
Parametry	EAN (GTIN)	5905323120174
Parametry	Model	Mig 204 MMA
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
