Suvirinimo aparatas MAGNUM MIG 201 ALU PRO SYNERGY PULS IGBT LED

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 201 ALU PRO SYNERGY PULS IGBT LED. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SET_1_MAGNUM MIG 201 ALU PRO Synergia

Welding methods: MIG/MAG, MMA, TIG Lift, FCAW, soldering | Power supply: 230V | Maximum current: 200 A | LCD display | SYNERGY | ALUMINIUM |

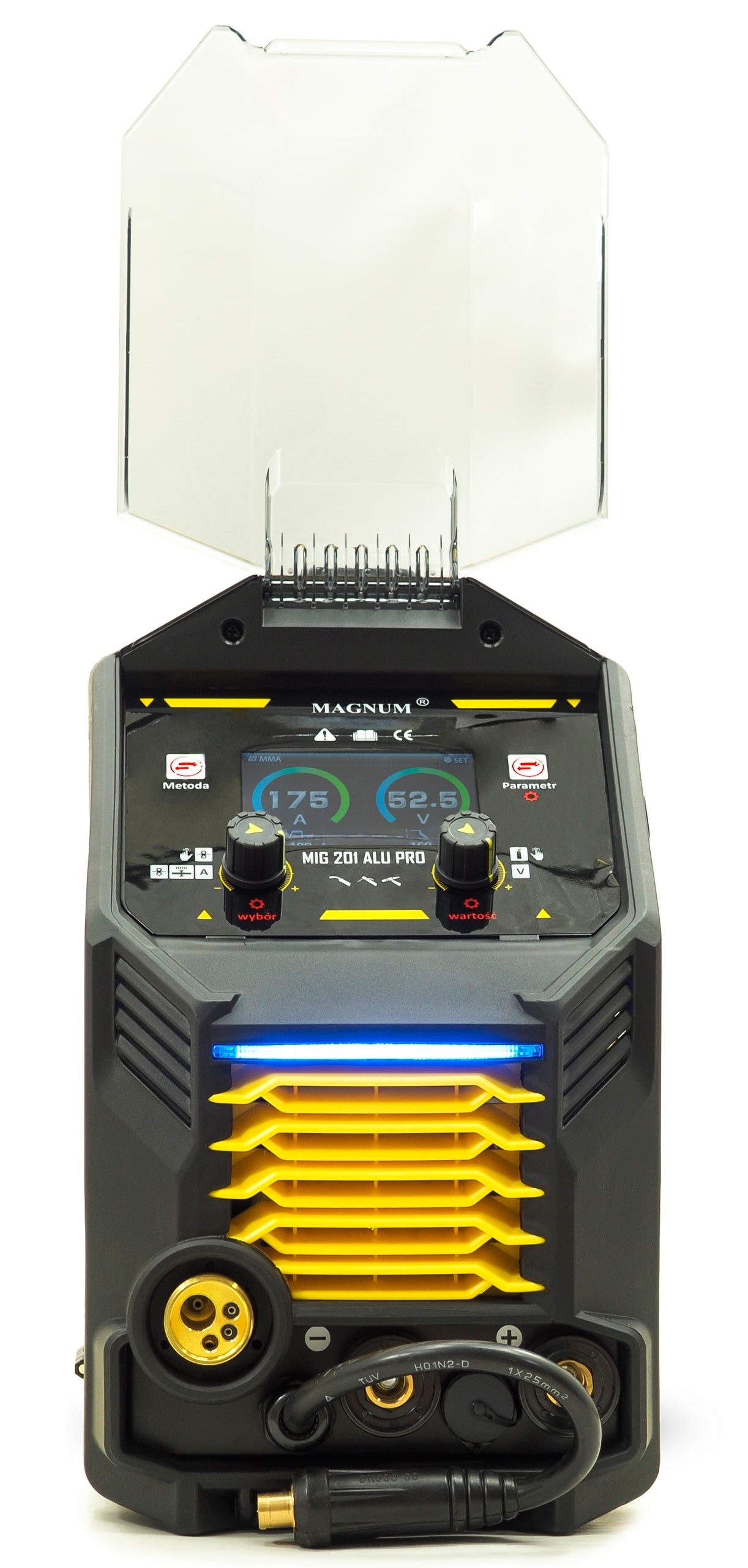

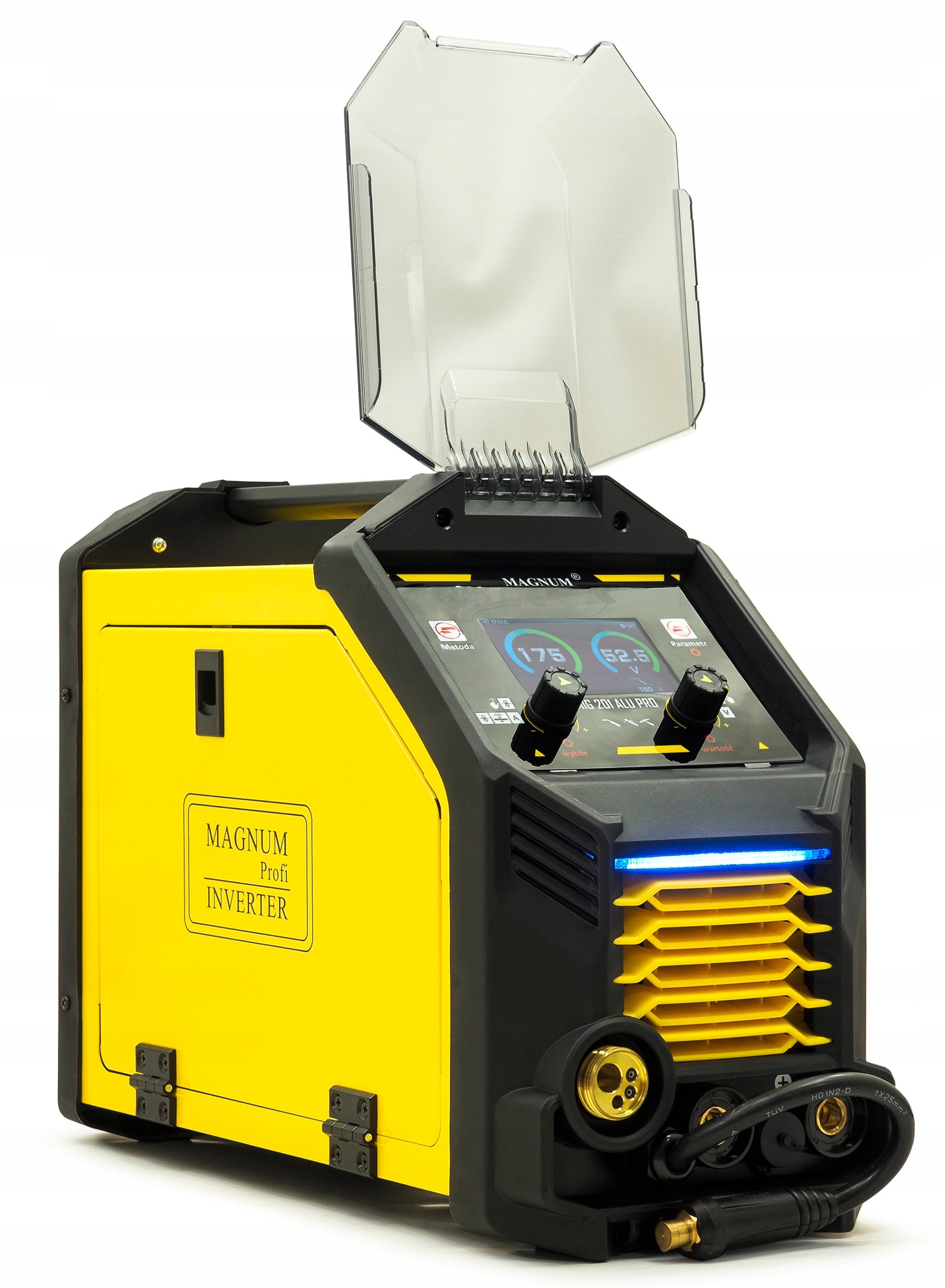

MAGNUM MIG 201 ALU PRO is a modern semi-automatic welding machine designed to work with MIG/MAG, MMA, TIG Lift, FCAW and soldering methods. The model combines a compact design with features that realistically increase the range of applications in workshop, service and light production.

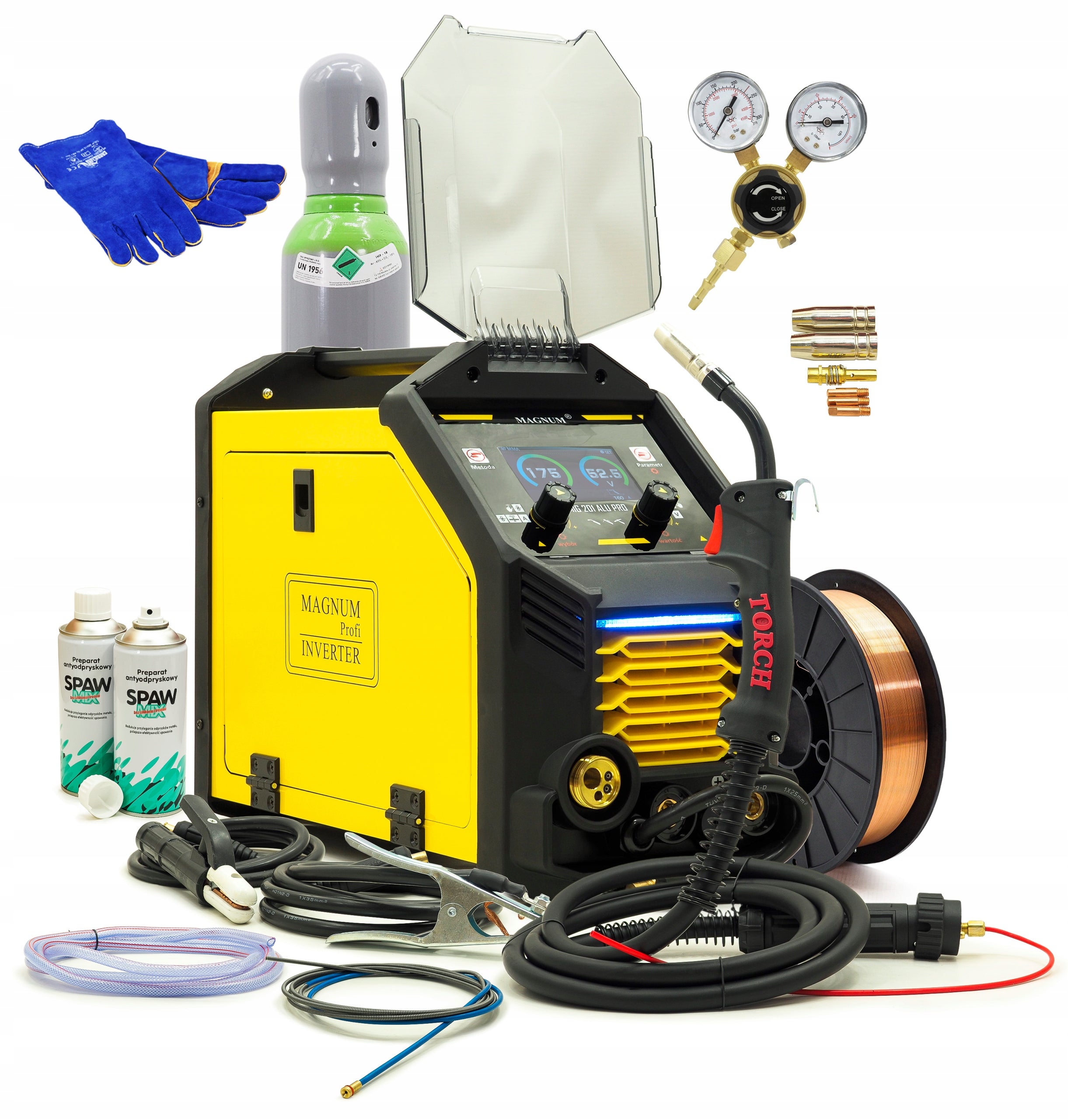

The set includes:

• Device MAGNUM MIG 201 ALU PRO
• Welding torch MB-15 3m
• MMA Electrode Holder
• Bulk cable
• User manual

• Cylinder with Argon/CO2 150 bar mixture or pure CO2 (to choose)
• Cylinder reducer MINI AR/CO2 with 2 pressure gauges
• 1 x 5kg welding wire SG2 0,8 mm
• Handle accessories: 2x gas nozzle MB-15, 3x tip MB-15 0,8mm, 1x current connector
• Welding gloves
• 2x Anti-chipping spray preparation SPAWMIX

The device allows welding of black steel, stainless steel, aluminum and its alloys, as well as self-shielding wire and soldering. Thanks to the synergistic mode, the user can quickly select operating parameters, and the manual mode allows for full, manual setting of the process.

The most important advantage of the MIG 201 ALU PRO model are synergistic programs for aluminum AlSi i AlMg with automatic single current pulsation. This solution improves the stability of the process and facilitates obtaining aesthetic welds when working with aluminum.

The easy-to-read digital panel allows you to choose the working method, material, wire diameter and shielding gas. The device also offers 2T/4T modes, Hot Start and Arc Force adjustment, wire extension test function and gas outflow test. In addition, the model is equipped with a socket for connecting the Spool Gun handle, which increases its usefulness in selected aluminum works.

The power source was built on the basis of IGBT technology, which translates into high efficiency, stable operation and reduced energy consumption. The parameters of the device include 230 V power supply, welding current 40 – 200 A in MIG/MAG and 20 – 175 A in MMA and TIG Lift. The model supports 0,8 and 1,0 mm wire, spools up to 5 kg, and the weight of the device is 11 kg.

• MIG/MAG | MMA | TIG Lift | FCAW | soldering
• synergistic and manual mode
• programs Fe, SS, CuSi, AlSi, AlMg, Flux
• single pulse to aluminium
• Spool Gun handle support
• 2T/4T
• Hot Start and Arc Force
• change in polarity
• wire extension test and gas test
• IGBT technology
• compact design 230 V

• Automotive workshops
• Locksmith workshops
• Service and repairs
• Light construction
• Assembly work
• Welding aluminum, steel, and stainless steel components

• Power supply: 230 V / 50 Hz
• Efficiency: 60 %
• Welding current: 200 A
• Idle voltage: 55 V
• Wire spool: max. 5 kg
• Wire diameter: 0.8 mm - 1.0 mm
• Power protection: 20 A (C)
• Housing protection: IP21S
• Weight: 11 kg
• Weight with packaging: 16 kg
• Package size: 54 x 30 x 45 cm

New, lightweight cylinder Ar/CO2 contains 8L (1.5 m3) of high-quality mixture of 82% argon and 18% CO2 used in welding and industry.

A protective cap protects the valve from damage during transport or storage. The cylinder is full, brand new, and has a working pressure of 150 bar. The cylinders have a 10-year calibration, meet EN-1964-1 standards, and have the Π mark, allowing them to be used and refilled in all EU countries.

The standard W 21.8x1/14 thread for this type of gas allows it to be used with most Ar/CO2 regulators available on the market.

• Capacity: 8 liters
• Working Pressure: 150 bar
• Test Pressure: 250 bar
• Valve Thread: W 21.8x1/14
• Gas Quantity: approx. 1.5 m3
• Diameter: 136 mm
• Height: 820 mm
• Paint: Powder coating according to PN-EN standards
• Weight: approx. 15 kg

The cylinder contains 8 liters / 6kg of high-quality carbon dioxide CO2 intended for welding and other industrial applications. A protective cap protects the valve from damage during transport or storage.

The cylinder is brand new and contains 6kg of CO2. The cylinder and valve are manufactured according to EN 1964: 1999 standard and have the π (pi) conformity mark with ADR/RID requirements.

• Capacity: 8 liters
• Max Working Pressure: 200 bar
• Gas Quantity: 6 kg
• Diameter: 136 mm
• Height: 820 mm
• Weight: 18 kg

After purchase, please inform us which cylinder you have chosen.

CYLINDER REDUCER MINI AR/CO2 BS.DE

Argon/CO2 cylinder reducer with two pressure gauges. Ideally suited for smaller welding machines. Its task is to reduce the pressure of gas taken directly from the cylinder to the required working pressure.

TECHNICAL SPECIFICATION:

• Gas type: carbon dioxide(CO2), argon(Ar)
• Thread at inlet: W21,8 x 1/14 (Standard)
• Thread of nut at outlet: G 1/4 (Standard)
• Outlet connector: FI 6,3mm
• Inlet pressure: 200bar
• Exhaust pressure: 4bars
• Capacity: 12l/min
• Weight: 0,75 kg
• Package size: 14 x 13 x 15 cm

MIG/MAG WELDING WIRE SG2 0,8mm 5 kg

SG2 welding wire is a guarantee of the highest quality. Material designed for MAG welding. The wire complies with G3Si1, DIN EN ISO 14341-A, SFA/AWS 5.18:ER70S-6 has TUV, DB42.142.01, ABS, LR certificates. Recommended as welding wire for ordinary steel.

Specifications
