Suvirinimo aparatas MAGNUM MIG 200 MMA KN IGBT, 230V, 200A, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200 MMA KN IGBT, 230V, 200A, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 200MMAKN MAPR2-15-N
• Ilgis: 659 mm
• Plotis: 232 mm
• Aukštis: 410 mm

MIGOMAT WELDING MACHINE WITH CHASSIS FOR HOME AND WORKSHOP - FUNCTIONAL WELDING MACHINE AT A REASONABLE PRICE!

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Security Required: 20A

• Allows welding of any type of steel and aluminium
• Variable polarity allows welding without gas
• Single-phase power supply 230V
• Heavy-duty chassis with cylinder space
• EURO socket
• Transistors IGBT!
• Driving wheels - even easier transport
• MIG MAG and MMA welding option
• Maximum current 200A
• Adjustable INDUCTANCE
• Option LUTOWELDING CuSi.
• Overload switch
• Flux
• Optimal dimensions and weight
• Solid workmanship

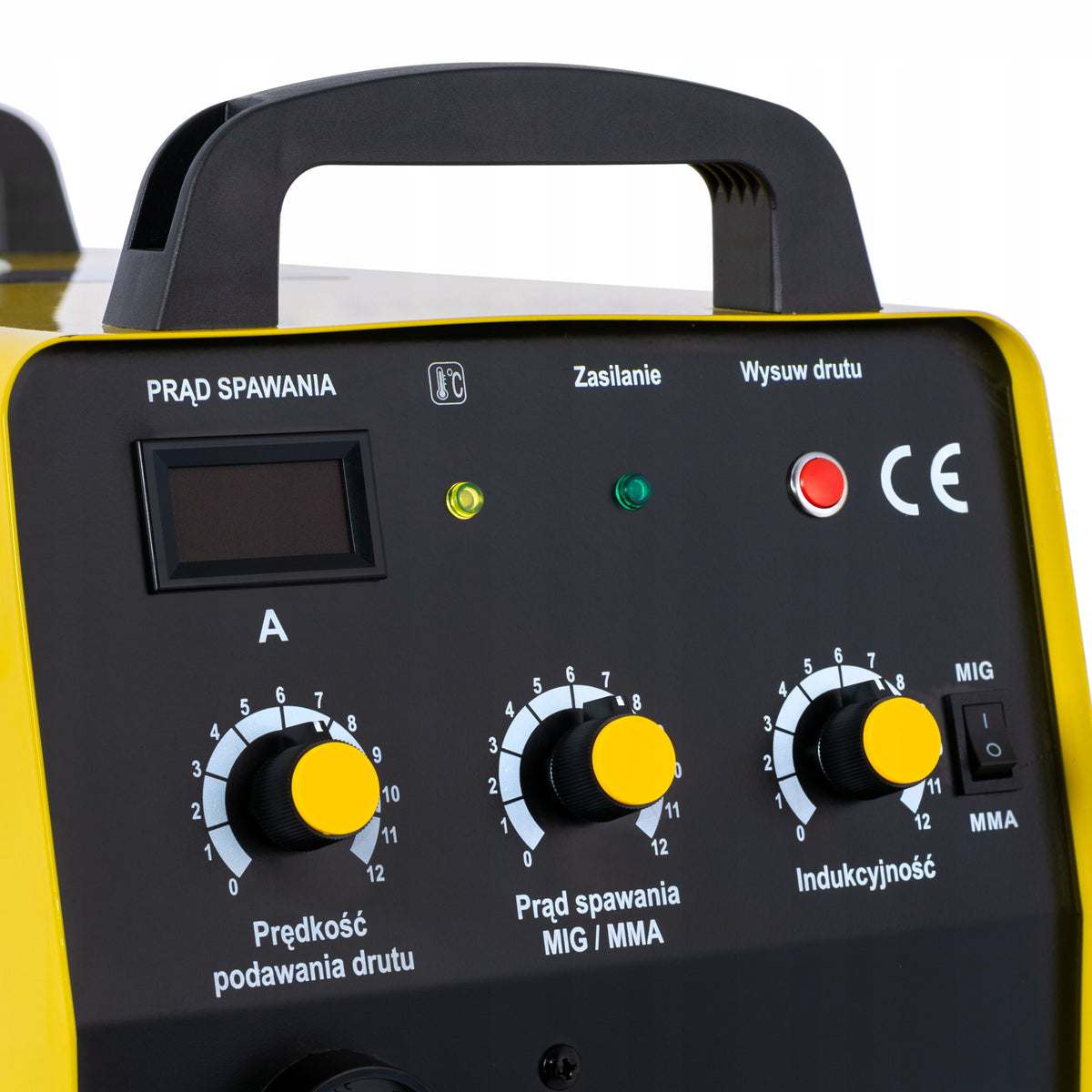

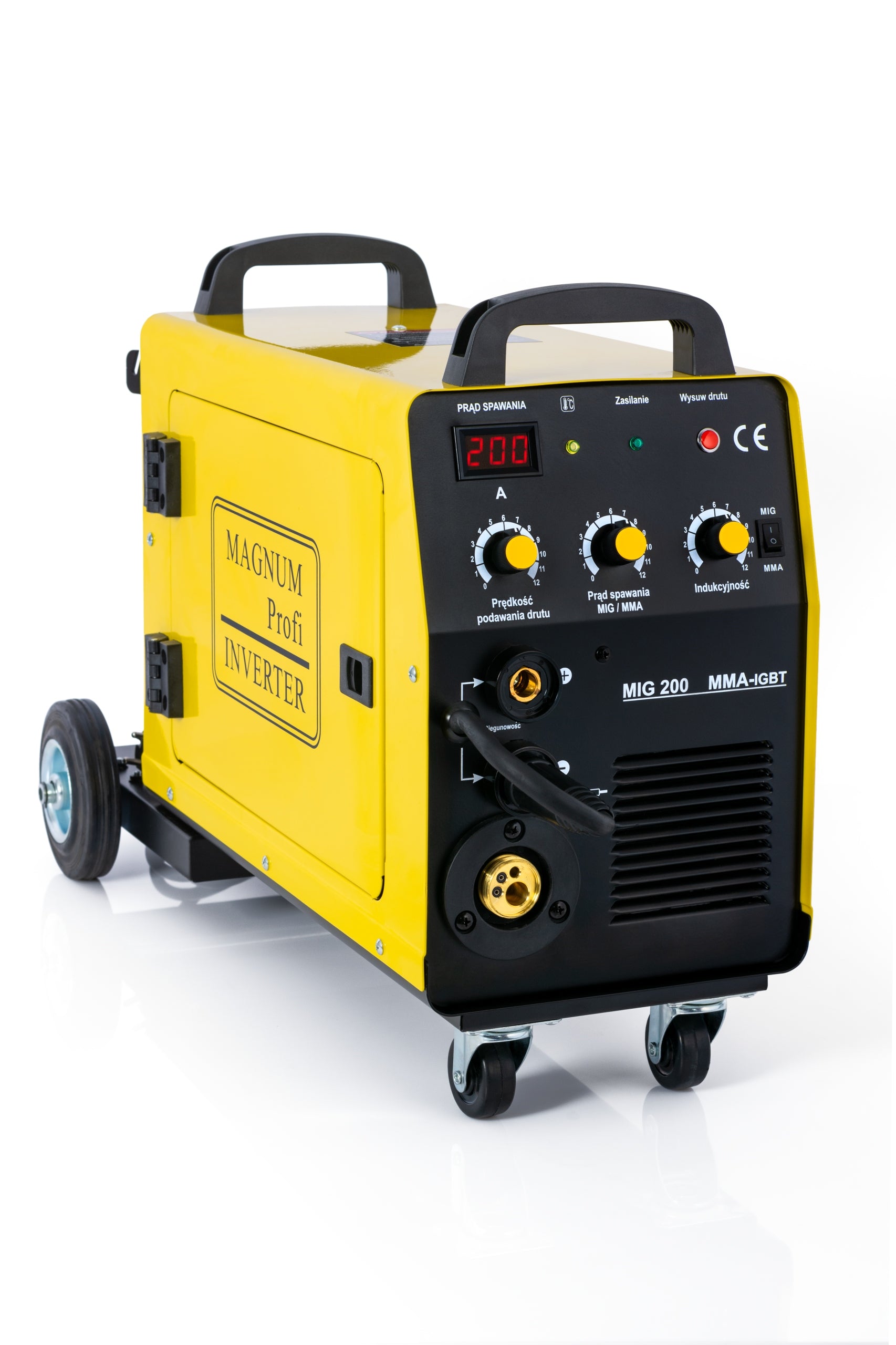

The MAGNUM MIG 200 MMA KN welding machine is a semi-automatic welding machine designed for welding steel using the MIG/MAG method and aluminum and its alloys. Semi-automatic MAGNUM is built on IGBT transistors. This solution provides lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation. The MAGNUM MIG 200KN MMA welder has an easy-to-use function panel with knobs for smooth adjustment of welding current, wire feed speed and inductance. The semi-automatic machine has solid wheels, including two front swivel wheels, which guarantee high mobility and give the possibility of moving the welding machine on uneven ground. The device is equipped with a high-quality professional 2-roller feeding unit designed to work under heavy loads.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz
• Current protection: 20A

TECHNICAL PARAMETERS:

• Maximum power consumption: 6,2kW
• MIG/MAG welding current range: 30-200A
• Maximum MMA welding current: 30-180A
• Efficiency: 60%
• Idle voltage: 57V
• Wire diameter: 0,6/0,8/1,0mm
• Feeder: 2R
• Max. Spool size: 5kg
• Inductance adjustment: Yes
• Welding without gas: Yes

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Size: 655x230x400mm
• Weight: 14kg

EUROCONNECTOR - allowing the interchangeable use of various types of handles.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Self-tinting visor MAGNUM NOVA - a safe mask with a field of view measuring 96 x 39mm, 2 sensors and a reaction time of 1/30000 s, for full eye protection.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Welding hammer for cleaning welds
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft 1kg - 1 pack

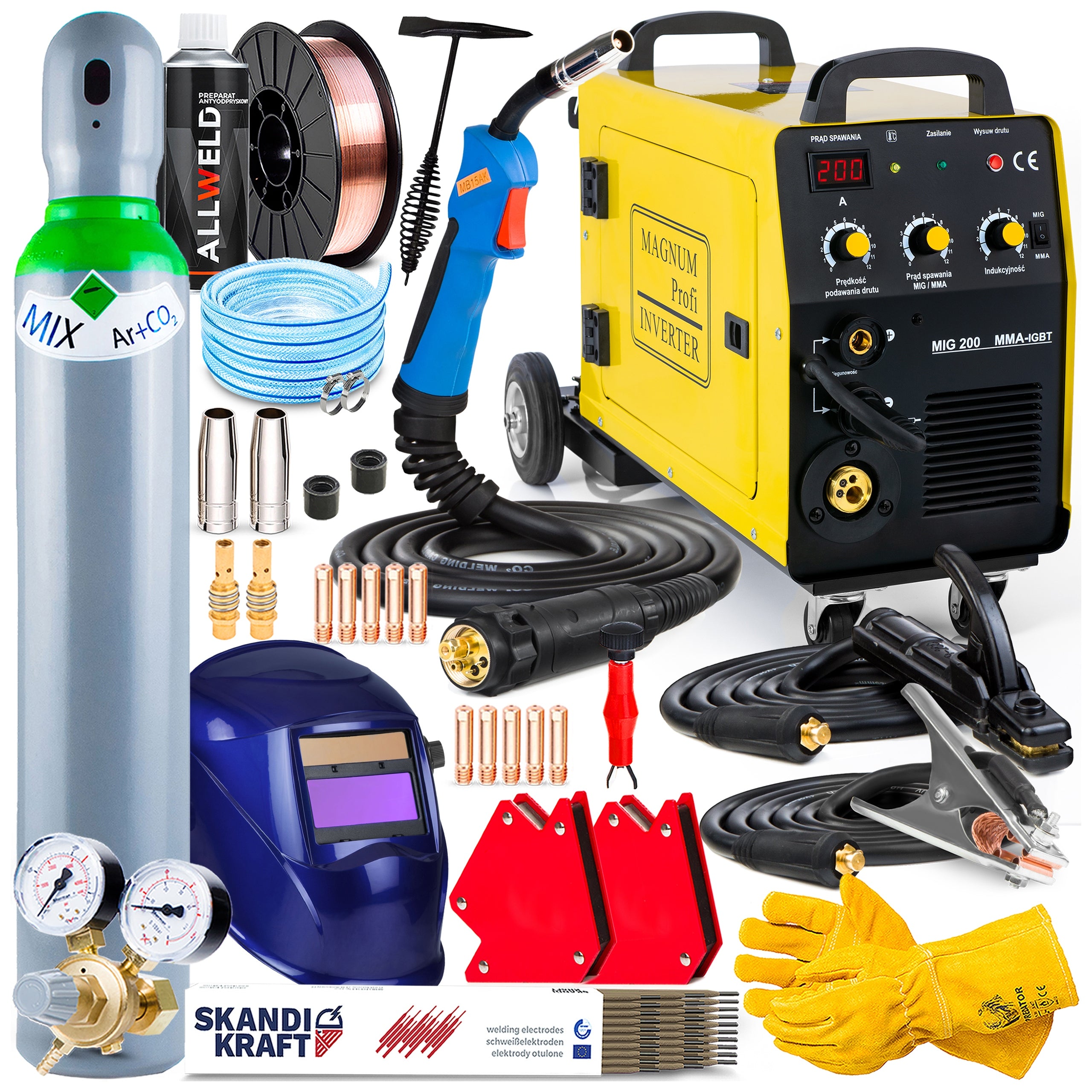

THE SET INCLUDES:

• Welding machine MAGNUM MIG 200 MMA KN
• Welding torch MIG/MAG type MB15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Operating manual and warranty card

ADDITIONAL ACCESSORIES:

• Welding visor Magnum NOVA
• Bottle with gas mixture Argon/CO2
• Reducer cylinder Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 0,8mm - 5kg
• Preparation anti-chipping ALLWELD
• Angle magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft - 1kg
• Flame-retardant gloves for welding
• Gas hose - 2m
• Clamping bands - 2 pcs.
• Scraper for gas nozzles
• Hammer welding spring

+HANDLE CONSUMABLE PARTS:

• Gas nozzles - 2 pcs.
• Current connectors - 2 pcs.
• Ends current - 10 pcs.
• Gas distributor - 2 pcs.
