Trumpai apie prekę
Prekė: Suvirinimo aparatas Magnum MIG 200 MMA KN. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 200MMAKN
- Ilgis: 655 mm
- Plotis: 230 mm
- Aukštis: 400 mm

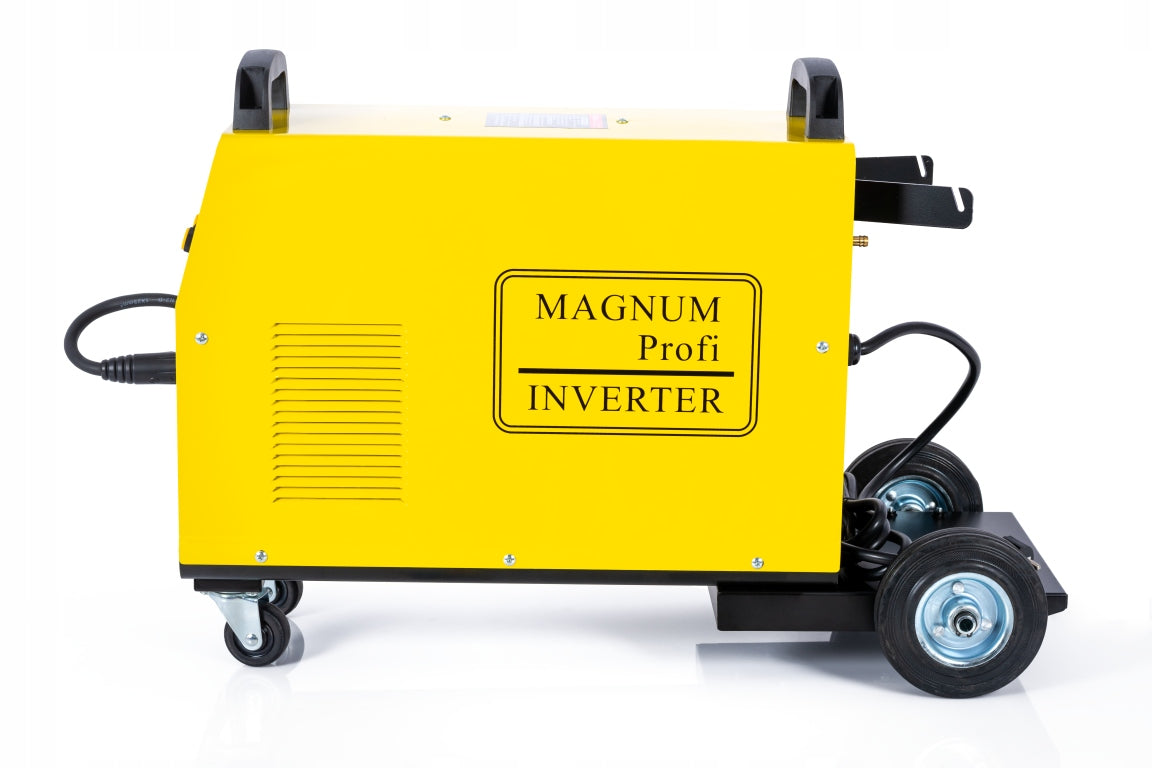

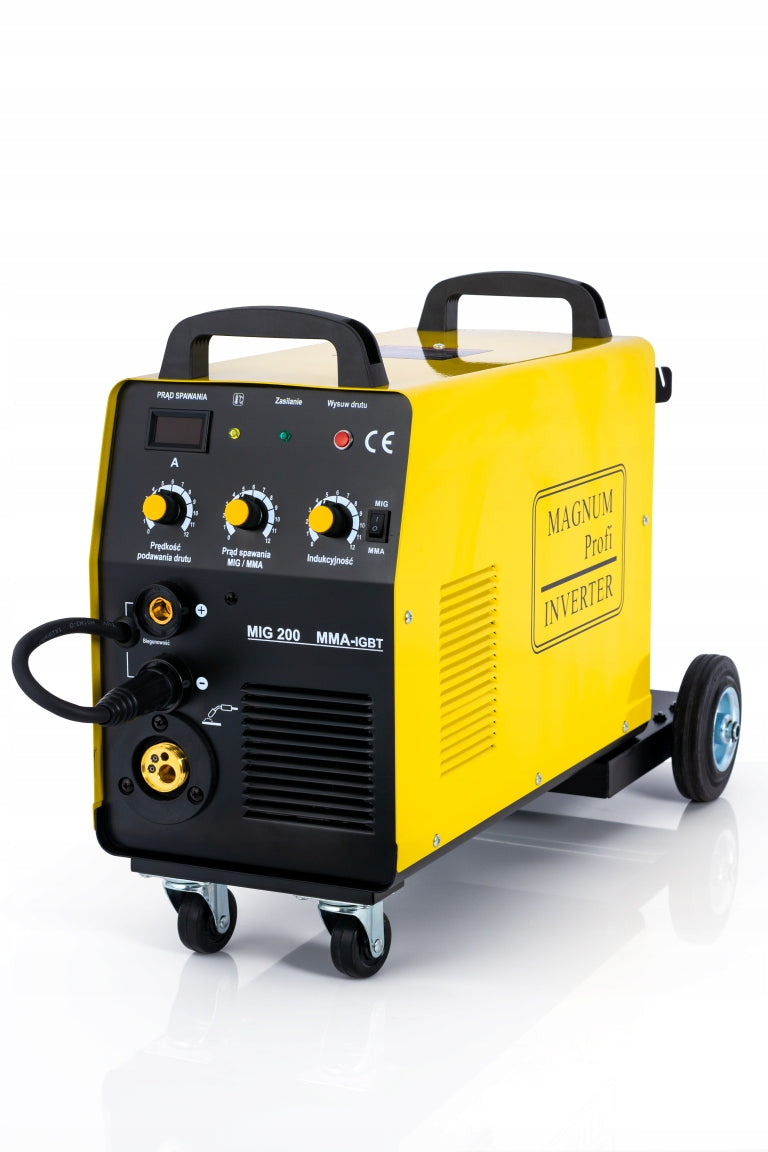

Magnum MIG 200 MMA KN Migomat
Magnum
The MAGNUM MIG 200 MMA KN is a semi-automatic welding machine made in inverter technology powered from a single-phase 230V network.
The device allows arc welding with MIG/MAG hot melt wire, FCAW self-shielding wire (change the polarity in the welding machine: minus (-) on the welding torch, plus (+) on the mass! ), and an MMA wrapped electrode.
It is designed for all kinds of welding work in locksmith workshops, repair workshops.
The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.
The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating.
The professional wire feeder with "euro connector" socket used in the device allows you to connect different types of welding brackets.
The welding machine has the ability to adjust the inductance (arch hardness) - this function optimizes the characteristics of the MIG/MAG arc depending on the thickness of the welded elements, useful when welding thin elements (prevents them from burning out) and soldering galvanized elements.
MIG/MAG WELDING PARAMETERS:
- MIG/MAG welding current: 30 - 200 [A]
- MIG/MAG welding voltage: 16,5 - 23 [V]
WELDING PARAMETERS MMA:
- Max. MMA welding current: 30 - 180 [A]
- Idle voltage: 57 [V]
TECHNICAL DATA:
- Power supply: AC 230 [V], 50/60 [Hz],
- Power consumption max.: 6,2 [kW]
- Security required: 20 [A]
- Efficiency: 60 [%]
- Gas-free welding: Yes
- Wire spool weight: max: 5 [kg]
- Wire diameter: 0,6/0,9/0,8/1,0 [mm]
- Housing protection class: IP21S
- Weight: 14 [kg]

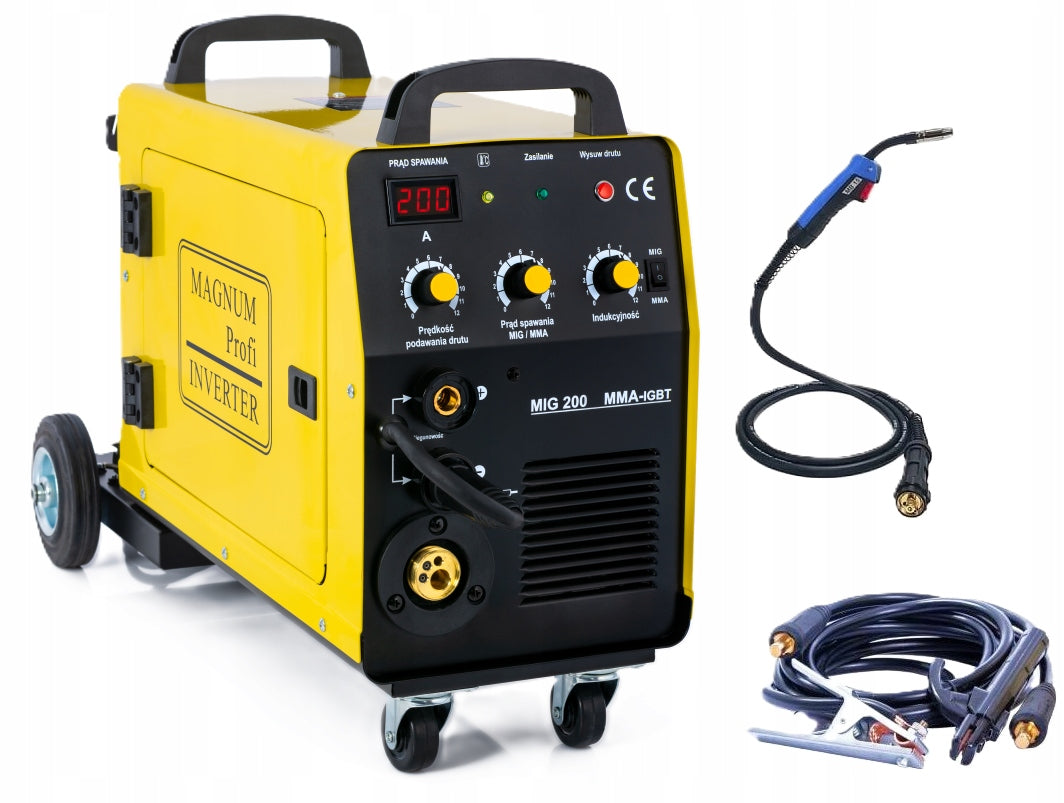

SET INCLUDES:
- MIG 200 KN
- MIG/MAG handle,
- Electrode holder,
- Bulk holder,
- Operating instructions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 400 mm |
| Parametry | Length | 655 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 14 kg |
| Parametry | Manufacturer code | U MI 200MMAKN |
| Parametry | EAN (GTIN) | 5905323100909 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO handle,LCD display |
