Trumpai apie prekę

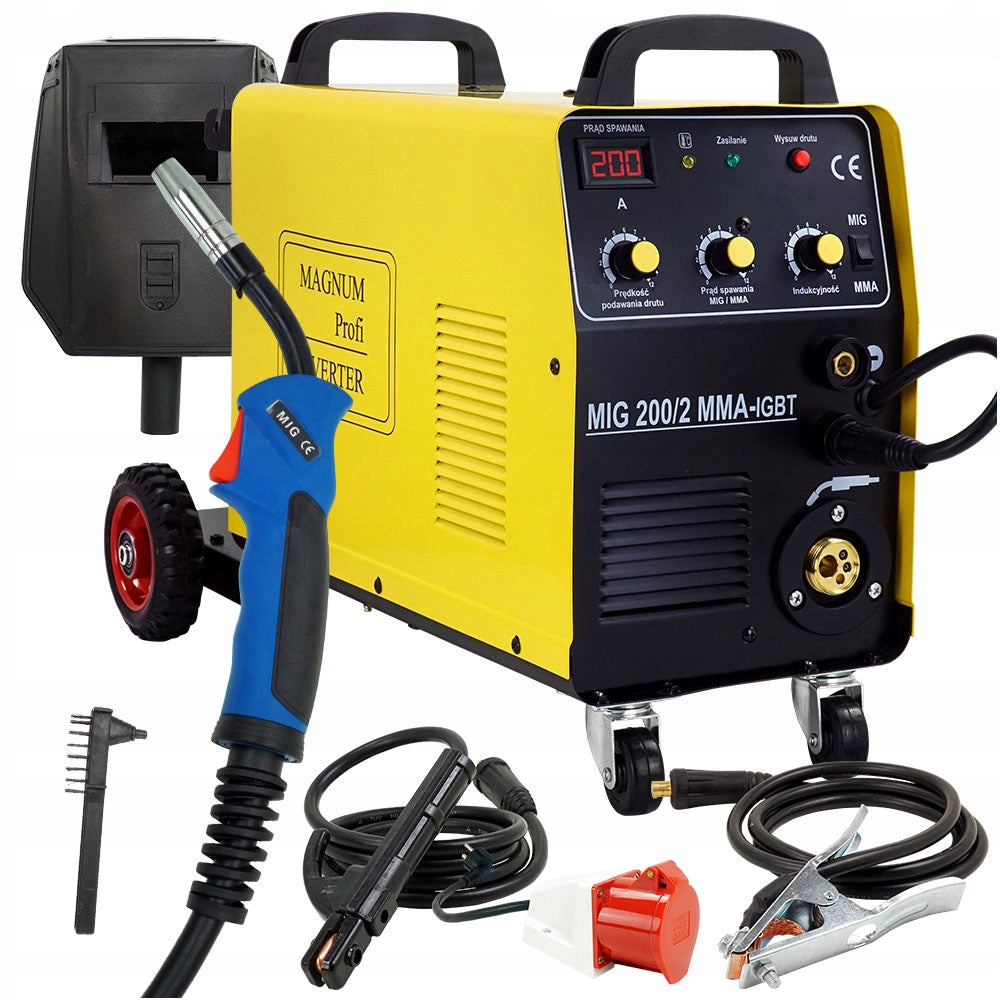

Prekė: Suvirinimo aparatas Magnum MIG 200 MAG MMA IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIGOMAT MIG 200 2 KN IGBT KPW4
Manufacturer: Magnum ||| Welding methods: MIG/MAG, FLUX, MMA ||| Maximum welding current: 200A ||| Power supply: 230V 1ph or 400V 2ph
The Magnum MIG 200/2 KN welding machine is a proven, compact semi-automatic welding machine for D200/D100 spools weighing up to 5kg. It is made in inverter technology and has many advantages that we will mention later in the description.
The welding machine allows welding by the following methods:
- MIG/MAG - semi-automatic welding in an inert gas shield - black steel, stainless steel, aluminum and other weldable alloys,
- FCAW - semi-automatic welding with self-shielding wire without gas,
- MMA - welding with a wrapped electrode.
The MIG 200/2 KN is a robust compact with a gas cylinder chassis. This welder finds a wide range of applications ranging from DIY to professional work in locksmith and repair plants.
ADVANTAGES OF THE DEVICE
PROFESSIONAL WELDING WIRE FEEDER
Two-roll wire feeder with good driving mechanism. Smooth wire feeding has a ratio in stable welding parameters and appropriate weld quality.

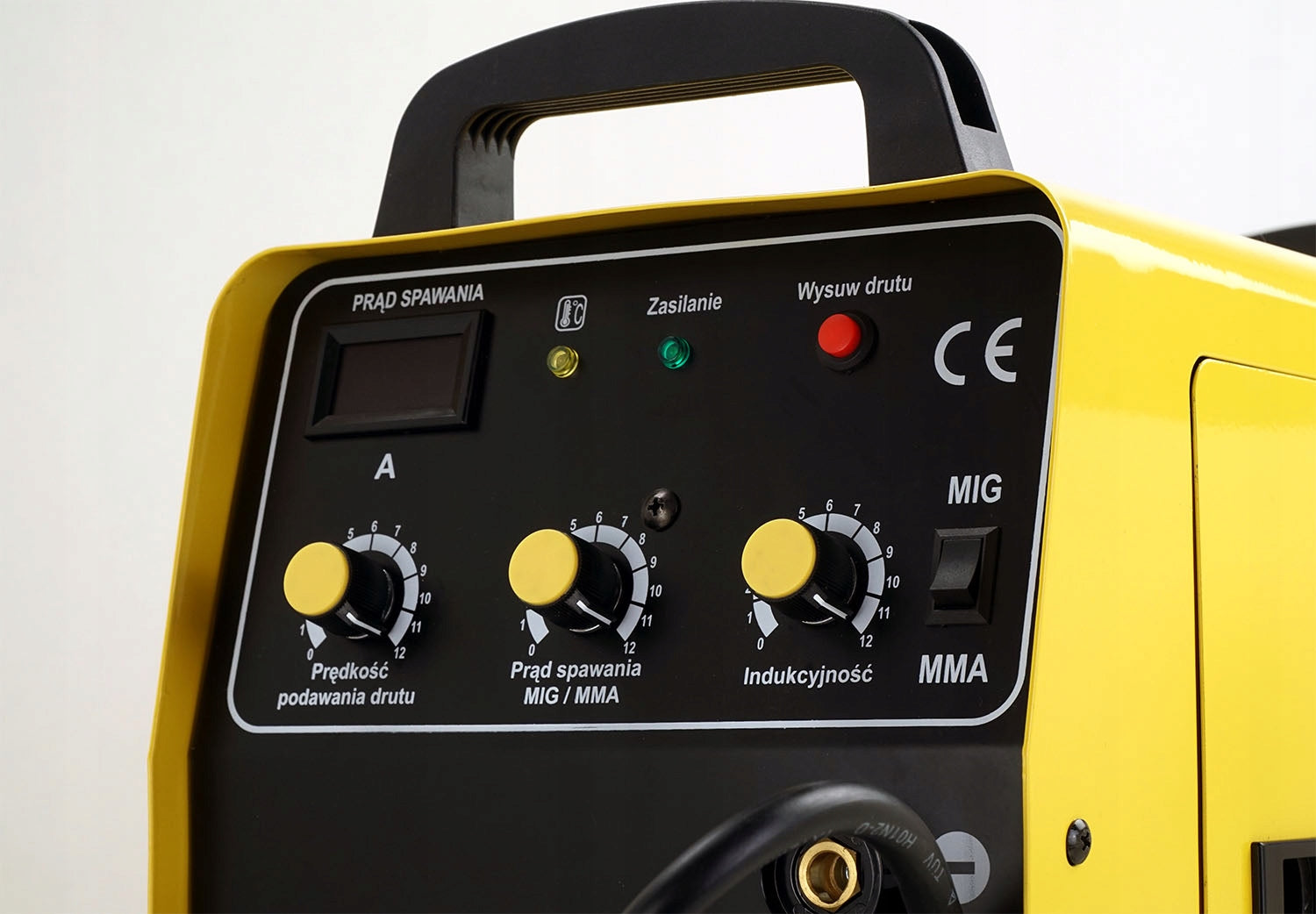

READABLE CONTROL PANEL - ALL PARAMETERS UNDER CONTROL:
- EURO socket - work with any MIG handle equipped with a EURO plug.
- regulation of welding inductance - control of weld face width and melting depth, reduction of welding chipping.
- MMA welding - welding with a wrapped electrode,
- easy to use and easy to read function panel,
- two power sources - 230V 1ph or 400V 2ph - the choice is yours.

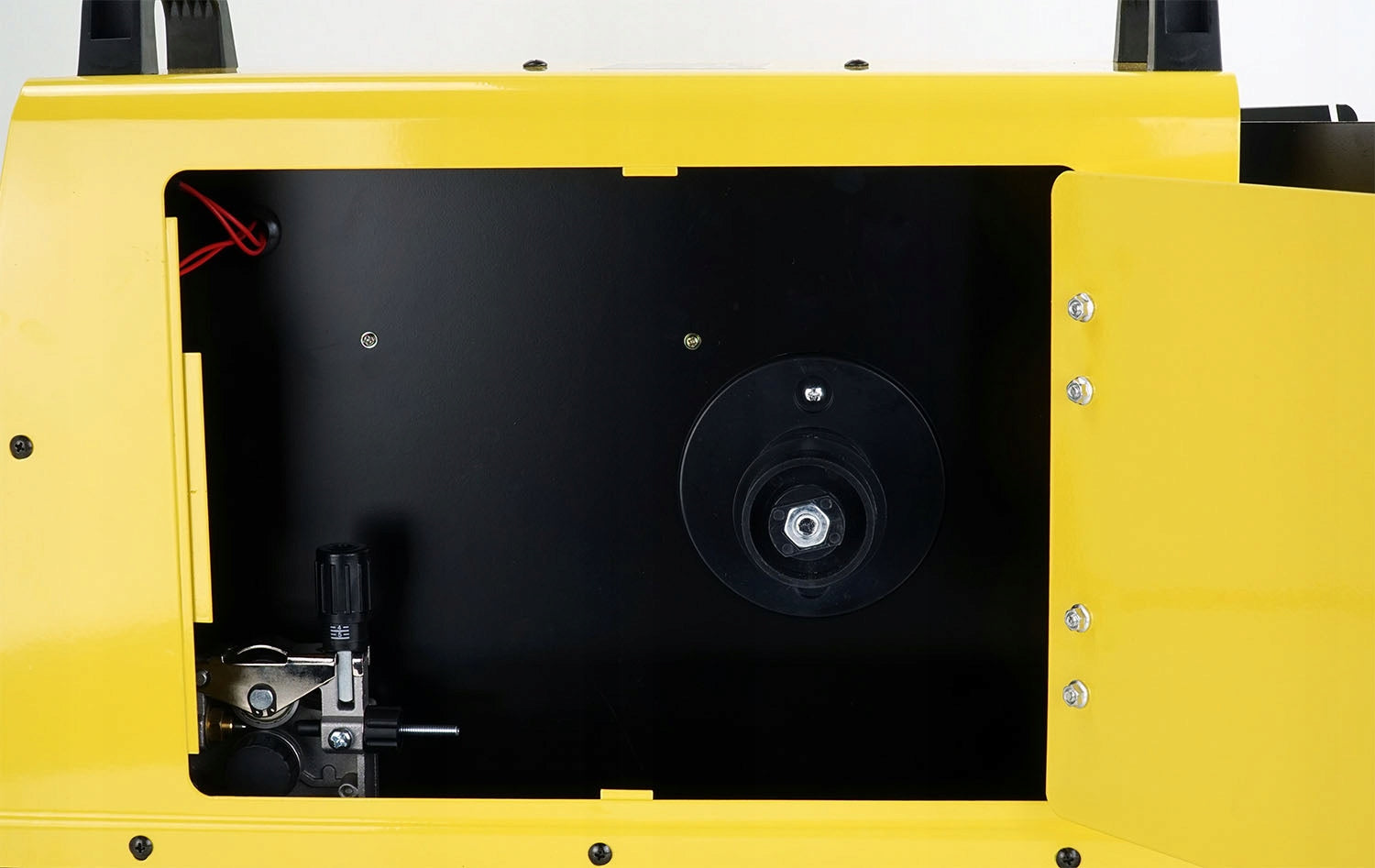

GOOD WIRE FEEDER 2R
The 2R wire feeder ensures reliable feeding of welding wire of various types, and this translates directly into good welding parameters.
IGBT POWER TRANSISTORS
The power source is made on the basis of IGBT power transistors - they provide a minimum of electromagnetic interference, small power losses in basic systems, and all this translates into greater efficiency and reliability of the source. Good arc characteristics ensure good weld quality and a small amount of chipping.
- Power supply: 230V 1ph or 400V 2ph
- Welding methods: MIG, MAG, MMA, FLUX
- Maximum welding current: 200A (MIG/MAG/TIG) 180A (MMA)
- Working cycle: 60%
- Maximum power consumption: 7,4kVA
- Parameter display - shows the current value during welding
- Net weight: 14kg
MIG/MAG welding parameters
- Welding Current: 30-200A
- Welding voltage: smooth adjustment - 16,5-23V
- Wire diameter: 0,6 / 0,8 / 1,0 mm
- Wire spool weight: max. 5kg D100/D200
- MIG/MAG welding inductance adjustment: YES
- MIG/MAG welding polarity change: YES
- Wire Retract: YES
MMA welding parameters
- Welding Current: 30-180A
- Welding Current Adjustment: Smooth
- Device Magnum MIG 200/2 KN
- Welding torch MIG EURO MB 15 3m
- MMA electrode holder
- Mass cable
- User manual
+ ADDITIONAL ACCESSORIES:
- welding disc
- brush-hammer
- 230/400V adapter
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 7.4 kVA |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | MIGOMAT MIG 200 2 KN IGBT KPW4 |
| Parametry | EAN (GTIN) | 5904624011419 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Supply voltage (V) | 230,400 |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
