Suvirinimo aparatas MAGNUM MIG 200 KN MIG/MMA 200A su kauke

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200 KN MIG/MMA 200A su kauke. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 200 MMA KN
• Ilgis: 660 mm
• Plotis: 235 mm
• Aukštis: 405 mm

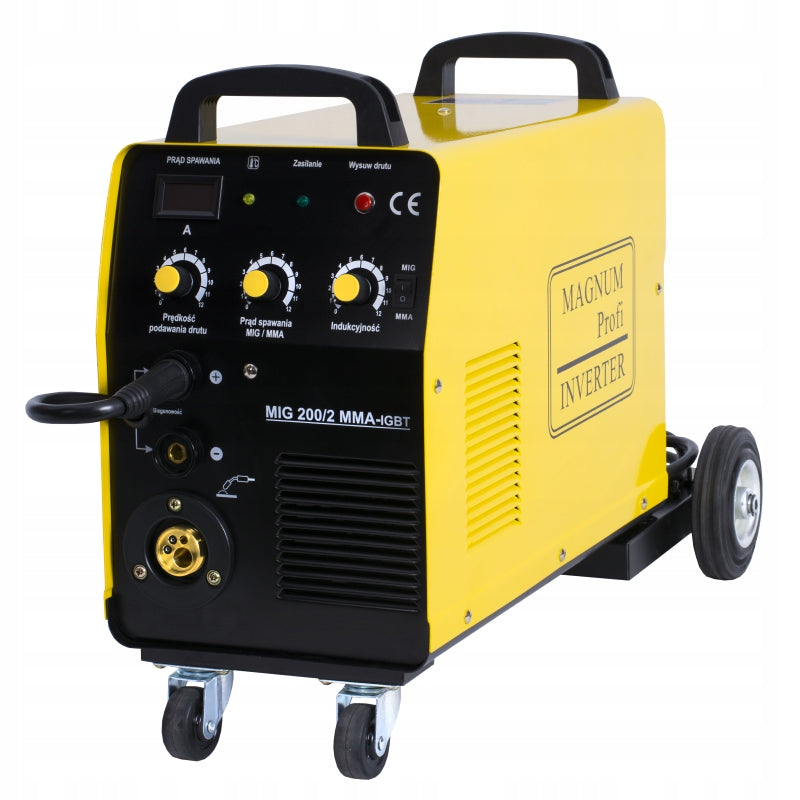

Inverter welder migomat MAGNUM MIG 200 KN MIG/MMA 200A Mask

MAGNUM

This device is used in locksmith workshops as well as in repair workshops. It enables welding with steel welding wires with a diameter of 0,6-0,8 mm, as well as self-shielding wires (welding "without gas") and electrodes with a diameter of 1,6-4 m. MIG 200 is a device adapted to power from a single-phase network MAGNUM MIG 200 MMA KN . This device is equipped with an overload thermal protection system, preventing excessive overheating.

MIG 200 KN devices are based on the latest, most advanced technology, using IGBT transistors.

Thanks to the special design, bipolar power transistors with an isolated gate (IGBT - Insulated Gate Bipolar Transistor) are in many respects a more advantageous solution and in many applications are a better solution than traditional MOSFET transistors.

The source based on IGBT transistors offers stronger, more concentrated and stable arch with less power consumption. It provides a minimum of electromagnetic interference, small power losses in basic systems to increase the efficiency and reliability of the power source.

The features of these transistors are very high efficiency, which translates directly into lower power consumption, high switching frequency, ensuring instant adjustment of current to changes in parameters during welding.

• construction companies
• car workshops
• locksmith workshops
• household

✅ LED signaling diodes: overload

✅ electronically controlled smooth regulation of welding current

✅ EUROCONNECTOR - allowing the interchangeable use of various types of handles.

✅ for welding low carbon steel, low alloy steel (MAG), alloy steel (MIG), aluminium

✅ Possibility of soldering

✅ FLUX welding

✅ electronically controlled smooth regulation of wire feed speed

✅fast wire feed button

✅ Low weight only 14 KG

✅ Professional Metal Feeder

✅overload protection.

✅Designed for workshop and field work.

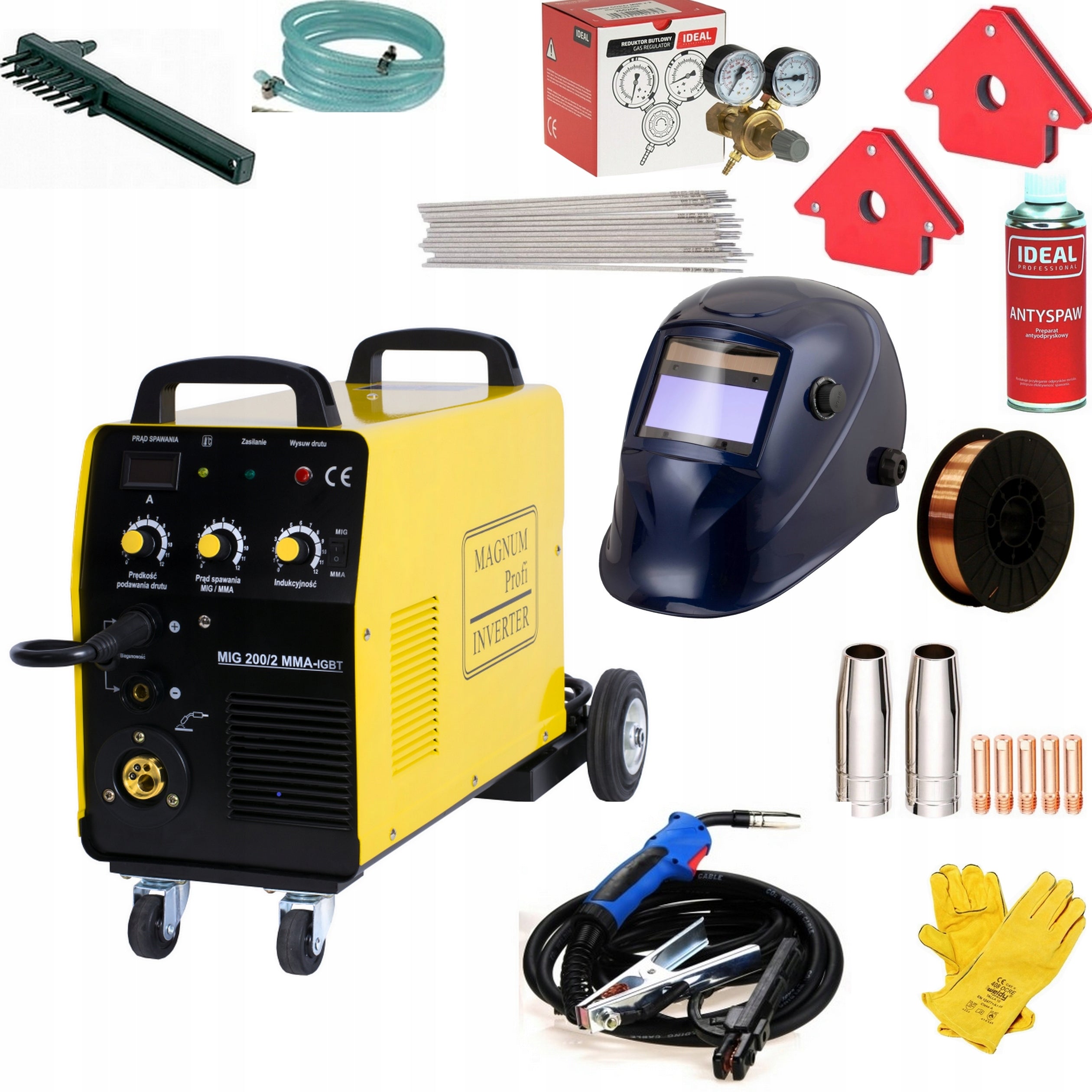

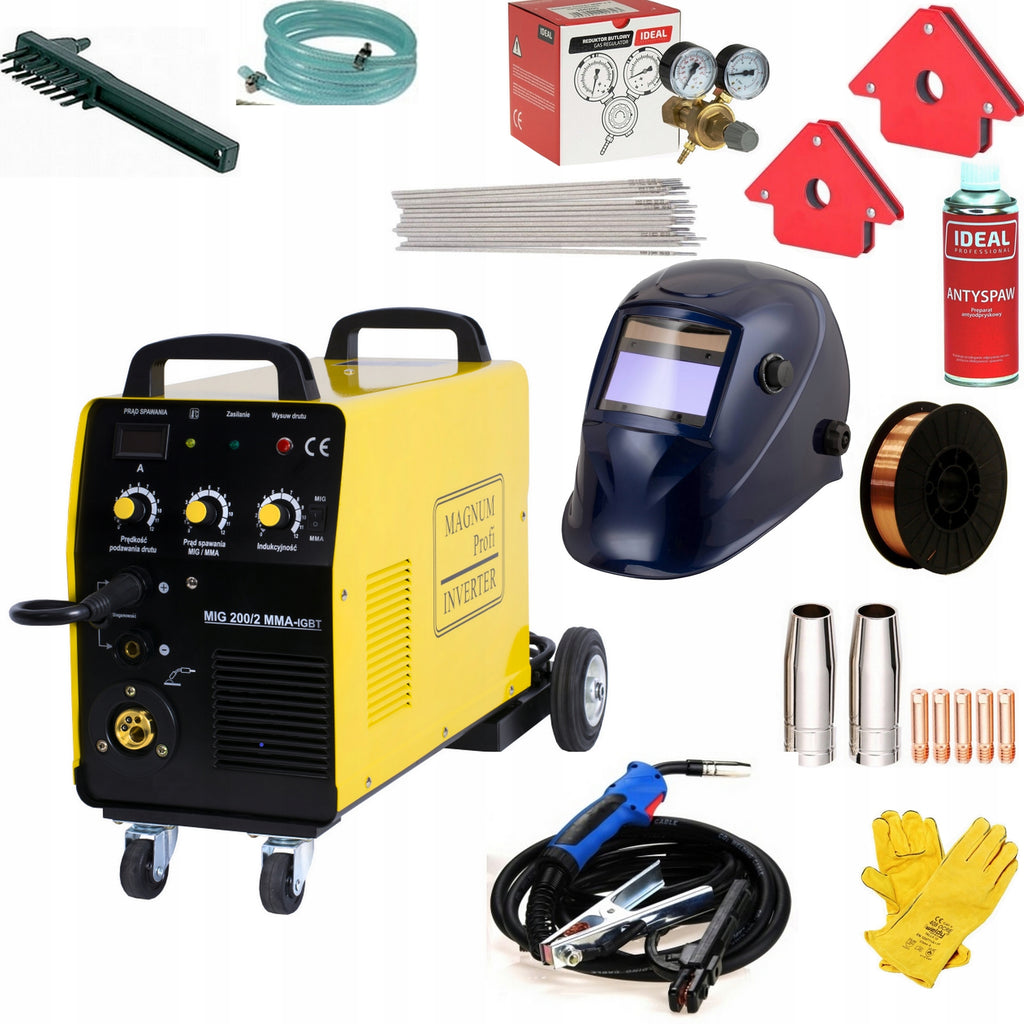

The set includes:

• MIG 200 KN
• MIG holder 3 meters
• Weight holder 2m
• Electrode Holder 2m
• Welding torch consumable parts
• Gas hose
• Welding wire Sg2 0,8/5 KG
• Anti-chipping SPRAY
• Welding gloves
• Mini reducer
• Hammer-brush
• Welding visor APS 510 or replacement
• 2 welding angles 12 Kg
• 1 KG Rutile electrodes

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

Inductance - optimizes arc characteristics depending on the thickness of the material being welded. This function is useful during MIG/MAG welding of thin elements - prevents them from burning (the thinner the inductance element should be greater), affects the shape of the weld, its width, depth of melting and the number of splashes,

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets of covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for spanting galvanized sheets, but also thin sheets made of stainless steel and various combinations, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Power Current Frequency: 50Hz
• Current protection: 20A

TECHNICAL PARAMETERS:

• Maximum power consumption: 6,2kW
• MIG/MAG welding current range: 30-200A
• Maximum MMA welding current: 30-180A
• Efficiency: 60%
• Idle voltage: 57V
• Wire diameter: 0,6/0,8/1,0mm
• Feeder: 2R
• - Subwoofer Spool size: 5kg
• Inductance adjustment: Yes
• Welding without gas: Yes

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Size: 655x230x400mm
• Mass: 14kg

Welding visors APS with variable degree of protection DIN 4/9-13, variable lightening time and the possibility of setting the sensitivity of czujników.Przeznaczone for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with the function szlifowania.Wysokiej quality LCD filters in optical class 1/1/1/2. Power source: photovoltaic cell + replaceable battery.4-spoke adjustable header provides comfort użytkowania.Skorupa compliant with EN175B standard provides greater resistance to uderzenia.PARAMETRY PHYSICAL TECHNICAL PARAMETERSAPPLICATION

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A
• Response time: <1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032
• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

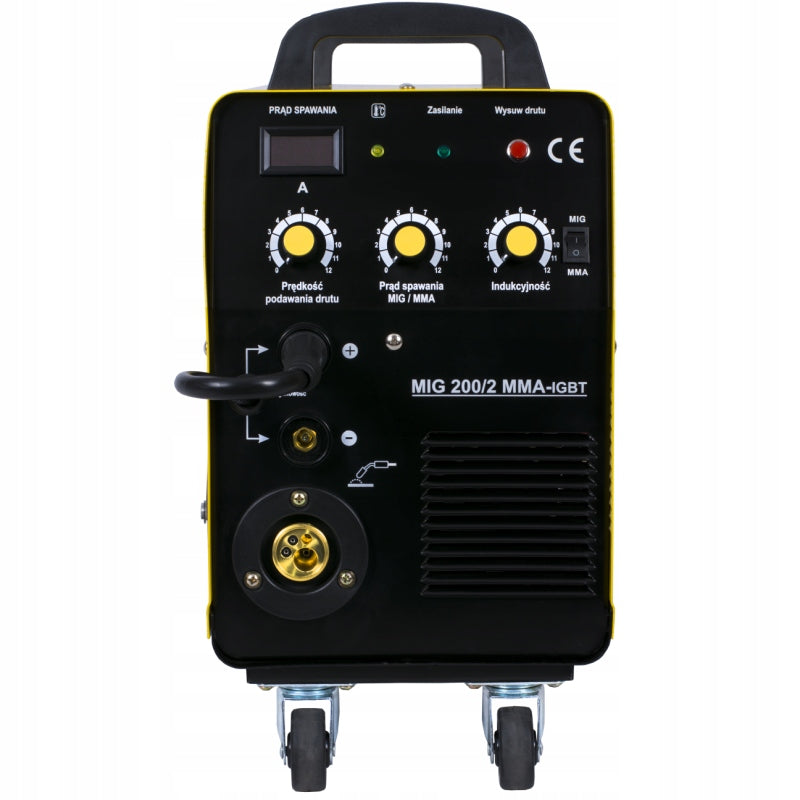

1. Display of the current welding current value.

2. Indicator diode for the operation of the protection system.

3. Power signaling.

4. Wire extension test button.

5. MIG-MAG/MMA welding method selection switch.

6. Output socket with negative polarity.

7. Output socket with positive polarity.

8. Socket for connecting the MIG-MAG holder (euro socket).

9. MIG-MAG wire feed speed control knob.

10. Welding current adjustment knob for MIG-MAG and MMA.

11. Inductance adjustment knob.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	6.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	14.5 kg
Parametry	Welding range	30–200 A
Parametry	Height	405 mm
Parametry	Length	660 mm
Parametry	Width	235 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	U MI 200MMA 200 KN HRS MAGNUM
Parametry	EAN (GTIN)	5904624050340
Parametry	Model	MIG 200 MMA KN
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle
