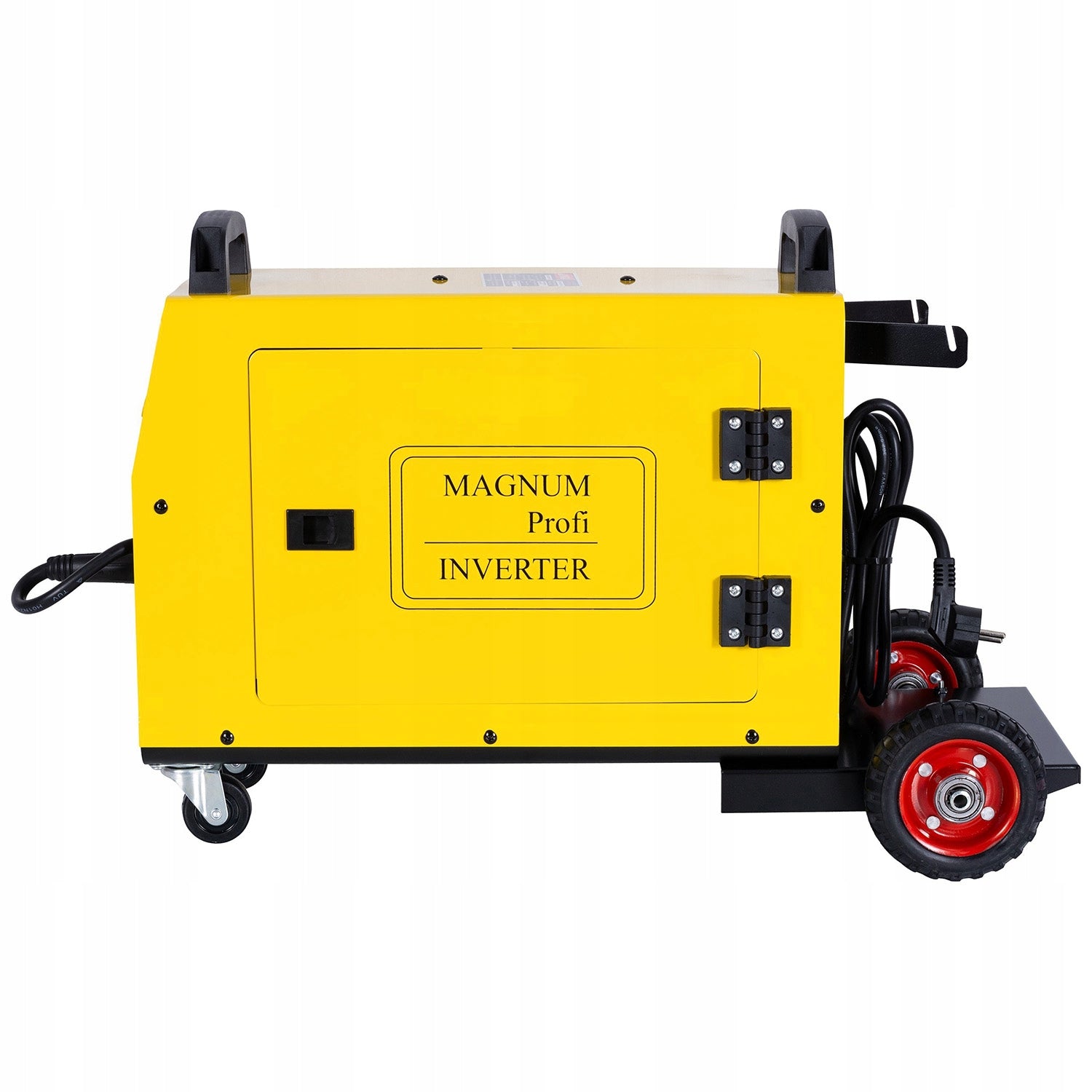

Suvirinimo aparatas MAGNUM MIG 200/2, 230 V / 400 V, 200 A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200/2, 230 V / 400 V, 200 A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 200/2
• Ilgis: 655 mm
• Plotis: 330 mm
• Aukštis: 460 mm

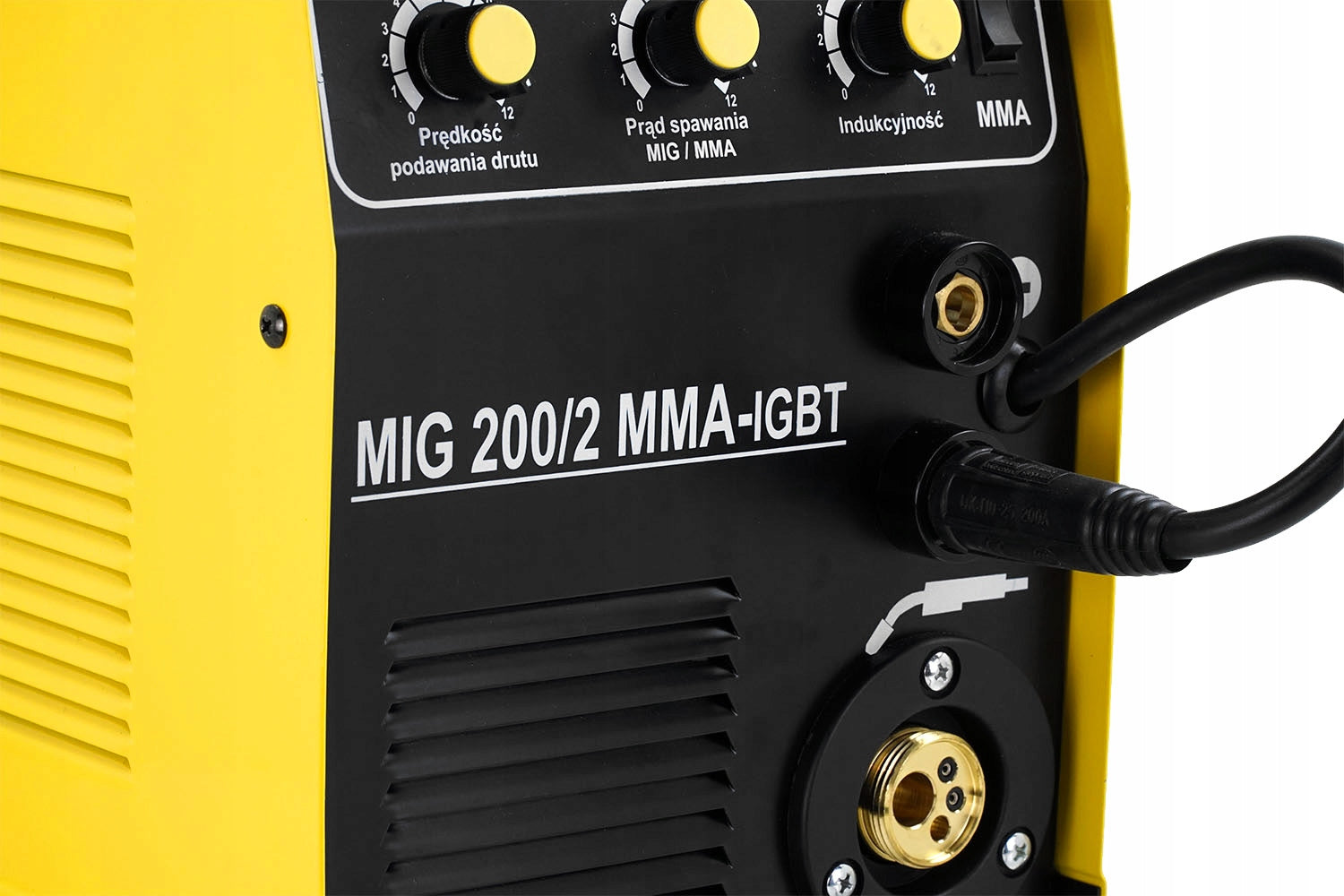

Semi-automatic welding machine MAGNUM MIG 200/2 MMA KN is a versatile device made in inverter technology, which allows welding using MIG/MAG, MMA and self-shielded wire FCAW methods.

Thanks to the possibility of power supply from both 230V and 400V networks, it adapts to workplace conditions. Built on IGBT transistors, it provides stable welding parameters with lower power consumption.

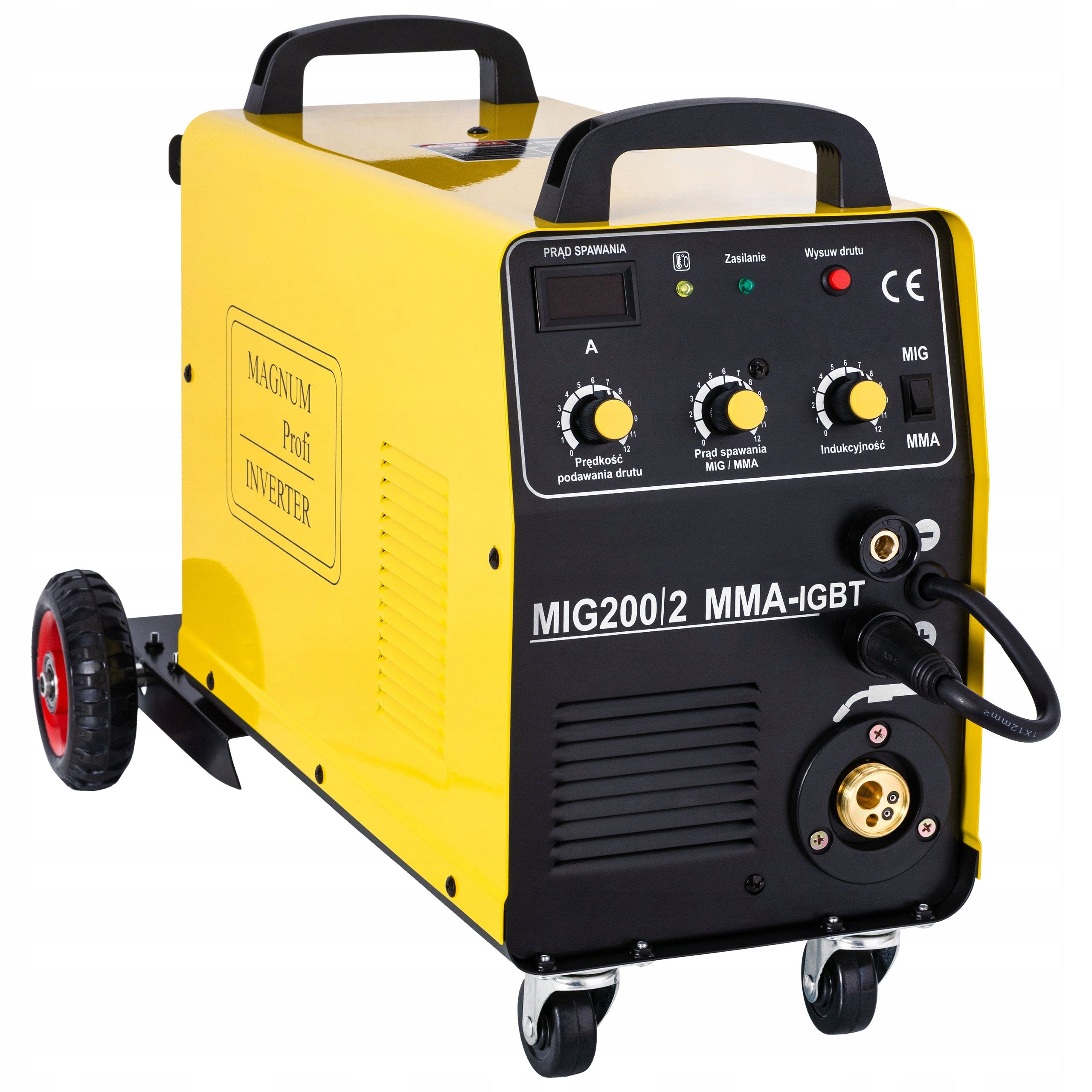

The design of the device has been adapted for intensive use. Robust chassis with transport wheels and ergonomic handles allows for efficient movement of the welding machine around the workstation.

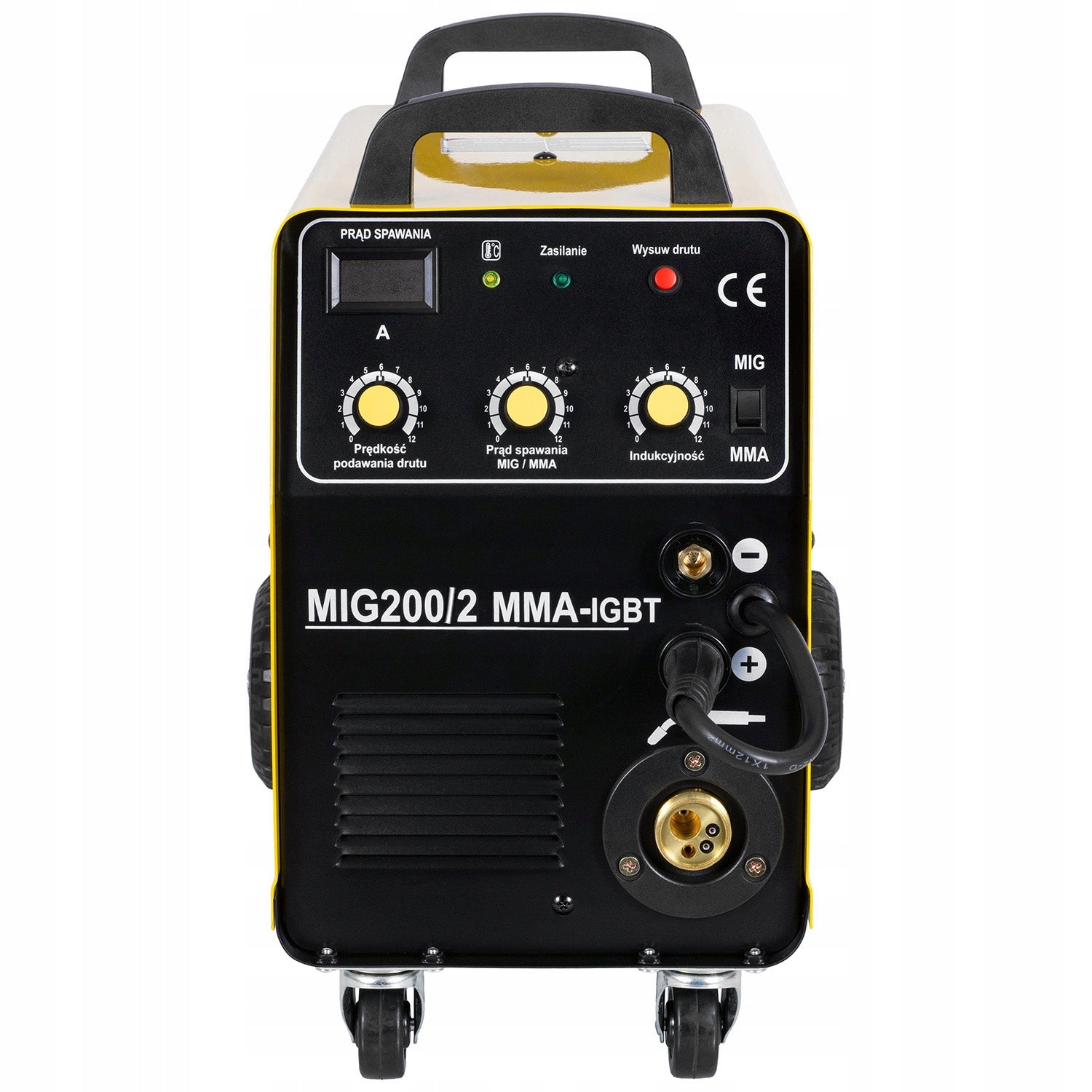

The current welding parameters are displayed on a clear digital display, giving you complete control over the process.

Product Features:

✅ The versatility of welding methods allows you to work with MIG/MAG, MMA, and FLUX methods, thanks to which the device increases your work efficiency.

✅ Power supply from 230V or 400V mains: Choose the right one for your job.

✅ Metal 2-roll feeder is the assurance of smooth wire feeding.

✅ High efficiency: Welding current up to 200A at 60% duty cycle for MIG/MAG method.

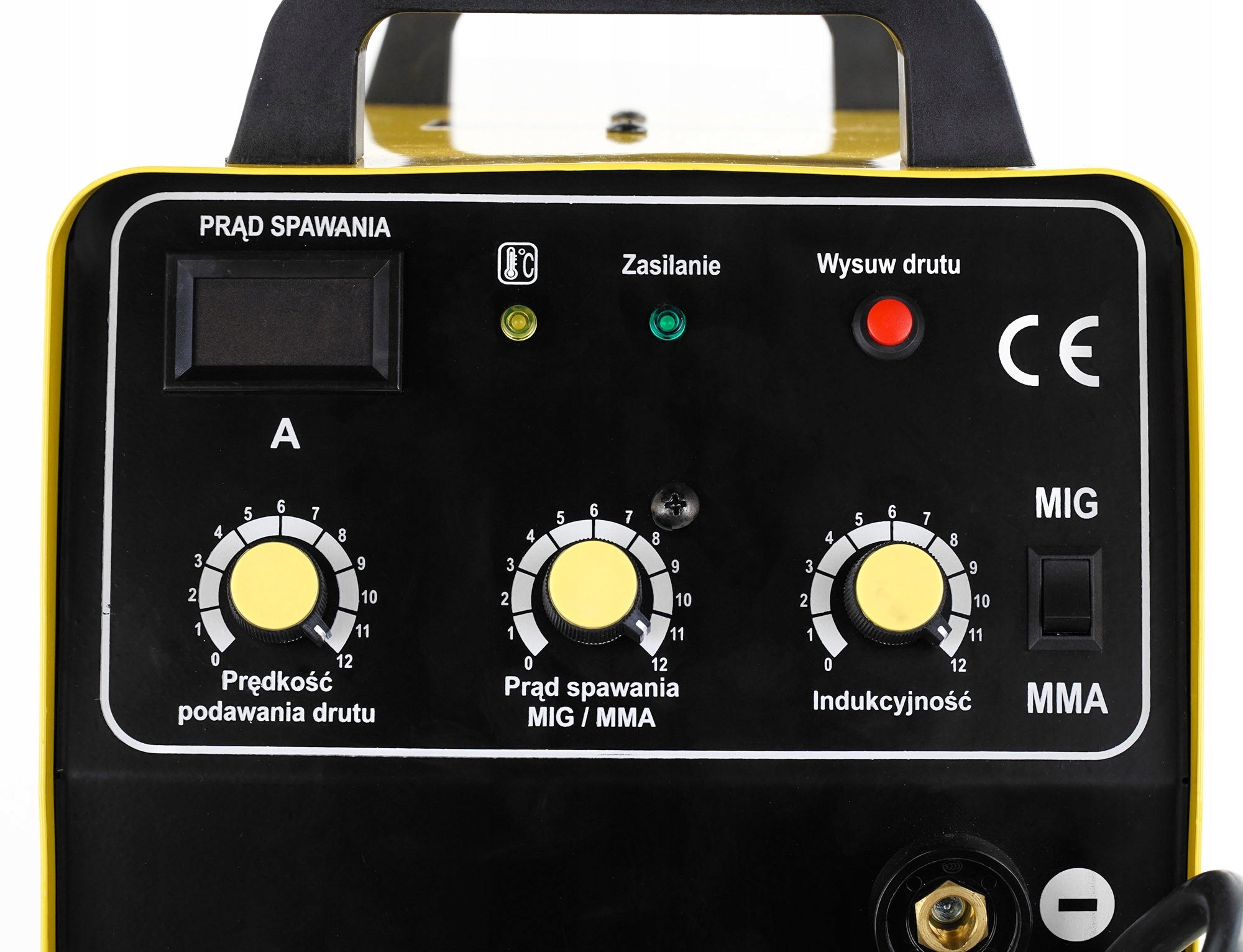

✅ Easy parameter adjustment: Clear control panel with welding current potentiometers, wire feed speed and inductance.

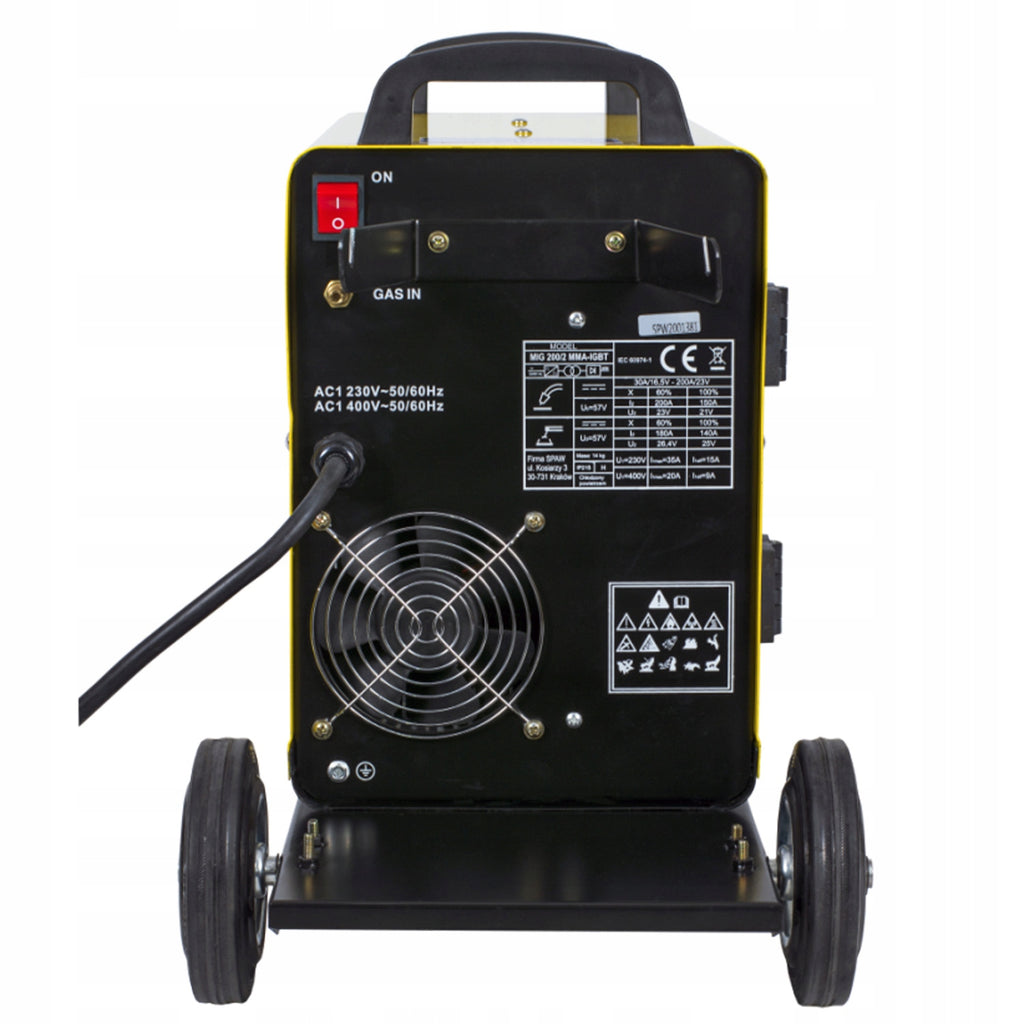

✅ Chassis with platform for gas cylinder ensures mobility and stability of the whole set.

Specification:

Product: Welder

Producer: Magnum

Model: MIG 200/2 MMA IGBT

Technology: IGBT Inverter

Welding methods: MIG, MAG, MMA, FLUX

Power supply: 230V/400V

Maximum welding current 230V: 200A

Maximum welding current 400V: 200A

MIG/MAG welding current: 30–200A (230V/400V)

MMA welding current: 30–180A (230V/400V)

Working cycle: 60%

Idle Voltage: 57V

Welding voltage: 16,5-23V

Maximum power consumption: 7,7kVA

Protection required: 20A C (230V) / 16A C (400V)

Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm

Maximum weight of wire spool: 5 kg

Wire feeder: metal professional 2R (two-roll)

MIG/MAG polarity change: YES

Net weight: 14 kg

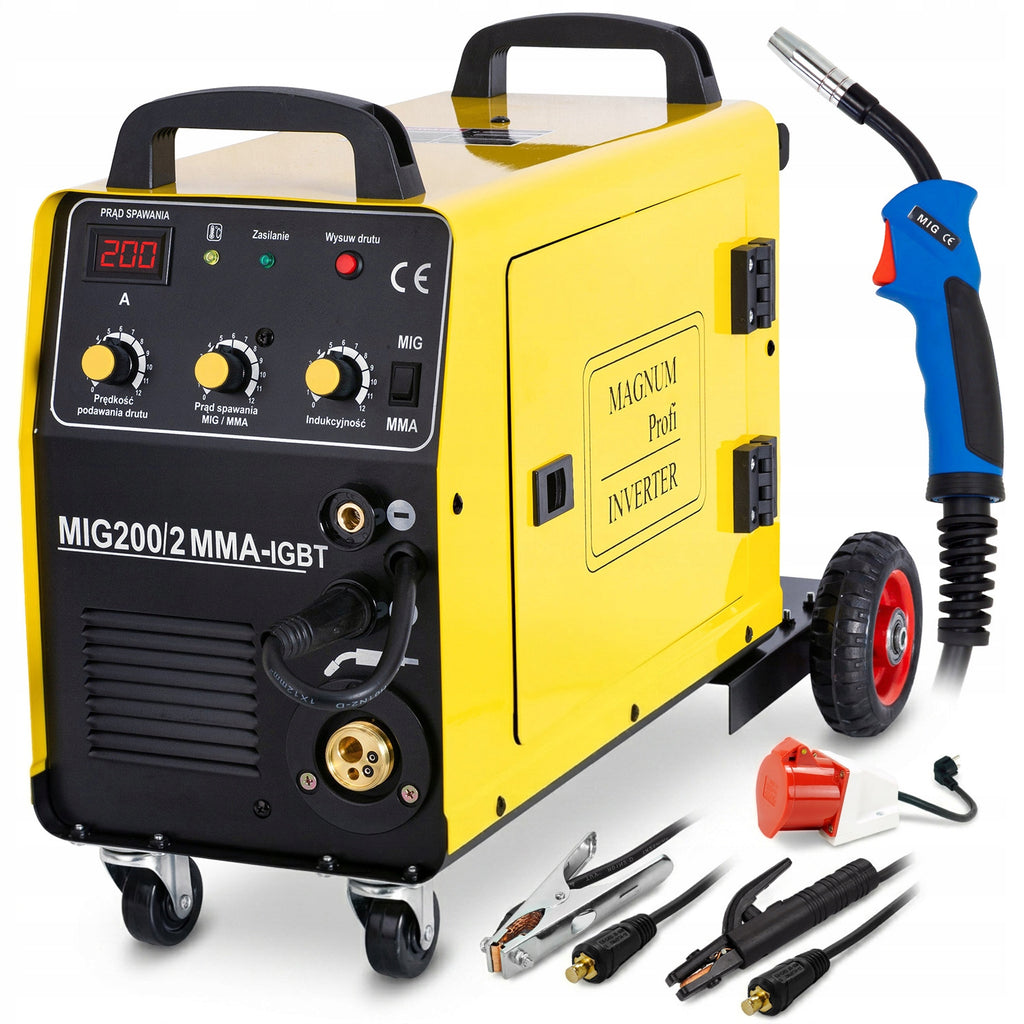

Equipment: MIG MB-15/3m handle, MMA electrode cable, mass cable, 400V/230V adapter, user manual

The most important functions

Universal power supply 230V/400V – the ability to switch the power source allows you to work in different conditions.

The polarity change (FCAW) enables welding with self-shielding wire without the need for an external protective gas cylinder.

Arc hardness adjustment (Inductance): Adjusts the arc characteristics depending on the thickness of the material. Prevents burning of the material in the case of very thin sheets.

Overload protection: The thermal protection system automatically prevents overheating of the internal components of the welding machine.

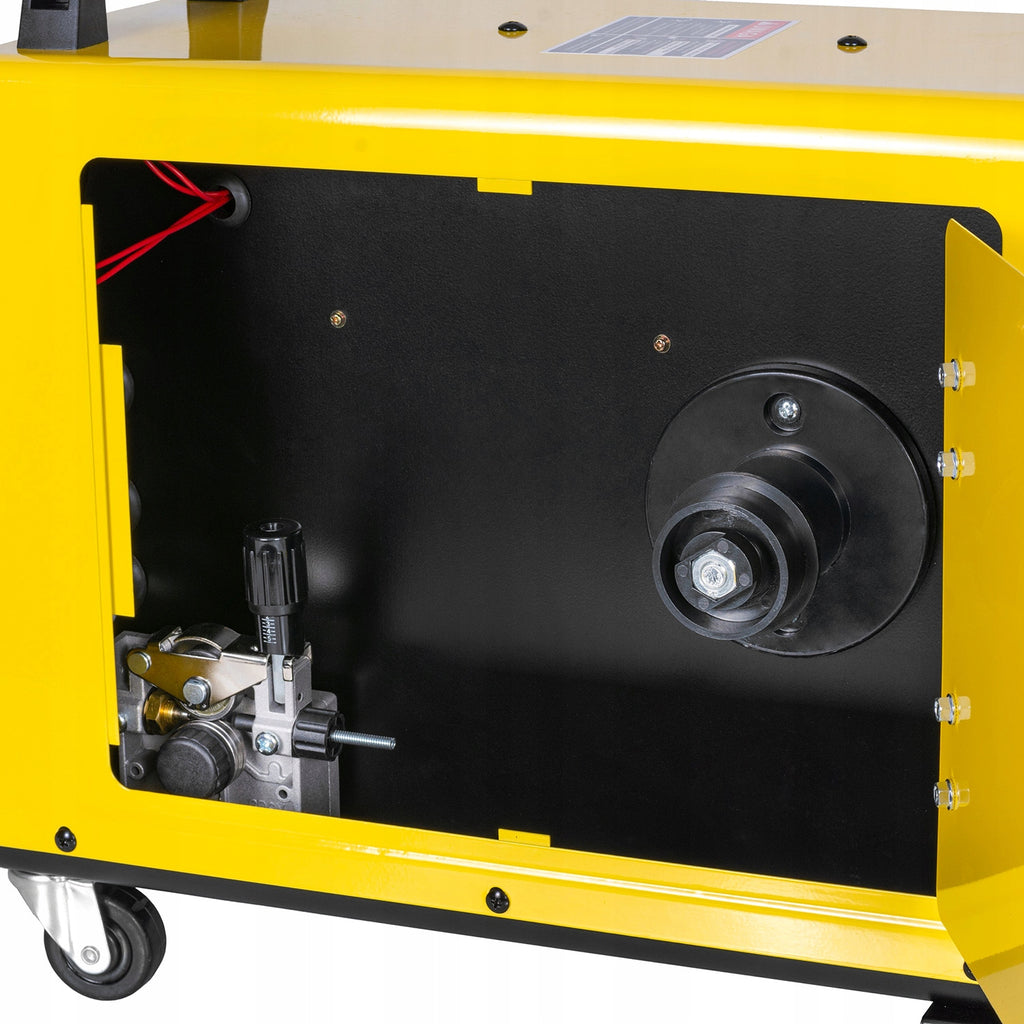

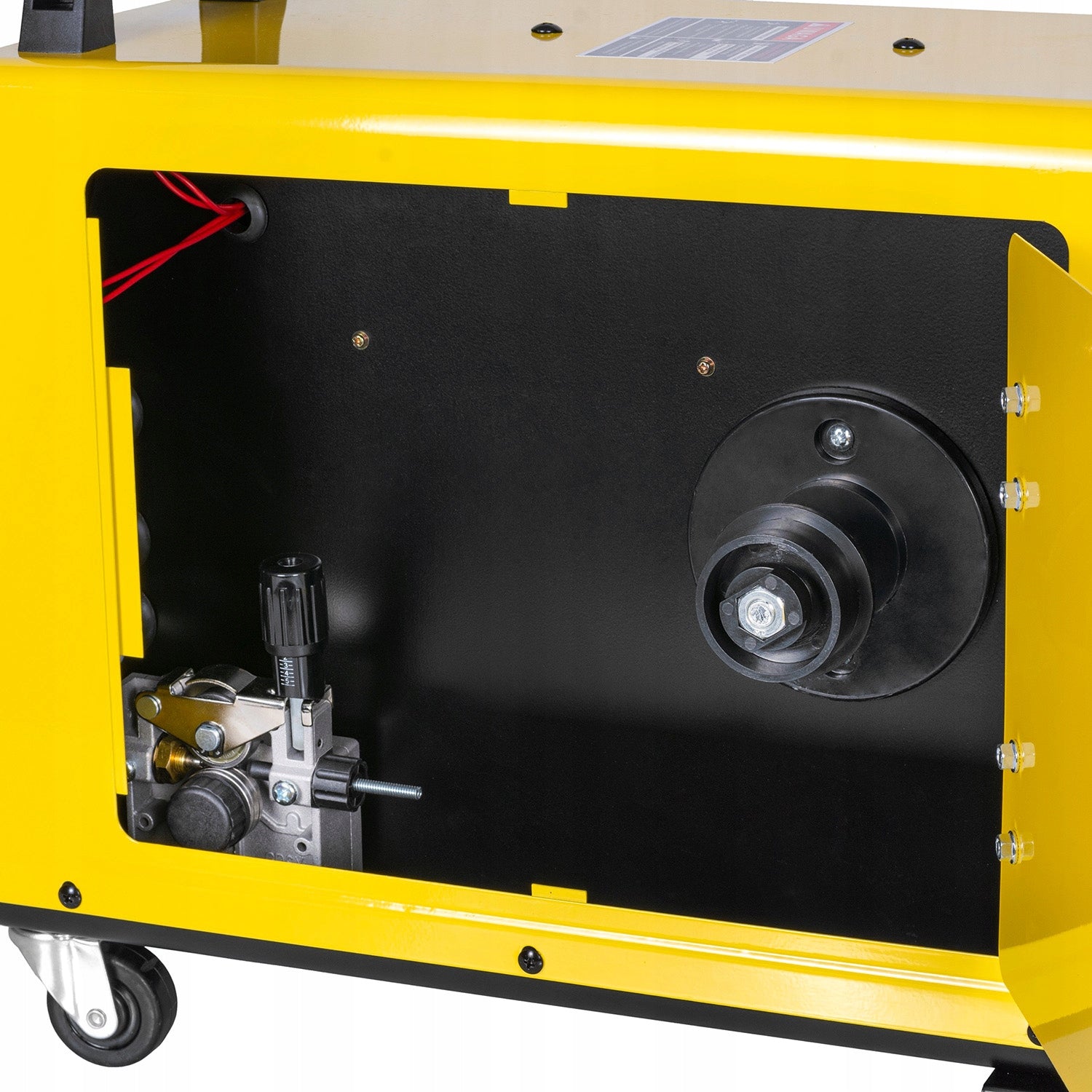

2-roll wire feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Chassis for gas cylinder

Place the gas cylinder directly on the chassis of the device and make the most of its mobility.

Forget about the tangled gas lines between the wheels. Now the cylinder is exactly where your device is working.

Frequently Asked Questions

• Does this device work on 230V or 400V? The welder has a switchable power supply and can be powered from both 230 V (protection 20 A C) and 400 V (protection 16 A C).
• Can this welding machine be welded without a gas cylinder? Yes, the device allows gas-free welding (FCAW) using self-shielding wire. This only requires a change in polarity: minus on the handle, plus on the mass.
• What are the maximum dimensions of the wire spool that can be mounted? The device supports wire spools with a maximum weight of up to 5 kg.
• What wire thickness is this model adapted to? The welding machine works with wire with diameters from 0.6 mm to 1.0 mm.
• What is the difference between this inverter welding machine and older transformer models? Built on IGBT transistors, the technology provides lower power consumption, less electromagnetic interference and rapid response of current to changes in real time.
• What does inductance regulation mean? Allows you to control the hardness of the arc. Thanks to this, you can precisely weld thin elements without worrying about burning them and perform soldering of galvanized materials.

• Device Magnum MIG 200/2 KN
• Welding torch MIG EURO MB-15 3m
• MMA electrode holder
• Mass cable
• User manual

+ ADDITIONAL ACCESSORIES

• welding disc
• brush-hammer
• adapter 230/400V
