Suvirinimo aparatas inverterinis MIG/MAG/MMA/FLUX/TIG 250A 2/4T GAS

Trumpai apie prekę

Prekė: Suvirinimo aparatas inverterinis MIG/MAG/MMA/FLUX/TIG 250A 2/4T GAS. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Black
• Modelis: BLACK-37417

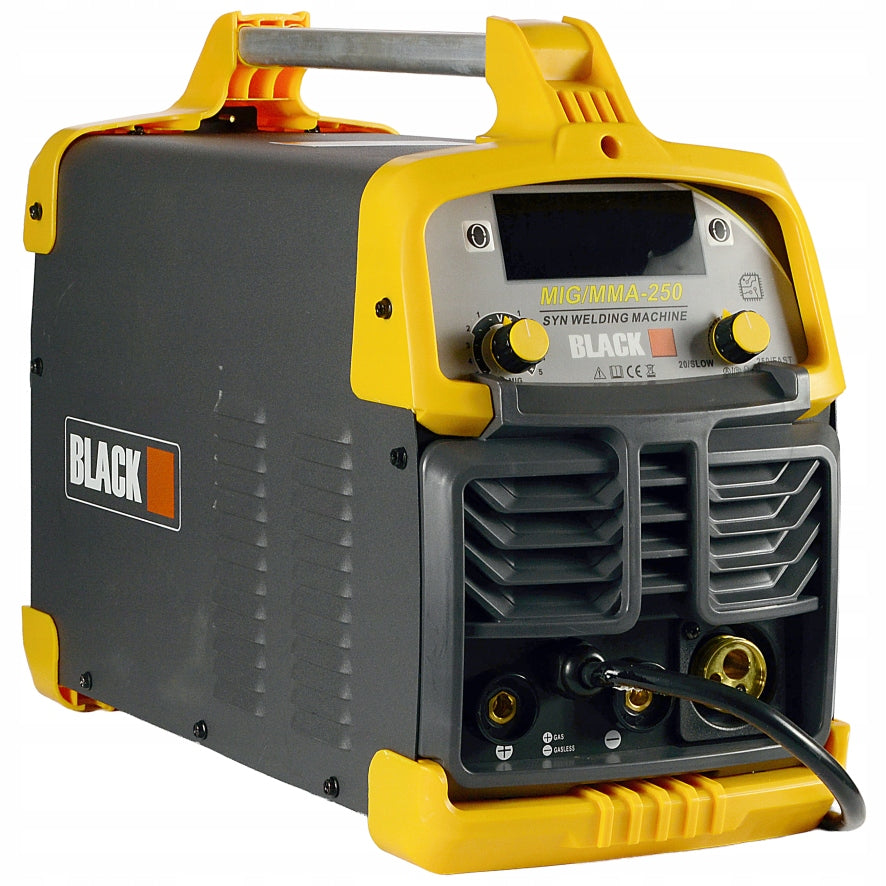

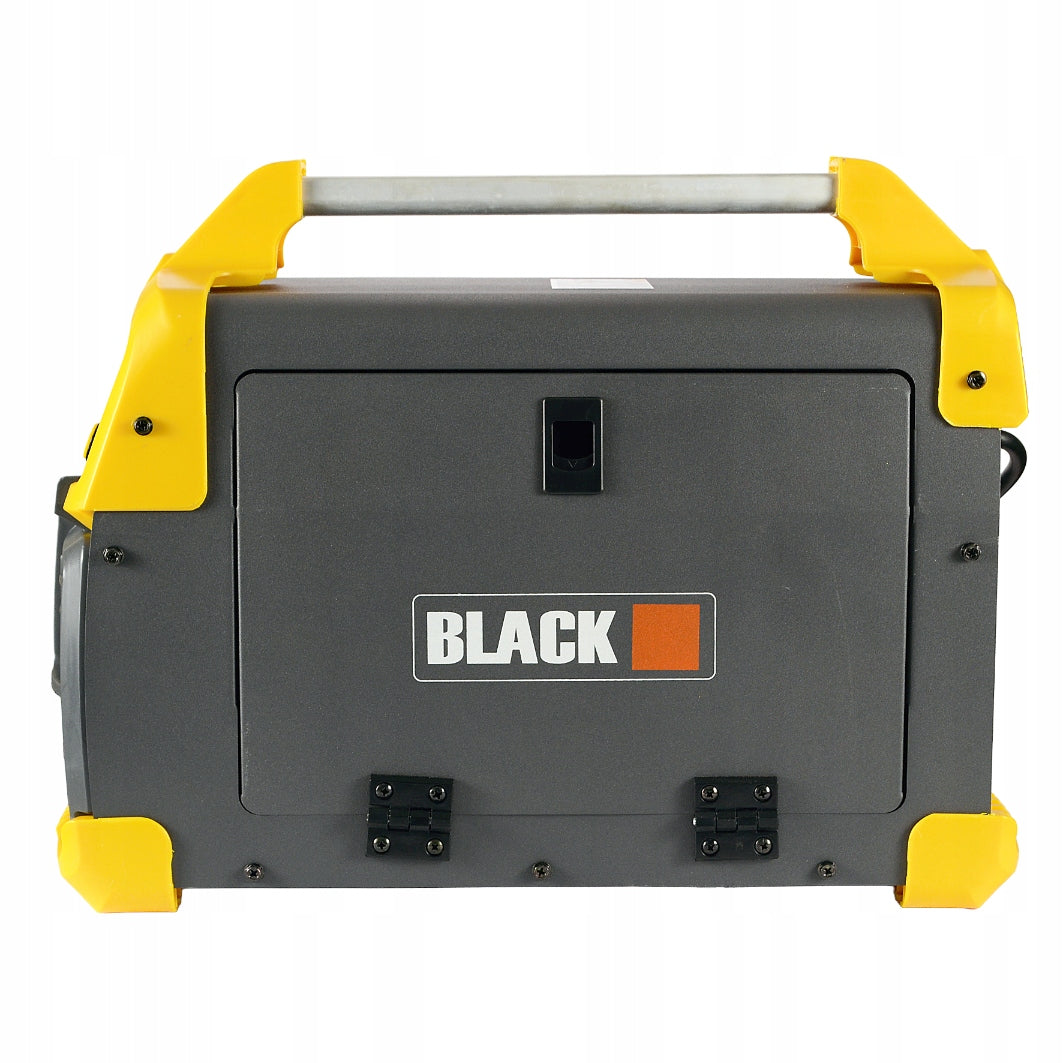

The BLACK 37417 is an ⭐inverter welding machine whose design is based on efficient ⭐IGBT transistors. It is equipped with a ⭐LCD display indicating the current welding current set by a knob with smooth adjustment.

⭐The IGBT transistor combines the advantages of two types of transistors with the ease of control of field transistors and the high breakdown voltage and switching speed of bipolar transistors.

► MMA – welding with a wrapped electrode (Manual Metal Arc).

• Wrapped electrodes are used.
• It does not require shielding gas.
• The simplest method, good for structural steels and field work.

► MIG – semi-automatic welding in gas shield (Metal Inert Gas / Metal Active Gas).

• Requires wire feeder.
• It can use protective gases:
• CO₂ 100% – welding of carbon steels,
• Ar 80% + CO₂ 20% – a mixture for low-alloy steels (better arc and less chipping).

► FLUX – self-shielding wire welding (without gas).

• Alternative to MIG, it uses special powder wire (e.g. 0.8 mm, 0.9 mm).
• Good for outdoor work where the wind could blow out the shielding gas.

► LIFT TIG – TIG welding with ignition by touch (Lift TIG).

• Requires TIG handle with valve and argon cylinder (not included)
• For precise welding of stainless steel and thin sheets.

► "2T"

This is the operating mode designation of the MIG/TIG handle button. 2-touch mode or 2T mode).

• 2T (Two Touch / 2-bar) – standard mode:
• Press the button → the arc lights up.
• You release the button → the arc goes out.
• Used most often in welding short welds or spot welding.

⚡ Crossed spring

This symbol refers to the function of inductance. Inductance), used for MIG/MAG welding.

• In normal MIG, the welding machine allows you to regulate the inductance, which affects the "softness" of the arc and the amount of chipping:
• Higher inductance → milder arc, less chipping (good for thin sheets),
• Less inductance → harder arc, better penetration (for thick materials).
• Crossed-out spring means that the inductance adjustment is disabled or not available in a given mode (e.g. in MMA or FLUX).

► In summary:Symbol Meaning Applies to "2T" mode: Two-bar mode – arc active only when holding the MIG/TIG button

Crossed spring:Disabled MIG/MAG inductance adjustment (when inactive function)

⭐EMBEDDED FUNCTIONS:

⚡ HOT START, popularly known as hot start, allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

⚡ ANTI STICK cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

⚡ ARC FORCE stabilizes the arc regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through. (In this model, the ARC FORCE function is adjusted automatically)

The welder is equipped with a cooling fan for electronic systems and other components - the ⭐"Turbo FAN" function, as well as a thermal sensor to protect the device from overheating.

The device welds with current from ⭐20 to 250A, allows welding with an electrode with a diameter of ⭐2mm to 4mm.

✨Welding with a 2mm electrode is already possible with a Class C 16A instantaneous fuse. Working at a maximum current of 250A requires protection of at least 20A.

✨Thanks to the use of a large fan in a small welding machine housing, the air flow was increased, which reduced the temperature of the transistors. The efficiency of the device is as much as 60%.

✨The welding current can be quickly adjusted in the range of 20-250A. Just twist one potentiometer and set the Amperage we are interested in.

✨Small dimensions of the device facilitate transport and welding with the device suspended on the shoulder.

⚙ PARAMETERS OF THE WELDING MACHINE:

✅ Power supply: 230V / 50Hz

✅Welding current range: 20-250A

✅Welding with electrodes in the range: 2 - 4.0 mm

✅Power consumption: 6,5kVA

✅Nominal welding current: 250A

✅Rated duty cycle: 60%

✅Electrical network security: min 16A

✅Power at 100% duty cycle: 175A

✅Power at 60% duty cycle: 250A

✅Isolation class: IP21S

✅Weight of welding machine: 6 kg

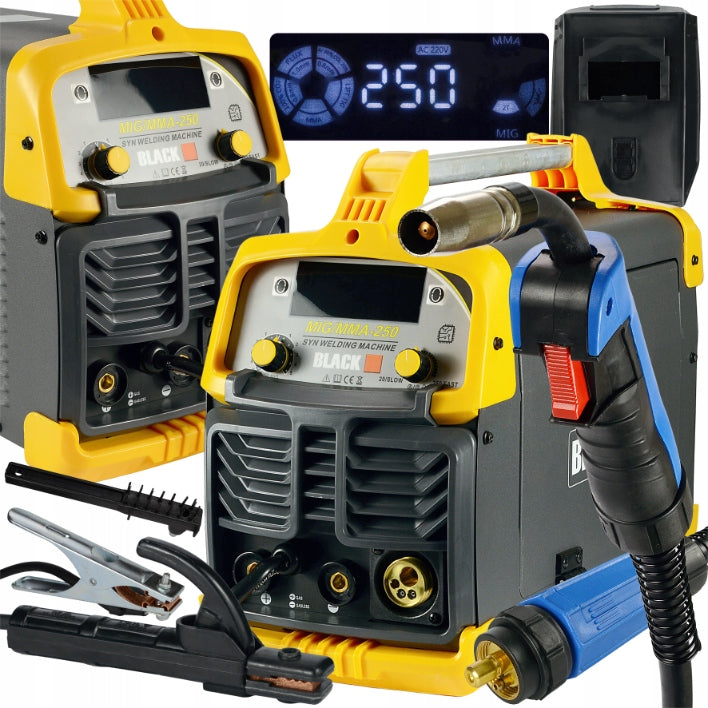

✔ EQUIPMENT

• ✔ BLACK 37417 4 IN 1 LCD welding machine
• ✔ mass cable
• ✔ MB 3M welding wire
• ✔ welding mask
• ✔ hammer with brush
• ✔ original packaging
• ✔ instruction PL

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Black
Parametry	Power consumption	6.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	6 kg
Parametry	Welding range	20–250 A
Parametry	Length of ground cable	2 cm
Parametry	Product weight with unit packaging	9 kg
Parametry	Manufacturer code	BLACK-37417
Parametry	EAN (GTIN)	5902280029076
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
