Suvirinimo aparatas inverterinis MIG MAG MMA 230V 160A MAGNUM

Trumpai apie prekę

Prekė: Suvirinimo aparatas inverterinis MIG MAG MMA 230V 160A MAGNUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: spawarka inwertorowa U MI 170W MMA_p2
• Ilgis: 510 mm
• Plotis: 195 mm
• Aukštis: 395 mm

| Manufacturer: Magnum | Welding methods: MIG/MAG, MMA | Welding current: 160 A | 230 V | IGBT | Inductance | Kit |

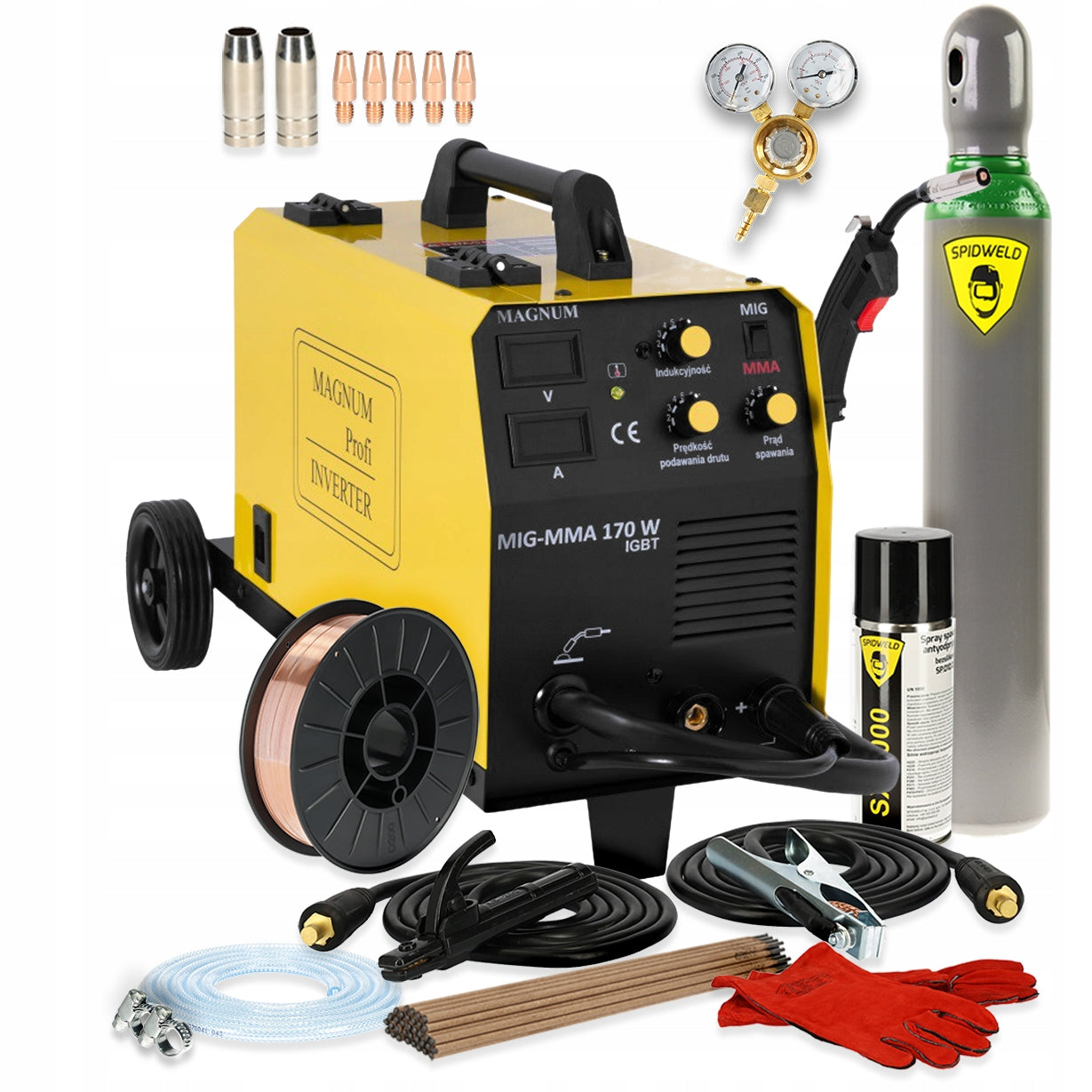

✅ This kit includes standard equipment and an extensive accessory package.

❇ Standard equipment:

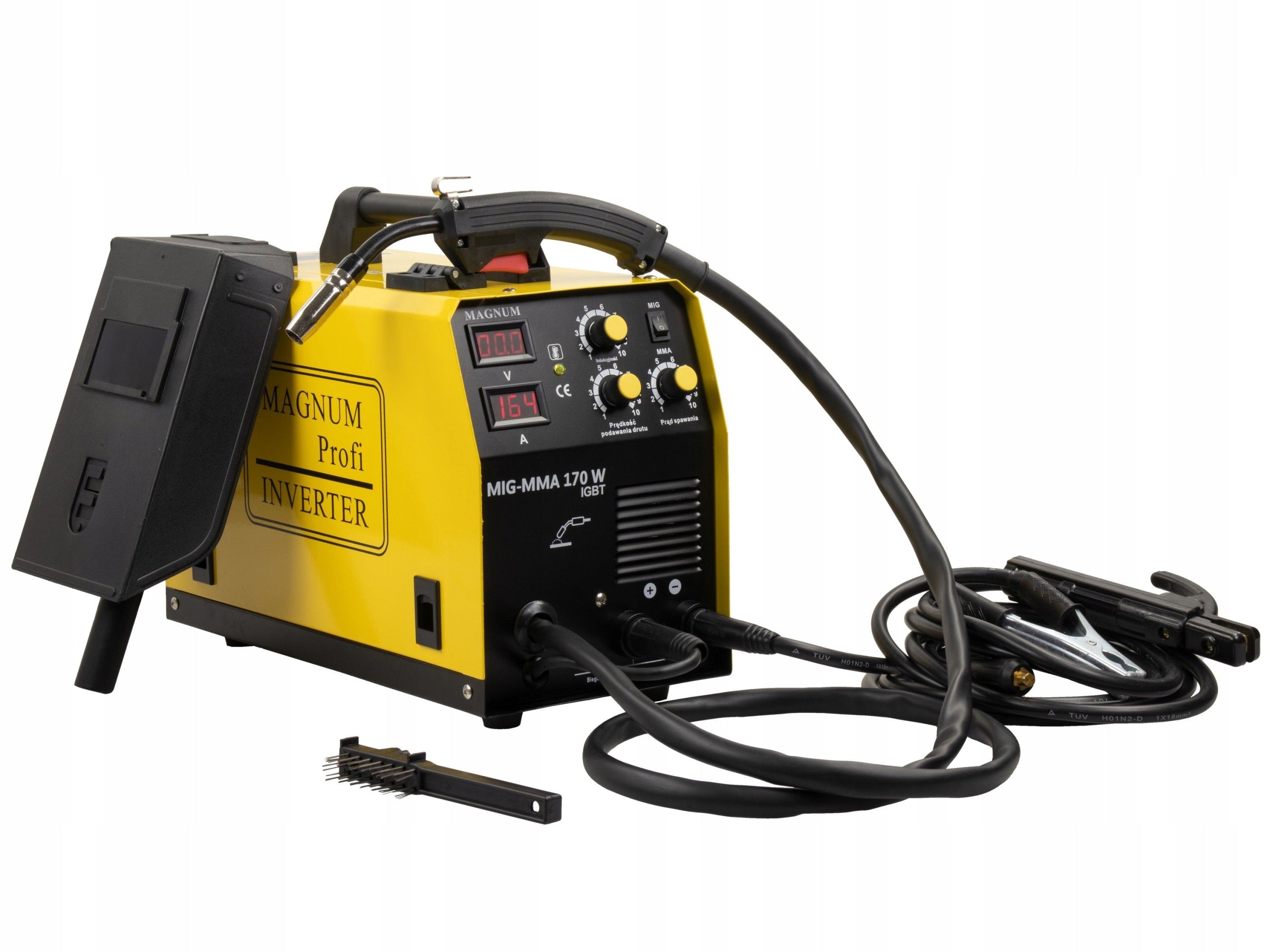

• Welder Magnum MIG 170 W MMA IGBT
• welding torch MB-14 / 2,2 m (fixed)
• feeder roll fi 0,6 / 0,8 mm V-shaped (mounted)
• power cord with plug - 2 m
• mass cable / plug 25 mm2 / 2 m
• electrode cable / plug 25 mm2 / 200 A / 2 m
• instruction manual in Polish

❇ Expert Accessory Pack:

• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• bottle with ARG/CO2 mixture 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• rutile welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

When buying a set, you will always get a more favorable price.

✅The Magnum MIG/MAG-MMA 170 W IGBT welding machine is a semi-automatic welding machine designed for manual, electric welding:

• low carbon steel
• low-alloy steel
• alloy steels, etc.

✅ Welding methods available in this model:

• MIG/MAG
• MMA (using hot melt coated electrodes)
• FCAW (self-shielded wire welding)

Has the possibility of welding with self-shielding wire - FCAW (change the polarity in the welding machine: minus (-) on the welding torch, plus (+) on the mass! ).

✅ The welding machine is designed for all kinds of welding work:

• in locksmith workshops
• repair workshops
• industrial plants
• factories
• and others

✔ MIG/MAG ✔ MMA ✔ FCAW✔

✅ The power source was built on IGBT transistors providing minimum electromagnetic interference, enabling increase in efficiency and reliability of the power source, lower energy consumption, and rapid adjustment of the current to changes in parameters during welding.

✅ Connecting thin sheets is possible thanks to equipping the welding machine with regulation of inductance (arch hardness), which affects the shape of the weld.

✅ Inductance regulates welding current, and increasing it can help control current and reduce the heating of the material co is particularly important when welding thin sheets.

✅ This helps avoid burning or piercing the material , which is a common problem when welding thin elements.

• Network security 230 V [A]: 16
• Power supply [V]: 230
• Minimum welding current MIG [A]: 30
• Maximum welding current MIG [A]: 160
• Minimum welding current MMA [A]: 30
• Maximum welding current MMA [A]: 160
• MIG/MAG duty cycle [%]: 60
• Work cycle MMA [%]: 60
• Welding processes: MIG / MAG / MMA
• Supported wire spool diameter [mm]: 200
• Wire feeder type: 2-roll
• Control [manual, synergistic]: manual
• Inductance regulation: YES
• Welding without gas: YES
• Hot-Start function: YES
• Arc Force function: YES
• Anti Stick function: YES
• Length [cm]: 51
• Width [cm]: 19,5
• Height [cm]: 39,5
• Weight [kg]: 12

Cylinder filled with high quality Ar/CO2 mixture designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

☑ execution in advanced inverter technology

☑ possibility of welding with self-shielding wire

☑ MIG/MAG welding

☑ welding with wrapped electrode

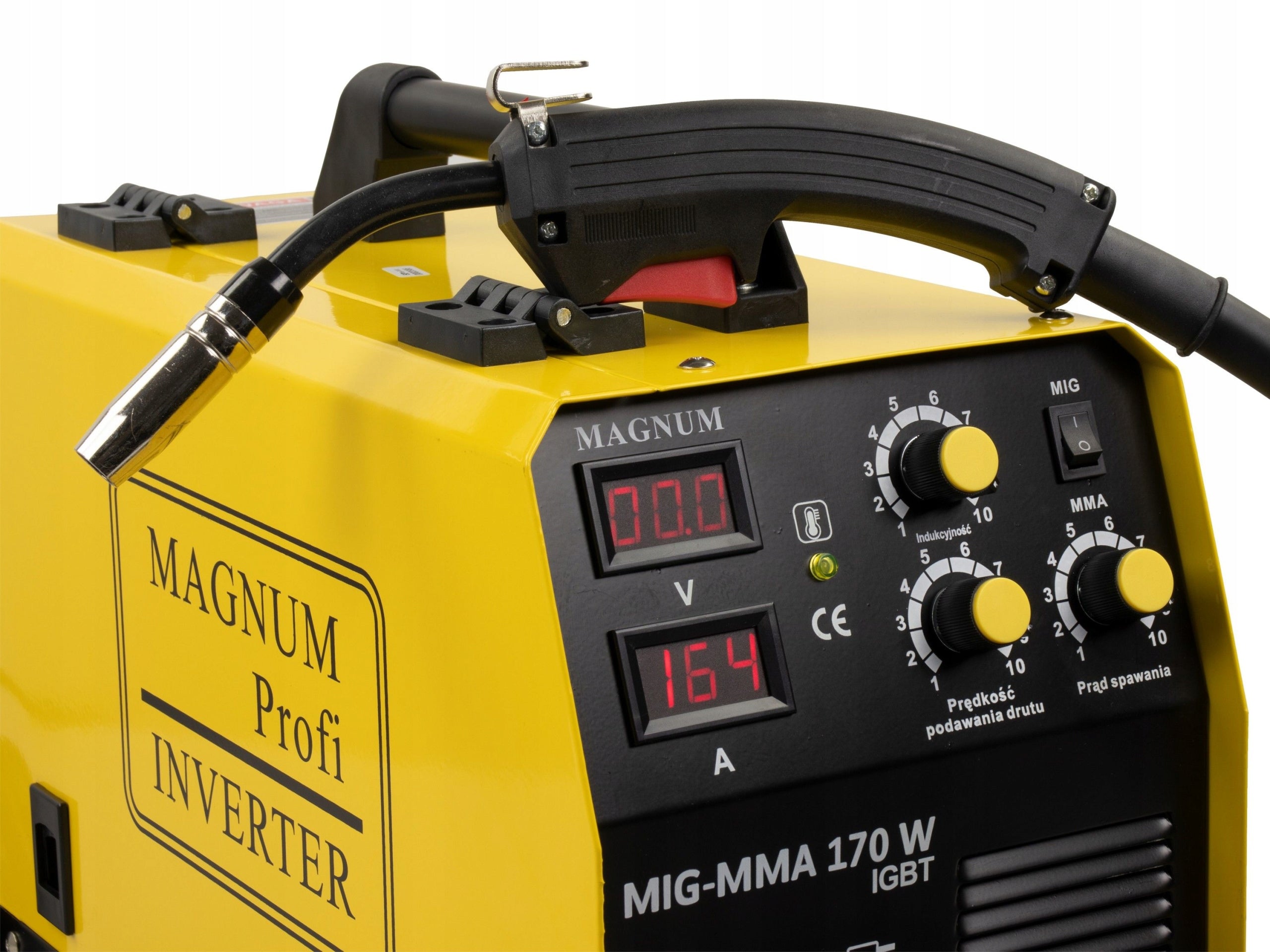

☑ readable and easy to use control panel

☑ light weight and dimensions

☑ chassis and comfortable handle for easy carrying

☑ place for cylinder

☑ high duty cycle

☑ possibility of welding thin sheets

☑ inductance regulation allowing control of the depth of melting
