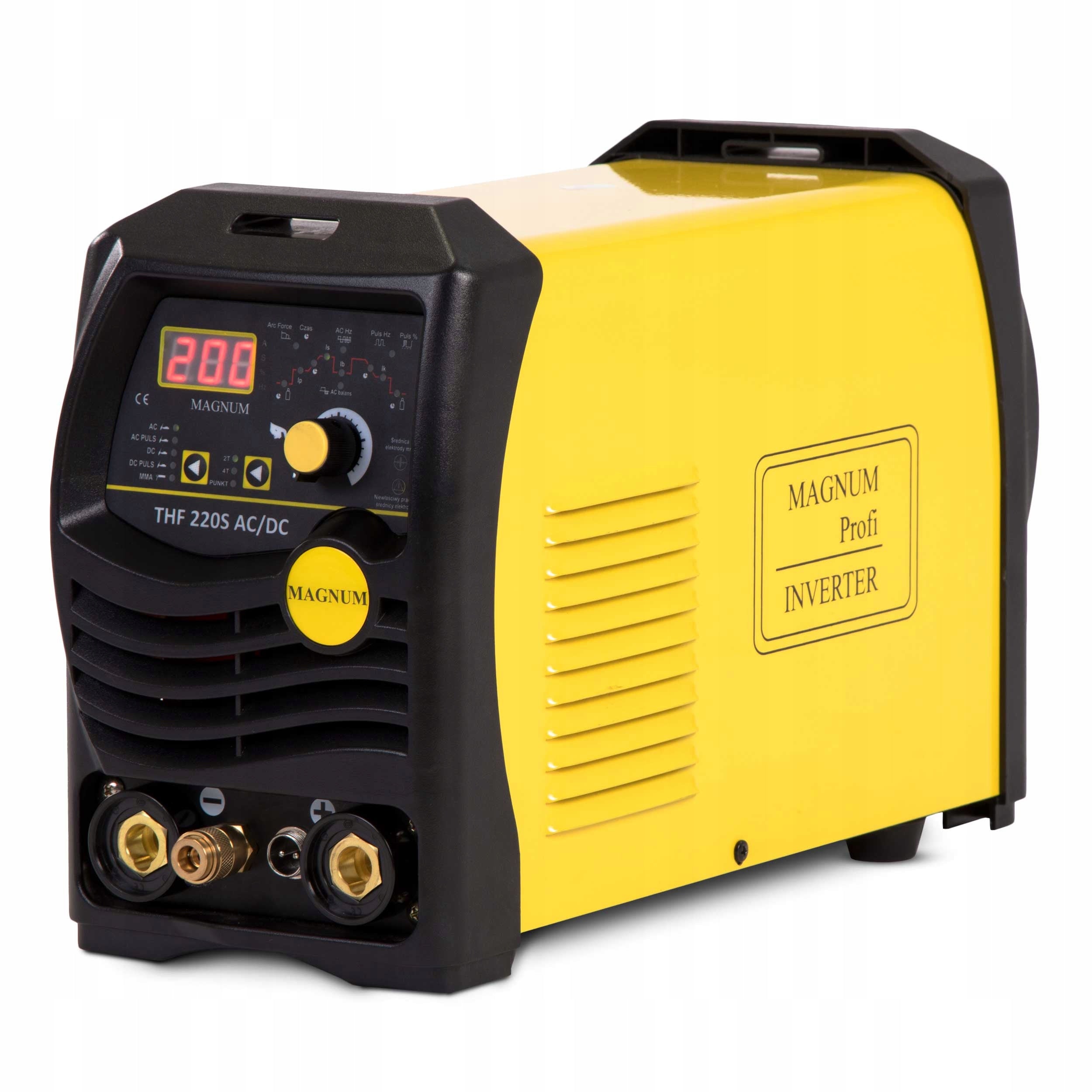

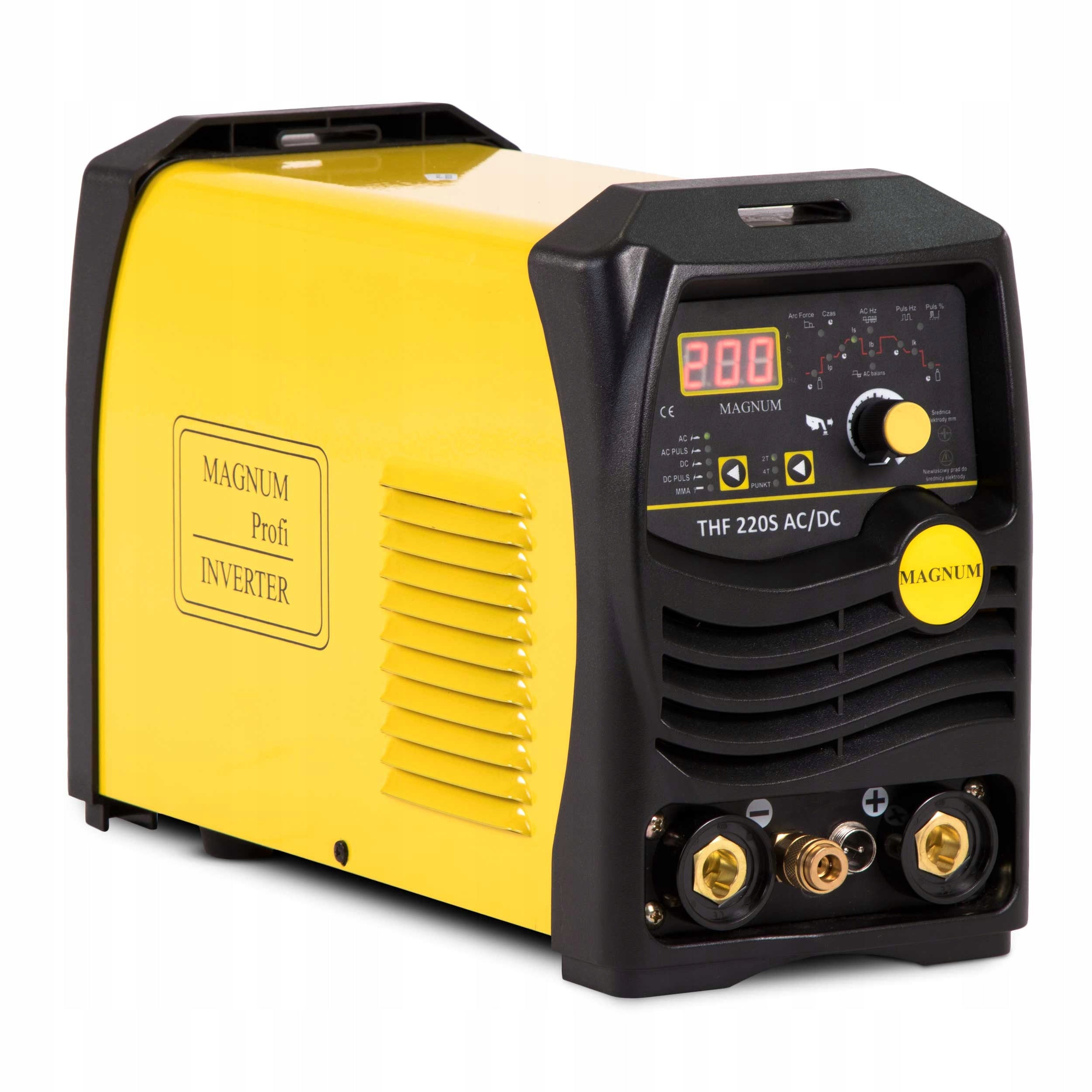

Suvirinimo aparatas inverterinis MAGNUM THF 220S AC DC MMA TIG PULSE 200A 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas inverterinis MAGNUM THF 220S AC DC MMA TIG PULSE 200A 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA TIG DO ALUMINIUM ACDC MAGNUM 220S IGBT

Manufacturer: MAGNUM ║ Welding methods: MMA, TIG AC/DC ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

THE ONLY in Poland THAT HAS AN AUTOMATIC FUNCTION OF SETTING THE WELDING CURRENT DEPENDING ON THE DIAMETER OF THE TIG OR MMA ELECTRODE!

• Automatic welding current setting depending on TIG or MMA electrode diameter
• Latest technology built on IGBT transistors for minimum electromagnetic interference, low power losses in basic circuits
• 2T/4T mode - facilitating the welding start and end process, greater control over welding current flow
• PULS - obtaining a more durable and robust weld
• ARC FORCE - the ability to set a stable arc
• ANTI STICK - prevents the electrode from sticking to the welded material
• HF - the device is equipped with an ionizer that allows contactless viewing of the welding arc, using high frequencies.
• Smooth regulation of current waveform
• Point welding - tabbed joining (vaccination) of thin sheets
• "Soft" transparent panel allowing to set all necessary welding functions tj. start/fill current of crater/welding/base, current rise and fall times, gas outflow before and after welding, pulse frequency, balance, etc.
• Very high efficiency directly translates into lower energy consumption
• Instant adjustment of current to changes in parameters during welding
• Professional welding machine designed for manual, electric TIG and MMA welding using hot melt coated electrodes
• Designed for all kinds of welding work in locksmith, repair and industrial workshops

The device has the function of "highlighting the diameter of the electrode":

• for TIG method: 1,0-3,2 mm
• for MMA method: 1,6-4,0 mm

Choosing a diameter does not enforce any parameters. The device only suggests by illuminating the “Incorrect current to electrode diameter” indicator that the welding current value is too low or too high for a given diameter.

Easy choice of welding method by button:

• AC - TIG welding with alternating current
• AC PULS - TIG welding with alternating current with PULS function
• DC - TIG welding with direct current
• DC PULS - TIG welding with direct current with PULS function
• MMA - MMA welding

Choice for TIG method

• Welding in 2T or 4T mode
• Welding point

• Gas outflow time before welding, regulation in the range of 0,1 ÷ 10 s.
• Ip – initial welding current, regulation in the range of 5 ÷ 160 A.
• Current build-up time welding from Ip to Is, adjustable in the range of 0 ÷ 10 s
• Is – welding current value for TIG and MMA method, or maximum welding current value for TIG method with PULS function. Regulatory scope: for MMA: 10 ÷ 160 A, for TIG: 5 ÷ 200 A
• Ib – adjustment of the lower welding current value for TIG method with PULS function. The scope of regulation is forced and limited by the set value of Is.
• Welding current drop time to Ik, adjustable in the range 0 ÷ 15 s.
• lk – final value of welding current (crater filling current), regulation in the range of 5 ÷ 200 A.
• Gas outflow time after welding, regulation in the range of 0,5 ÷ 15 s.
• Arc Force – adjustment of the forcing arc for MMA, regulation in the range 0 ÷ 40 A.
• Time – regulation of welding time at the point, regulation in the range of 0,5 ÷ 10 s.
• AC Hz – polarity change frequency adjustment for TIG AC method, adjustment in the range of 20 ÷ 250 Hz.
• Puls Hz – regulation of welding current pulsation frequency for TIG method with PULS function. The adjustment is divided into two ranges: 0,2 ÷ 20,0 Hz and 21 ÷ 200 Hz.
• Pulse % - regulation of welding current pulsation balance for TIG method with PULS function. The adjustment takes place in two ranges depending on the set frequency: 0,2 Hz ÷ 10 Hz - 1 ÷ 99 %, 11 Hz ÷ 200 Hz - 10 ÷ 90 %.
• AC balance – polarity change balance adjustment for TIG AC method. The adjustment range is limited and forced by other parameters (welding current and AC frequency).

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50/60 Hz
• Power supply network protection: 25A type C

TECHNICAL PARAMETERS

• Power build-up time: 0 - 10 s
• Power drop time: 0 - 10 s
• Pulse frequency: 0,2 - 200 Hz
• Gas after: 0,5 - 15 s
• Gas before: 0,1 - 10 s
• Idle voltage: 67 V
• Final current: 5 - 200 A
• Maximum current: 200 A 60%
• Power at work 100%: 160 A (TIG AC) / 150 A (TIG DC/MMA)
• Power at 60% operation: 200 A (TIG AC) / 160 A (TIG DC/MMA)
• Starting current: 5 - 200 A (TIG AC) / 10 - 170 (TIG DC/MMA)
• Diameter of welding electrode: 1,6 - 4,0 mm
• TIG arc glow: contactless
• Electrode diameter range: 1,6 - 3,25 mm

ADDITIONAL FUNCTIONS

• 2T/4T: YES
• ARC FORCE: TAK
• ANTI STICK: YES
• PULSE: YES
• SPOT: YES

PHYSICAL PARAMETERS

• Housing protection: IP21
• Cooling: fan
• Dimensions: 400 x 160 x 245 mm
• Weight: 9 kg

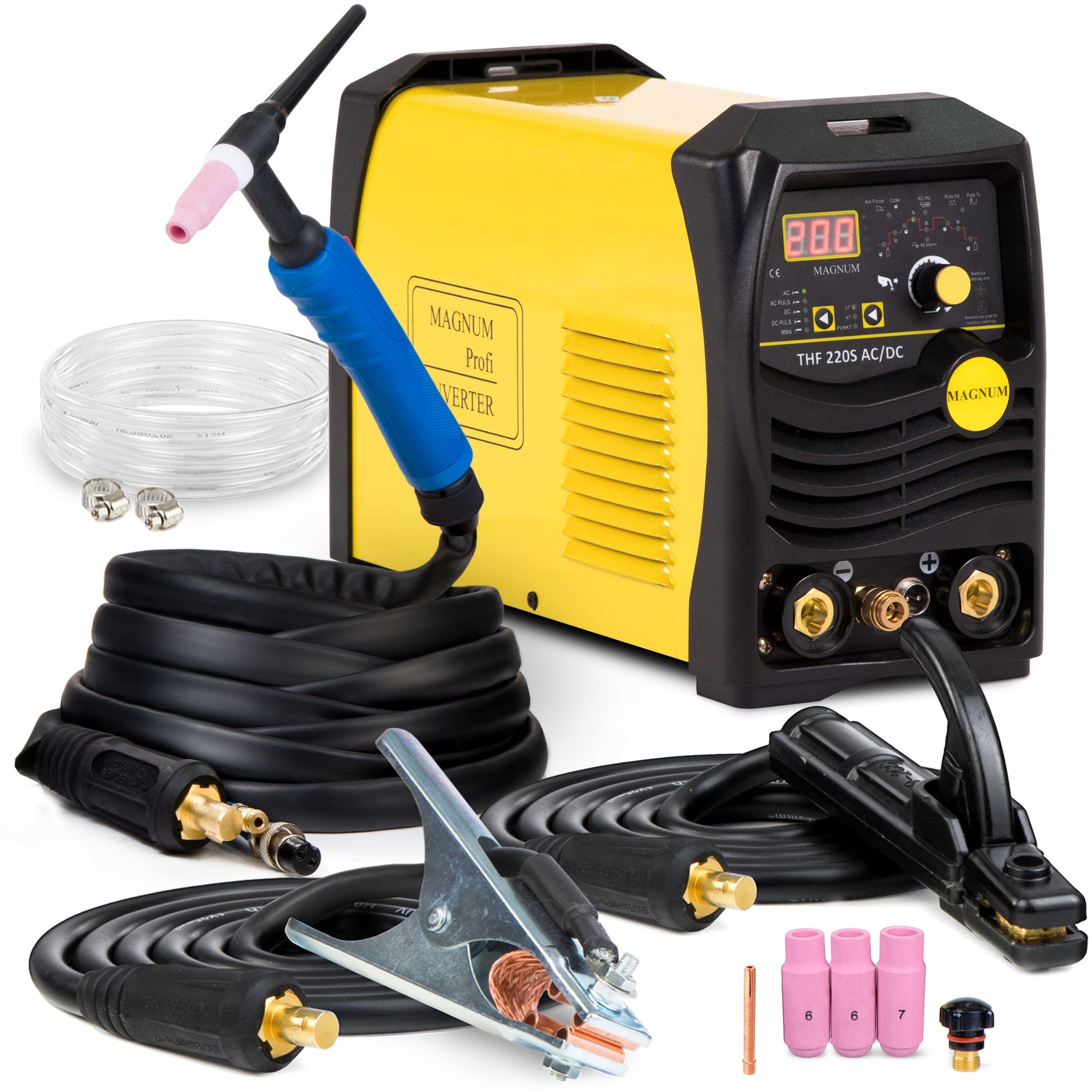

• Welding machine MAGNUM THF 220S AC/DC
• Welding torch TIG SR26 4 m - 1 pc.
• electrode holder 3 m - 1 pc
• mass cable 3 m - 1 pc
• Operating elements of the TIG handle
• Instructions services in Polish
• Guarantee card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Welding methods	TIG
Parametry	Power consumption	8.65 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Device weight	9 kg
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	30 kg
Parametry	Manufacturer code	P046548
Parametry	EAN (GTIN)	5907056440871
Parametry	Packaging status	original
Parametry	Model	SPAWARKA TIG DO ALUMINIUM ACDC MAGNUM 220S IGBT
