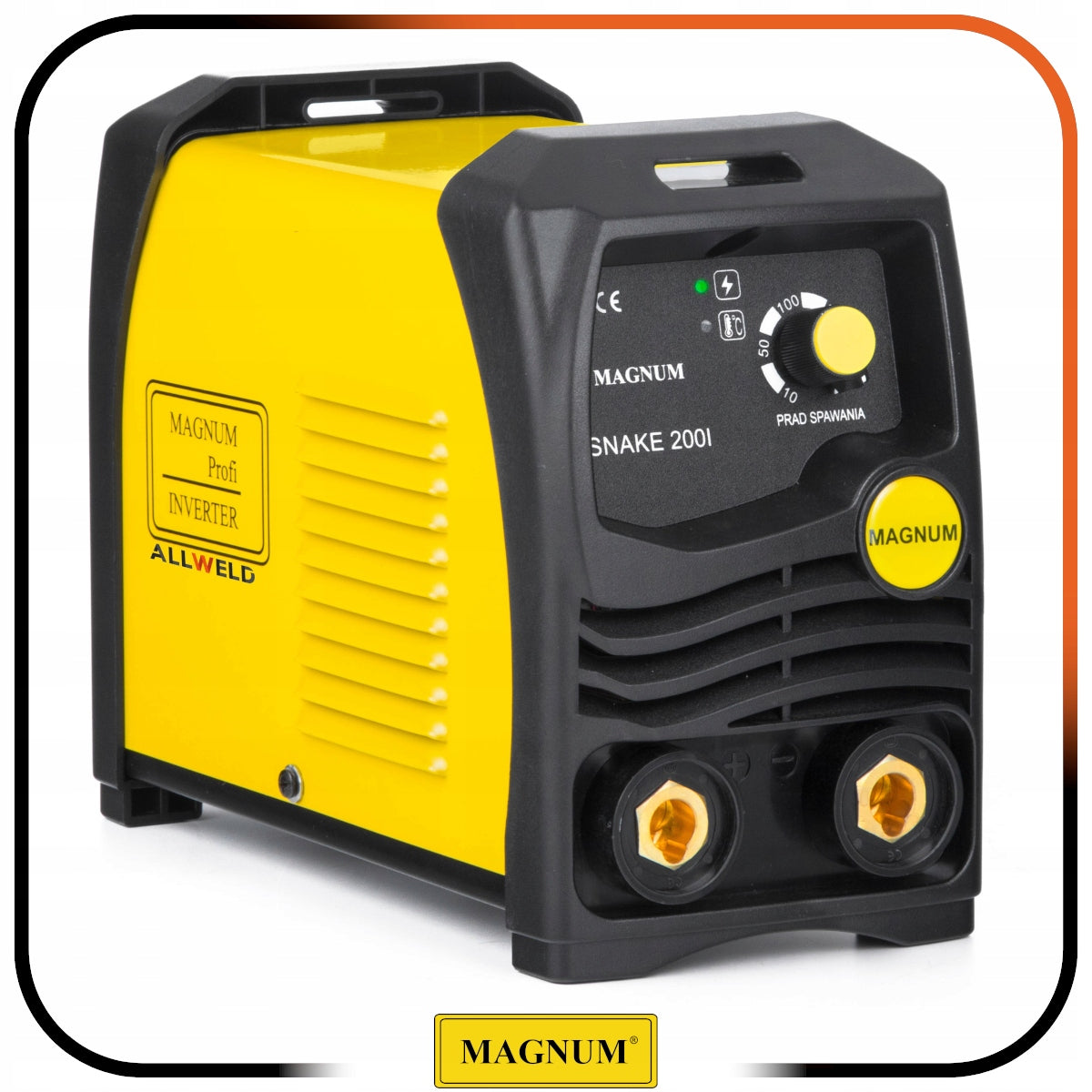

Suvirinimo aparatas inverterinis MAGNUM SNAKE 200I MMA TIG LIFT 230V 200A IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas inverterinis MAGNUM SNAKE 200I MMA TIG LIFT 230V 200A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U I SNA200IAL

Manufacturer: MAGNUM ║ Welding methods: MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

❗❗❗CHECK ALL THE ADVANTAGES OF THE MAGNUM SNAKE 200I ALU BOX❗❗❗ WELDING MACHINE

✅ Welding current 200A in the duty cycle 60%

✅ Weldable in TIG DC

✅ Technology inverter IGBT

✅ Solid, metal enclosure

✅ Simple operation of the welding machine

✅ Function ARC FORCE

✅ Easier to peel off the electrode - ANTI STICK

✅ Weight only 3 kilograms!

✅ Strap for easy transport

ATTENTION! ALUMINUM CASE FOR TRANSPORTING WELDING MACHINE AND TOOLS INCLUDED

BET ON ONE OF THE SMALLEST INVERTER WELDING MACHINES WITH A POWER OF 200A! IN THE PACKAGE ALUMINUM CASE FOR WELDING MACHINE AND TOOLS!

⚡ VERSATILE USE

SNAKE 200I is a light and portable power source. It is used for welding with wrapped electrodes of various steel grades, including ordinary, stainless, heat-resistant and cast iron. Thanks to very small dimensions it will be used in field and repair works.

⭐ BEST BUILD QUALITY

The SNAKE 200I is a welding machine made in inverter technology designed for MMA welding. The power of 200A allows electrode welding up to 4mm in diameter, steel and other weldable metals. The welder allows for smooth adjustment of parameters.

⚡ WELDING MACHINE ADAPTED TO ALL CONDITIONS

The main advantage of the Magnum SNAKE 200I welding machine is its small size and weight. The welding machine welds an electrode with a diameter of 4 mm!

In addition, the welding machine can work using the TIG method using a special TIG handle with a valve (TIG LIFT). Arch ignition is carried out by rubbing the non-melting electrode against the welded material.

ATTENTION!!! The TIG handle is not included, but is available at our other auctions.

ADDITIONAL ADVANTAGES:

✴ ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

✴ ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

✴ IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

COMES WITH AN ALUMINUM CASE FOR WELDING MACHINE AND TOOLS!

ADVANTAGES OF THE SUITCASE:

✅ Made of ALUMINIUM

✅ Handle for easy transport

✅ Double solid closure - minimizes the risk of accidental opening

✅ Optimal dimensions

✅ Containable

✅ Resistant to damage

✅ Ease of cleaning

✅ Perfect for storing and transporting tools

⚙ TECHNICAL SPECIFICATION

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Power protection: 20A

TECHNICAL PARAMETERS

• Welding current: 20-200A
• Efficiency: 60%
• Regulatory range: liquid
• Idle voltage: 67V

PHYSICAL PARAMETERS

• Cooling: fan
• Housing protection: IP21
• Weight: 3kg

Types of phases and their application in welding machine MAGNUM SNAKE 200I AL

1 Weld I: For thin sheets, simple joints without chamfering. Fast and economical.

2 Weld 2L: Welding sheet metal to full melt, we take into account the larger diameter between the joined elements.

3 Weld V: For thick butt-jointed components that require a durable weld with uniform melting.

4 Weld Y: Modification V, chamfering including a shelf that facilitates the execution of melting (1 weld).

5 Weld V with washer: Getting a uniform weld with full melt. Used for high parameters. The pad is used to form an even ridge (obtained as a result of a properly made melt).

6 Weld U: Welding very thick and responsible elements. Full melt, wide connector at full height.

7 Weld X: Double-sided chamfering and a shelf for easy first stitches. Used for thick components or connectors requiring high strength

MAGNUM is a POLISH company with many years of experience in the welding equipment and pneumatics market. He specializes in providing individual and business customers with the most modern solutions in the field of industrial welding.

MAGNUM is a leader on the domestic market and conquers the European market, offering products and services at the highest level. The company’s assortment includes products for large industrial plants as well as for small enterprises. The latter can use proven solutions at a great price!

How to use SNAKE 200I AL, step by step?

1 Connect the welding wires to the appropriate sockets (standard electrode cable plus (+) mass cable minus (-) and turn right until they lock.

2 Connect the bulk cable to the welded material or welding table using the ground clip.

3 Place the electrode in the welding torch.

4 Insert the power cable into the power socket.

5 Turn on the device with the power switch.

6 Set the appropriate welding current value using the current knob.

7 Now you can start welding by following the safety rules.

To avoid splashes and achieve high weld quality, follow the recommendations of the electrode manufacturer regarding welding current, welding position and drying parameters, especially with alkaline and acidic electrodes.

The current size is adjusted so that the arc can be securely lit, and during welding it is even and stable. For example, the electrode "Pink 6012" needs:

• 2,0 mm - 40÷60 A,
• 2,5 mm - 50÷70 A,
• 3,25 mm - 70÷110 A,
• 4,0 mm - 110÷160 A,
• 5,0 mm - 160÷220 A.

BY CHOOSING THIS OFFER, YOU CAN BE SURE OF EXEMPLARY SERVICE AND SAFE SHOPPING

BY BUYING FROM US YOU GAIN

SET INCLUDES:

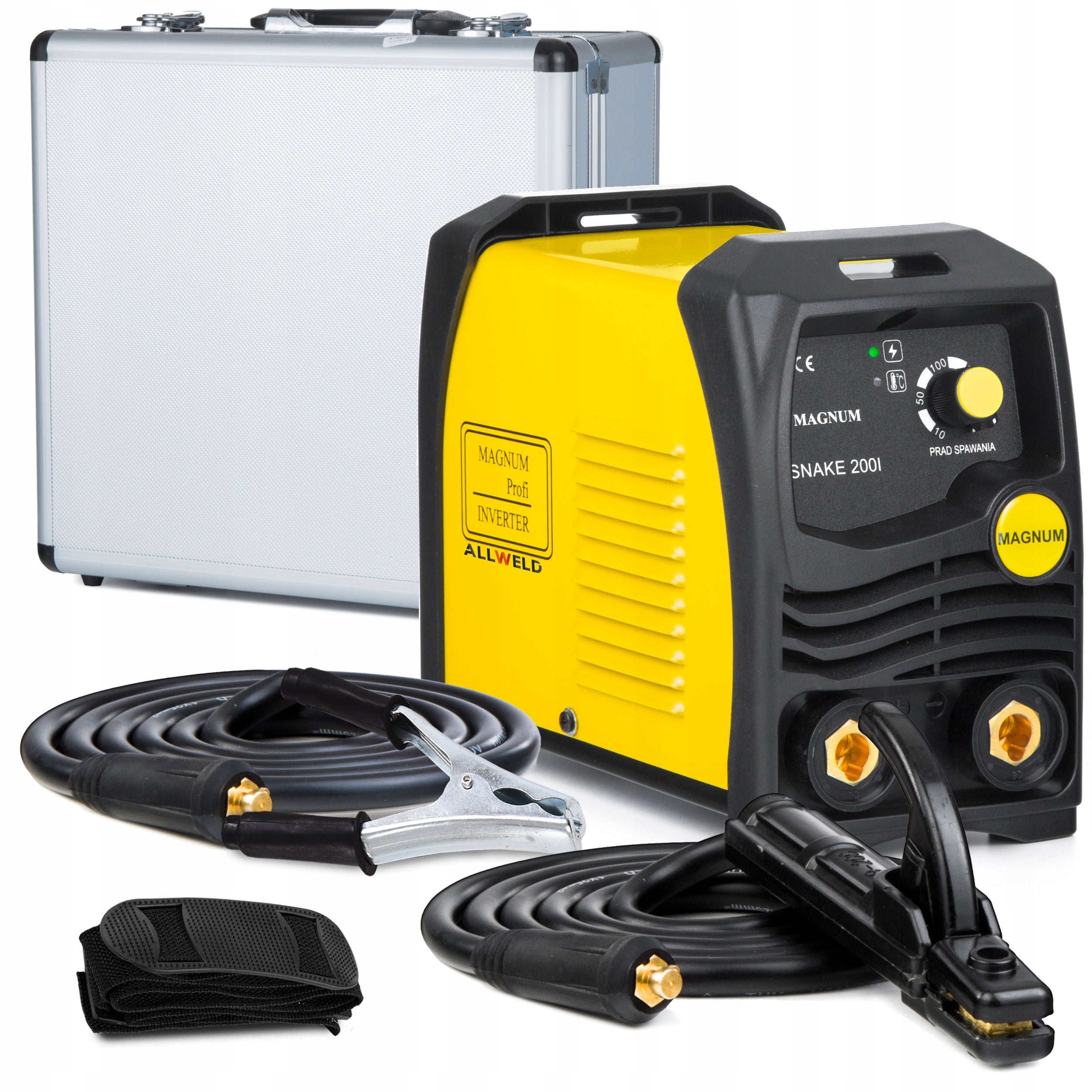

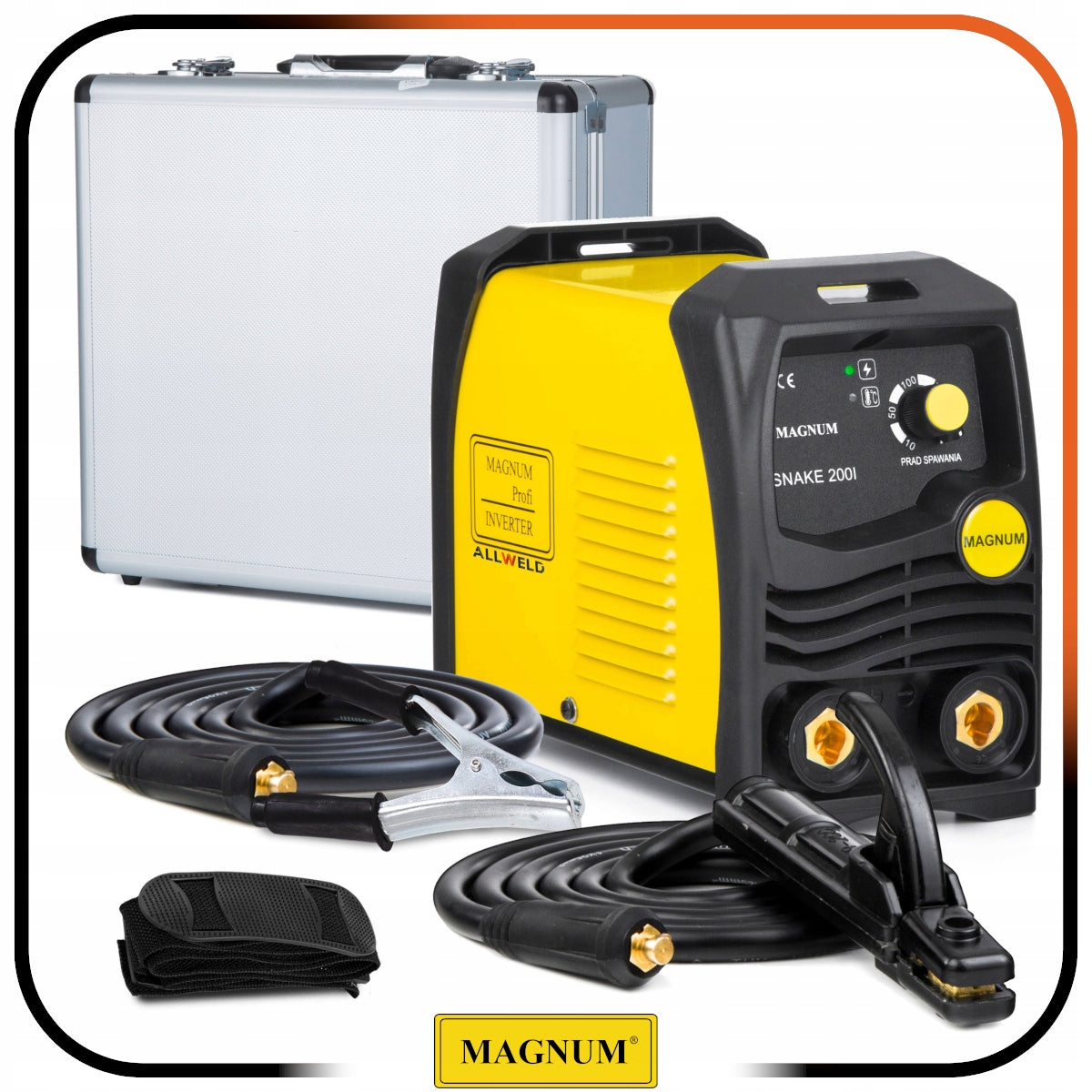

➡ Welding machine MAGNUM SNAKE 200I

➡ Electrode holder

➡ Bulk Holder

➡ Aluminum Hardware Case

➡ Welding machine carrying strap

➡ User manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	4.8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	3 kg
Parametry	Welding range	20–200 A
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	4.5 kg
Parametry	Manufacturer code	U I SNA200IAL
Parametry	EAN (GTIN)	5901076102740
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
