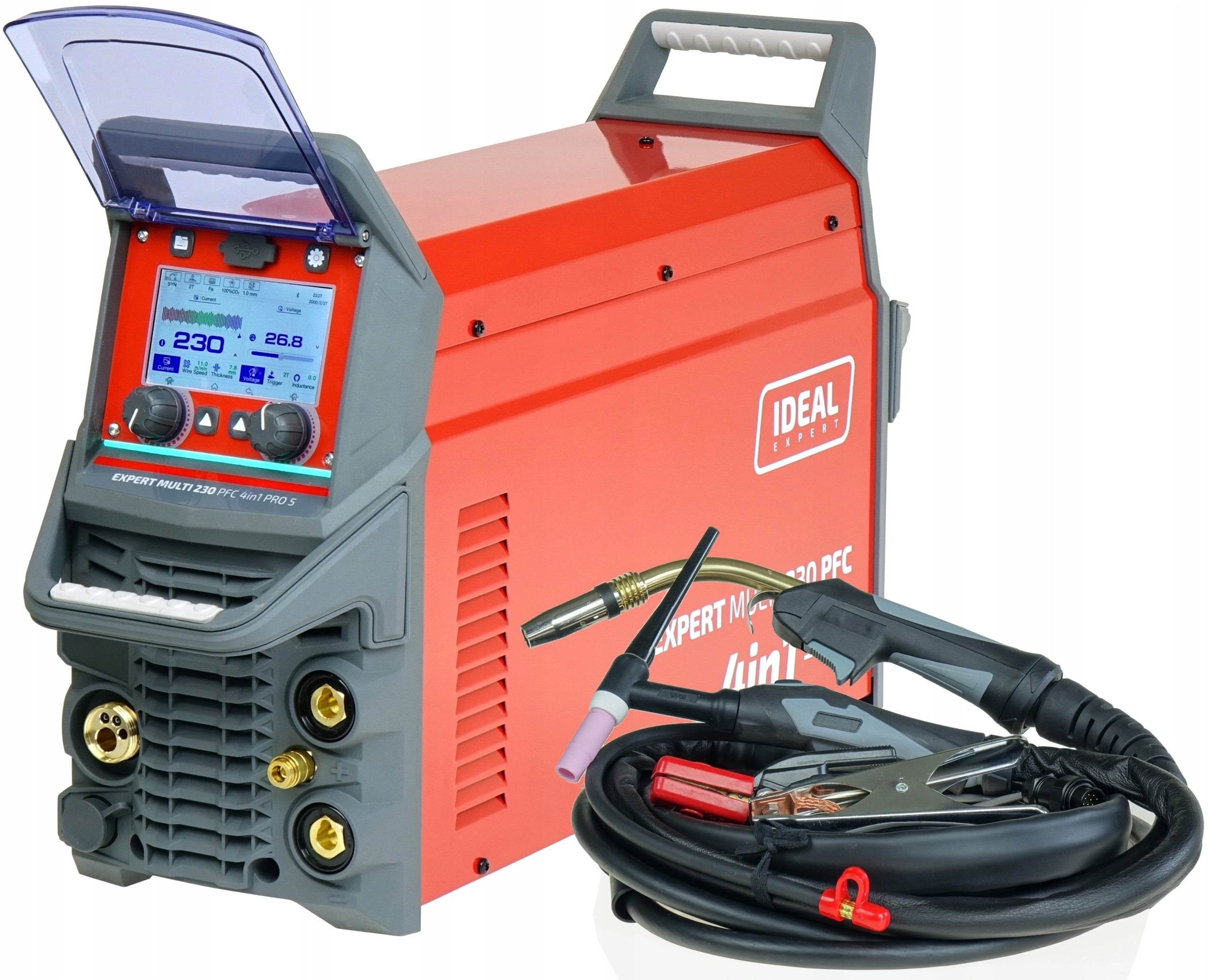

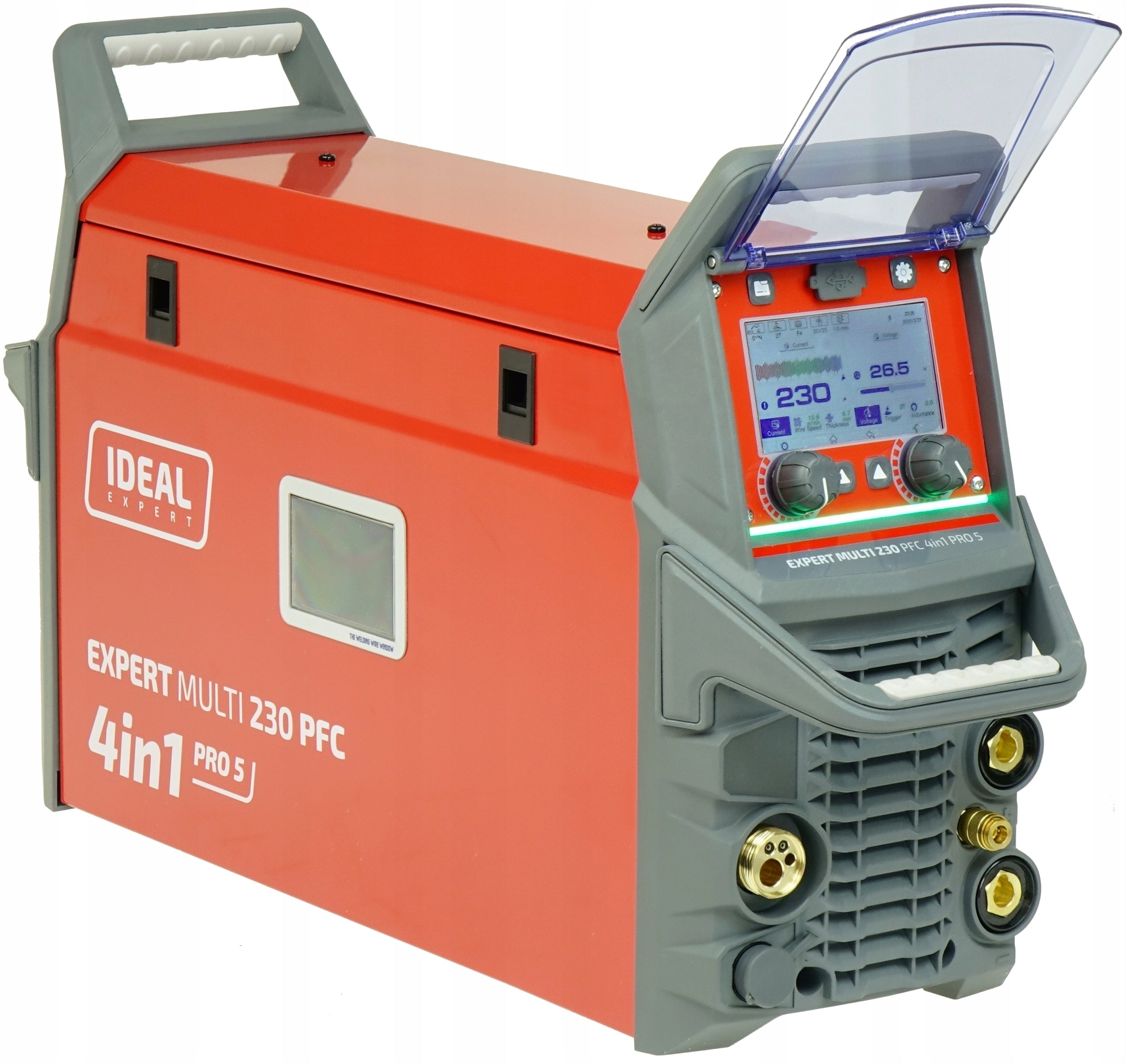

Suvirinimo aparatas INVERTER MIG TIG HF AC/DC IDEAL EXMULTI 230 PFC 4in1 Pro5 SYN

Trumpai apie prekę

Prekė: Suvirinimo aparatas INVERTER MIG TIG HF AC/DC IDEAL EXMULTI 230 PFC 4in1 Pro5 SYN. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT

➡ PRO ❗ SERIES – POWER, PRECISION, RELIABILITY IN YOUR HANDS ⬅

EXPERT MULTI 230 PFC 4in1 Pro5 WELDER

It is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG AC/DC - Welding with a non-melting electrode in an inert gas shield with the possibility of determining the arc TIG HF and TIG LIFT with direct current (DC) and variable (AC).

Available Modes:

• TIG DC PULS - is used for welding stainless steel, carbon and low alloy steels, copper and titanium.
• TIG AC PULS - enables welding of aluminum and its alloys and brass.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

Welder EXPERT MULTI 230 PFC 4in1 Pro5 is used for welding:

✔ stainless steels (MMA, MIG/MAG, TIG),

✔ low carbon steel (MMA, MIG/MAG, TIG),

✔ low alloy steels (MMA, MIG/MAG, TIG),

✔ cast iron (MMA, MIG/MAG, TIG),

✔ aluminium and its alloys (MIG, TIG),

✔ soldering of galvanized sheets (MIG, TIG),

✔ other weldable metals and alloys (MIG, TIG).

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

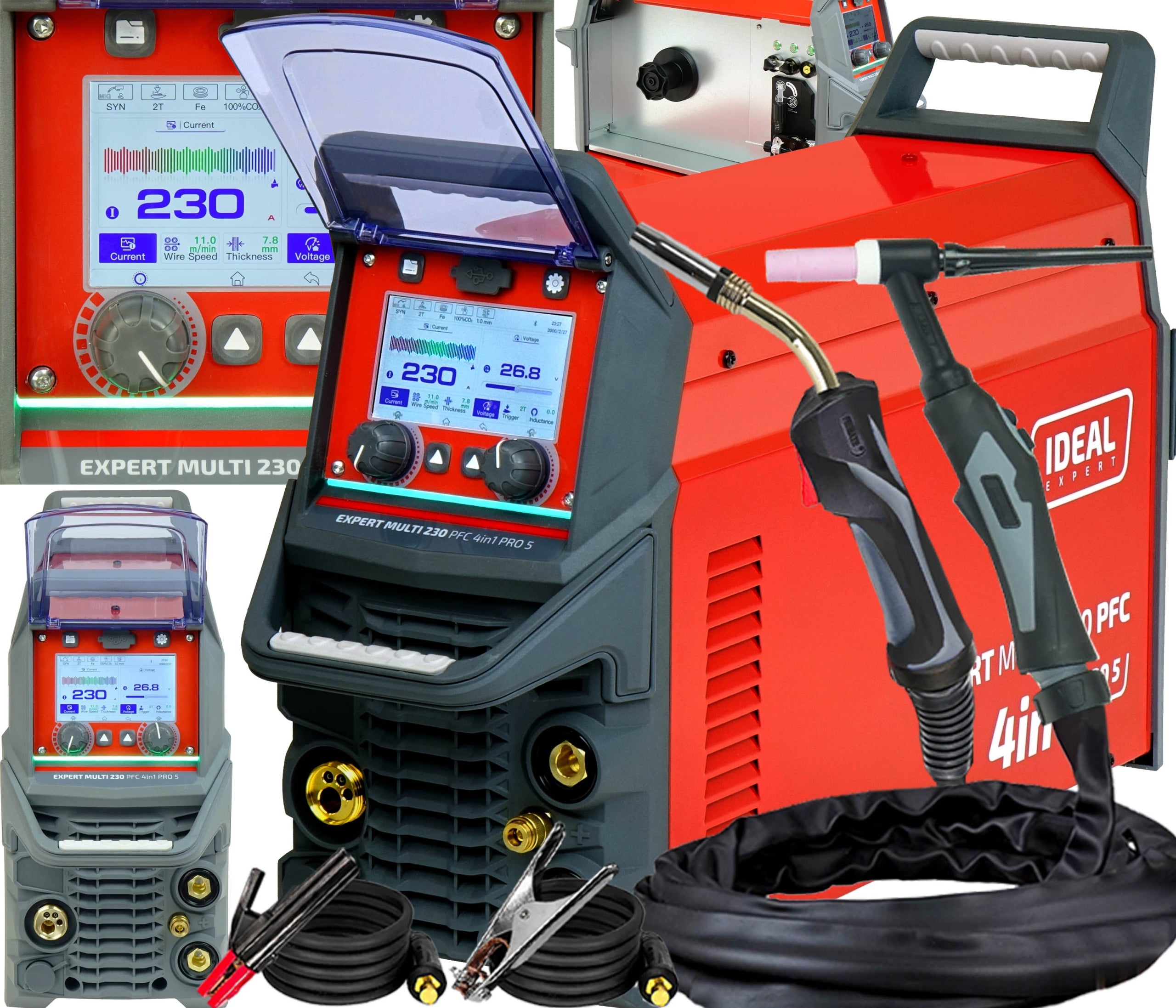

IDEAL EXPERT MULTI 230 PFC 4in1 Pro5 has a readable and easy to use function panel, which has m.in.:

1. JOB button - Key with folder icon. A single press opens the device's JOB desktop.
2. USB slot
3. SETTING button - Key with sprocket pictogram. A single press opens the device settings dashboard.
4. LCD display - Touch screen showing all parameters and functions of the device.
5. Left potentiometer (LP) - Responsible for adjusting some functions/parameters. Allows left/right movement and pressing.
6. Functional button left (LK) - Pressing the button triggers the menu to select the welding method or return to the main board, previously selected method.
7. Functional button right (PK) - Pressing the button triggers the menu of additional functions or returns to the main board, previously selected method
8. Right potentiometer (PP) - Responsible for adjusting some functions/parameters. Allows left/right movement and pressing.

IDEAL EXPERT MULTI 230 PFC 4in1 Pro5 has a 5-inch touch LCD display which makes the device very easy to use. The display has m.in.:

• Dapult Settings SETTING,
• Welding method selection panel,
• JOB desktop,
• Pulpit MIG MAN/MIG SYN/MMA/TIG LIFT/TIG HF
• DESKTOP SMART TIG
• Additional functions for each welding method.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FARMS

✔ OF ALL BODYWORK REPAIRS

✔ ASSEMBLY SERVICES

✔ FACTORIES

✔ SHIPYARD

AND WHEREVER RELIABILITY MATTERS!

The TIG DC, TIG DC PULS, TIG AC and TIG AC PULS function is used for welding stainless steel, carbon and low alloy steels, copper, titanium, aluminum and its alloys and brass. Welding is carried out in an inert gas shield.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

The welding machine is equipped with a professional TIG welding torch with remote adjustment in the handle!

✔ CHOICE OF AC WAVEFORM SHAPE: waveform adjustment allows for more precise impact on the weld (width, height, depth of melting)

• SQUARE - rectangular waveform of alternating current allows welding aluminum with the addition of magnesium,
• SINUS - sinusoidal waveform is recommended for welding pure aluminum 99,999%,
• TRIANGULAR - setting the triangular shape of the current wave is optimal for welding thin elements, including anodized aluminum.

✔ REGULATION balance, current frequency, pulse frequency

✔ REGULATION time of descent and increase of current

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ TIG AC/DC WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ SYNERGY (MIG/TIG) - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SPOT WELDING - It consists in making small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas flow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ S2T - special two-bar with hot start and final current.

✔ S4T - special four-bar with hot start and final current.

✔ SLOW FEED - adjustable wire access speed, allows stable glowing especially in cases of high wire feeding speed. It reduces the risk of welding defects at the beginning of the weld to a minimum.

✔ BURN BACK - It is possible to adjust the time for which the voltage at the output of the device still occurs after stopping the wire feeding. This feature prevents the welding wire from getting stuck in the welded material and prepares the end of the wire for the next arc. Higher function values cause the wire to burn closer to the current tip.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ The welder also has functions such as: HOT START, ARC FORCE, VRD, language selection, fan mode, program recording.

⭐ SMART TIG - function, in which the user selects the basic welding parameters sequentially. On their basis, the device selects optimal parameters of welding current or shielding gas outflow.

⭐ MIX AC/DC - hybrid function, combining the interaction time of alternating current AC and constant current DC, expressed as the percentage ratio of AC to DC. It is recommended not to reduce the share of AC current to below 50%. Value adjustment refers to AC current, where the range of its change is 10÷80%

⭐ MULTITACK - a kind of intermittent welding. A function enabling the so-called "cold welding", with the adjustment of the weld frequency in a separate range.

⭐ EXTRA FUSION - replacement function for AC balance, allowing to increase the share of negative polarity during welding, in order to ensure better melting of the material. Mainly recommended for thin aluminium alloy profiles. Percentage regulation in the range of 1÷80%.

⭐ Q-START - time function "hot start", facilitating arc stabilization and "heating" of the material during welding. Recommended for hard-to-reach workspaces, poorly prepared surfaces or when welding very thin elements.

⭐ DYNAMIC ARC - function that changes the relationship between welding current and arc voltage, in the manner chosen by the user. In this way, it allows you to adjust the concentration of the arc and maintain the width of the weld. The function adjustment refers to the change in the current value, which occurs to change the voltage by every 1V.

⭐ MULTIWAVE - allows you to set the characteristics consisting of two curves.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

Inside the feeder chamber there are also polarity change sockets:

• Buy socket (left)
• Dismiss socket (right)

and function buttons (from left):

• Lighting on/off,
• Gas check,
• Checking wire feed.

➡ The device is equipped with overload protection, over and undervoltage protection, to work with a generator (+/- 15%) which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

❄ The fan cooling system - activated only when necessary - reduces contamination inside the unit.

⏩ TECHNICAL DATA:

• Power supply voltage: 1~230±10%
• Power supply network protection: C25
• Frequency [Hz]: 50/60
• Idle voltage: 80 V
• Power consumption in idle state [W]: 37
• Efficiency ext. devices [%]: 82

⏩ MIG PARAMETERS:

• MIG/MAG welding current: 25 - 230 A
• Welding current at 60% operation: 230 A
• Welding current at work 100%: 145 A
• Wire spool size: D200 (2 and 5 kg)
• Wire feeder: 4x4
• Aluminum wire diameter: 0.8-1.2 mm
• Diameter of soldering wire: 0.8-1.0 mm
• Diameter of self-shielding wire: 0.8-1.2 mm
• Diameter of steel wire: 0.6-1.0 mm
• Stainless steel wire diameter: 0.8-1.0 mm

⏩ MMA AND TIG PARAMETERS:

• Welding current: 10 - 200 A
• Welding current at 60% operation: 200 A
• Welding current at work 100%: 100 A
• Diameter of welding electrode: 1.6-5.0 mm
• Pulse frequency [Hz]: 0.5÷999.0
• Pulse cycle [%]: 5-95
• AC frequency [Hz]: 50-250
• AC Balance: (-)5÷(+)5

⏩ OTHER:

• Degree of protection: IP23S
• Cooling: AF
• Isolation class: H
• Weight of the device : 20 kg

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine IDEAL EXPERT MULTI 230 PFC 4in1 Pro5 - 1 pc.
• Welding torch MB24 - 3 m - 1 pc.
• TIG 26 with remote adjustment (potentiometer) - 4 m - 1 pc.
• TIG 26 handle consumable parts
• Bulk cable - 3 m - 1 pc.
• Electrode cable - 3 m - 1 pc.
• Hose with quick coupler

SET OF 1 4IN1 MULTI INDUCTANCE MB24.

M.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	20 kg
Parametry	Welding range	10–230 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	25 kg
Parametry	Manufacturer code	EXMULTI230V2
Parametry	EAN (GTIN)	5903991110640
Parametry	Model	EXPERT
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
