Suvirinimo aparatas IDEAL V-MIG 330 4x4 DIGITAL MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL V-MIG 330 4x4 DIGITAL MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: V-MIG 330
• Ilgis: 840 mm
• Plotis: 410 mm
• Aukštis: 720 mm

Inverter semi-automatic welding machine 400V

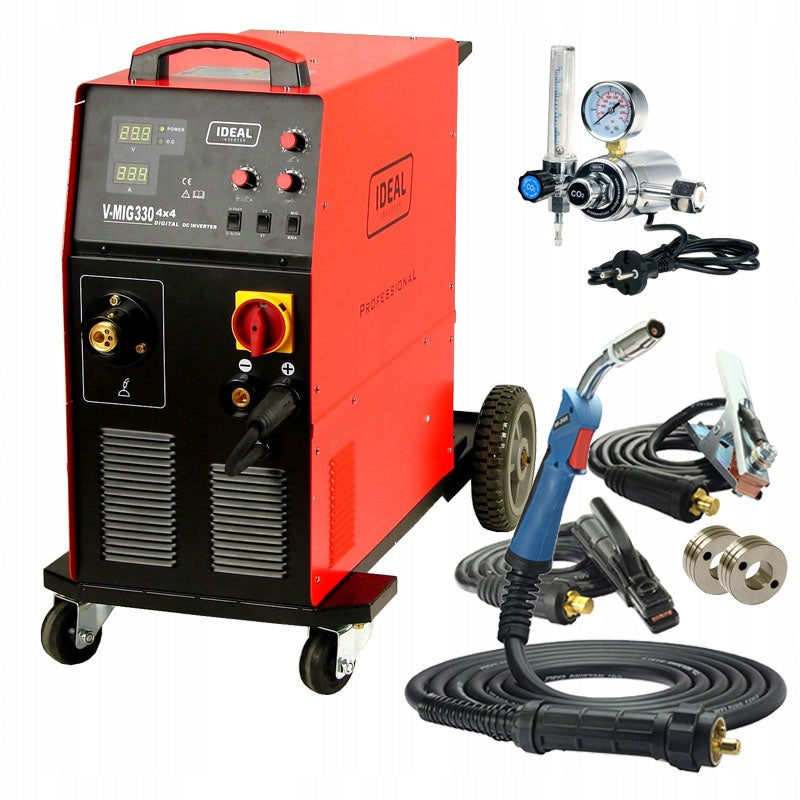

The offered set includes:

- MIG 24/3m welding torch with EURO plug

- 3 m mass cable

- 3m electrode cable with handle

- Set of guide rollers (2pcs) welding wire 0,8-1,0V

- Ar/CO2 reducer with heater

V-MIG 330 4x4 DIGITAL MMA welding machine IDEAL

Professional inverter semi-automatic welding machine powered from three-phase network for MIG-MAG welding with gas shielded welding wire and MMA method. It allows welding of steel, stainless steel and aluminum of its alloys. It has a welding current stabilization system ensuring obtaining the set output parameters. This guarantees control of the current supplied to the welded material and obtaining a high-quality weld. The device is characterized by a stable arc, very easy lighting and simple operation, which allows you to perform welding work efficiently, quickly and professionally with a minimum of chipping.

PRODUCT CHARACTERISTICS

• The device is designed for professional use
• Three-phase power supply
• Maximum spool with wire: 15 kg
• With the MIG/MAG method, we can adjust: welding current, wire feed speed, wire burning time (reg. free end), inductance
• The device has the ability to select the button function in the handle between 2-bar or 4-bar operation (button lock for long welds),
• IGBT transistors for minimum electromagnetic interference, low power losses in basic systems, enabling increased efficiency and reliability of the power source
• Device equipped with EURO socket for connecting a welding torch
• Electronically controlled smooth regulation of welding current and wire feed speed
• Adjustable smoothly electronic choke allows you to get a small amount of chipping during welding
• Equipped with digital meters (voltmeter, ammeter)

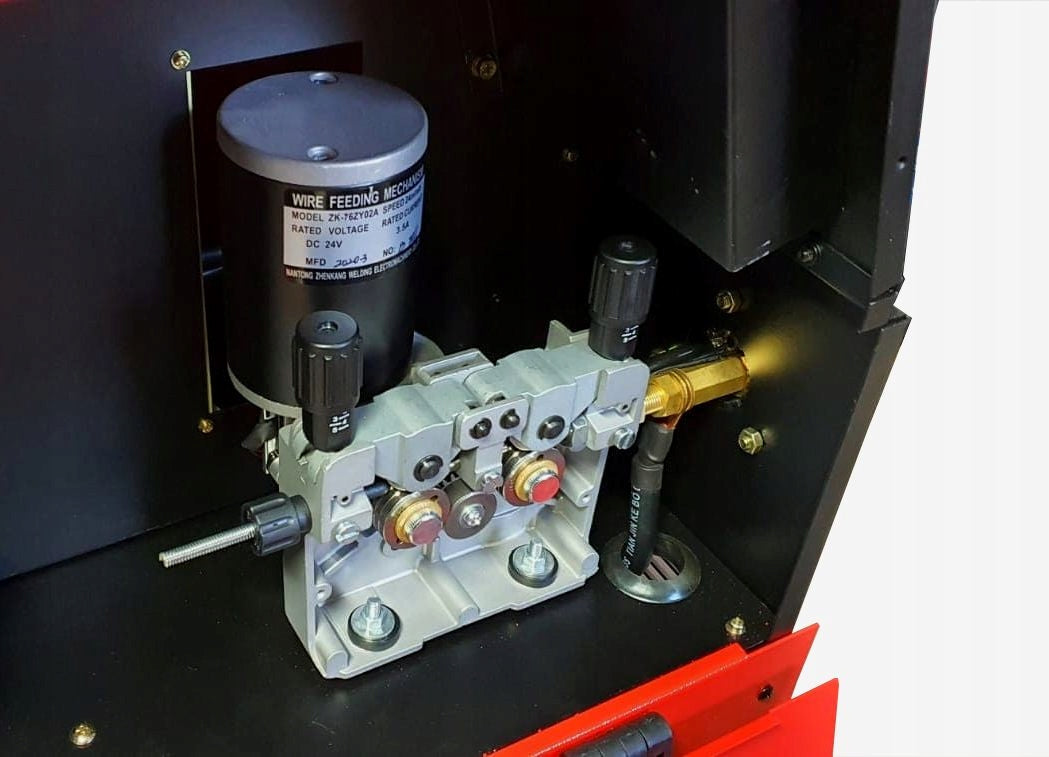

• Professional wire feeder: 4-roll, ensures stable feeding of the binder and allows the use of long welding handles
• Detachable cables for welding with wrapped electrode
• Transport wheels and platform with space for cylinder
• Fan-cooled
• Overload protection

PHYSICAL PARAMETERS

• Degree of protection: IP 21
• Weight: 37 kg
• Overall dimensions L x W x H: 840x410x720 mm
• Package Dimensions L x W x H: 935x495x800 mm

TECHNICAL PARAMETERS

• Power: 11 kW
• Idle Voltage: 45 V
• Current at 60% operation: 330 A
• Aluminium wire diameter: 0,8 - 1,2
• Self-shielding wire diameter: 0,8 - 1,2
• Steel wire diameter: 0,6 - 1,2
• Stainless steel wire diameter: 0,8 - 1,2
• Welding electrode diameter: 1,6 - 6,0
• Welding current adjustment range: 50 - 330 A

POWER SUPPLY PARAMETERS

• Current taken from the mains: 11 A
• Rated supply voltage: 3x400 V; 50Hz (3ph)

DELIVERY INCLUDES

• Semi-automatic welding machine
• MIG 24/3m welding torch with EURO plug
• Mass cable 3 m
• Electrode cable - MMA holder
• Guide Roller Set (2pcs) Welding Wire 0,8-1,0V
• Ar/CO2 reducer with heater
• Operating instructions
• Warranty card
• Purchase document
