Suvirinimo aparatas IDEAL TECNOMIG MIG/MAG/MMA/TIG, 200A, 2T/4T, Synergy rinkinys

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG MIG/MAG/MMA/TIG, 200A, 2T/4T, Synergy rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG203LEDRSW2
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

Manufacturer: IDEAL ||| Welding methods: MIG/MAG, MMA, TIG Lift, FLUX ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

MAG welding kit with cylinder Ar/CO2 8l

TECNOMIG 203 LED is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device is designed for a wide range of applications, from maintenance work to car body repairs.

TECNOMIG 203 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

With the MIG/MAG method, we can choose the button function in the handle between operation in 2T mode (without button lock)/4T mode (button lock for long welds)

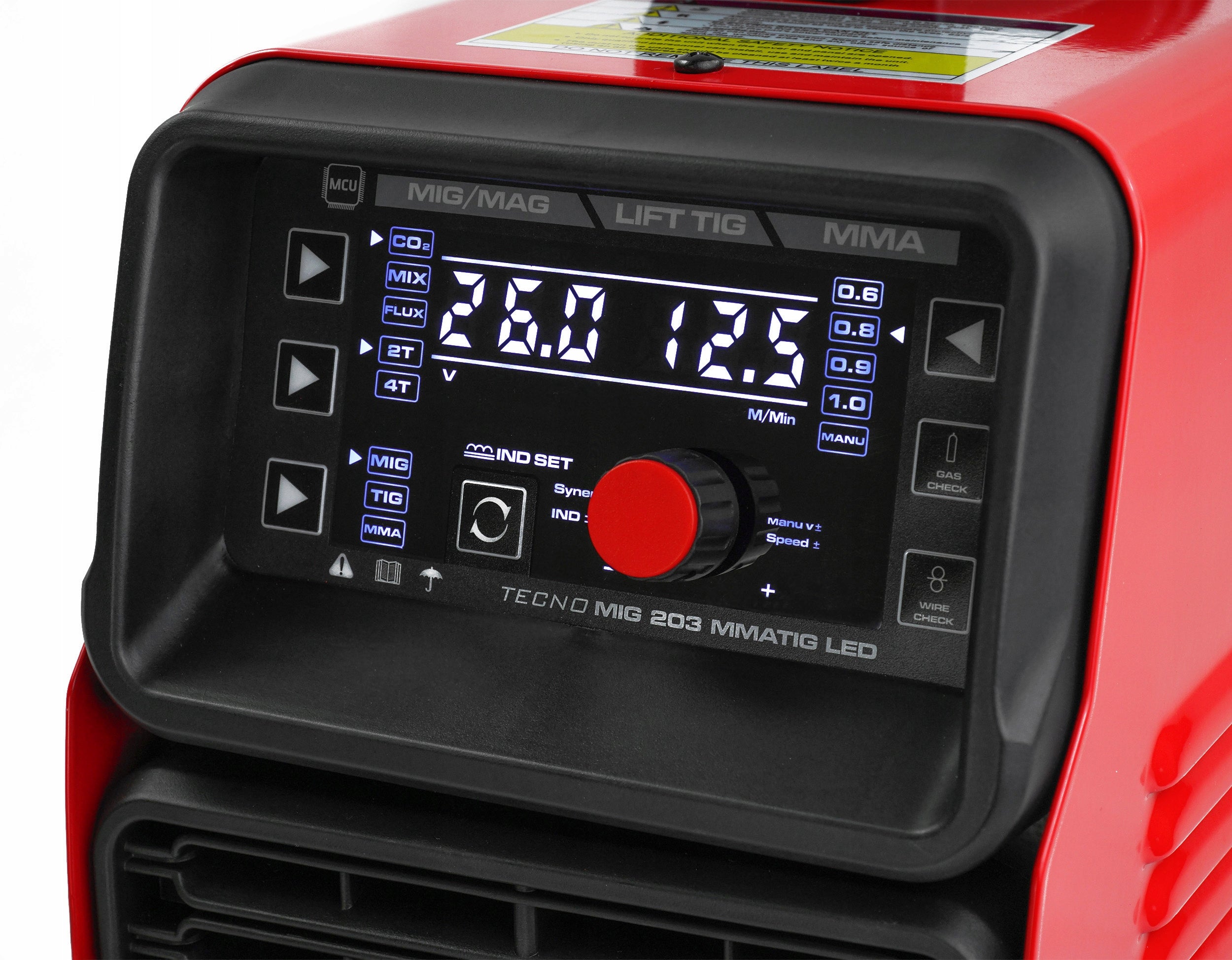

The easy-to-read LED display allows precise adjustment of the device, even in very strong lighting.

With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

➡ ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• operating modes 2T/4T - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• readable LED display, showing all parameters,
• the possibility of TIG DC Lift welding with a dedicated handle,
• solid, durable housing.

Professional wire feeder 2R

Professional feeder 2R - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination.

IDEAL - A GOOD CHOICE FOR TODAY AND TOMORROW

The IDEAL brand is the result of many years of activity of specialists in the welding industry. IDEAL devices are distinguished by attention to quality and diligence. Representatives of the IDEAL brand are constantly looking for inspiration, among others, through regular participation in national and international welding fairs. More than 30 years experience in the design and manufacture of devices is noticeable in IDEAL products.

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 5,9 kW
• Degree of protection: IP 21S
• Dimensions: 440x170x290 mm
• Weight 12,0kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 50 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 155A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Wire diameter for soldering: 0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES
• Synergistic MIG/MAG programs: YES
• Operating mode in manual settings MANUAL: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 200A
• TIG welding current regulation: smooth
• Two operating modes: 2T/4T
• Gas after (post gas): YES from 0,1 to 5,0s
• Micro switch control: YES
• Gas connection: by device

MMA welding parameters:

• MMA welding current: 10 - 160A
• Electrode diameter: 1,6 / 2,0 / 3,2 /
• MMA Welding Current Adjustment: Smooth
• Idle Current Voltage: 50V
• VRD Function: YES

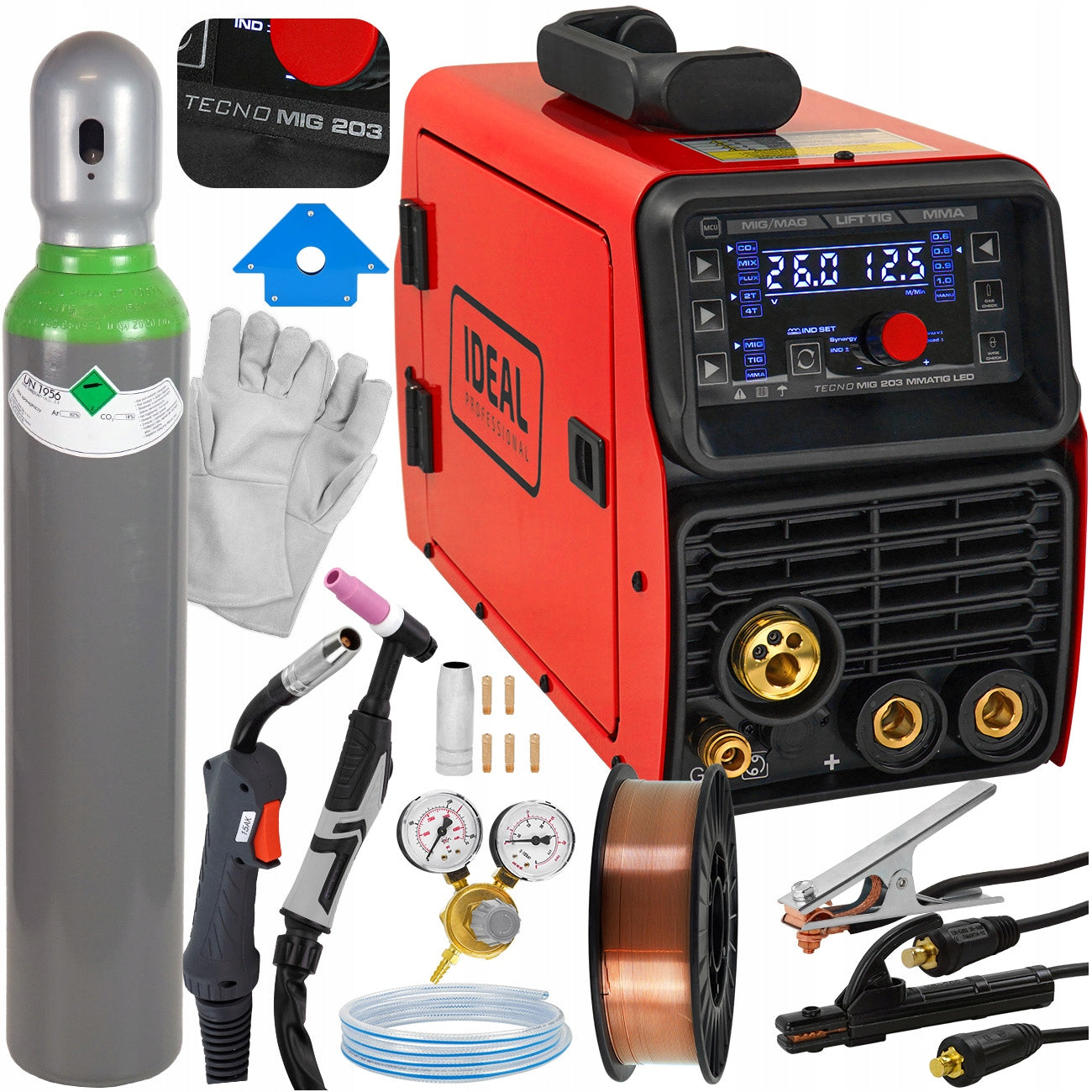

• Welding machine IDEAL TECNO MIG 203 LED
• MIG MB-15/3m welding torch
• TIG welding torch SR-17/4m
• MMA Electrode Cable
• Bulk cable
• User manual PL

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• factory new Ar/CO2 cylinder with a capacity of 8l - certified, has all the approvals required by gas sales points,
• cylinder reducer Ar/CO2 with two clocks,
• gas line,
• steel welding wire SG2 0,8mm x 5kg,

+ ADDITIONAL WELDING ACCESSORIES

• welding gloves,
• set of spare parts for the burner,
• magnetic angle midi.
