Suvirinimo aparatas IDEAL Tecnomig 215 MMA, pusiau automatinis inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL Tecnomig 215 MMA, pusiau automatinis inverteris. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG215MMA_pakiet4
• Ilgis: 550 mm
• Plotis: 230 mm
• Aukštis: 325 mm

+ MIG/MAG, MMA, TIG WELDING KIT, WHICH INCLUDES I.A.:

✔ WELDING ACCESSORIES

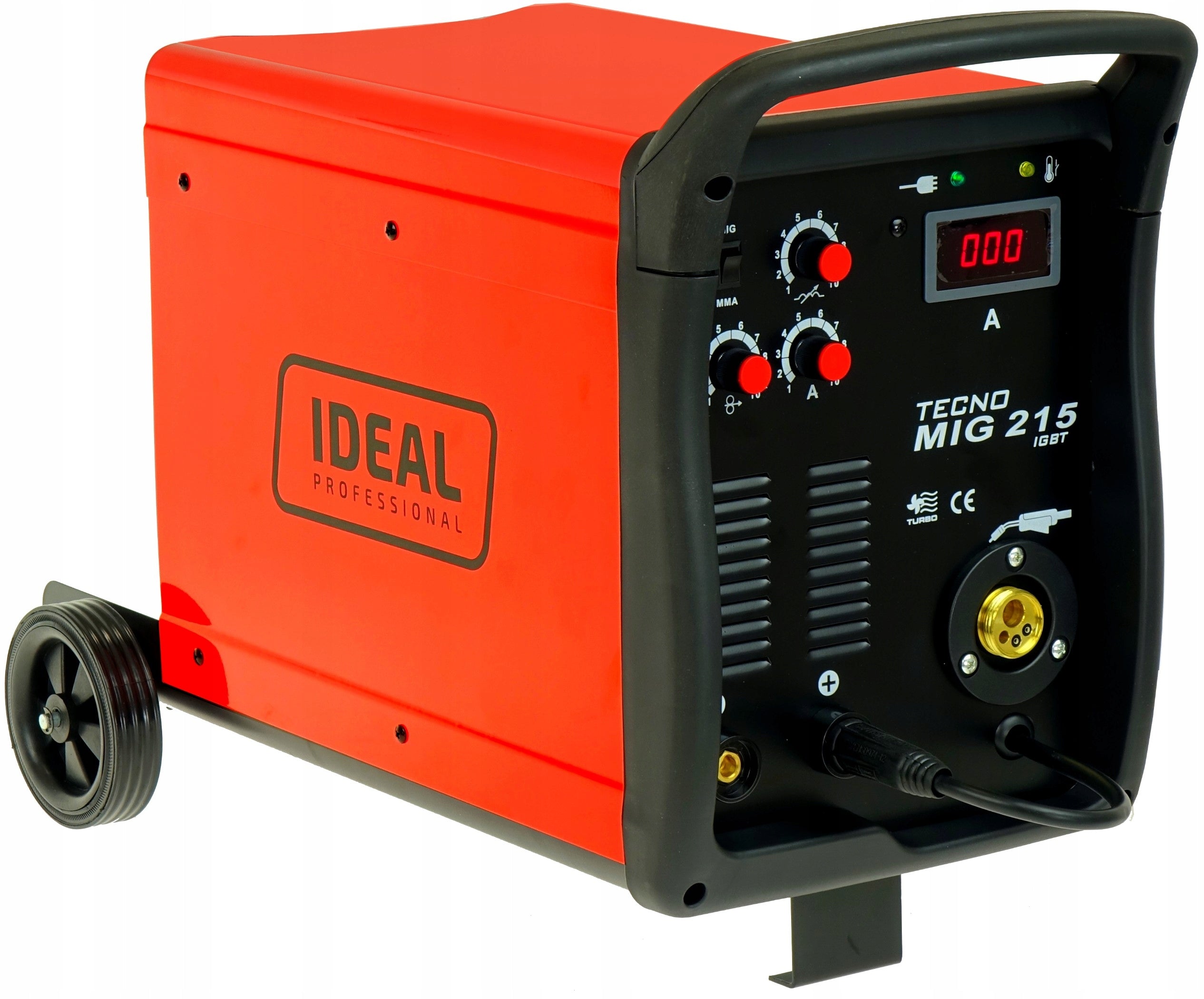

TECNOMIG WELDING MACHINE 215 MMA

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The TECNOMIG 215 MMA welding machine is used for welding:

✔ low alloy steels

✔ carbon steel

✔ stainless steel

✔ aluminium

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

IDEAL TECNOMIG 215 MMA has a readable and easy to use function panel, which has i.a.:

• MIG/MAG mode switch,
• Wire extension button,
• MIG/MAG welding current adjustment potentiometer,
• Wire feed speed control potentiometer,
• Positive/negative polarity socket,
• EURO socket for connecting a welding torch,
• Welding current indicator,
• Power supply lamp,
• Lamp overheating.

✔ REPAIR WORKSHOPS,

✔ AUTOMOTIVE INDUSTRY,

✔ MAINTENANCE WORK,

✔ ALL BODYWORK REPAIRS,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roller feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 230 V; 50Hz (1ph)
• Current taken from the network: 21.6 A
• Power: 5,5 kW
• Idle voltage: 43 V
• Efficiency: 60%

⏩ MIG PARAMETERS:

• Welding current: 30 - 200 A (max 230A)
• Power at work 60%: 200 A
• Welding current: 200A
• Feeder type: built-in 2-roller
• Aluminum wire diameter: 0,8 - 1,0mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Diameter of self-shielding wire:0,8 - 1,2 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Wire spool: 0,45-5 kg

⏩ MMA PARAMETERS:

• Welding current range MMA: 30-180A
• Diameter of welding electrode: 1,6 - 4,0 mm
• Welding current: 180A

⏩ OTHER:

• Weight: 15 kg
• Dimensions: 550x230x325
• Degree of protection: IP21

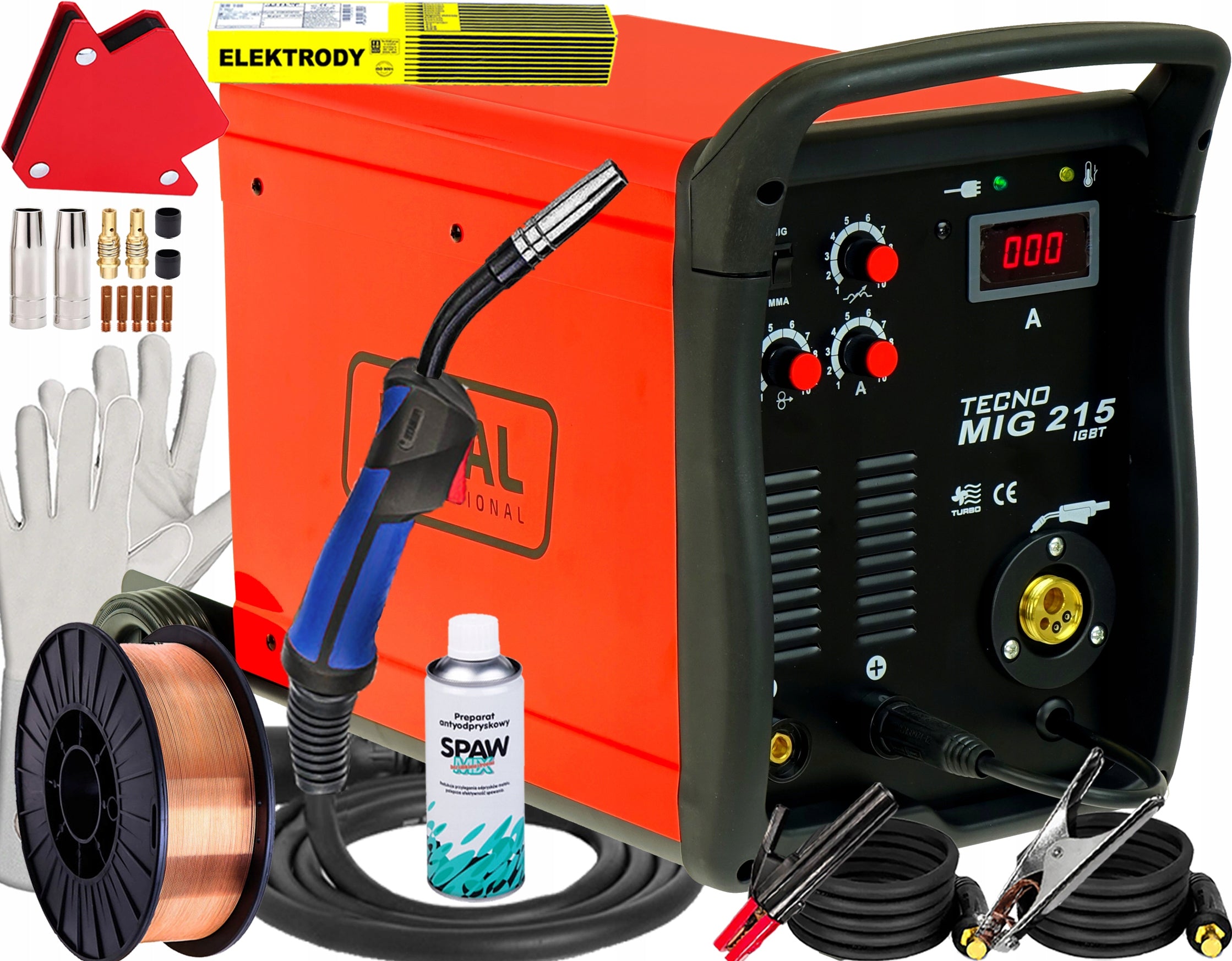

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

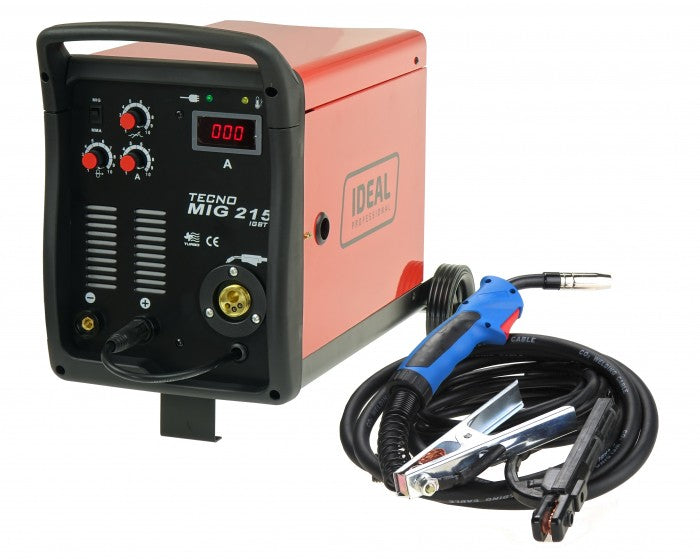

• Welding machine IDEAL TECNOMIG 215 MMA - 1 pc.
• Welding torch - IDEAL MB 15/3m - 1 pc.
• Electrode cable - 1 pc.
• Bulk cable - 1 pc.
• Instructions service in Polish

+ MIG/MAG + MMA WELDING KIT:

• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire FOR BLACK STEEL 0,8 mm - 5 kg - 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg

SET OF 2 MIG INDUCTANCE MB15.

M.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	15 kg
Parametry	Welding range	30–230 A
Parametry	Height	325 mm
Parametry	Length	550 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	TMIG215MMA_pakiet4
Parametry	EAN (GTIN)	5903991102010
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,welding mask included,infinitely adjustable welding current,EURO handle,LCD display
