Suvirinimo aparatas Ideal Tecnomig 200/2 PRO IGBT MMA 230/400V su balionu

Trumpai apie prekę

Prekė: Suvirinimo aparatas Ideal Tecnomig 200/2 PRO IGBT MMA 230/400V su balionu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: IDEAL TECNOMIG 200/2

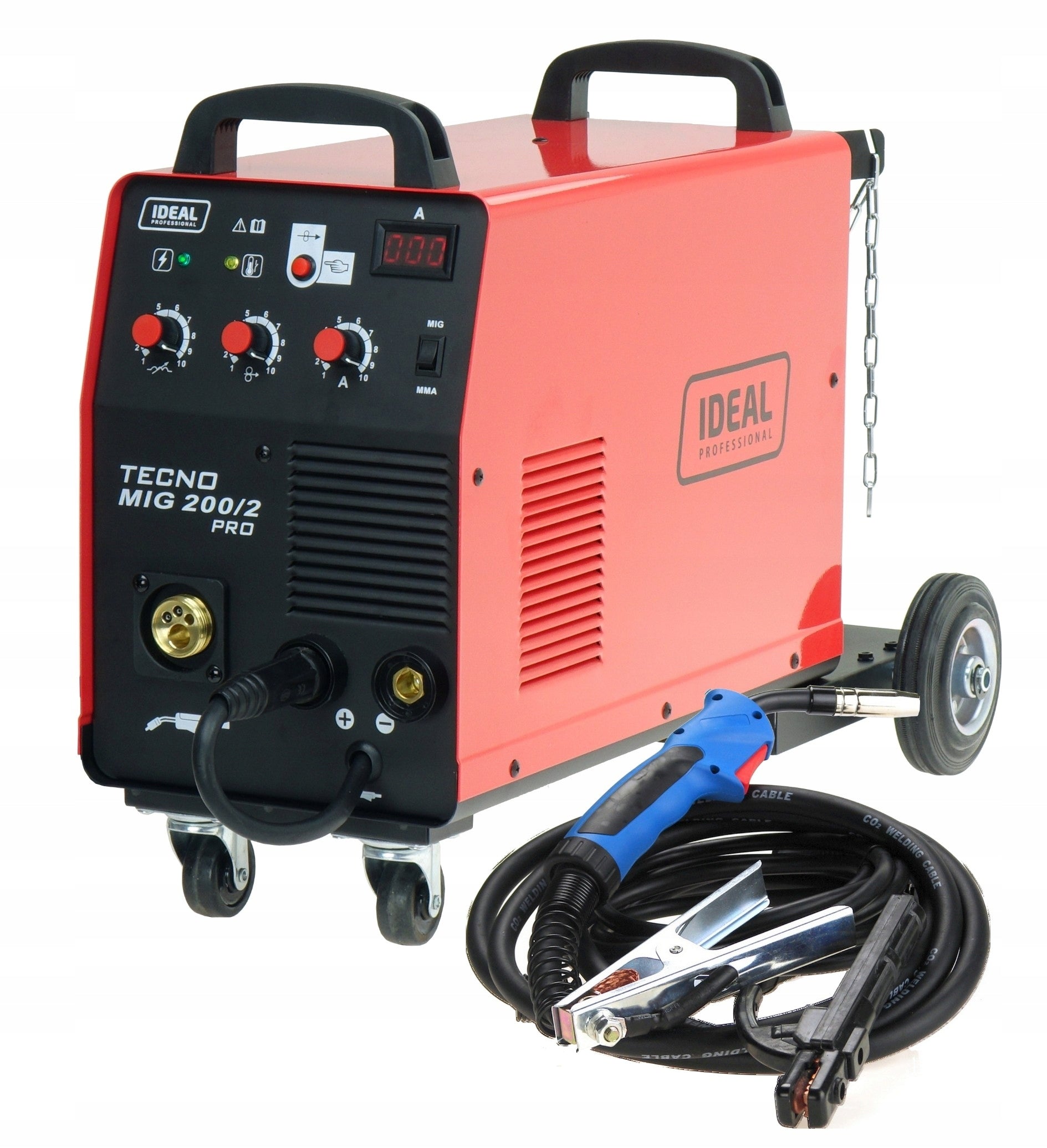

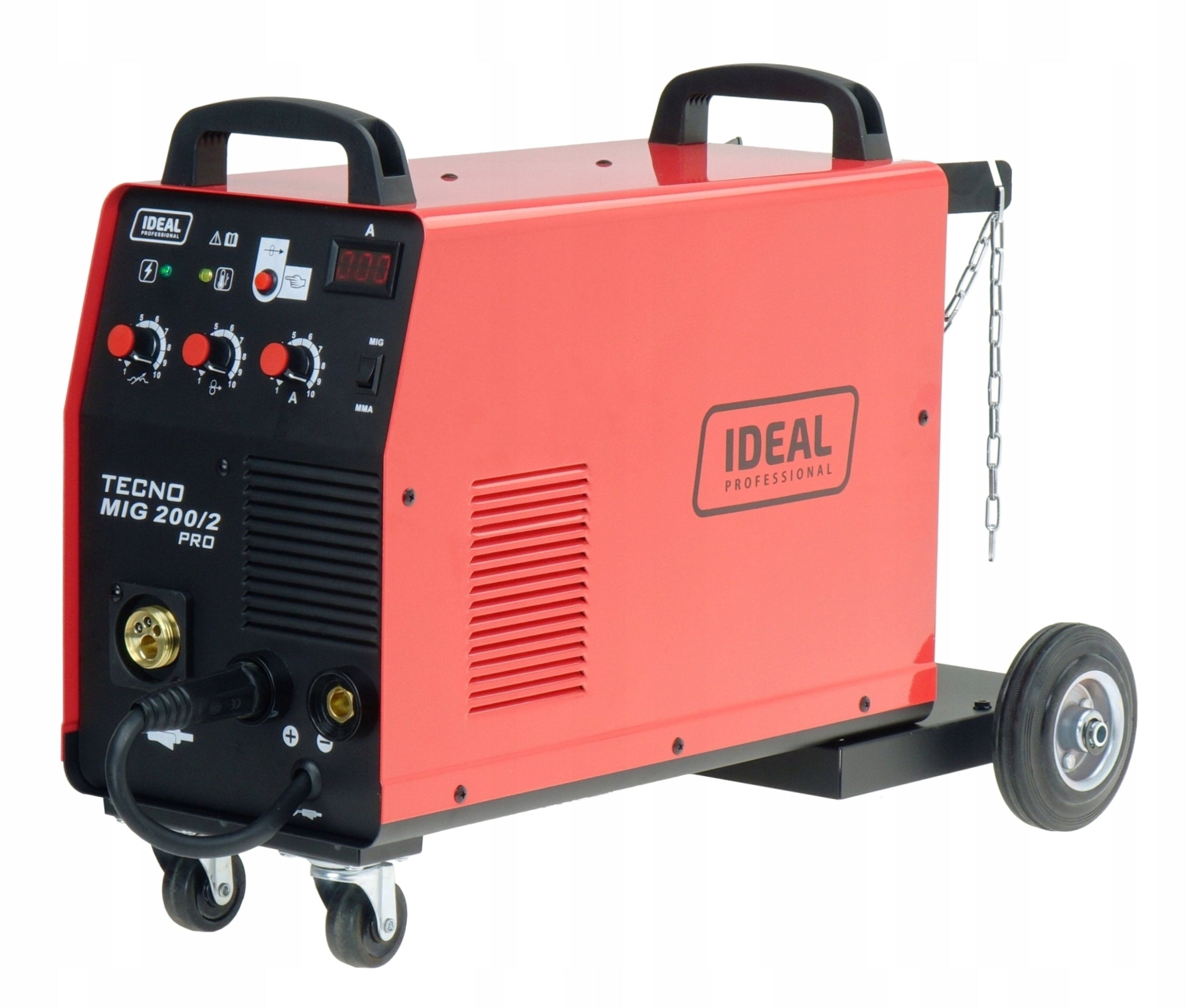

WELDER Migomat Ideal Tecnomig 200/2 PRO IGBT MMA 230/400V Cylinder Set

This device is used in locksmith workshops as well as in repair workshops. It enables welding with steel welding wires with a diameter of 0,6-0,8 mm, as well as self-shielding wires (welding "without gas") and electrodes with a diameter of 1,6-4 m. MIG 200 IGBT MMA is a device adapted to power from a single-phase network of 230 V, 50 Hz / 400V. This device is equipped with an overload thermal protection system, preventing excessive overheating.

MIG 200/2 PRO devices are based on the latest, most advanced technology, using IGBT transistors.

Thanks to the special design, bipolar power transistors with an isolated gate (IGBT - Insulated Gate Bipolar Transistor) are in many respects a more advantageous solution and in many applications are a better solution than traditional MOSFET transistors.

The source based on IGBT transistors offers stronger, more concentrated and stable arch with less power consumption. It provides a minimum of electromagnetic interference, small power losses in basic systems to increase the efficiency and reliability of the power source.

The features of these transistors are very high efficiency, which translates directly into lower power consumption, high switching frequency, ensuring instant adjustment of current to changes in parameters during welding.

• building companies
• car workshop
• locksmith workshop
• household

✅ LED signaling diodes: overload

✅ electronically controlled smooth regulation of welding current

✅ for welding low carbon steel, low alloy steel (MAG), alloy steel (MIG), aluminium

✅ Possibility of soldering

✅ Welding FLUX

✅ electronically controlled smooth regulation of wire feed speed

✅Quick Wire Feed Button

✅ Low weight only 15 KG

✅ Professional metal feeder

✅overload protection.

✅Designed for workshop and field work.

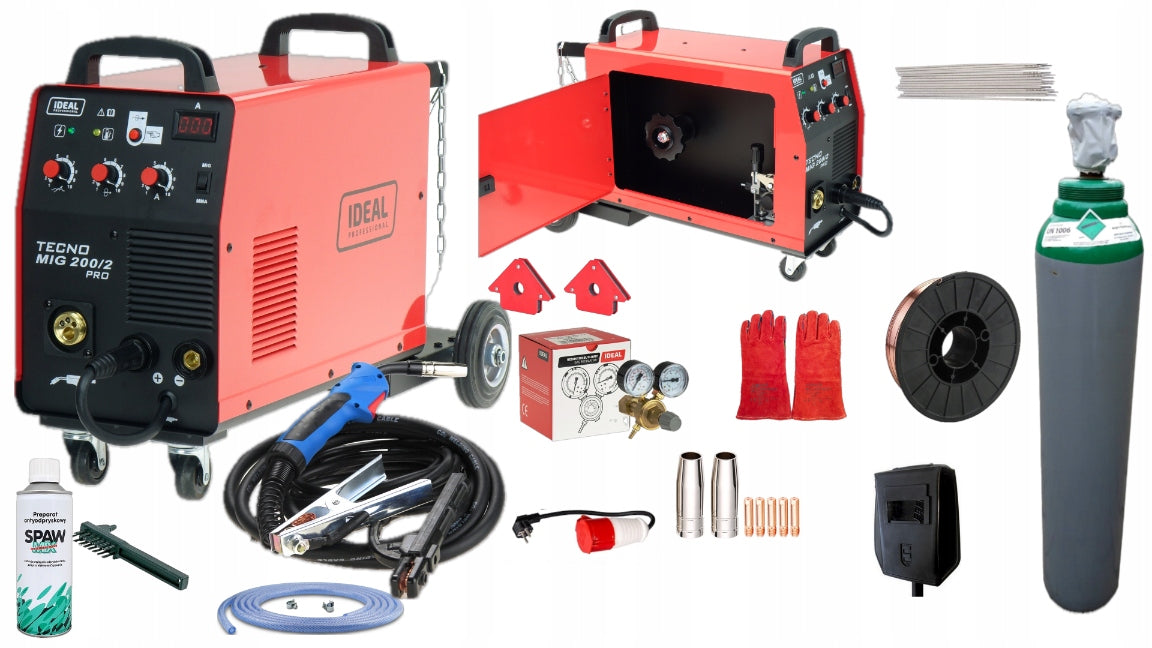

The set includes:

• MIG 200/2 MMA IGBT
• MIG holder 3 meters
• Mass holder 2m
• Handle Electrodes 2m
• Adapter 400v/230v
• Operating parts of welding torch
• Gas hose
• New 8l cylinder filled with CO2/AR Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization 10 years interchangeable at each distributor
• Welding wire Sg2 0,8/5 KG
• Anti-chipping SPRAY
• Welding gloves
• Mini reducer
• Hammer-brush
• 2 welding angles 12 Kg
• 1 KG Rutile Electrodes

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

Inductance - optimizes arc characteristics depending on the thickness of the material being welded. This function is useful during MIG/MAG welding of thin elements - prevents them from burning (the thinner the inductance element should be greater), affects the shape of the weld, its width, depth of melting and the number of splashes,

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets of covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for spanding galvanized sheets, but also thin sheets made of stainless steel and various name connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

• Idle voltage: 56 V
• Maximum current: 200A
• Power at work 100%: 130 A
• Power at work 60%: 200 A(MIG) / 180 A(MMA)
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,2 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Diameter of welding electrode: 1,6 - 4,0 mm
• Degrees of welding current adjustment: Gradually
• Welding current adjustment range: 30 - 200 A
• WEIGHT 15KG

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	8 kVA
Parametry	Duty cycle time	60%
Parametry	Device weight	15 kg
Parametry	Welding range	30–200 A
Parametry	Manufacturer code	IDEAL TECNOMIG 200/2 RSH5
Parametry	EAN (GTIN)	5904624016445
Parametry	Packaging status	original
Parametry	Model	IDEAL TECNOMIG 200/2
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO holders,LCD display
