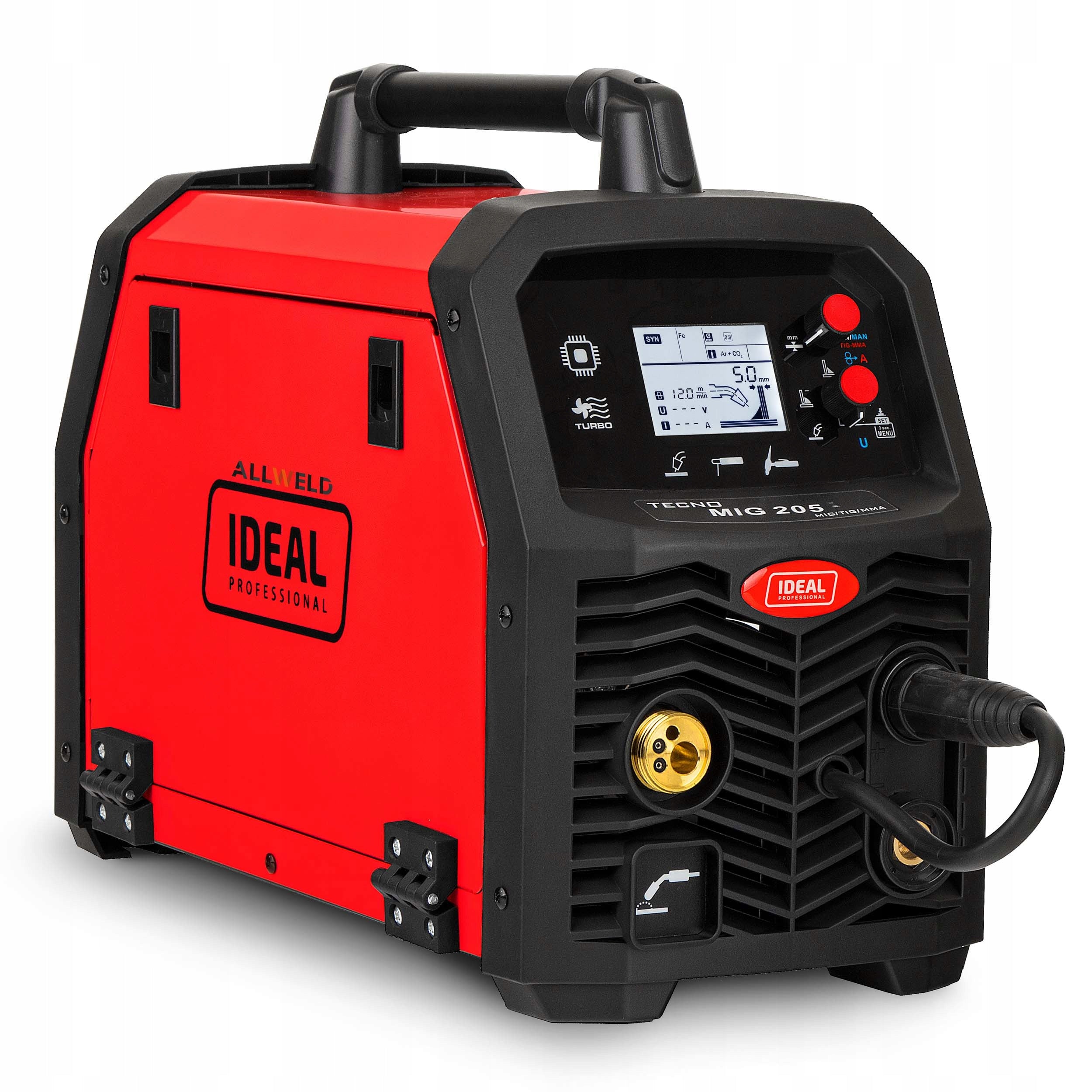

Suvirinimo aparatas IDEAL TECNO MIG 205 LCD SYNERGY ALUMINIUM IGBT 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 205 LCD SYNERGY ALUMINIUM IGBT 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 205 new
• Ilgis: 540 mm
• Plotis: 240 mm
• Aukštis: 385 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60% ║ Weight: 15kg

GET TO KNOW THE ADVANTAGES OF THE DEVICE:

• High duty cycle 60% at 200A current
• Starting current from 35A!
• Automatic selection of parameters!
• Automatically selects operating parameters
• Wide application: small workshops and industry!
• Easy to use
• Perfect display contrast!
• Proven manufacturer
• Additional features: Burnback, overload switch
• A handle for easy transport
• Optimal dimensions and weight
• IGBT transistors - modern inverter
• Built-in programs for: STEEL, ALUMINUM, INOX and CuSi BRAZING
• Adjustable INDUCTION !
• ATC function - optimization of thin sheet welding
• MANUAL and SYNERGY operating modes
• Precision welding
• Fan - perfect cooling of the welding machine!
• The display shows the effect of changing the welding parameters on the shape of the weld face .

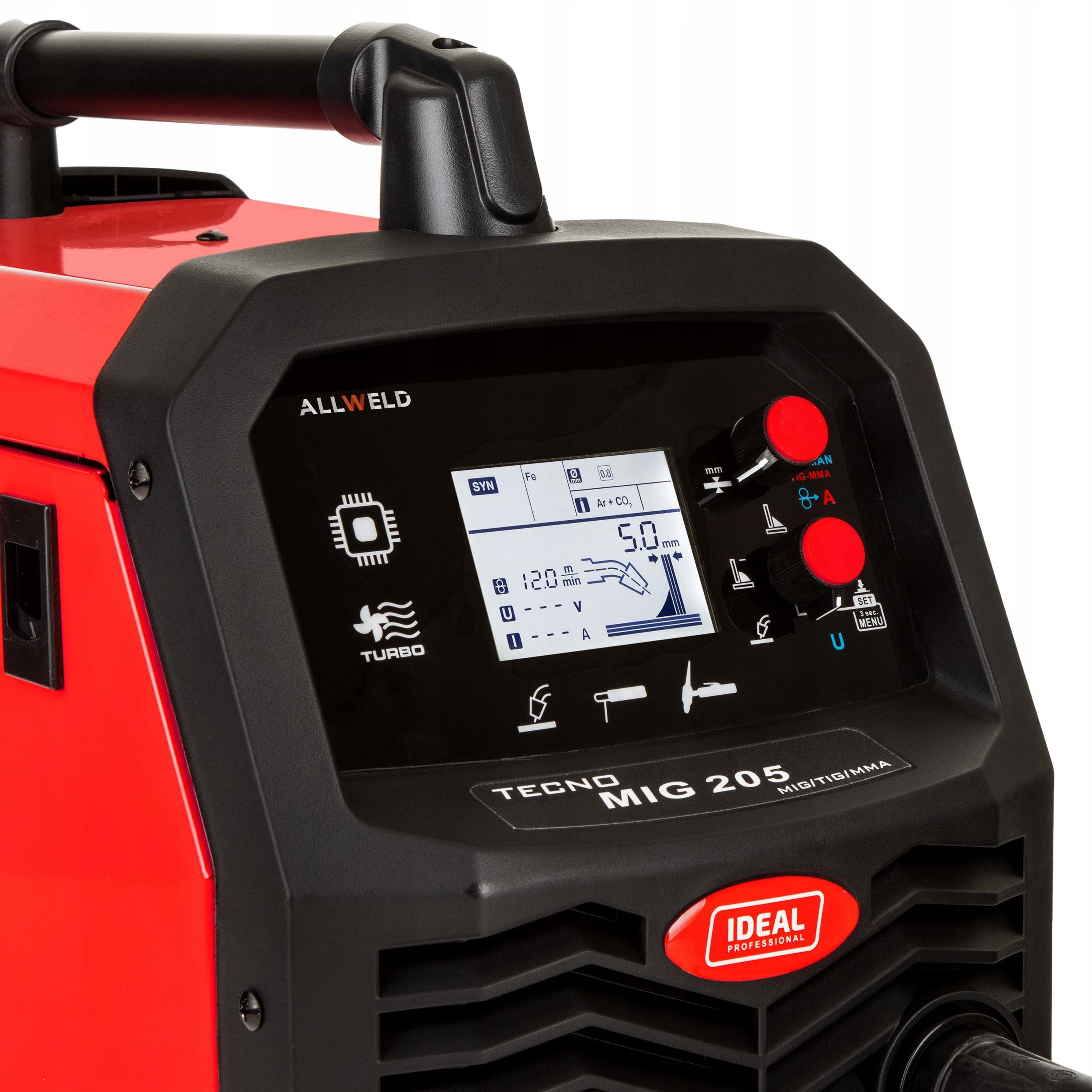

INTUITIVE CONTROL PANEL WITH LCD DISPLAY

The Ideal SYNERGY welding machine with an LCD display allows full control of the welding parameters. The easy-to-read display with high contrast allows you to work in bright rooms.

SYNERGIC AND MANUAL MODE

Two operating modes: MANUAL - in this mode, the user manually sets welding parameters such as: welding current, wire feed and inductance. SYNERGY - the microprocessor selects the settings of the welder on the basis of: the type and thickness of the material being welded, the type of gas and the diameter of the wire. The operator corrects the parameters to his own needs from -9 to +9.

FAST AND AUTOMATIC PARAMETERS SELECTION

The biggest advantage of this type of welder is the quick and automatic selection of welding parameters thanks to the built-in programs . After entering the basic parameters, it is enough to adjust the welder with one knob. Thanks to this solution, you can weld any material very precisely, without wasting time on selecting the appropriate parameters.

IGBT - the welder uses modern transistors, a solution that ensures minimum electromagnetic interference, low power losses in the basic systems, enabling increased efficiency and reliability of the power source.

2T/4T - with two-stroke, after pressing the start button, the welding process starts, after releasing the button, the welding process is stopped - with four-stroke, after the first pressing and releasing the button, the welding process starts with the second pressing, it is a more convenient solution for longer welds.

FULL SYNERGY - it is a modern electronic microprocessor control that automatically selects operating parameters depending on the diameter of the wire, type and thickness of the material.

REG. INDUCTION - allowing for the introduction of less heat in the place of welding. The sheet does not deform and the protective zinc layer is not damaged, useful in brazing .

BRAZING - a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much lower. This causes that brazing is used to connect thin sheets covered with a layer of zinc . The described method is a bonding process during which the solder is melted, not the material we are working with . The second part of the name, MIG/MAG, comes from the use of the method of melting the wire in an electric arc surrounded by a protective gas, as well as from preparing the edge of the material in the same way as for traditional welding. However, the braze welding method is used not only to join galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. stainless steel with ordinary steel or copper with steel.

FCAW - the ability to weld with cored wire without using a gas cylinder. The wire itself ( FLUX ) is filled with a substance that produces gases during welding.

SPOT WELDING - the MIG MAG function, rarely found in this class of devices, is much more universal than in TIG, although showing lower metallurgical purity. It does not require a perfect combination of elements.

BURN BACK - prevents the electrode wire from melting to the contact tip as a result of the wire being temporarily pulled out after the welding process is completed.

ATC - advanced thermal control function, active when welding thin materials with a thickness of less than 1.5 mm. Stabilizes the arc by reducing the peak value of the welding current. The amount of heat transferred to the material is reduced, reducing the risk of material deformation.

POWER PARAMETERS

• Power supply: 230V - 1PH
• Frequency: 50Hz
• Power protection: 25C
• Mains current: 20.3A

TECHNICAL PARAMETERS

• MMA welding current: 20-150A
• TIG welding current: 20-150A
• MIG/MAG welding current: 30-200A
• Efficiency: 60%
• Idle voltage: 64V
• Aluminum wire diameter: 0.8 - 1.0 mm
• Brazing wire diameter: 0.8 - 1.0 mm
• Self-shielding wire diameter: 0.8 - 1.2 mm
• Steel wire diameter: 0.6 - 1.0 mm
• Stainless steel wire diameter: 0.8 - 1.0 mm
• Welding electrode diameter: 1.6 - 3.2 mm

AVAILABLE FUNCTIONS

• MMA function: YES
• TIG LIFT function: YES - friction
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• Welding function without gas: YES

TRAY DATA

• Feeder: 2R
• Applied spool weights: 1-5kg
• Spool size: D100/D200
• Wire diameter: 0.6/0.8/1.0mm

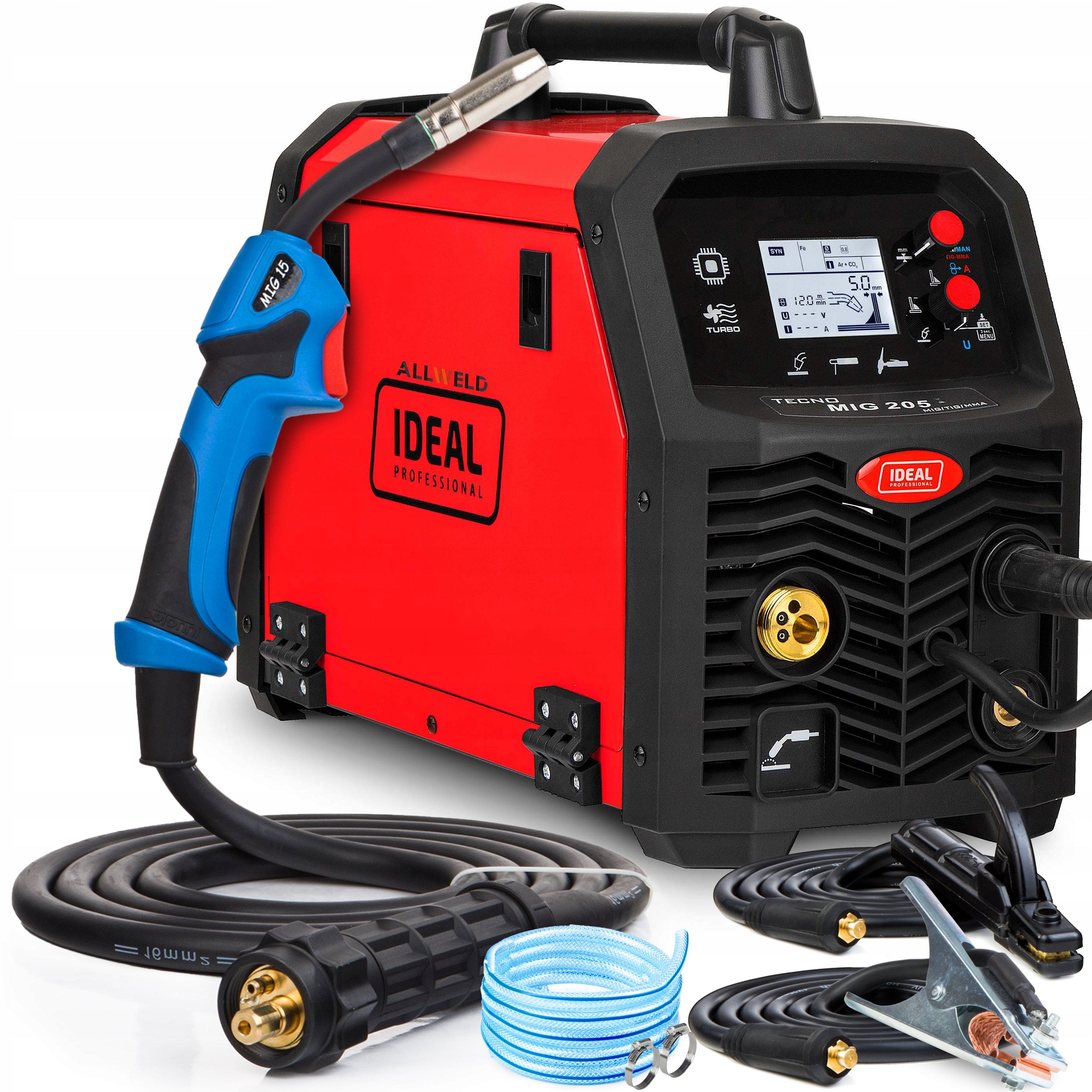

SET CONTAINS:

• Welder IDEAL TECNOMIG 205 v2 LCD SYNERGY
• MIG/MAG welding torch type MB 15 - 3m
• Electrode holder - 2m
• Mass handle - 2m
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	15 kg
Parametry	Welding range	30–200 A
Parametry	Height	385 mm
Parametry	Length	540 mm
Parametry	Width	240 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	28 kg
Parametry	Manufacturer code	TECNO MIG 205 new
Parametry	EAN (GTIN)	5903991108401
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
