Trumpai apie prekę
Prekė: Suvirinimo aparatas IDEAL TECNO MIG 205 200A MMA TIG 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TMIG205LCDV2 MAPR2-15-N
- Ilgis: 540 mm
- Plotis: 240 mm
- Aukštis: 385 mm
IDEAL TECNOMIG 205 SYNERGIC LCD - SYNERGISTIC MIG 3in1 AT A GREAT PRICE
MANUFACTURER: IDEAL|| WELDING METHODS: MIG/MAG, MMA, TIG DC Lift, FLUX|| SELECTED ADVANTAGES: SYNERGY, ATC|| POWER SUPPLY: 230V 1ph
- full free post-purchase support
- You can call us at any time and we will help you set the parameters and operate the device

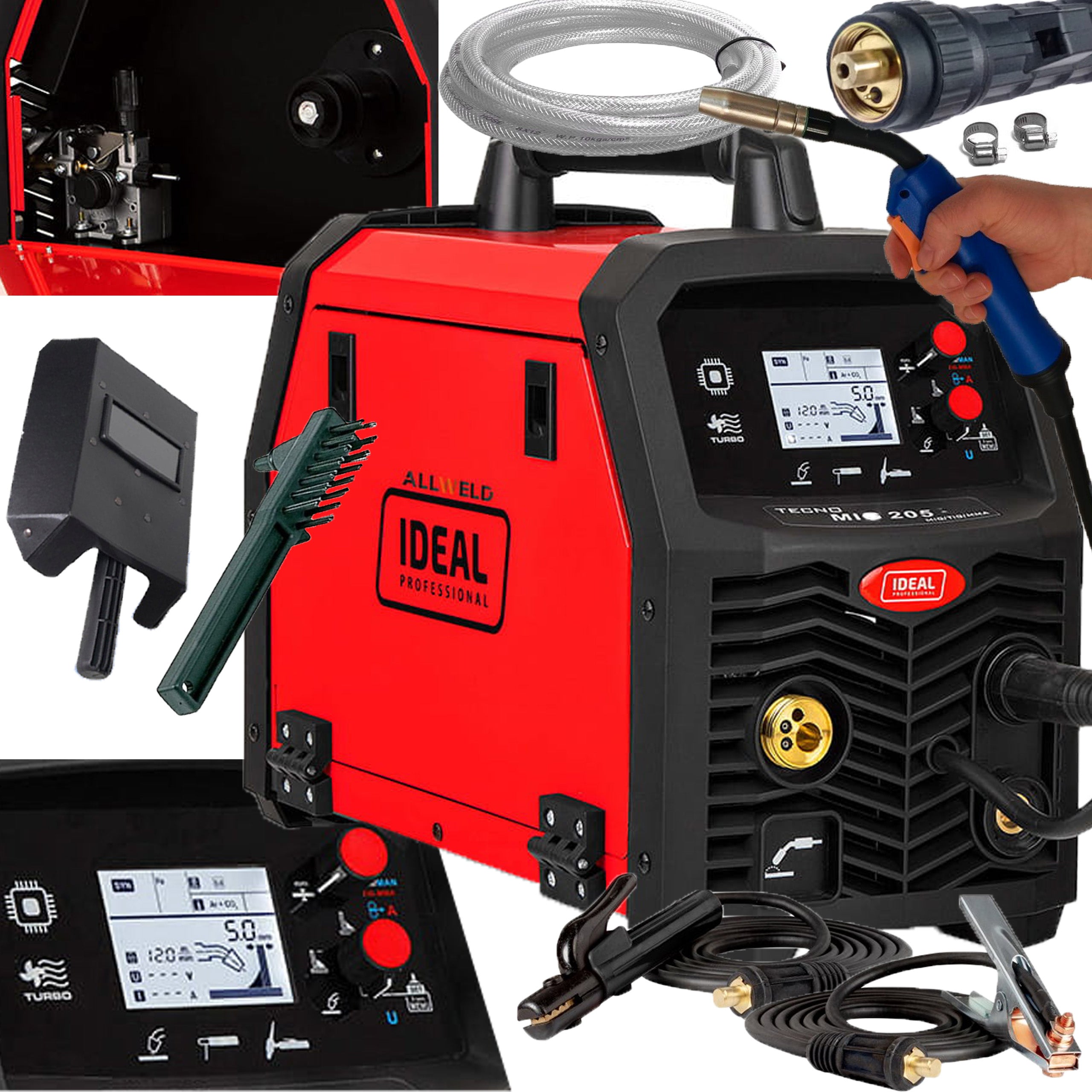

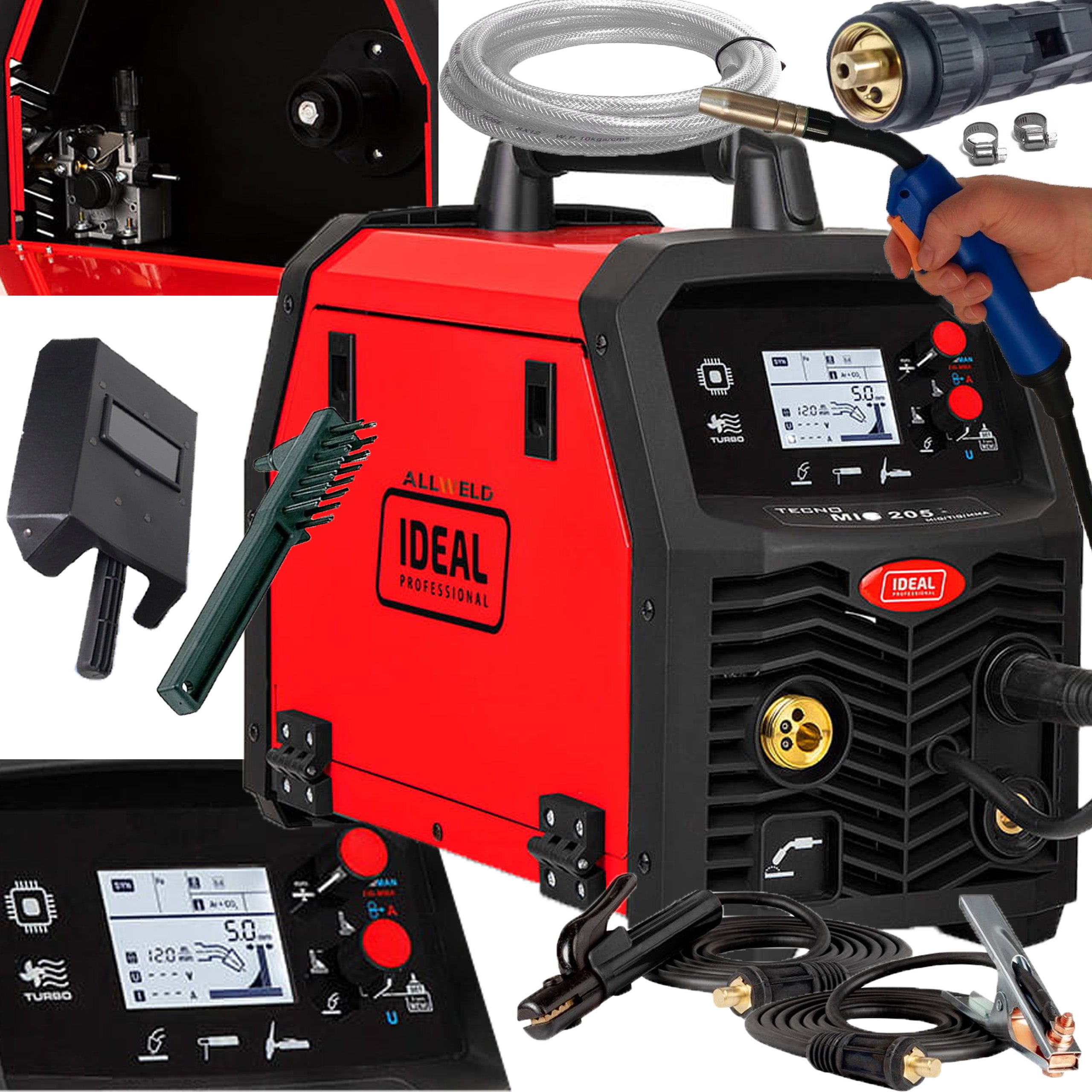

- Welding machine Ideal TECNOMIG 205 LCD Synergy
- Welding torch MIG EURO MB 15 3m
- MMA electrode holder
- Mass cable
- User manual
- welding disc,
- brush-hammer.
▶ SENSATIONAL MIG FOR THE AUTOMOTIVE INDUSTRY AND NOT ONLY
TECNOMIG 205 Synergy LCD has been designed for a wide range of applications: from maintenance work to car body repairs.
It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture and with reverse polarity without gas.
WELDING METHODS: MIG/MAG, FCAW, TIG DC Lift, CuSi3 soldering
- Supply Voltage: Single Phase 230V
- Welding Current: 35 - 200A
- Working cycle: 60%
- Technology: IGBT Inverter
- ATC function - optimal welding of thin sheets
- Producer: Ideal

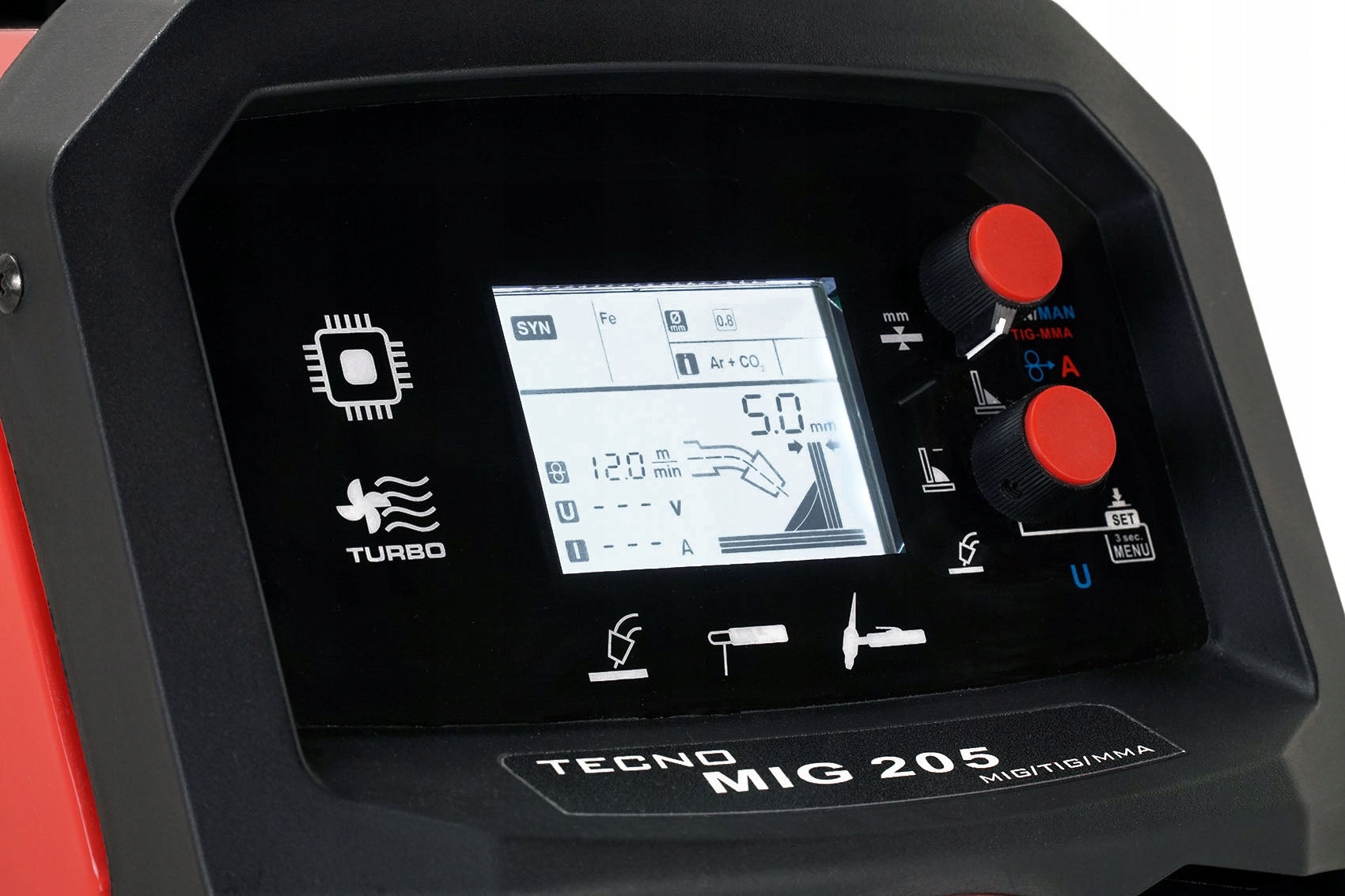

LCD DISPLAY WITH EXCELLENT CONTRAST
The user interface is simple to use and intuitive.
The user can choose whether to use synergistic programs or weld in manual settings mode. When using Synergy, it is enough to choose the type and thickness of the welded material. Of course, it is possible to make adjustments to the selected program.
ADDITIONAL FEATURES THAT MAKE A DIFFERENCE:
- ATC - optimization of arc characteristics when welding thin elements,
- regulation of welding inductance - control of face width and depth of melting,
- regulation of the feeder access speed,
- Burn Back - regulation of wire burning time,
- regulation of gas outflow after welding,
- MIG/MAG spot welding.
PROFESSIONAL WIRE FEEDER 2R
Ideal TECNOMIG 205 LCD is equipped with a professional 2R welding wire feeder. It ensures stable feeding, which translates directly into good welding parameters. The drive transmission mechanism is resistant to various types of dirt that occur in workshop conditions.
ADVANTAGES OF THE DEVICE:
- maximum welding current up to 200A,
- MIG/MAG welding in manual setting mode or using synergistic lines,
- synergistic MIG/MAG programs for different material groups: steel, non-stained steel, aluminum, soldering, self-shielding wire welding,
- additional MIG/MAG welding functions that improve welding quality,
- EURO socket,
- possibility of MMA and TIG DC Lift welding.
- Power Supply: 230V
- Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
- Working cycle: 60%
- Current taken from the mains: 20,3A
- LCD display
- Degree of protection: IP23S
- Dimensions: 540x240x385 mm
- Net weight: 16kg
MIG/MAG welding parameters:
- Welding current: 50 - 200A
- Current at 60% duty cycle: 200A
- Current at work cycle 100%: 160A
- Welding Voltage: Smooth Adjustment
- Wire feed speed: smooth adjustment
- Synergistic programmes: YES
- MIG/MAG spot welding: YES
- Function of ATC
- Diameter of aluminum wire: 0,8 - 1,0 mm
- Wire diameter for soldering: 0,8 - 1,0 mm
- Self-shielding wire diameter: 0,8-0,9 mm
- Steel wire diameter: 0,6 - 1,0 mm
- Stainless steel wire diameter: 0,8 - 1,0 mm
MMA welding parameters:
- Welding Current: 20-150A
- Idle Voltage: 64V
TIG welding parameters (optional):
- Welding Current: 20-150A
- Output Current: DC Constant
- Arch ignition: rubbing - TIG Lift
- Welding machine Ideal TECNOMIG 205 LCD Synergy
- Welding torch MIG EURO MB 15 3m
- MMA electrode holder
- Mass cable
- User manual
- welding disc,
- brush-hammer.
PHOTO GALLERY:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Welding methods | MIG/MAG |
| Parametry | Power consumption | 6.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 35–200 A |
| Parametry | Height | 385 mm |
| Parametry | Length | 540 mm |
| Parametry | Width | 240 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Manufacturer code | TMIG205LCDV2 MAPR2-15-N |
| Parametry | EAN (GTIN) | 5905214998936 |
| Parametry | Packaging status | original |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
