Suvirinimo aparatas IDEAL TECNO MIG 203 200A MMA TIG 3IN1 SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 203 200A MMA TIG 3IN1 SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka ideal TECNOMIG 203 LED RSH2
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

Manufacturer: IDEAL ||| Welding methods: MIG/MAG, MMA, TIG Lift, FLUX ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

Device + set of welding accessories

TECNOMIG 203 LED is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device is designed for a wide range of applications, from maintenance work to car body repairs.

TECNOMIG 203 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)

With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

➡ ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• the possibility of TIG DC Lift welding with a dedicated handle,
• solid, durable housing.

Professional 2R Wire Feeder

Professional 2R feeder - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination.

IDEAL - A GOOD CHOICE FOR TODAY AND TOMORROW

The IDEAL brand is the result of many years of activity of specialists in the welding industry. IDEAL devices are distinguished by attention to quality and diligence. Representatives of the IDEAL brand are constantly looking for inspiration, among others, through regular participation in national and international welding fairs. More than 30 years experience in the design and manufacture of devices is noticeable in IDEAL products.

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 5,9 kW
• Degree of protection: IP 21S
• Dimensions: 440x170x290 mm
• Weight 12,0kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 50 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 155A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Wire diameter for soldering: 0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES
• Synergistic MIG/MAG programs: YES
• Operating mode in manual settings MANUAL: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 200A
• TIG welding current regulation: smooth
• Two operating modes: 2T/4T
• Gas after (post gas): YES from 0,1 to 5,0s
• Micro switch control: YES
• Gas connection: by device

MMA welding parameters:

• MMA welding current: 10 - 160A
• Electrode diameter: 1,6 / 2,0 / 3,2 /
• MMA Welding Current Adjustment: Smooth
• Idle Current Voltage: 50V
• VRD Function: YES

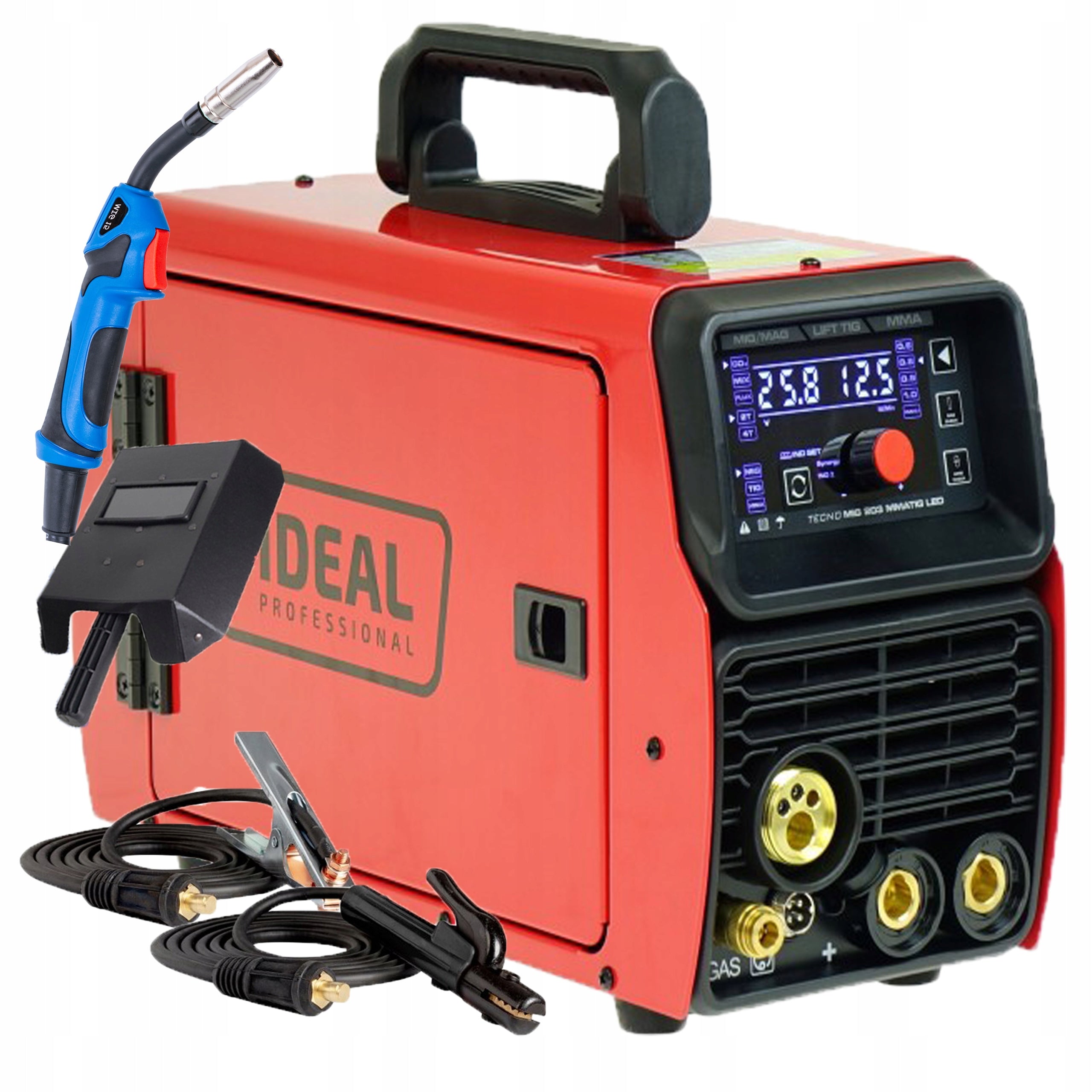

• Welding machine IDEAL TECNO MIG 203 LED
• MIG MB-15/3m welding torch
• TIG SR-17/4m welding torch
• MMA Electrode Cable
• Bulk cable
• User manual PL

PHOTO GALLERY:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	5 kg
Parametry	Welding range	50–200 A
Parametry	Height	290 mm
Parametry	Length	440 mm
Parametry	Width	170 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	Spawarka ideal TECNOMIG 203 LED RSH2
Parametry	EAN (GTIN)	5904624037358
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
