Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę

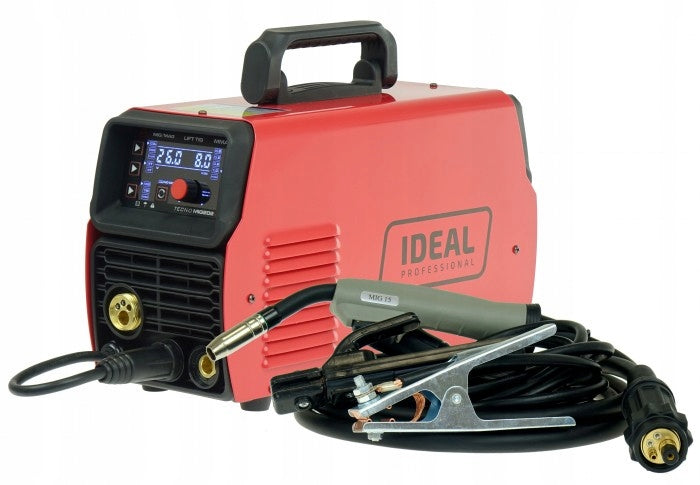

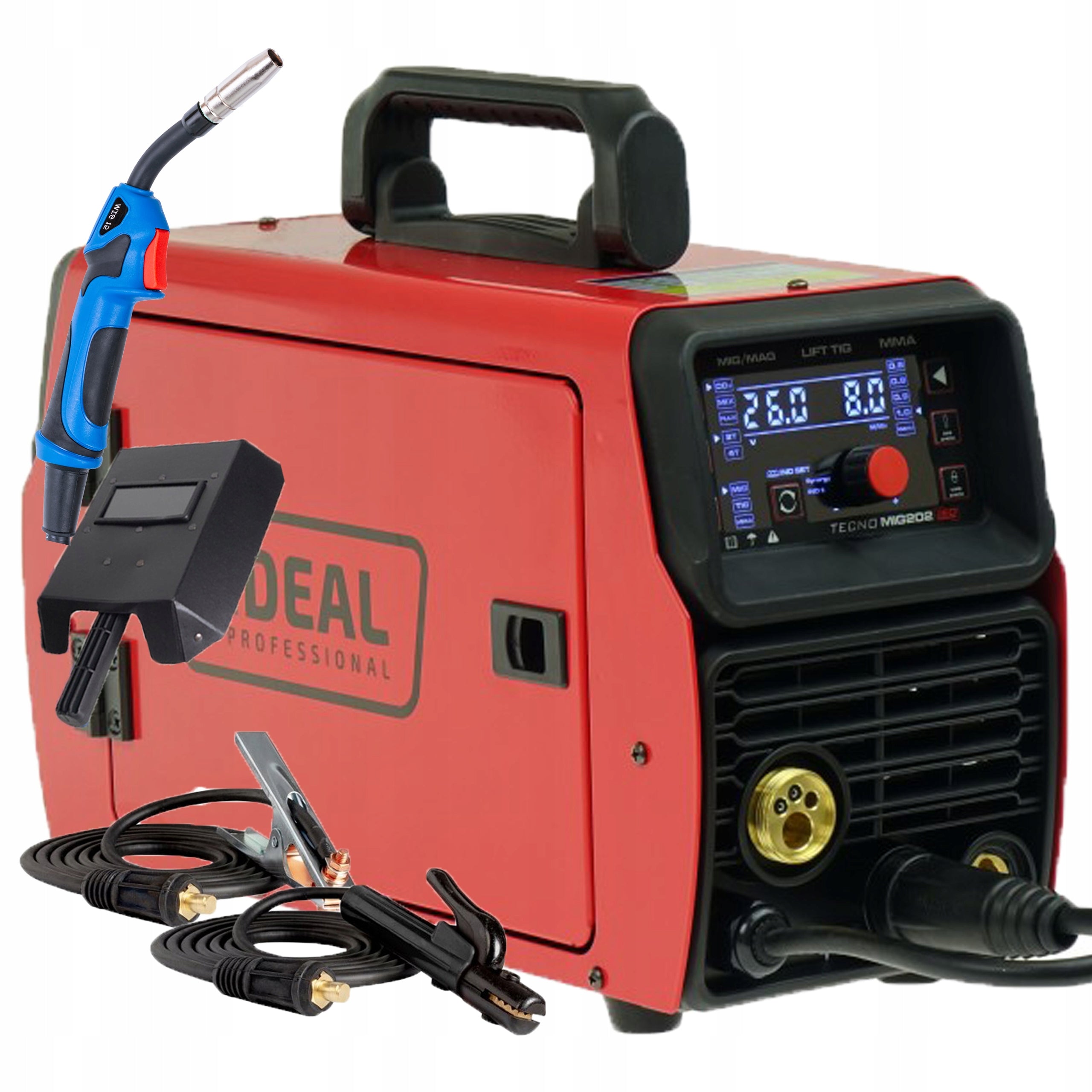

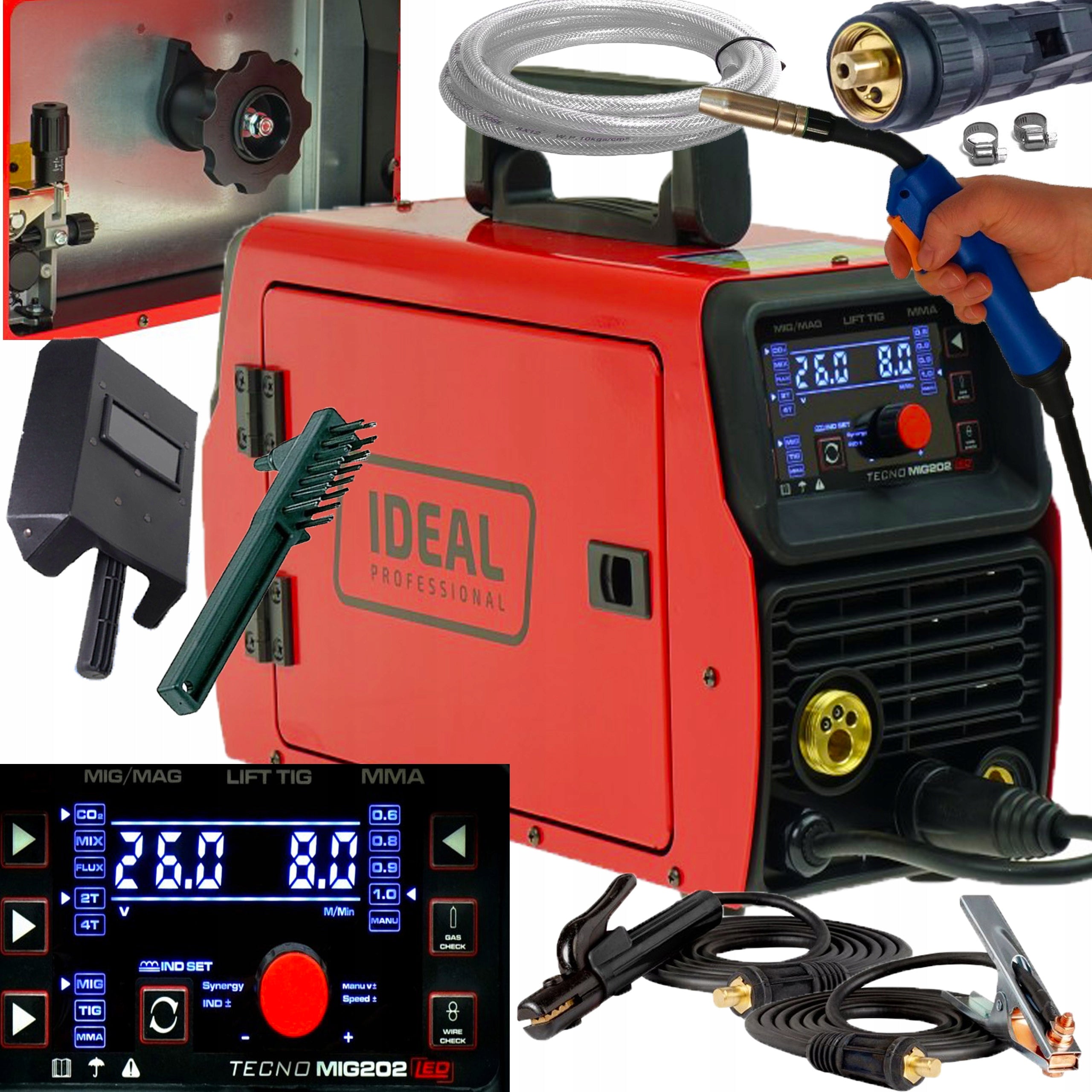

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 202 200A MMA TIG 3IN1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: Synergia TECNOMIG 202
Microprocessor-controlled semi-automatic welding machine for MIG-MAG welding, soldering, FLUX, TIG Lift and MMA welding. Welding current 200A (TIG/MIG), 160A (MMA). Power supply 230V. Welding wire diameter. 0,6-1,0mm. 2-roll wire feeder. Synergy
TECNOMIG 202 LED is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
TECNOMIG 202 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.
With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)
With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides over-the-counter safety when working in humid environments.
The device is equipped with overload protection, which increases its reliability. The device is equipped with a power plug.
A1537964069)
- Single-phase power supply.
- The device has a fan cooling system which significantly increases its efficiency.
Current taken from the mains: 34 A
Power supply network protection: 25 A immediate (type C)
Rated supply voltage: 230 V; 50Hz (1ph)
Power: 6,2 kW
Idle Voltage: 74 V
Maximum current: 200 A - 60%
Current at 100%: 155 A (MIG/TIG) / 124 A (MMA)
Current at 60% operation: 200 A (MIG/TIG) / 160 A (MMA)
Diameter of aluminum wire: 0,8 - 1,0 mm
Wire diameter for soldering: 0,8 mm
Diameter of self-shielding wire: 0,8 - 1,0 mm
Steel wire diameter: 0,6 - 1,0 mm
Stainless steel wire diameter: 0,6 - 1,0 mm
Welding electrode diameter: 1,6 - 4,0 mm
Welding Current Adjustment Range: 50 -200 A (MIG) / 10 -160 A (MMA) / 10 - 200 A (TIG)
Wire spool size: D200 (2kg and 5kg)
Degree of protection: IP21S
Weight of the device / set: 10 / 14 kg
Overall dimensions L x W x H: 455x170x300 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | Synergia TECNOMIG 202 |
| Parametry | EAN (GTIN) | 5903686610196 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
