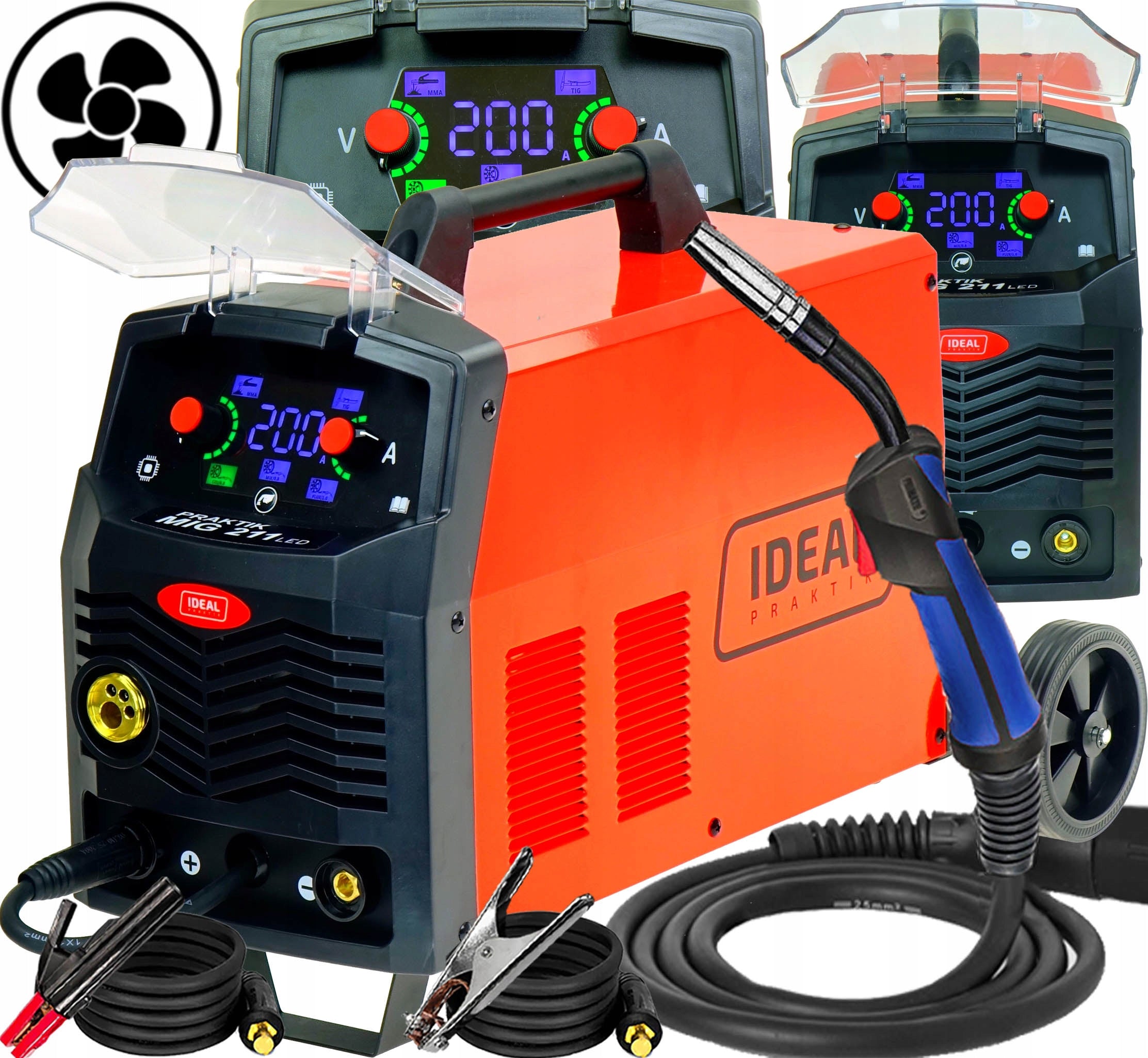

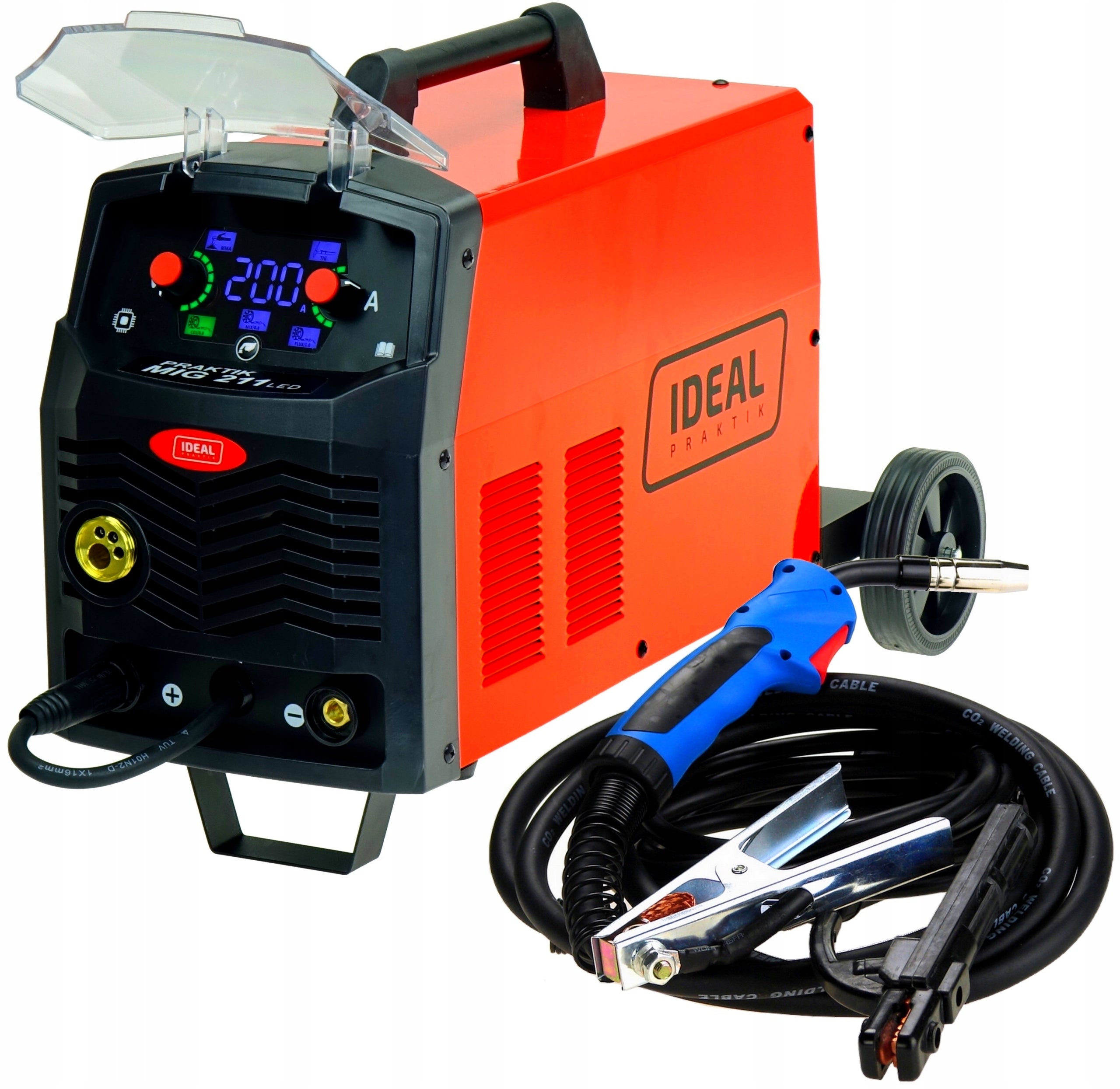

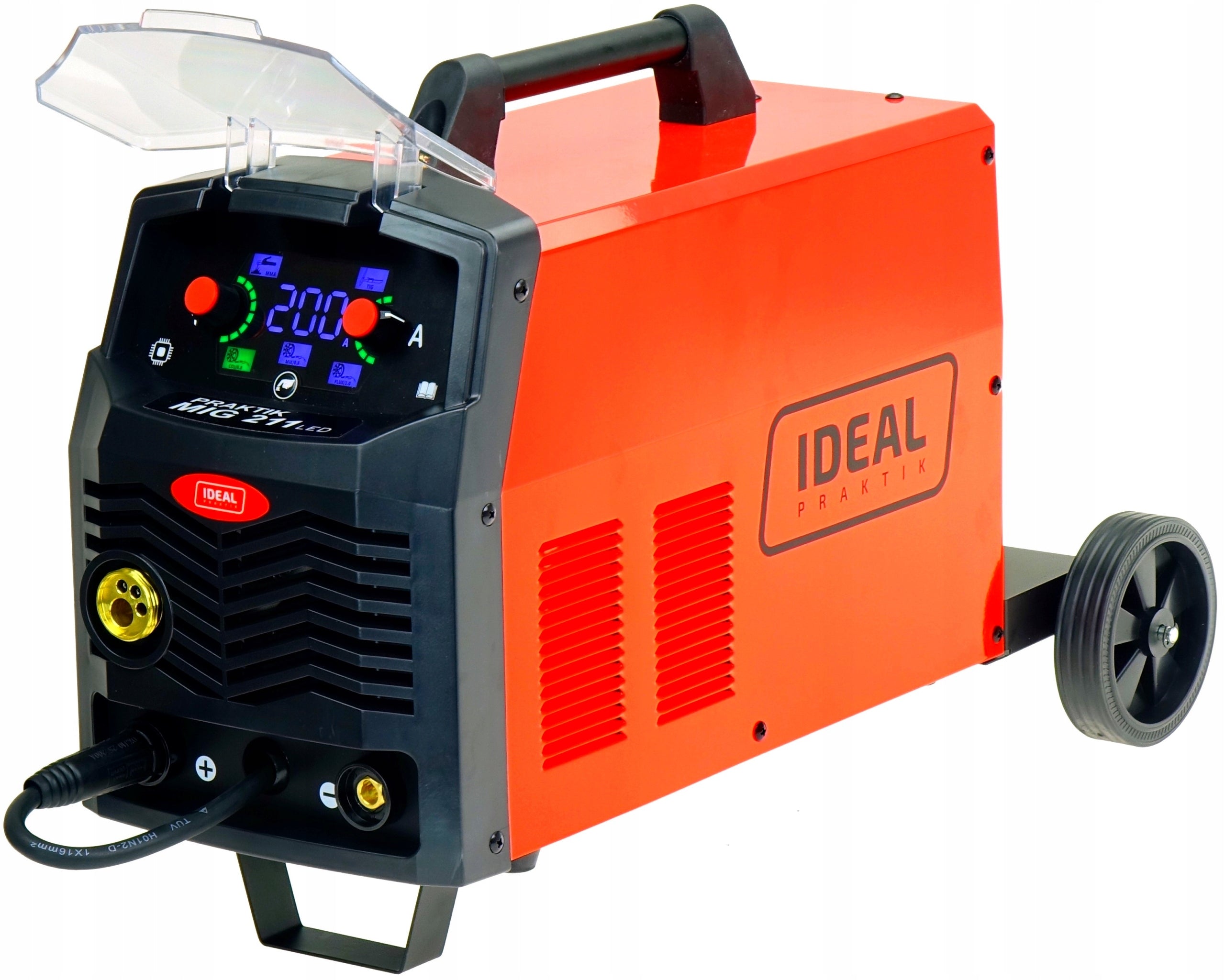

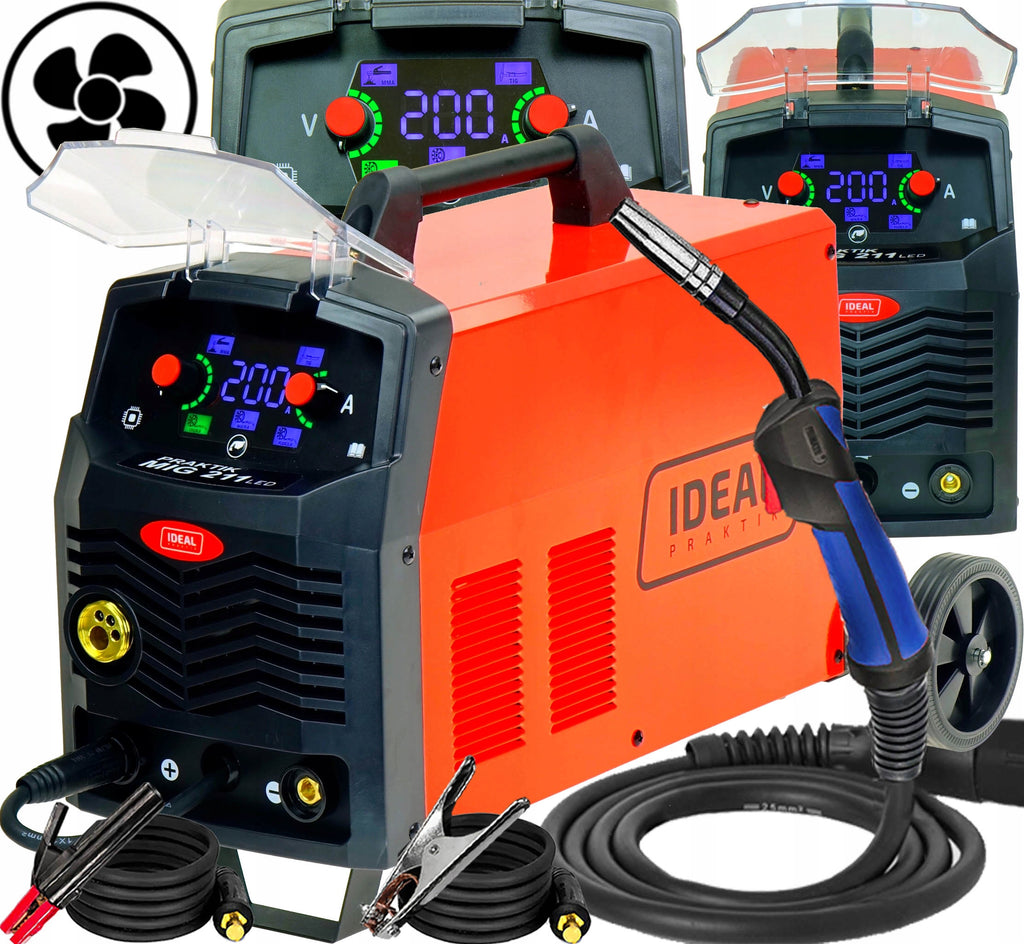

Suvirinimo aparatas IDEAL PRAKTIK MIG 211 SYNERGIC LED

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL PRAKTIK MIG 211 SYNERGIC LED. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: PMIG211SLED

WELDING MACHINE PRAKTIK MIG 211 SYNERGIC LED

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

PRAKTIK MIG 211 SYNERGIC LED welding machine is used for welding:

✔ carbon steel

✔ low alloy steels

✔ stainless steel

✔ other weldable metals and alloys

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

IDEAL PRAKTIK MIG 211 SYNERGIC LED has a readable and easy to use function panel, which has i.a.:

• Welding voltage potentiometer,
• Welding current potentiometer,
• LED display,
• Welding method switch that switches between: MMA, TIG (Lift),

A clear and easy-to-use control panel allows you to choose one of three synergistic programs:

✔ CO2/0.8 - MIG/MAG CO2 shield / wire Φ0.8,

✔ MIX/0.8 - MIG/MAG cover mix CO2 + Ar / wire Φ0.8,

✔ FLUX/1.0 - MIG/MAG self-shielding wire Φ1.0.

✔ REPAIR WORKSHOPS,

✔ LOCKSMITH WORKSHOPS,

✔ ALL BODYWORK REPAIRS,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment of PREMIUM class. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ MOBILITY OF THE DEVICE - thanks to the attached transport handle, the welding machine is easy to transport and allows welding in hard-to-reach places.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roller feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 1~230±10%
• Frequency: 50/60
• Power consumption in idle state [W]: 49
• Power protection: C20
• Efficiency ext. devices [%]: 81
• Idle current voltage: 62 V

⏩ MIG PARAMETERS:

• Welding current: 35 - 200 A
• Power at work 60%: 200 A
• Power at work 100%: 155 A
• Feeder type: built-in 2-roller
• Steel wire diameter: 0,6 - 0,8
• FLUX wire diameter: 0,8 - 1,0
• Stainless steel wire diameter: 0,8
• Wire spool: 0,45- 5 kg

⏩ TIG PARAMETERS:

• Welding current: 15 - 200 A
• Power at work 60%: 200 A
• Power at work 100%: 155 A

⏩ MMA PARAMETERS:

• Welding current: 20 - 170 A
• Power at work 60%: 170 A
• Power at work 100%: 133 A
• Diameter of electrode: 1,6 - 4,0

⏩ OTHER:

• Weight: 16 kg
• Overall dimensions L x W x H: 470x225x335 mm
• Package dimensions L x W x H: 570x245x355 mm
• Degree of protection: IP21S
• Isolation class: H
• Cooling: AF

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine IDEAL PRAKTIK MIG 211 SYNERGIC LED - 1 pc.
• Welding torch MB15 - 3 m - 1 pc.
• Bulk cable - 2 m - 1 pc.
• Electrode cable - 2 m - 1 pc.

SET 1 LARGE MIG WITHOUT MB15 INDUCTION.

M.
