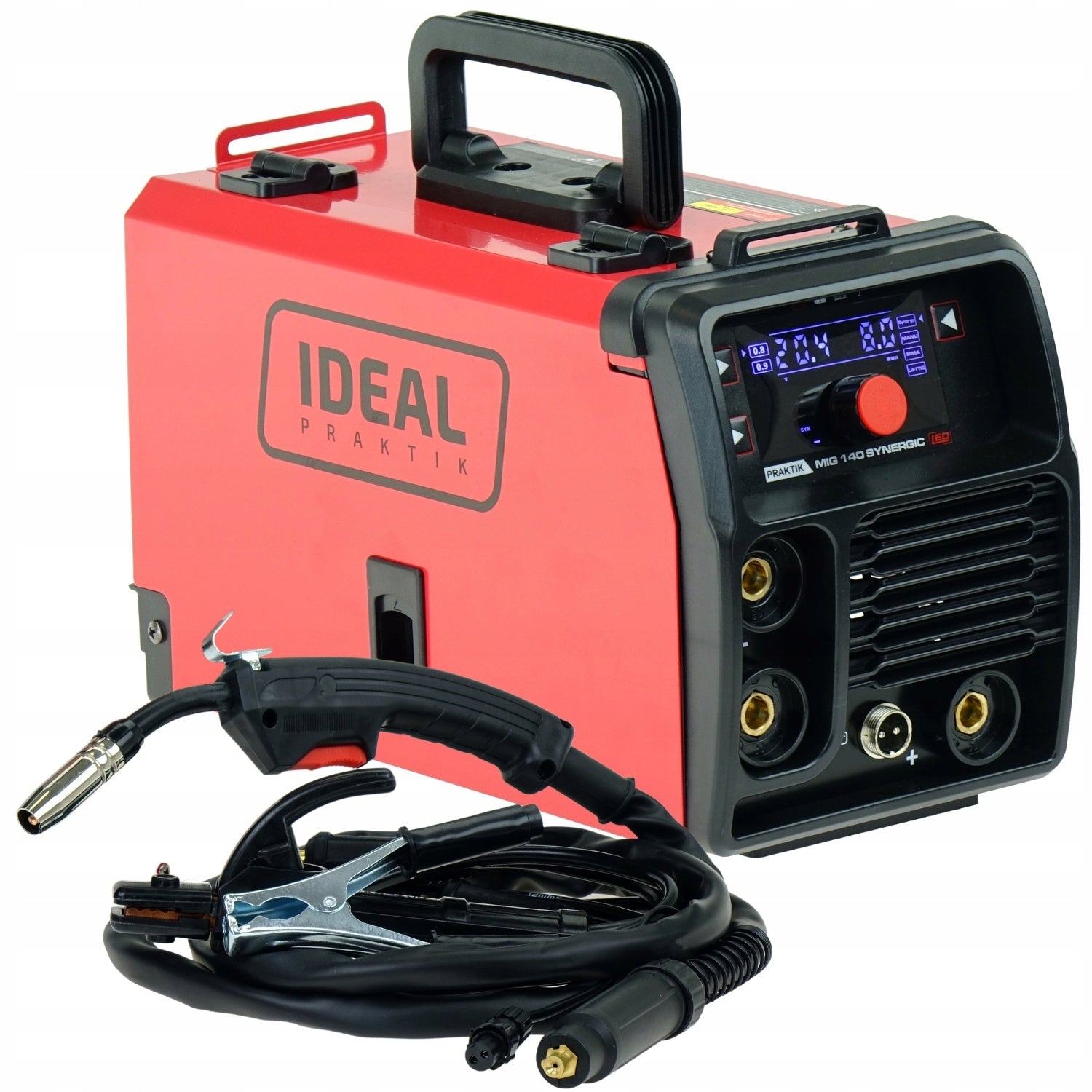

Suvirinimo aparatas Ideal Praktik MIG 140 FLUX Synergy 230V 3in1

Trumpai apie prekę

Prekė: Suvirinimo aparatas Ideal Praktik MIG 140 FLUX Synergy 230V 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 140 SYNERGIA
• Ilgis: 305 mm
• Plotis: 160 mm
• Aukštis: 240 mm

❇ Model: Praktik MIG 140 ❇ Power supply: 230V 1ph ❇ Welding methods: FLUX (MAG NO GAS), MMA, TIG DC

PRAKTIK MIG 140 SYNERGIC LED - GAS-FREE MIGOMAT

Here is a synergistic semi-automatic welding machine that will adapt to your needs. The MIG 140 Synergic LED allows welding by three methods: FLUX, TIG LIFT and MMA, offering flexibility in a wide range of applications – from maintenance to repair of simple steel structures.

✅ Ideal welding machine for simple welding work in the fence and workshop. Compact size, wide range of applications, thanks to modern IGBT inverter technology.

The device has been designed for a wide range of applications, e.g.:

• maintenance work – ideal for minor repairs and maintenance of equipment and structures.
• repair of car bodies – perfect for precise repairs and connection of body parts.
• welding of stainless and acid-resistant steel – provides durable and aesthetic welds (TIG DC Lift method),
• home and workshop work – versatility and compact size make it suitable for use in home workshops,
• repair work in the field - compact size, welding without gas using the FLUX method.

✅ 3in1 device - Welding by FLUX (FCAW) , MMA , TIG DC Lift method.

⚙ Self-shielding wire welding FLUX without gas

Semi-automatic welding with a special self-shielding wire, which does not require the use of shielding gas as in the MAG method. Special wire is usually available in spools D100 weight 0,5kg and 1kg. Welding with this method combines the advantages of MAG and MMA methods.

⚙ MMA (Manual Metal Arc)

It is a method of welding with a wrapped electrode, in which the electric arc melts the base metal and the electrode. It is one of the oldest and most versatile techniques, ideal for welding carbon steel, stainless steel and other materials.

Thanks to its ease of use and resistance to weather conditions, MMA welding is often used in construction, industry and repair work.

⚙ TIG DC Lift welding (contact arc glow)

It involves the production of an electric arc between the non-melting electrode and the welded material. The electric arc generates a high temperature that melts the metal at the contact points, allowing the welded elements to be joined together. In this process, there is no need to use additional material unless it is required, then it is delivered manually to the welding lake.

TIG DC welding (direct current) is an excellent method for precise joining, e.g. carbon steel, stainless steel and acid-resistant steel. It guarantees the highest quality of welds and full control over the process, ideal for work requiring precision.

Requires retrofitting with a special TIG handle with valve, e.g. TIG17V.

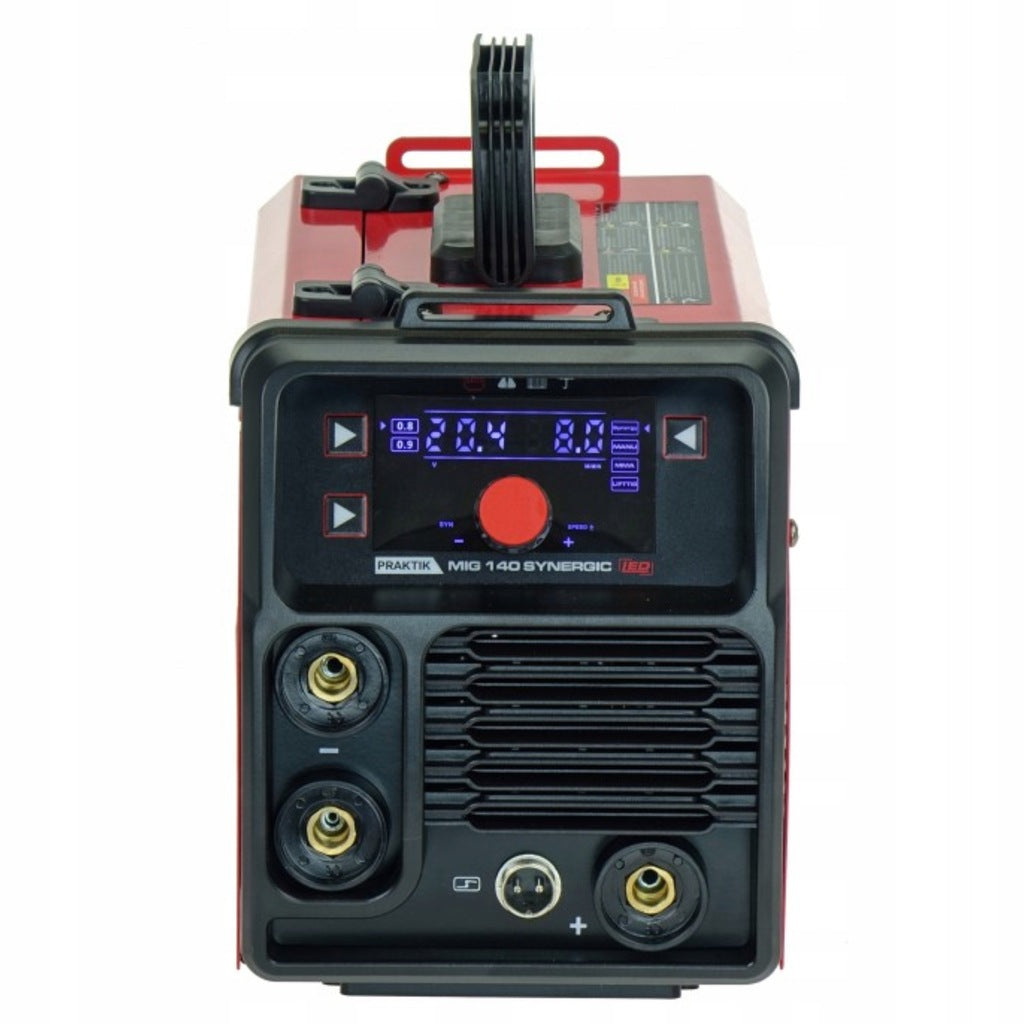

✅ Clear display, simple interface

IDEAL PRAKTIK 140 The easy-to-read display and simple interface make the operation of the welding machine intuitive and convenient.

They facilitate quick setting of parameters and monitoring of the welding process, which increases work efficiency and minimizes the possibility of errors.

✅ Professional wire feeder

The PRAKTIK MIG 140 SYNERGIC LED welder is equipped with a 2-roll wire feeder, which ensures smooth and stable feeding of welding wire with a diameter of 0,8-0,9 mm.

The reliable feeder mechanism minimizes the risk of jams and ensures continuity of welding, even during intensive use.

With its robust construction and high-quality components, the wire feeder guarantees a long lifespan and reliability in all operating conditions.

Model: Praktik MIG 140 Synergic

• Power supply network protection: C20
• Rated power supply voltage: 230V; 50/60Hz (1ph)
• Power: 4 kW
• Idle Voltage: 56V
• Maximum current: 140A
• Current at 100% operation: 108A
• Current at 60% operation: 140A
• Wire spool size: D100 (0,45kg and 1kg)
• Degree of protection:IP21S
• Weight of the device / set:3,5kg / 6kg
• Overall dimensions L x W x H:305x160x240mm
• Package Dimensions L x W x H:385x250x250mm

Welding current adjustment range:

• FLUX (FCAW): 30-140A,
• MMA: 15-140A
• TIG DC Lift: 15-140A

⚙ Synergic FLUX Programmes (FCAW)

Automatic selection of wire feed values for the set welding voltage. Possibility to set the diameter of the wire - greater precision of Synergy operation. Thanks to this, the user gains ease of use, reduced setting time and confidence in obtaining high-quality welds.

⚙ FLUX Manual Settings Mode (FCAW)

Manual regulation of wire tension and feed. Full control and maximum precision in settings for each welding position.

⚙ Smooth regulation of MMA and TIG DC Lift welding current

Smooth and precise welding current adjustment. The ability to adjust the parameters perfectly to the needs of the welding machine.

The set includes:

• Inverter welding machine PRAKTIK MIG 140 SYNERGIC LED - 1pcs
• FCAW welding torch – length 2 meters - 1pcs
• Bulk cable – length 1,2 meters - 1pcs
• Electrode cable – length 1,5 meters - 1pcs
