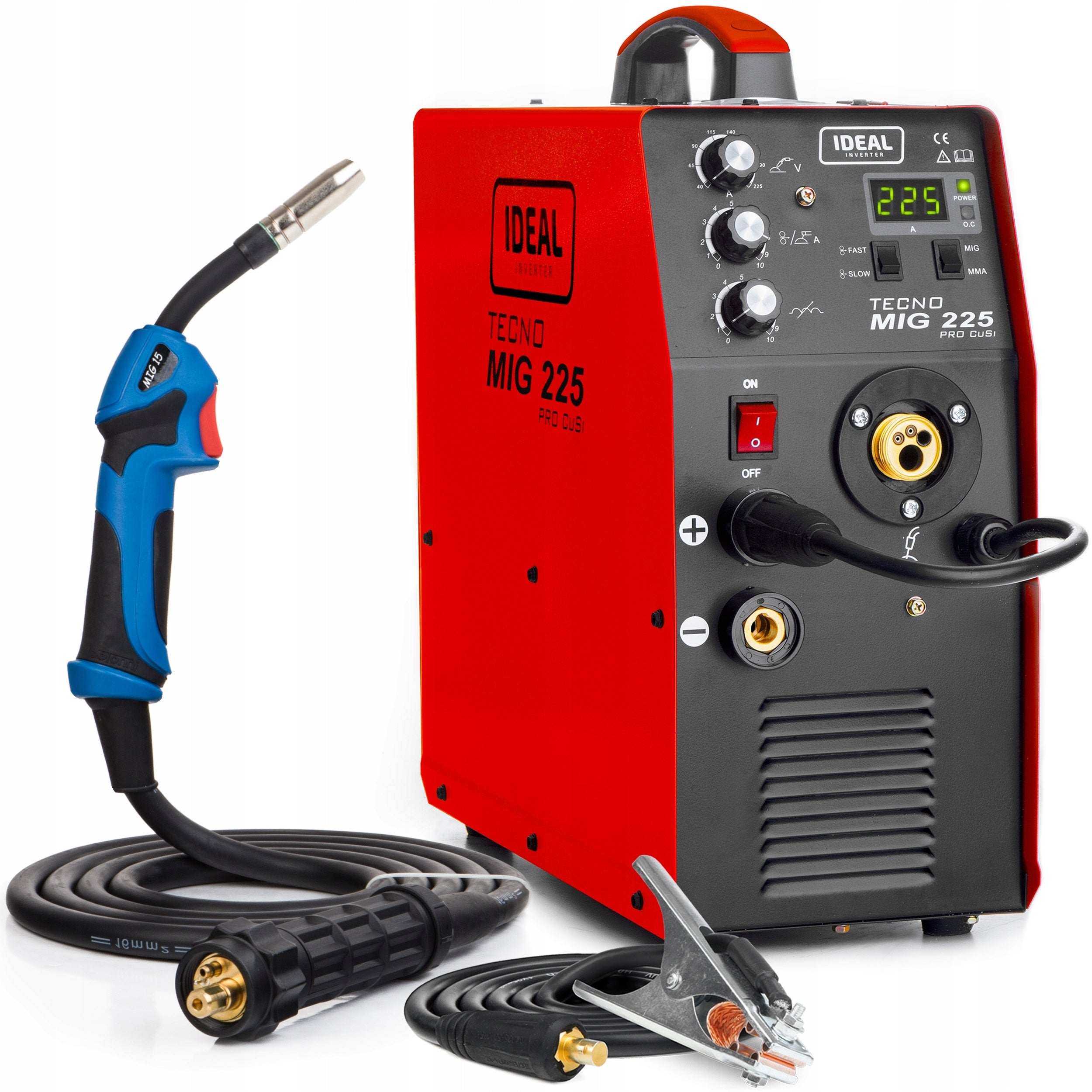

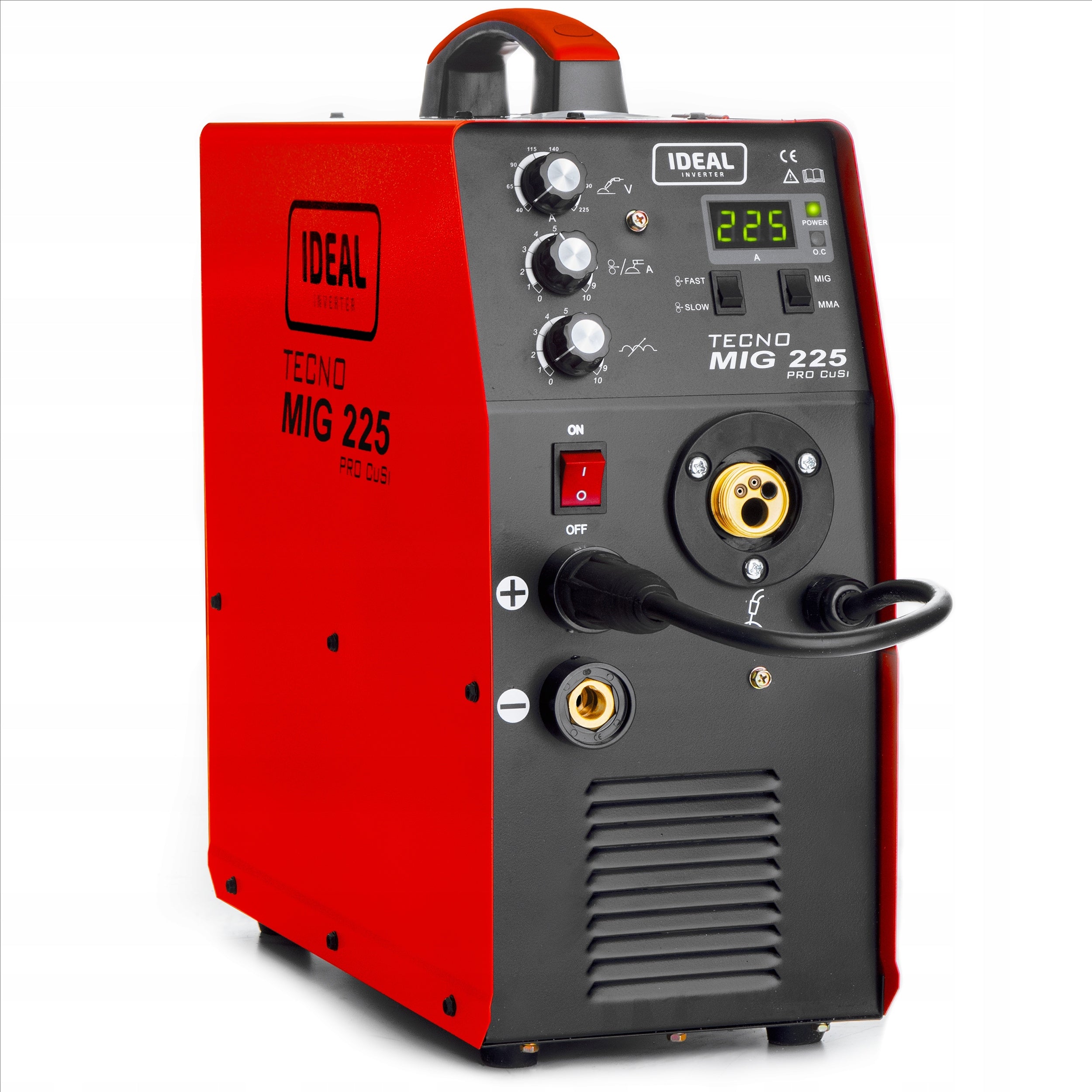

Suvirinimo aparatas IDEAL MIG 225 PRO MAG MMA TIG ALU 225A 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL MIG 225 PRO MAG MMA TIG ALU 225A 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG225CUSI

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA,TIG LIFT, FLUX ║ Power supply: 230V ║ Welding current: 225A ║ Efficiency: 60%

• Welding of all types of steel and aluminum
• Smooth regulation of welding parameters
• Easy-to-read display with excellent contrast
• EURO socket - replaceable MIG/MAG holder
• Inductance adjustment - changing the shape of the weld
• Variable polarity - welding without FLUX gas
• Latest generation IGBT transistors
• Possibility of brazing
• Professional 2-roll feeder with a powerful motor
• Durable mobile chassis with space for a cylinder
• Possibility of disassembling the running gear
• Ideal for households and workshops

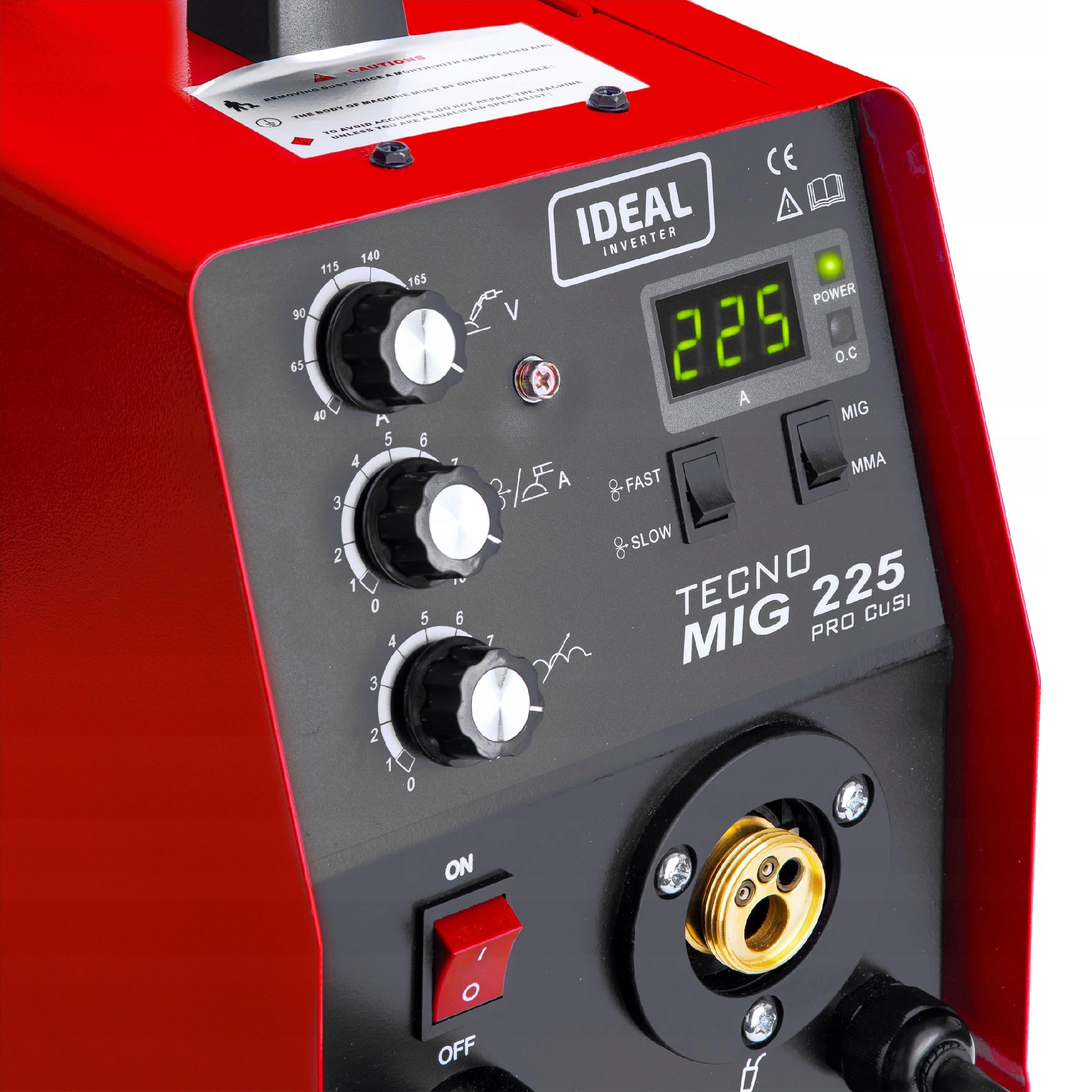

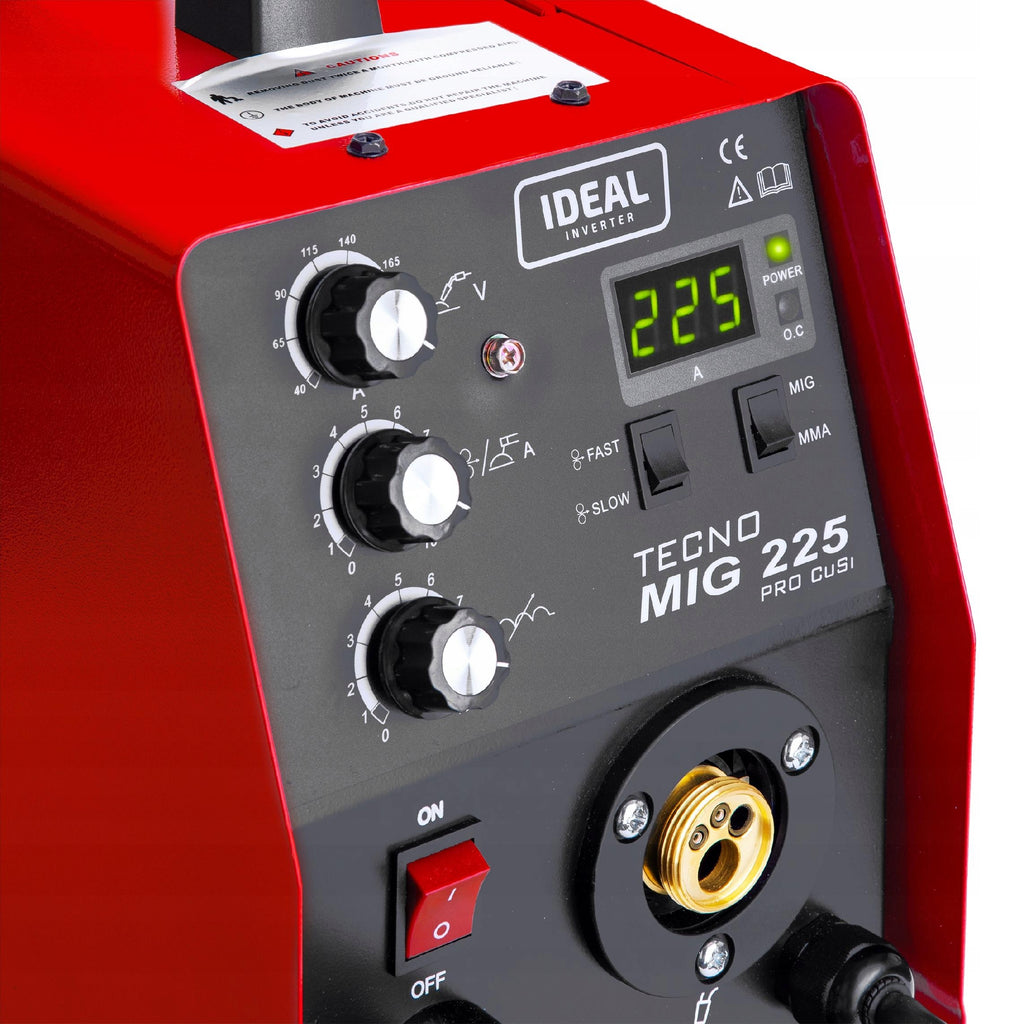

• Easy-to-use control panel
• Fan - air-cooled migomat
• 230V single phase power supply
• High Duty Cycle 60%
• Optimal sizes and weight
• Proven producer
• The newest model on the market

UNIVERSAL WELDING MACHINE

IDEAL TECNO MIG 225 PRO CuSi MMA is a semi-automatic welding machine designed for MIG/MAG and MMA welding with a maximum current of 225A at 60% efficiency. The parameters of this device will allow us to work effectively in a home workshop or even a workplace.

WELDING WITHOUT GAS

The applied variable polarity allows you to weld without gas using the FLUX method with a self-shielding wire. IDEAL TECNO MIG 225 PRO CuSi MMA has an easy-to-use integrated function panel with knobs enabling smooth adjustment of the welding current, wire feed speed and inductance. This solution guarantees simplicity and ease of use.

3IN1 WELDING MACHINE – an inverter source that effectively and failure-free combines several welding methods. Migomat, i.e. welding with inert and active gas MIG MAG with MMA coated electrode welding. In addition, it allows the use of a TIG torch with a valve for welding in the Lift method with touch arc ignition.

BRAZING - a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much lower. Brazing is used to join thin sheets of metal covered with a layer of zinc . The described method is a bonding process during which the solder is melted, not the material we are working with. The second part of the name, MIG/MAG, comes from the use of the method of melting the wire in an electric arc surrounded by a protective gas, as well as from preparing the edge of the material in the same way as for traditional welding. However, the braze welding method is used not only to join galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. stainless steel with ordinary steel or copper with steel.

FLUX - arc welding with cored wire, not requiring the use of gas cylinders. We use a self-shielding wire, which is filled with a flux or a chemical substance, producing protective gases during welding.

EUROCONNECTOR - enabling interchangeable use of various types of handles.

OVERLOAD SWITCH - built-in protection against overheating of the device, extending its life.

POWER PARAMETERS:

• Supply voltage: 230V
• Number of phases: 1ph
• Power frequency: 50Hz
• Required security: 29 A

TECHNICAL PARAMETERS:

• Efficiency: 60%
• Open-circuit voltage: 42V
• Feeder: 2R
• Inductance adjustment: Yes
• Welding without gas: Yes

MIG/MAG WELDING PARAMETERS

• MIG/MAG welding current range : 40-225A
• 60% efficiency
• Feeder: 2 rolls
• Wire spool: D200 (2kg and 5kg)
• Aluminum wire diameter 0.8 - 1.0
• Self-shielding wire diameter 0.8 - 1.2
• Steel wire diameter 0.6 - 0.8
• Stainless steel wire diameter 0.6 - 0.8

MMA WELDING PARAMETERS

• MMA welding current range : 40-160A
• Efficiency: 60%

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Dimensions: 465x200x450 mm
• Weight: 10kg

SET CONTAINS:

• IDEAL TECNO MIG 225 PRO CuSi MMA welding machine
• MIG 15 welding torch - 3m
• Mass cable - 2m

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	11.3 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	9 kg
Parametry	Welding range	40–225 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	30 kg
Parametry	Manufacturer code	TMIG225CUSI
Parametry	EAN (GTIN)	5903991102034
Parametry	Packaging status	original
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
