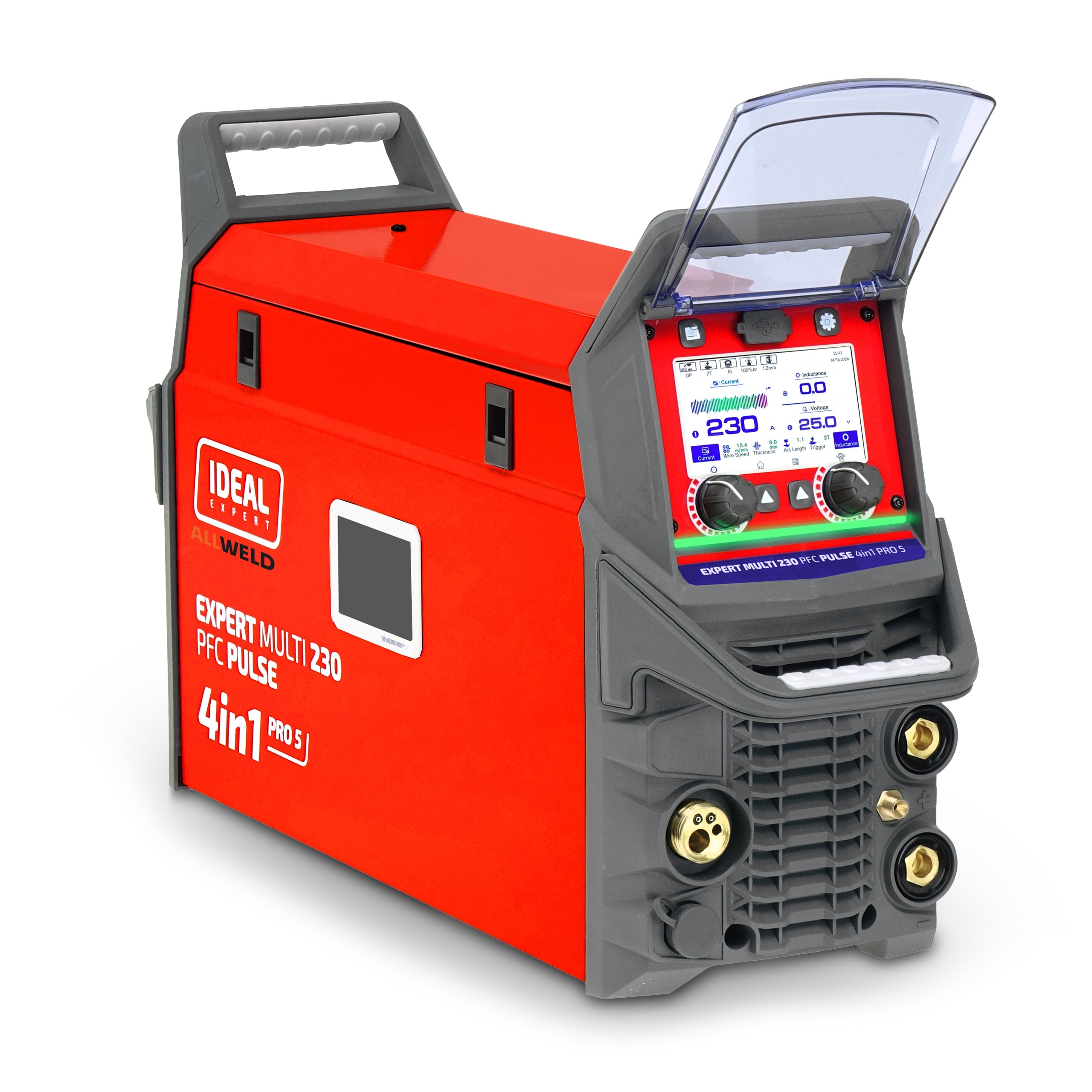

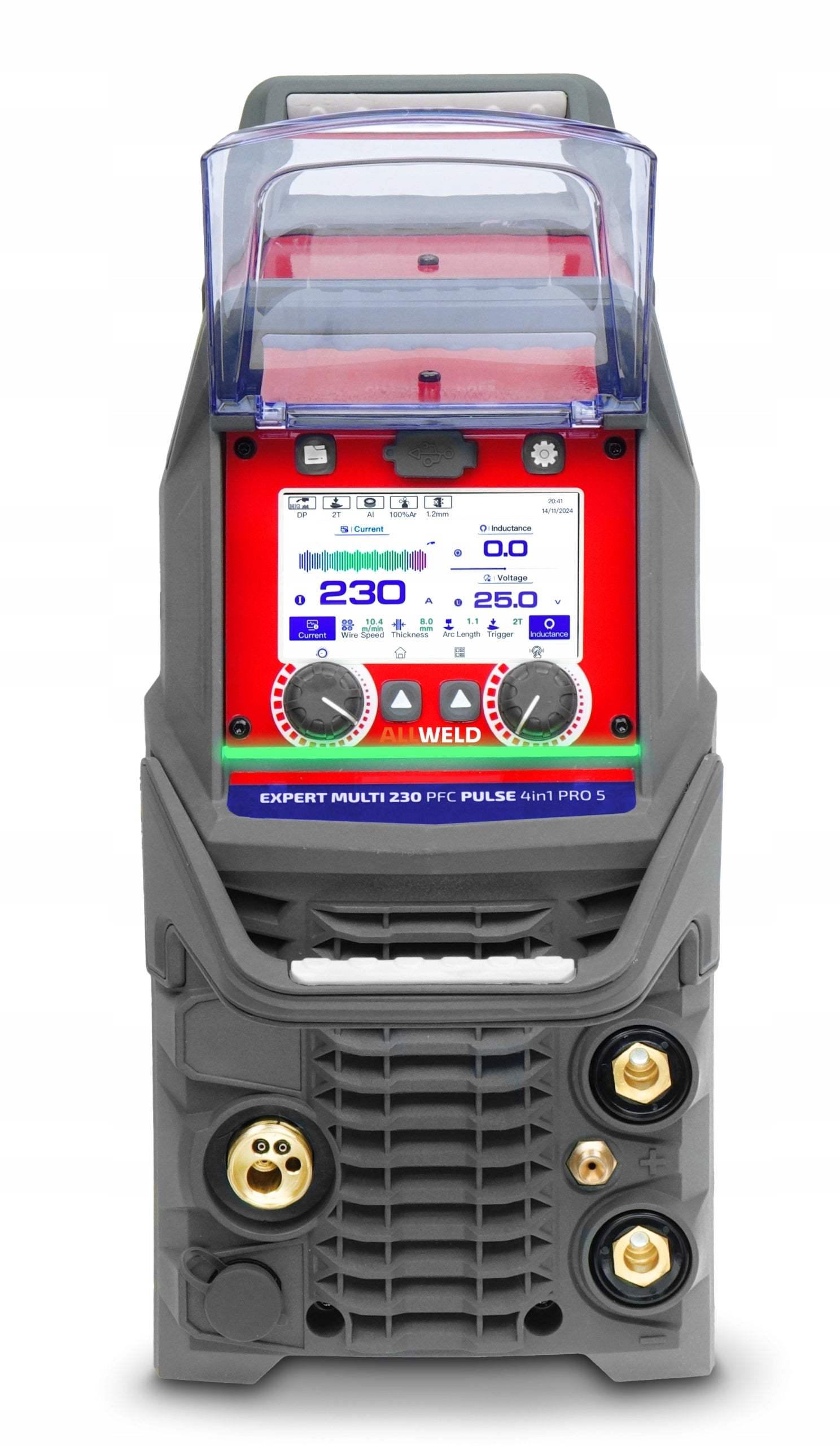

Suvirinimo aparatas IDEAL EXPERT MULTI 230 PFC PULSE 4IN1 PRO5 230V 230A SYNERGY TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MULTI 230 PFC PULSE 4IN1 PRO5 230V 230A SYNERGY TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT MULTI 230 PFC PULSE 4W1 PRO5

• Welding methods: MIG/MAG, MMA, TIG, SYNERGY, PULSE/DUAL PULSE, SOLDERING, SPOT WELDING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 230A
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• For welding: TIG DC/DC PULS: stainless steel, carbon steel, low alloy steel, copper, titanium; TIG AC/AC PULS: aluminium and its alloys, brass
• Smooth adjustment of welding parameters, inductance
• Tactile arc glow - LIFT and non-contact - HF
• Settings memory (JOB function)
• 5-inch touch LCD display
• Modes and functions: 2T/4T, PRT, HOT START, ARC FORCE, VRD, SMART TIG, MIX AC/DC, MULTITACK, EXTRA FUSION, Q-START, DYNAMIC ARC, MULTIWAVE
• Cooling with fan
• Protection against overload, overvoltage and undervoltage
• Clean, aesthetic welds
• Equipped with PFC module

✔ FEATURES AND ADVANTAGES:

• INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• TIG LIFT - arc glowing by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• HF - contactless arc glow through a built-in ionizer; uses high-frequency current; the weld is free from tungsten contamination,

• PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating / burning materials; welds are better quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• HOT START - temporary increase in welding current during arc ignition; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• SMART TIG - the device selects the optimal parameters of welding current or shielding gas outflow,

• PRT - two-level welding current,

• MIX AC/DC - allows welding with both direct current (DC) and alternating current (AC), depending on the needs of the material and welding method,

• MULTITACK - intermittent welding; allows you to adjust the frequency of the weld in the range of 0.5 - 6.0Hz,

• EXTRA FUSION - allows you to obtain a highly concentrated welding arc. It is possible to precisely control the welding lake and limit the introduction of heat into the material,

• Q-START - facilitating the initial stage of welding. This feature is particularly useful for welding thin sheets, where precise weld start is crucial,

• DYNAMIC ARC - automatic adjustment of welding current in response to changes in arc length,

• MULTIWAVE - welding technology that combines different forms of current wave (AC and DC) in one welding cycle,

• PFC - stable operation for voltage drops.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 25A “C”
• Welding current: MIG/MAG: 25 - 230A | MMA, TIG: 10 - 200A
• Power at work 100%: MIG/MAG: 145A | MMA, TIG: 100A
• Power at work 60%: MIG/MAG: 230A | MMA, TIG: 200A
• Current taken from the network: 31A
• Power consumption in idle state: 37W
• Idle voltage: 80V
• Aluminum/self-shield wire diameter: 0.8 - 1.2 mm
• Diameter of wire for soldering/stainless steel: 0.8 - 1.0 mm
• Steel wire diameter: 0.6 - 1.0 mm
• Diameter of welding electrode: 1.6 - 5.0 mm
• Protection rating: IP23S “H”
• Weight: 20kg

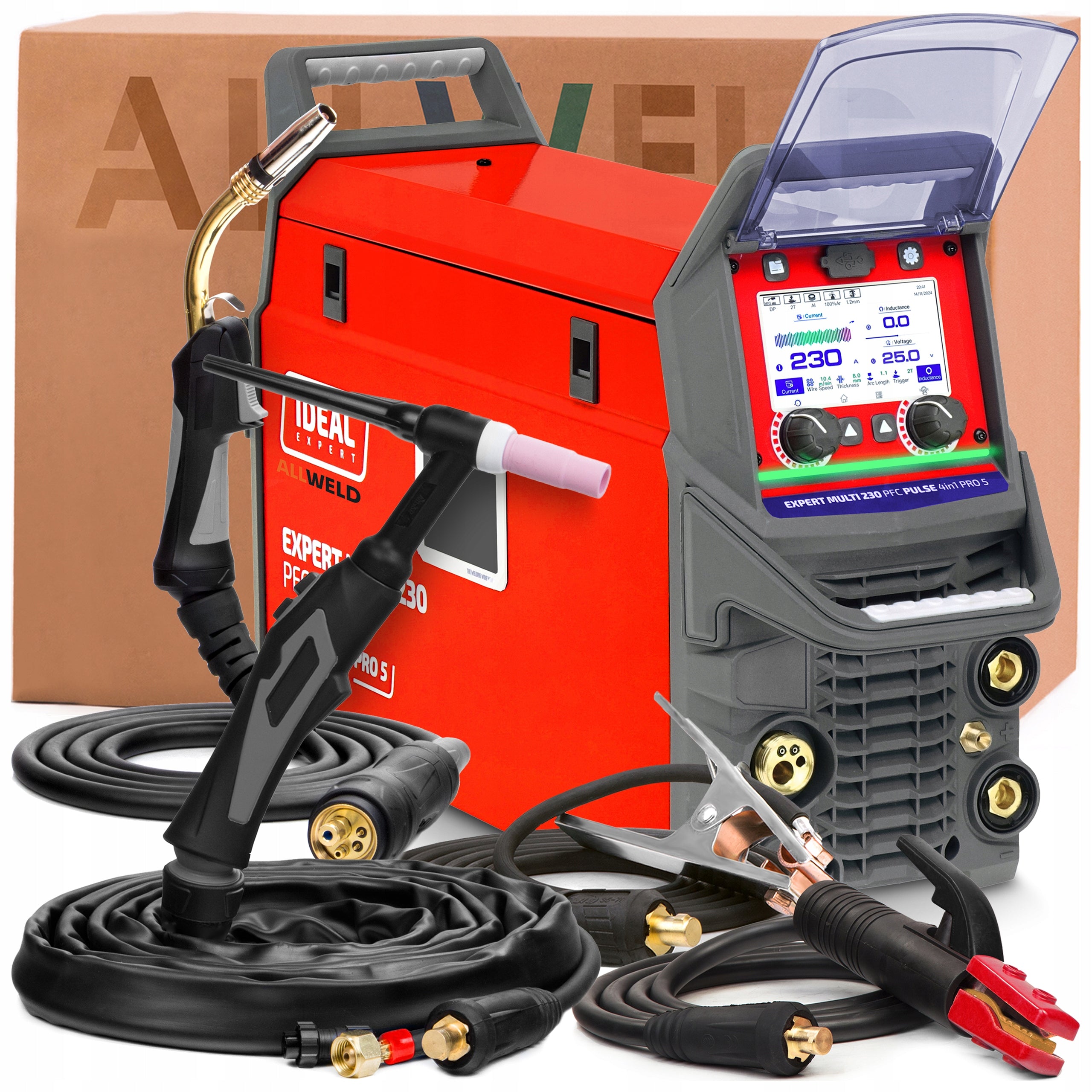

THE SET INCLUDES:

• IDEAL EXPERT MULTI 230 PFC PULSE 4IN1 PRO5 welder,
• Welding torch MIG/MAG type MB 24 - 3m,
• Welding torch TIG 26 with remote adjustment - 4m,
• mass handle - 3m,
• electrode handle - 3m,
• Hose for connecting gas cylinders - 1pcs ,
• TIG handle consumable parts,
• User manual in Polish.
